Waste PP PE Film bags Washing and recycling Machine Line
- Category: >>>
- Supplier: Zhangjiagang MC Machinery Co. Ltd.
Share on (60735144846):
Product Overview
Description
Product Description
Product Application

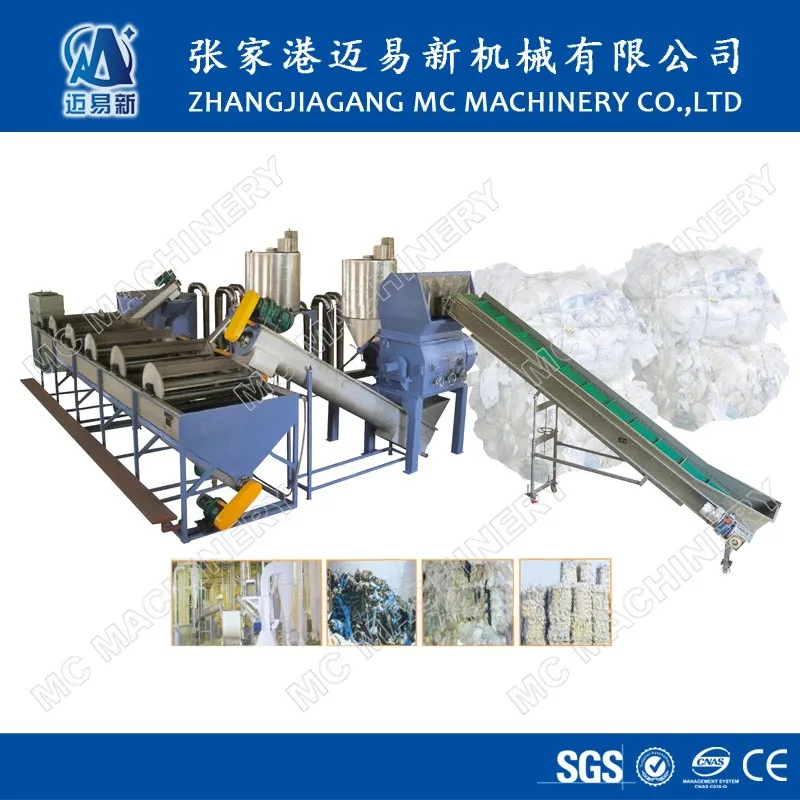

Waste PP PE Film bags Washing and recycling Machine Line is mainly suitable for crushing and washing dirty plastic film into clean film flakes,like agriculture film,packing film,shopping bags,woven bags and so on soft plastic materials.
Machine Model | Washing Capacity | Total Machine Electric Consumption | Total Machine Water Consumption (if you have dirty water treatment equipment,then water can be recycled) |
MCHS-300 | 300KG/H | 80KWH | 1-2ton/hour |
MCHS-500 | 500KG/H | 100KWH | 2-3ton/hour |
MCHS-1000 | 1000KG/H | 160KWH | 3-4ton/hour |

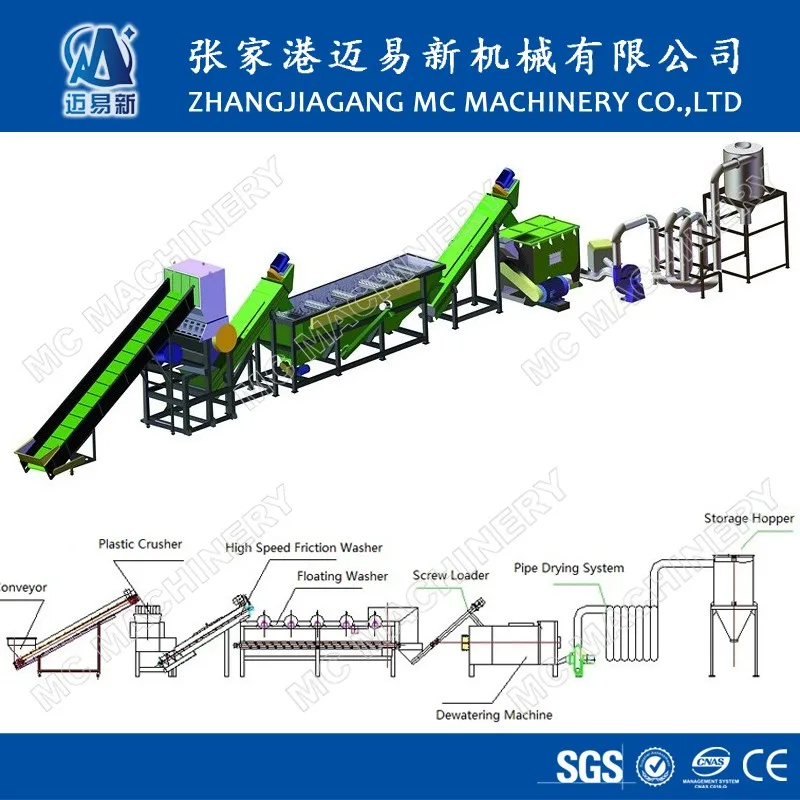

Machine Flow List
No. | Machine Name | Quantity |
1 | Belt Conveyor | 1 |
2 | Plastic Crusher(with water) | 1 |
3 | High Speed Friction Washer | 1 |
4 | Floating Washer | 1 |
5 | Screw Loader | 1 |
6 | Dewatering Machine | 1 |
7 | Pipe Drying System and Storage Hopper | 1 |
Detailed Images
Machine Parts

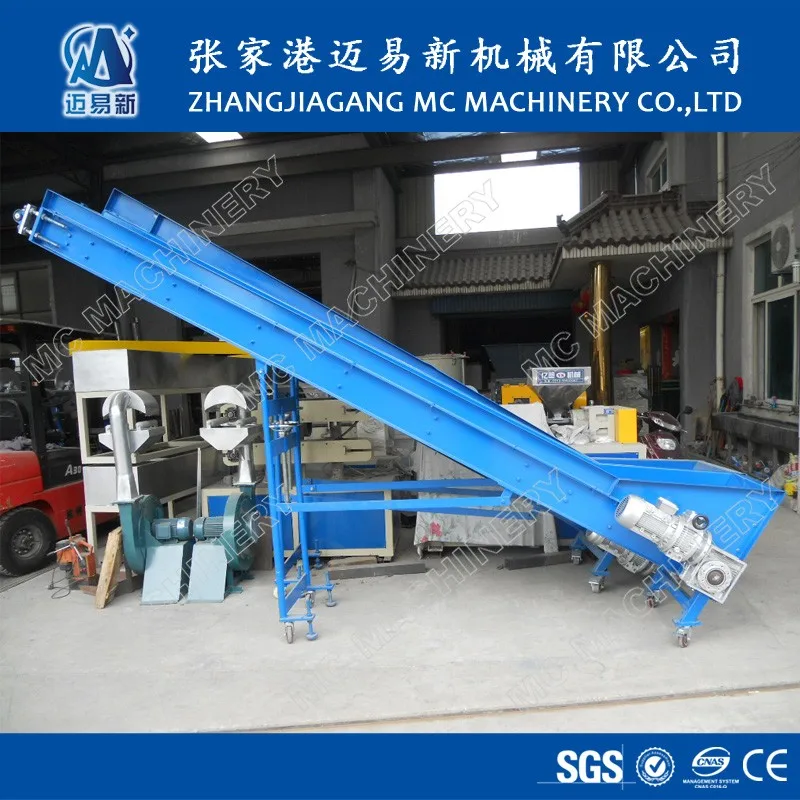

Name: Belt Conveyor
Brand: MC
Original: CHINA
1)Belt effective conveying length:5 meters
2)Effective width:500mm
Brand: MC
Original: CHINA
1)Belt effective conveying length:5 meters
2)Effective width:500mm
Main Features

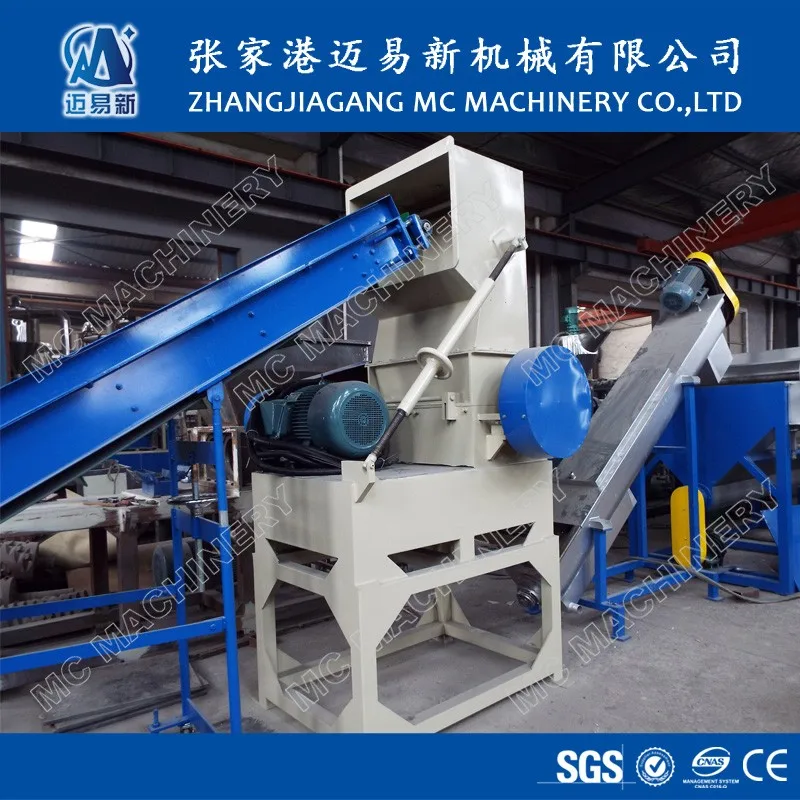

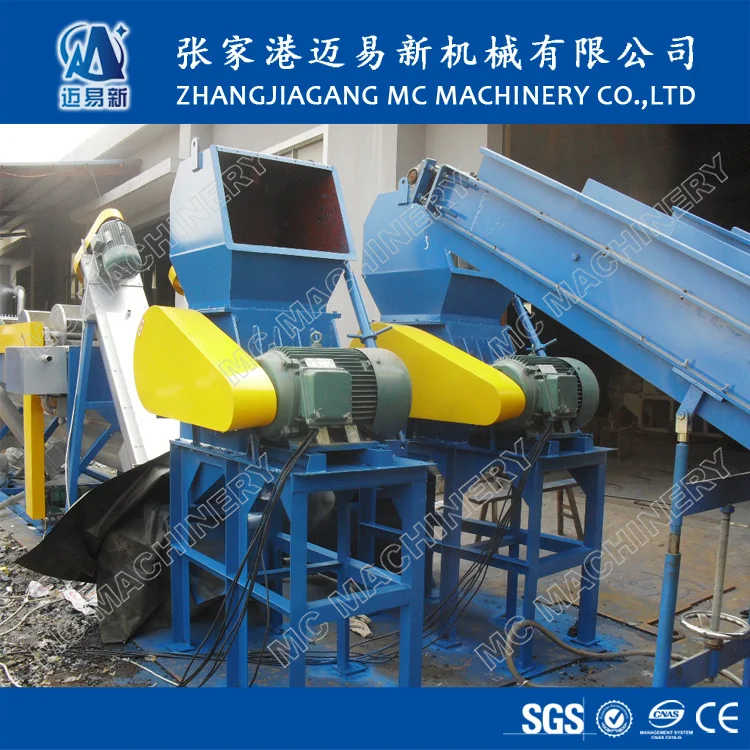

Name: Plastic Crusher(With Water)
Brand: MC
Original: CHINA
1)Main Motor power:30KW
2)Screen hole size:50mm
3)Fixed knife:2 pieces
4)Rotary knife:6 pieces
Brand: MC
Original: CHINA
1)Main Motor power:30KW
2)Screen hole size:50mm
3)Fixed knife:2 pieces
4)Rotary knife:6 pieces
Machine Parts
Name: High Speed Friction Washer
Brand: MC
Original: CHINA
1)Main shaft rotating speed:560r/min
2)Motor power:7.5KW
3)Body material:#304 stainless steel
Brand: MC
Original: CHINA
1)Main shaft rotating speed:560r/min
2)Motor power:7.5KW
3)Body material:#304 stainless steel
Machine Part

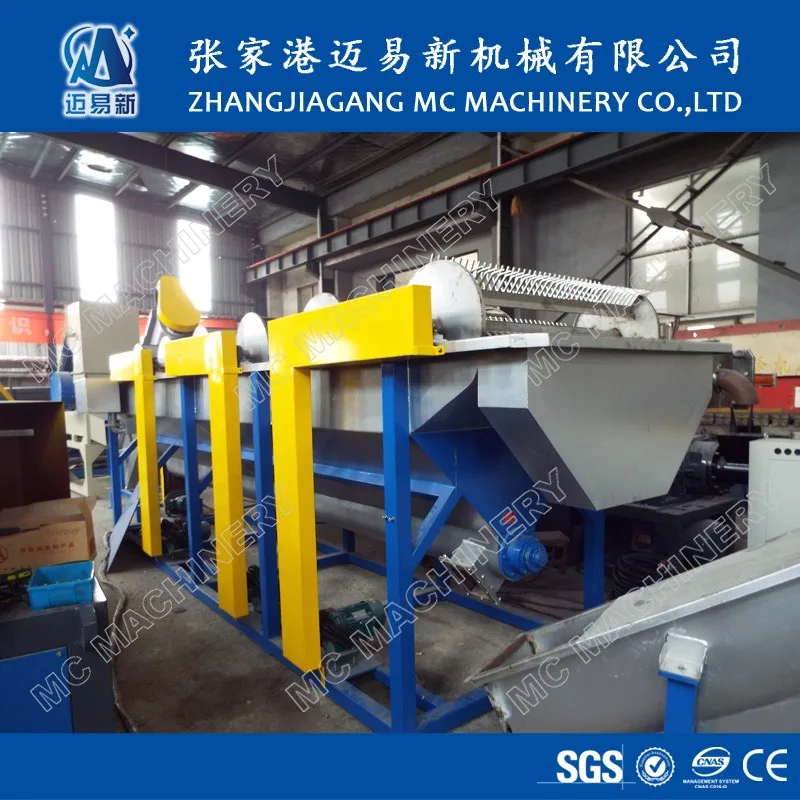

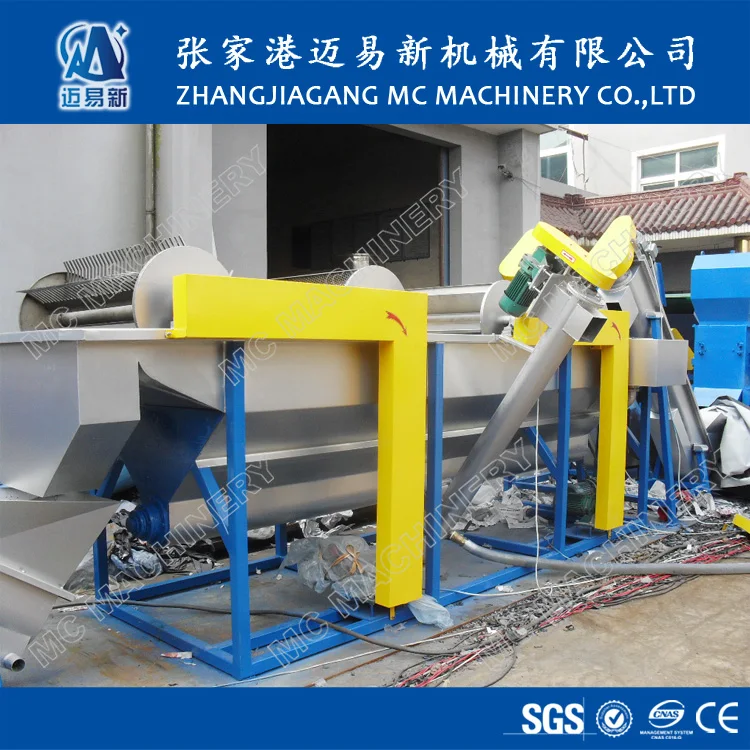

Name: Floating Washer
Brand: MC
Original: CHINA
1)Washer tank length:5 meters
2)Washer tank width:1100mm
3)Rinse roller quantity:4 pieces
4)Rinse roller rotating speed is adjustable,control by ABB inverter
5)with dust slag discharge screw
6)Main body is made by #304 stainless steel
Brand: MC
Original: CHINA
1)Washer tank length:5 meters
2)Washer tank width:1100mm
3)Rinse roller quantity:4 pieces
4)Rinse roller rotating speed is adjustable,control by ABB inverter
5)with dust slag discharge screw
6)Main body is made by #304 stainless steel
Machine Part

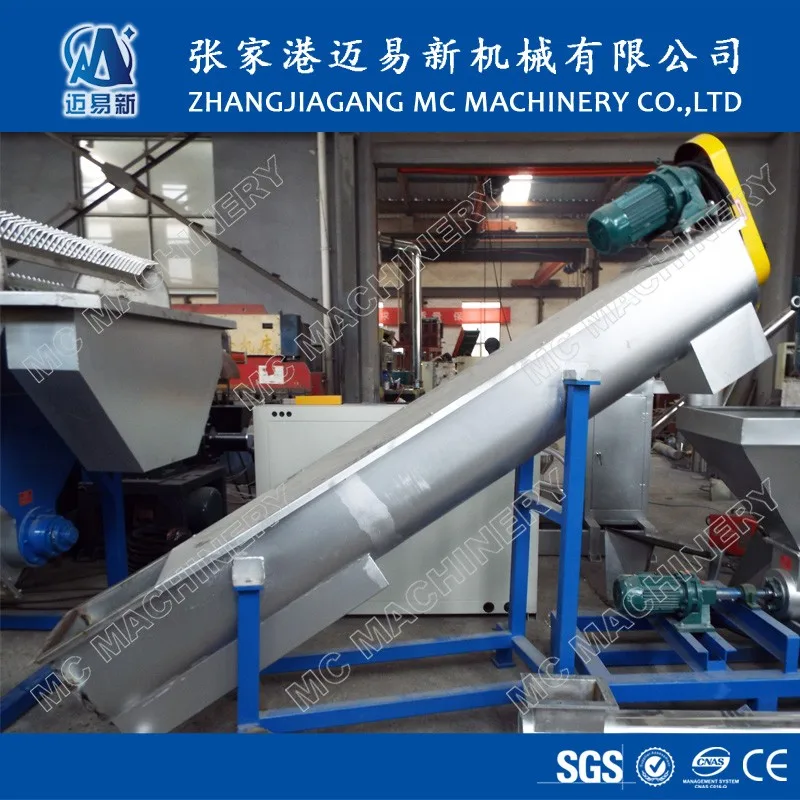

Name: Screw Loader
Brand: MC
Original: CHINA
1)Main body is made by #304 stainless steel
2)Motor power:3KW
Brand: MC
Original: CHINA
1)Main body is made by #304 stainless steel
2)Motor power:3KW
Machine Part

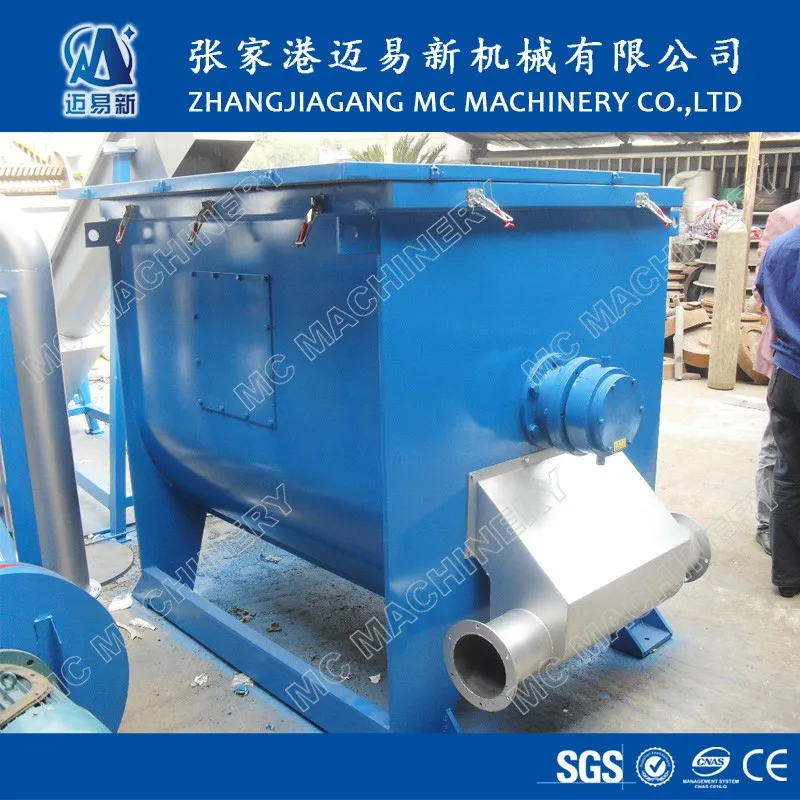

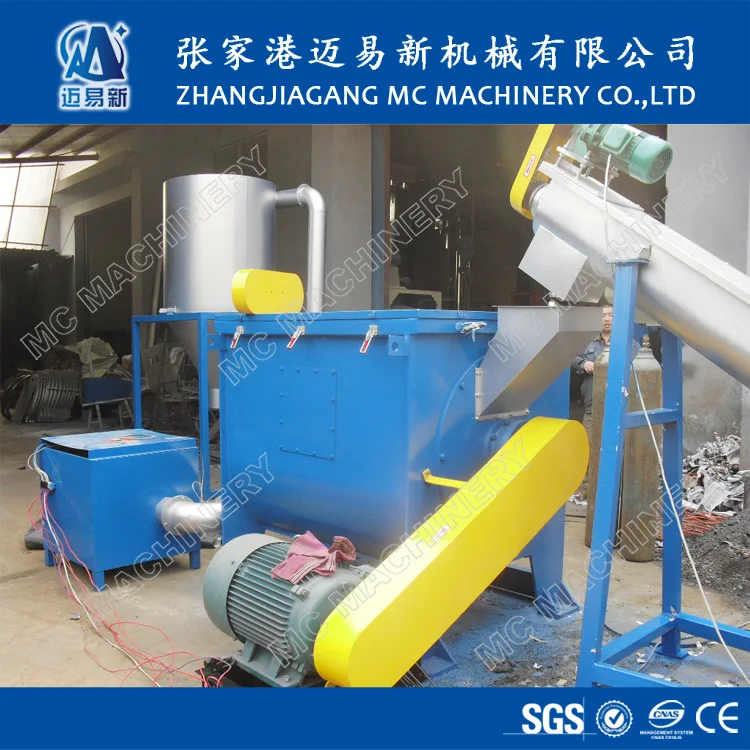

Name: Dewatering Machine
Brand: MC
Original: CHINA
1)Motor power: 45kw
2)Main shaft rotating speed:1400r/min
3)The inside of it where meet with water is made by stainless steel
Brand: MC
Original: CHINA
1)Motor power: 45kw
2)Main shaft rotating speed:1400r/min
3)The inside of it where meet with water is made by stainless steel
Machine Part
Name: Pipe Drying System and Storage Hopper
Brand: MC
Original: CHINA
1)Drying heating power:28KW
2)Heating pipe diameter:159mm
3)Heating pipe and storage hopper are all made by #304 stainless steel
4)Storage Hopper volume:1.5CBM
Brand: MC
Original: CHINA
1)Drying heating power:28KW
2)Heating pipe diameter:159mm
3)Heating pipe and storage hopper are all made by #304 stainless steel
4)Storage Hopper volume:1.5CBM
Our Service
Pre-Sales Service
* We given client the details technician offer.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
* Professional advice for Inquiry and technical support.
* supply the details layout, installation instruction, technician support for the clients
* View our Factory,sales manager accompany.
* 24 hours English support.
After-Sales Service
* We arrange engineer to install the machinery and training the workers for client abroad if clients required.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
* We have 24 hours team to solve problems after sales.
* We have free spare parts with the right machine during warranty time.
* We supply whole machine lifetime spare parts for every customer with low cost after warranty time.
* We always update the new technology to every customer.
Packing & Delivery
Related Products
PET Bottle Washing and Recycling Machine
PP PE Barrel/Pot Washing and Recycling Machine
Double Shaft Shredder
Single Shaft Shredder
Waste Plastic Film Granulating Machine
PP PE Plastic Granulating Machine
Our Company
FAQ
1.How about the quality of your product?
Marksim:
1)Our products manufactured strictly according to national and international standard
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
2)We have CE ,ISO,BV,SGS certification
3)We take testing on every product before delivery.
4)Our quality supervision department oversees the whole process during manufacturing and machine testing before machine made
shippment.
2.What is the MOQ?
Marksim:1 set.
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
3.If you can make machine custom-made?
Marksim:Yes,we can make products special design according to customer's requirements.
4.What is the machine voltage?
Marksim:Normally 380V,50hz,3 phase.But we can change it according to customer's requirement, like 220V,240V,415V,440V,600V and so on.
5.What is this machine guarantee time?
Marksim:1 year
6.When the machine can be deliveried?
Marksim:Normally 30 working days.
7.We want to visiting your factory first before order,if it is avaliable?
7.We want to visiting your factory first before order,if it is avaliable?
Marksim:Yes,welcome to visit our factory any time,our factory normally have ready machines in stock,you can see real machine by your eyes and it will be the best for you to know our machine and our company.
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
8.If we finally buy your machine,you can send engineers to our country and help installation and training our workers?
Marksim:Yes,of course,if you needed,we will send engineer to your country to your factory to help installation and training your workers,but you have to bear our engineer's flight charge around,take responsibility of engineer's food and hotel during his visiting and pay salary USD100 per day for one person.
9.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
Marksim:If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime.
If you have interests in our machine,please do not hesitate to send us an inquiry!
