Professional Manufacture GTH 40 Thermal Overload Relay for Mounting onto Contactor
- Category: >>>
- Supplier: Yueqing Hord Imp.&exp. Co. Ltd.
Share on (60735145835):
Product Overview
Description
Packaging & Delivery
| Packaging Details | Standard exporting packing |
|---|---|
| Delivery Time | Shipped in 5-7 days after payment |
Product Description

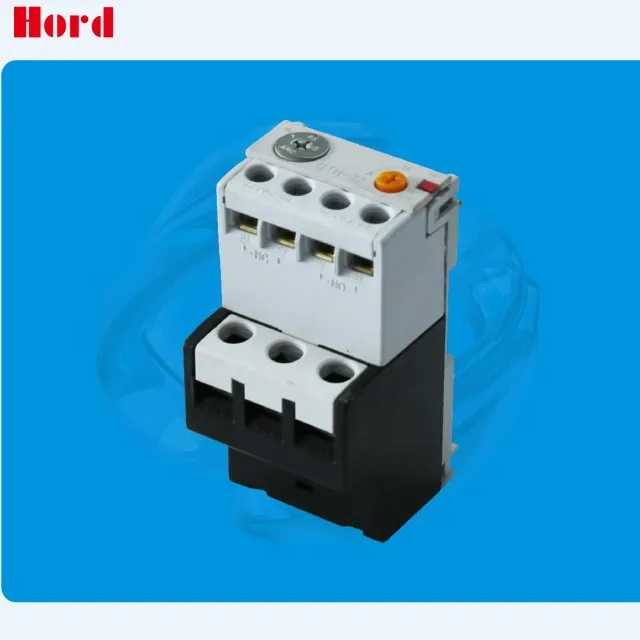

Professional Manufacture GTH-40 Thermal Overload Relay for Mounting onto Contactor
General
GTH series thermal relay is suitable for the power system of AC 50Hz, main circuit rated voltage up to 660V, current up to 630A, used as protecting AC three-phase motor against overload and phase losing, and forming electric-agnetic with starter UK series AC contactor. It has functions of phase-losing protection temperature campe, trip indication. It can passively and automatically get back.
Technical parameters
| Type | Retum mode | Adjustment | Contact Arragement | |||
| Nominal Rating(A) | Setting Range(A) | |||||
| GTH-22 | Manual or Auto retum | 0.3 | 5 | 0.1-0.16 | 4-6 | 1NO+1NC |
| 0.2 | 6.5 | 0.16-0.25 | 5-8 | |||
| 0.33 | 7.5 | 0.25-0.4 | 6-9 | |||
| 0.52 | 8.5 | 0.4-0.63 | 7-10 | |||
| 0.8 | 11 | 0.63-1 | 9-13 | |||
| 1.3 | 15 | 1-1.6 | 12-18 | |||
| 20 | 19 | 1.6-2.5 | 16-22 | |||
| 33 | 2.5-4 | |||||
| GTH-40 | Manual or Auto retum | 5 | 15 | 4-6 | 12-18 | 1NO+1NC |
| 6.5 | 19 | 5-8 | 16-22 | |||
| 7.5 | 22 | 6-9 | 18-26 | |||
| 8.5 | 30 | 7-10 | 24-36 | |||
| 11 | 34 | 9-13 | 28-40 | |||
| GTH-80 | Manual or Auto retum | 8.5 | 34 | 7-10 | 28-40 | 1NO+1NC |
| 11 | 42 | 9-13 | 34-50 | |||
| 15 | 52 | 12-18 | 40-65 | |||
| 19 | 63 | 16-22 | 54-75 | |||
| 22 | 74 | 18-26 | 63-85 | |||
| 30 | 24-36 | |||||

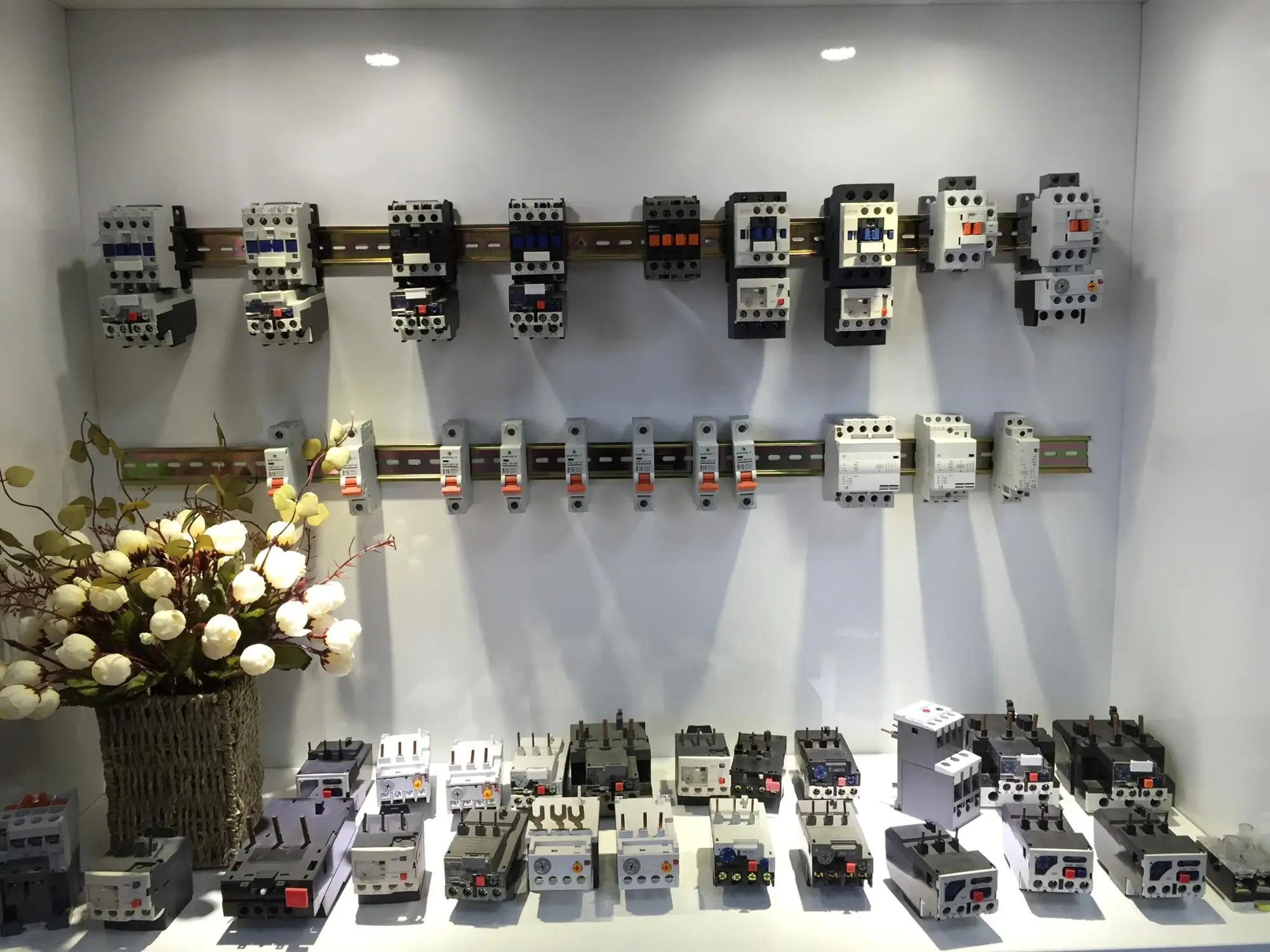

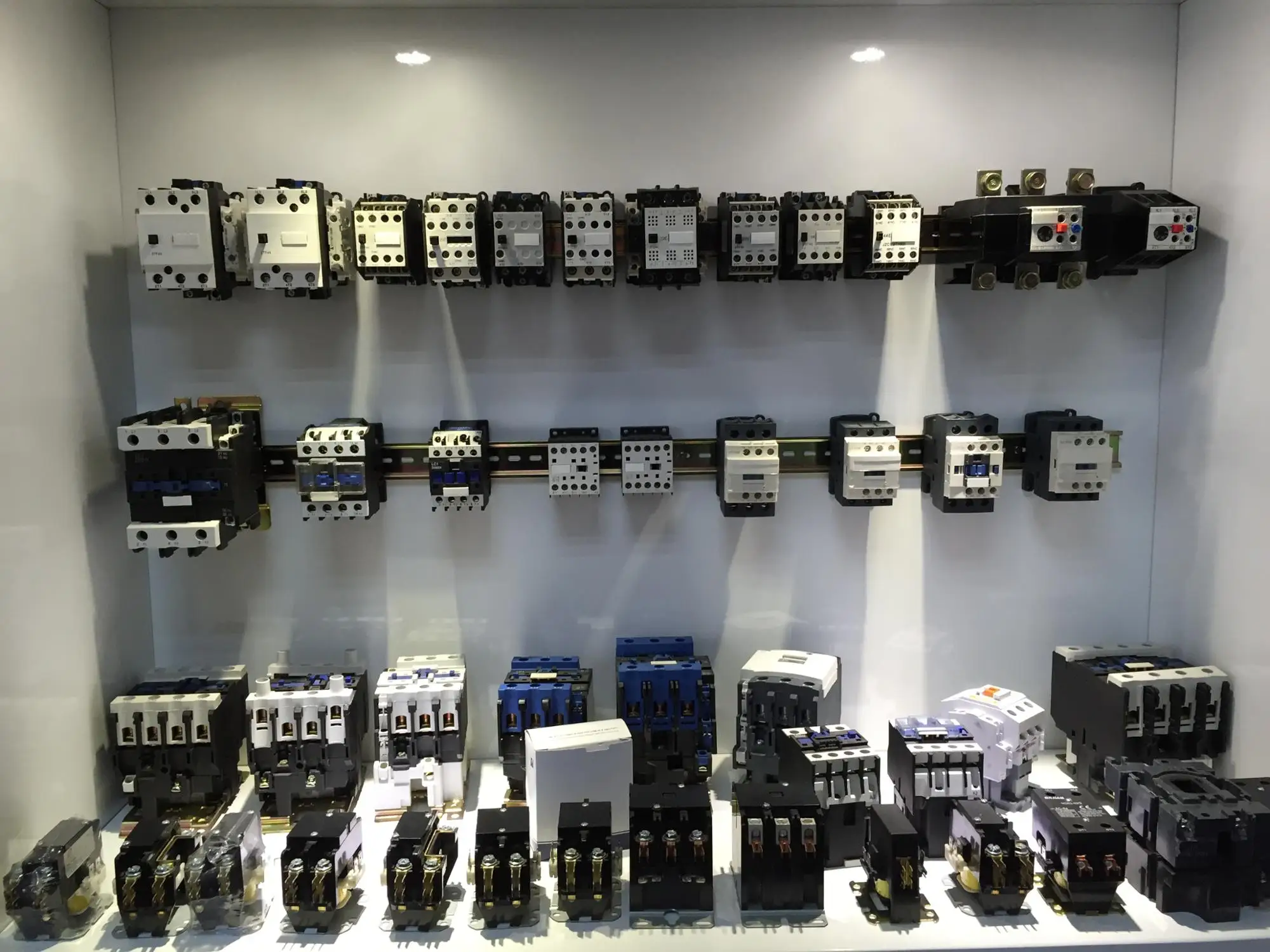

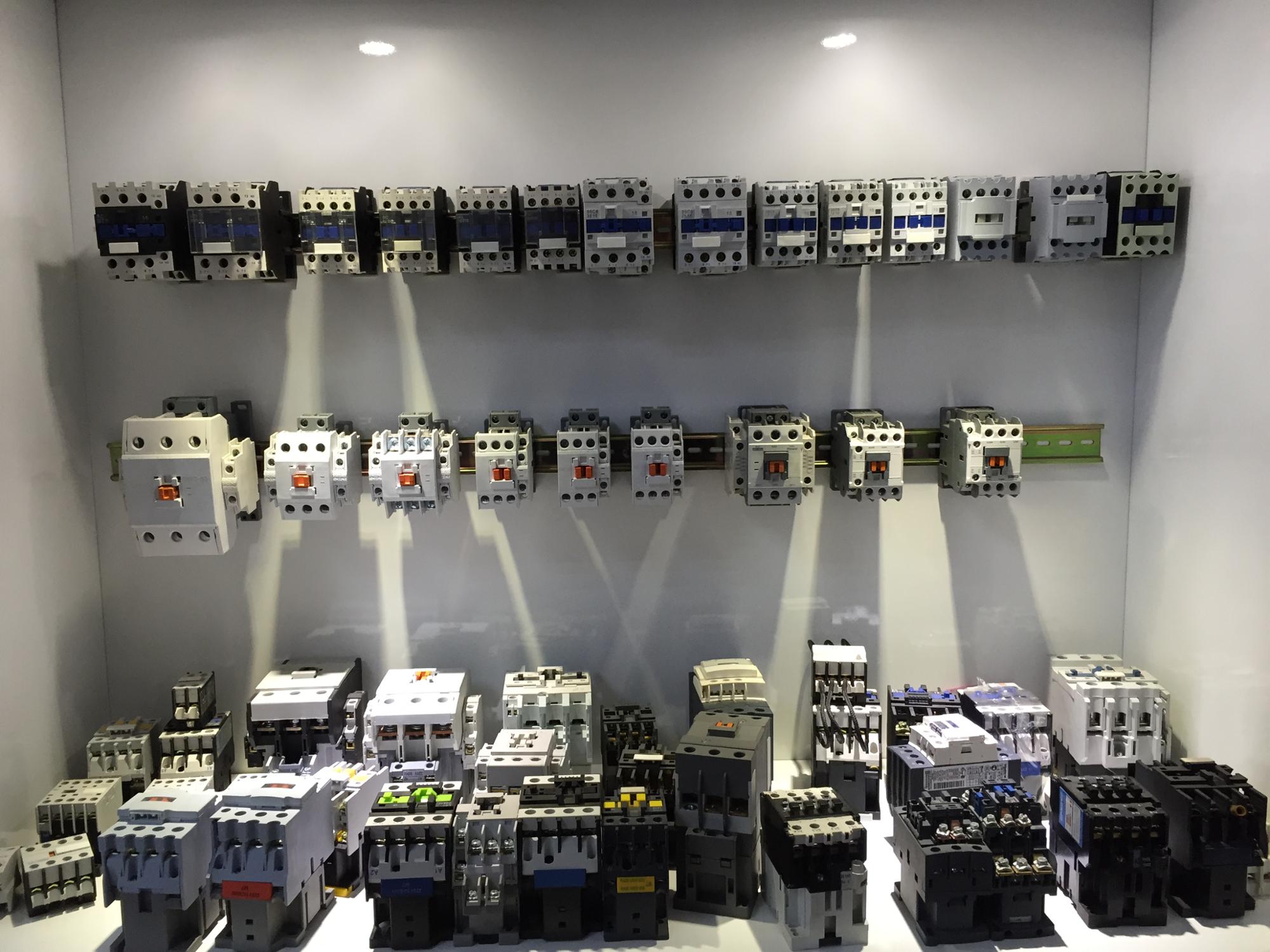

Product Show
Company Information
We are Yueqing Hord IMP&EXP Co.,LTD, a professional manufacturer and exporter in the field of low voltage electric appliances in China. Especially in all kinds of wago terminals, switches. After years efforts, we has formed a qualified and specialized team for development, production and marketing. Up to now, Our products are exported to more than 20 countries and are as such as Southeast Asia, Middle East, America and Europe, etc. And won a good reputation from the clients. Hord will keep improving our service. Your satisfactory is our greatest pursuit.
Our Services
FAQ
1.Manufacturer With Competitive Price And High Quality.
-We are the manufacturer with direct sale price and high quality to help you open the markets which located in Wenzhou City, Zhejiang Province, China. Welcomed to visit our company.
2.OEM/ODM.
-We are the manufacturer with a brilliant team work .
3. Usual Payment Term.
-We accept terms of T/T in advance, L/C, Western Union and others. Any question, please ask us!
4. Warranty Time.
-1.5 years. Any problem of the quality is changed by your next order free.
5.Free Sample.
-Yes, we provide small products to check quality for you, just you pay the express fees.
