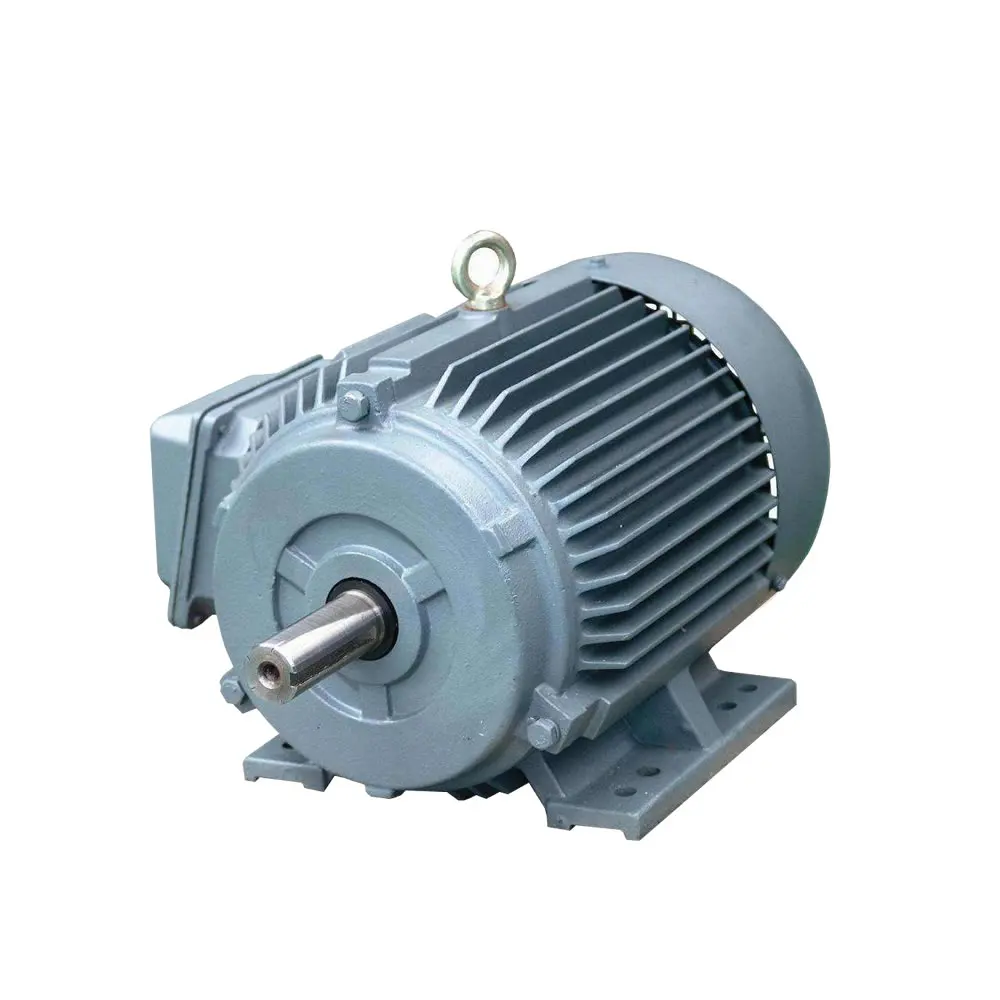

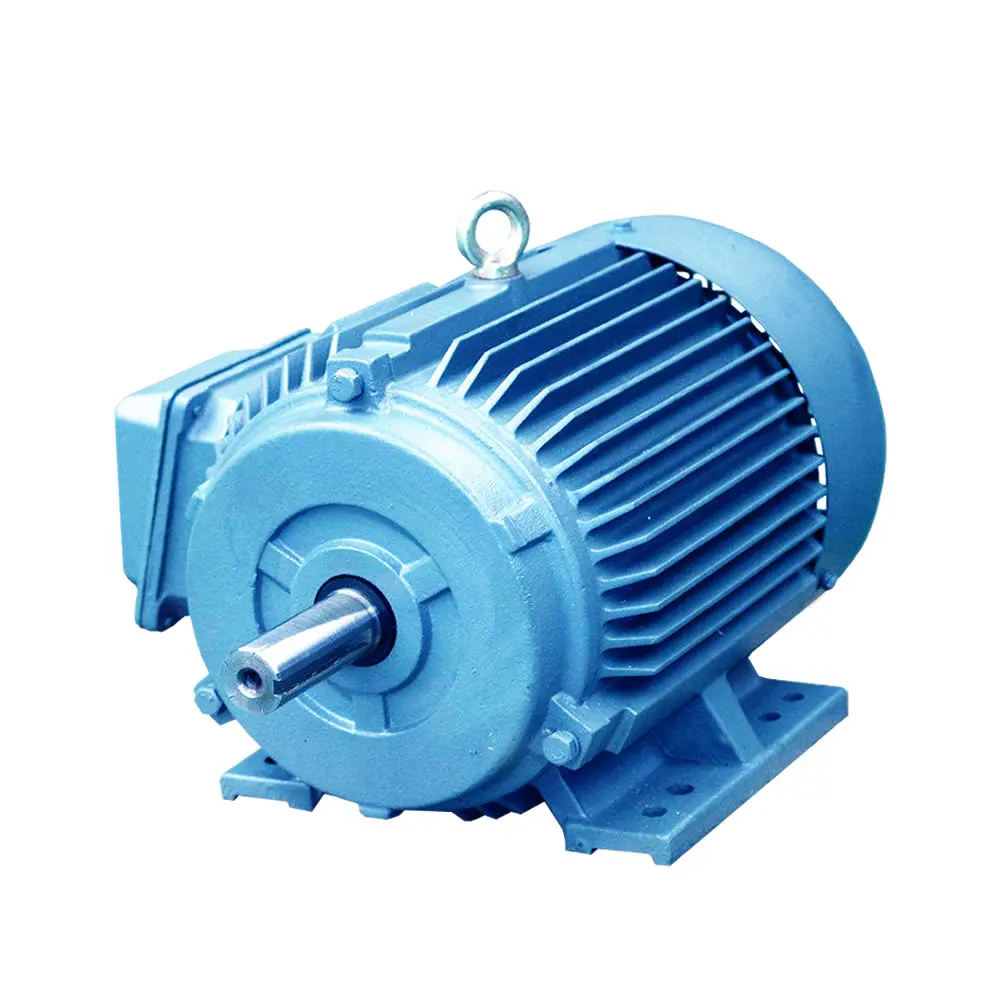

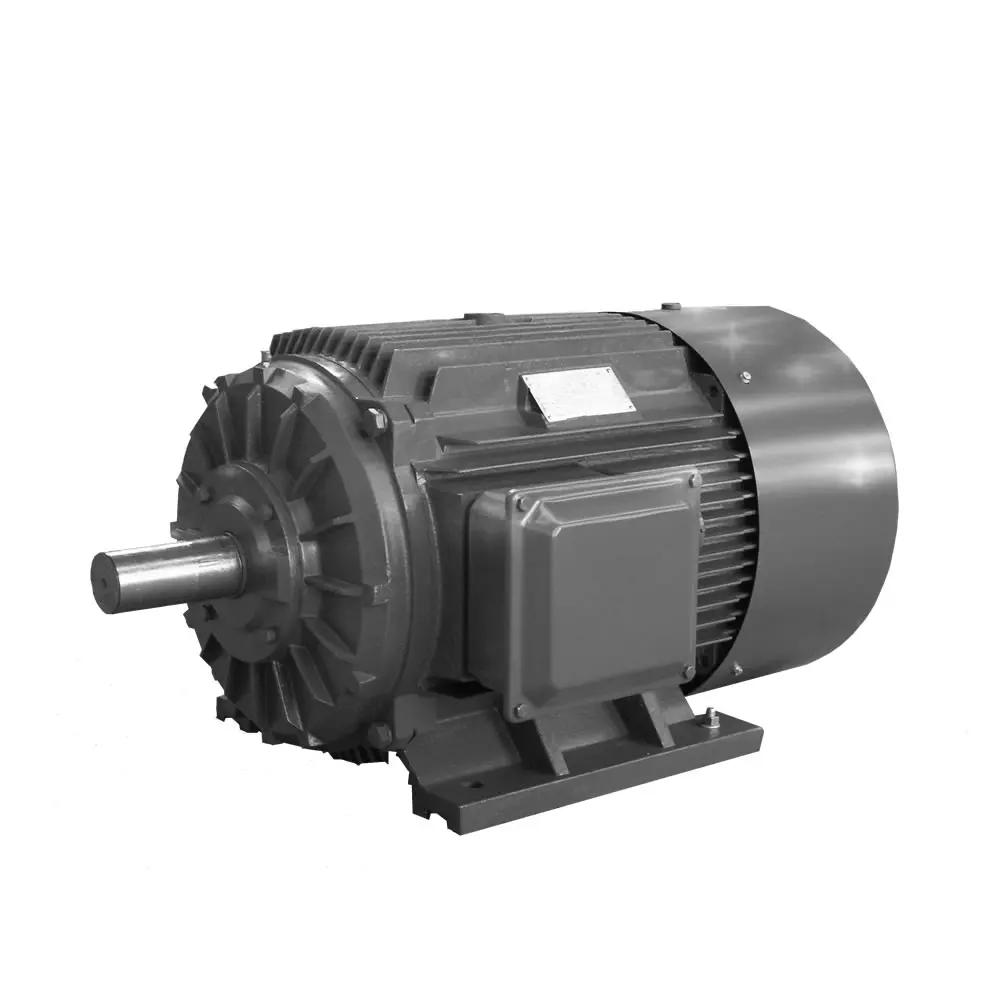

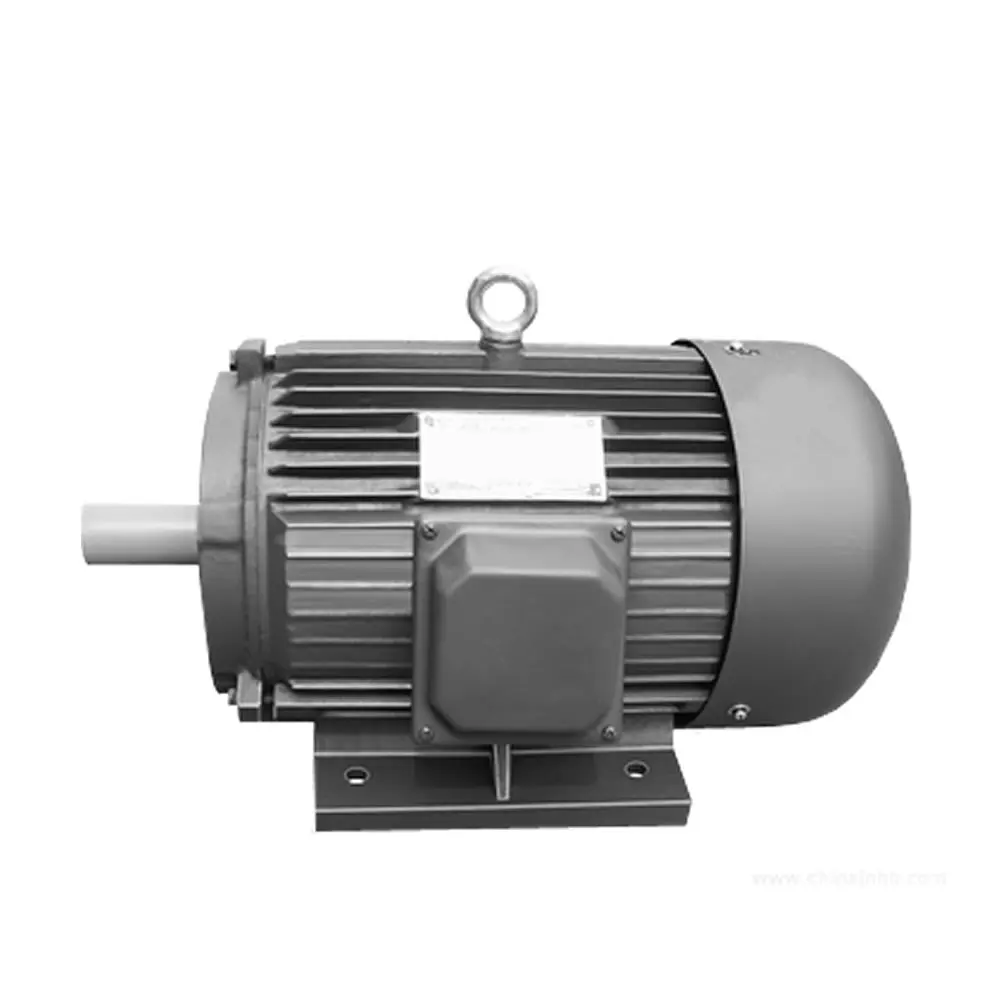

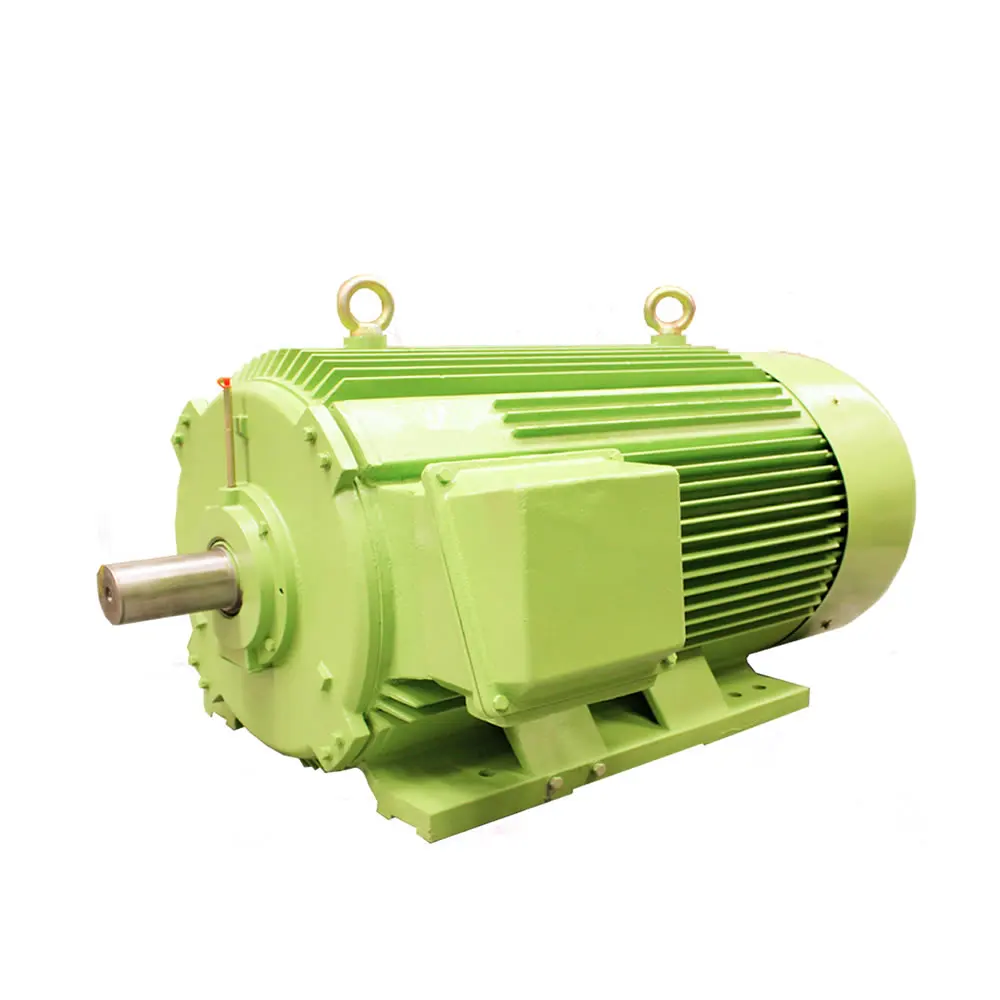

Y200L2 2 37KW 50HP 380V 400V 3000RPM brushless ac 3 three phase induction electric motor three phase asynchronous motor
- Category: >>>
- Supplier: Jiangsu Wangpai Motor Manufacturing Co. Ltd.
Share on (60735146212):
Product Overview
Description
Y200L2-2, 37KW, 380V/400V, 3000r/min, IC411, IP44, B Insulation
Y Series Cast Iron Three Phase Asynchronous Induction Motor
| Power: | 0.75kw - 315KW |
| Voltage: | 380V/400V |
| Speed: | 750RPM/1000RPM/1500RPM/3000RPM |
| Protection Degree: | IP44 |
| Cooling method: | IC411 |
| Insulation Class: | B |
| Duty: | S1 |
| Package: | Export Wooden Package |
| Payment: | 30% in advance, balance by T/T or L/C at sight |
Y200L2-2, 37KW, 380V/400V, 3000r/min, IC411, IP44, B Insulation
Product Description
Y series is TEFC squirrel cage 3-phase induction motor. Mounting dimensions and rated outputs are conformed with IEC standard, IP44 degree of protection, IC411 method of cooling, continuous duty S1.
Y series motor can drive various kinds of mechanical equipments without special requirement, such as machine tools, pumps, blowers, mixers, conveying machinery, agricultural machinery and food machinery, etc
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15℃.
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃.
4. Termination: Y connection below 3KW. Delta connection if over 4KW.
5. Operation Mode(duty): S1.
Mounting
Frame Size(H80-H160): IM B3, B5, B35, V1, B14, B34, V3,V5, V6, V15, etc.
Frame Size(H180-H280): IM B3, B5, B35, V1.
Frame Size(H315-H355): IM B3, B35, V1
