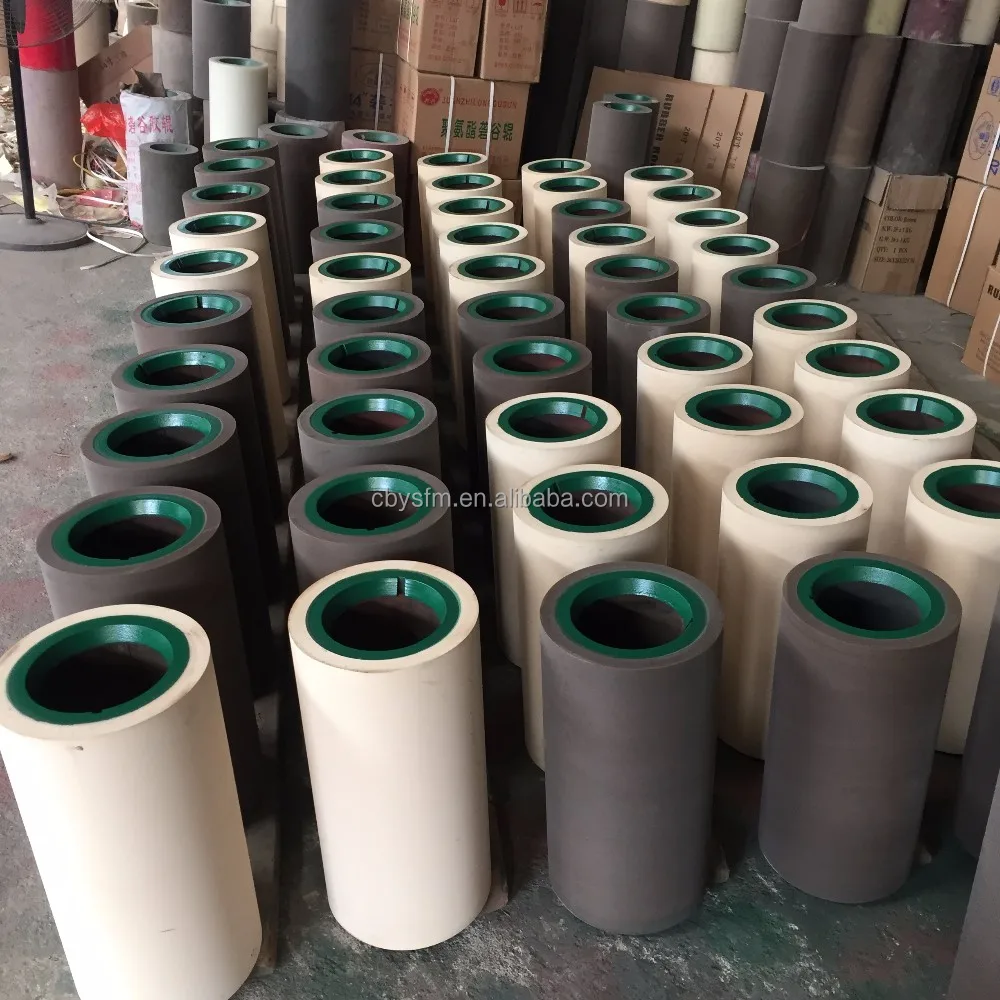

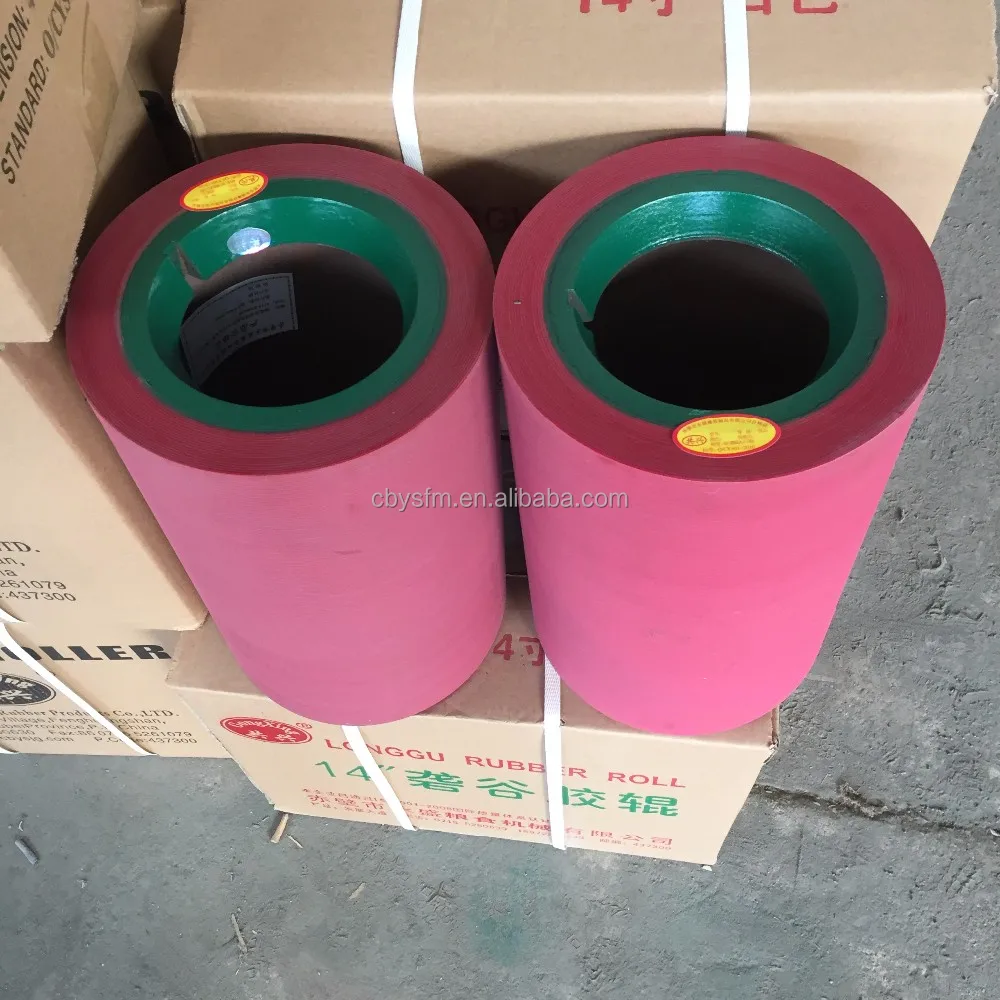

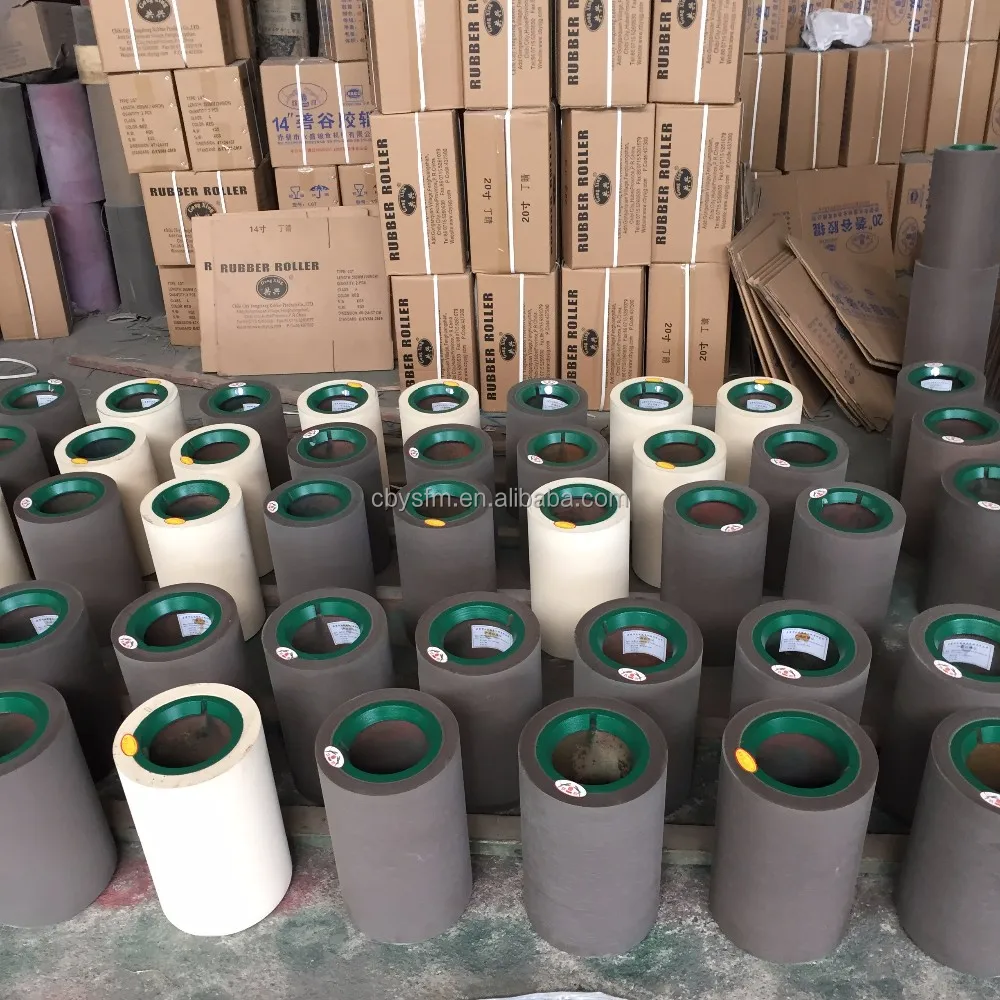

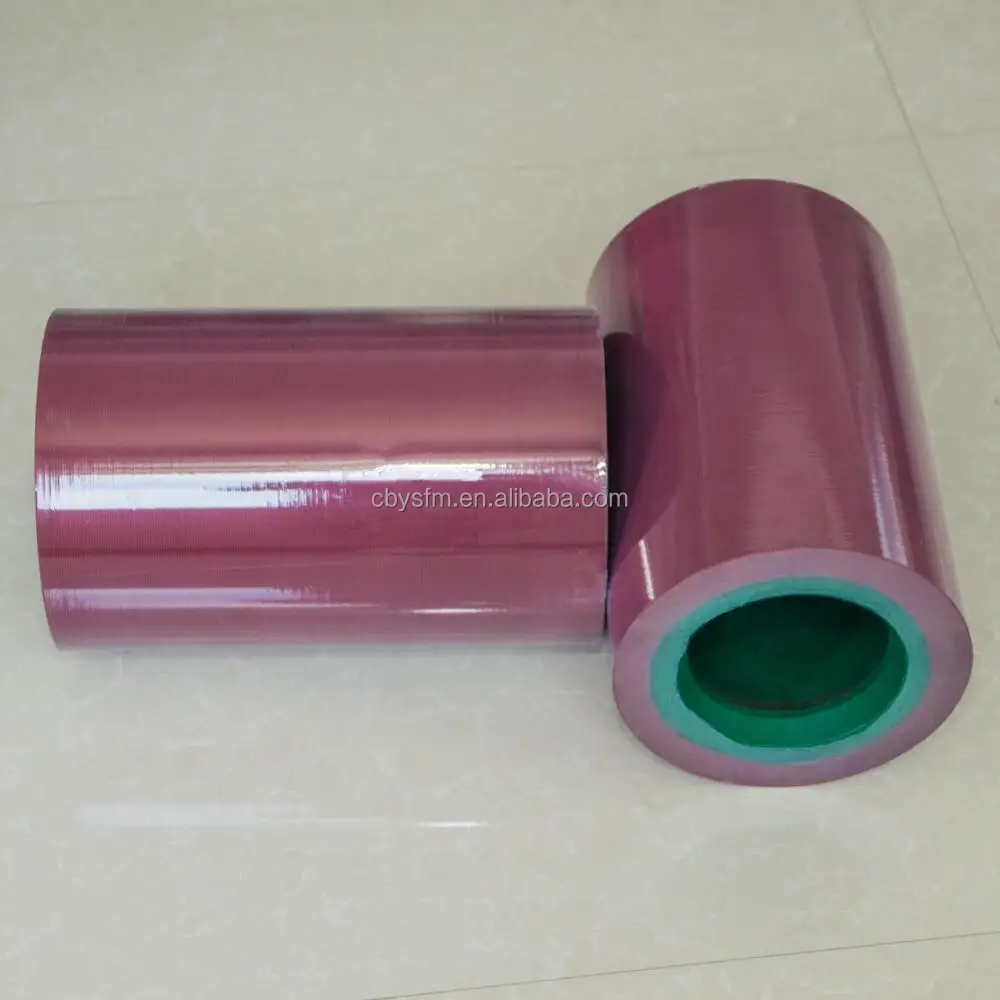

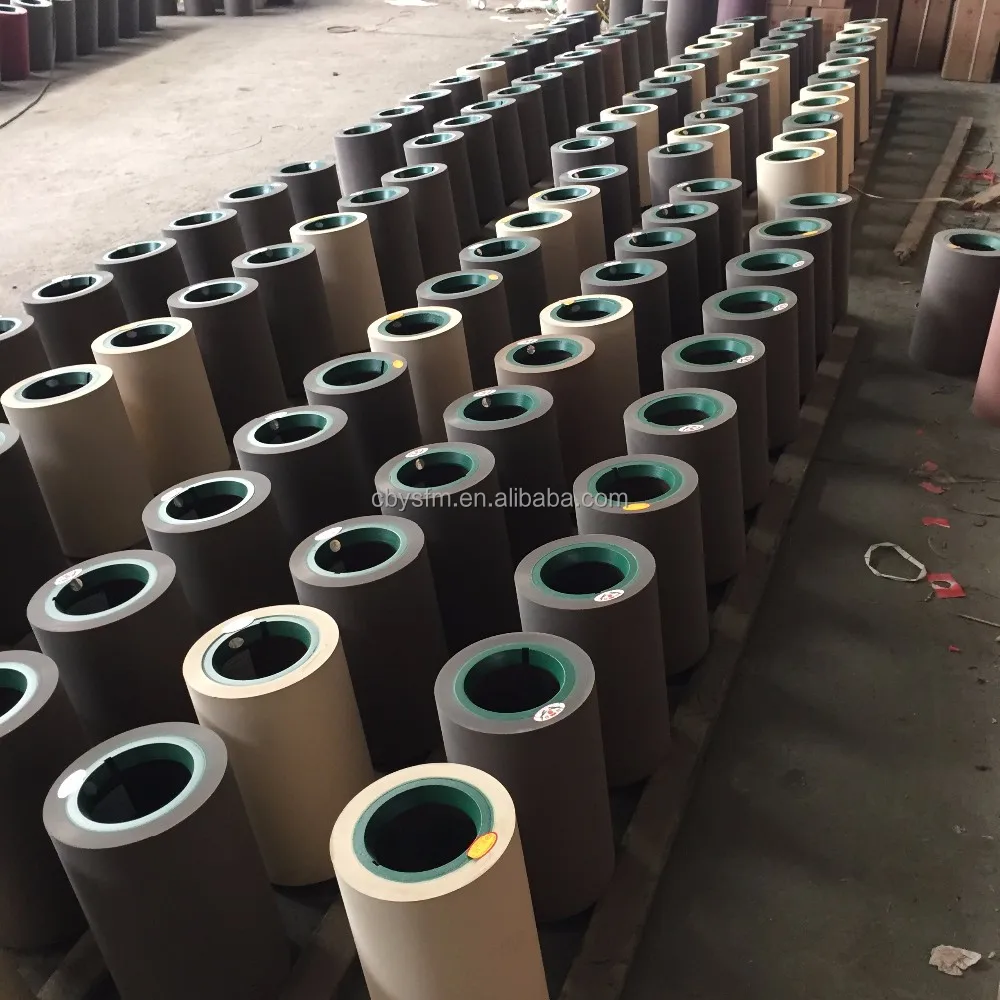

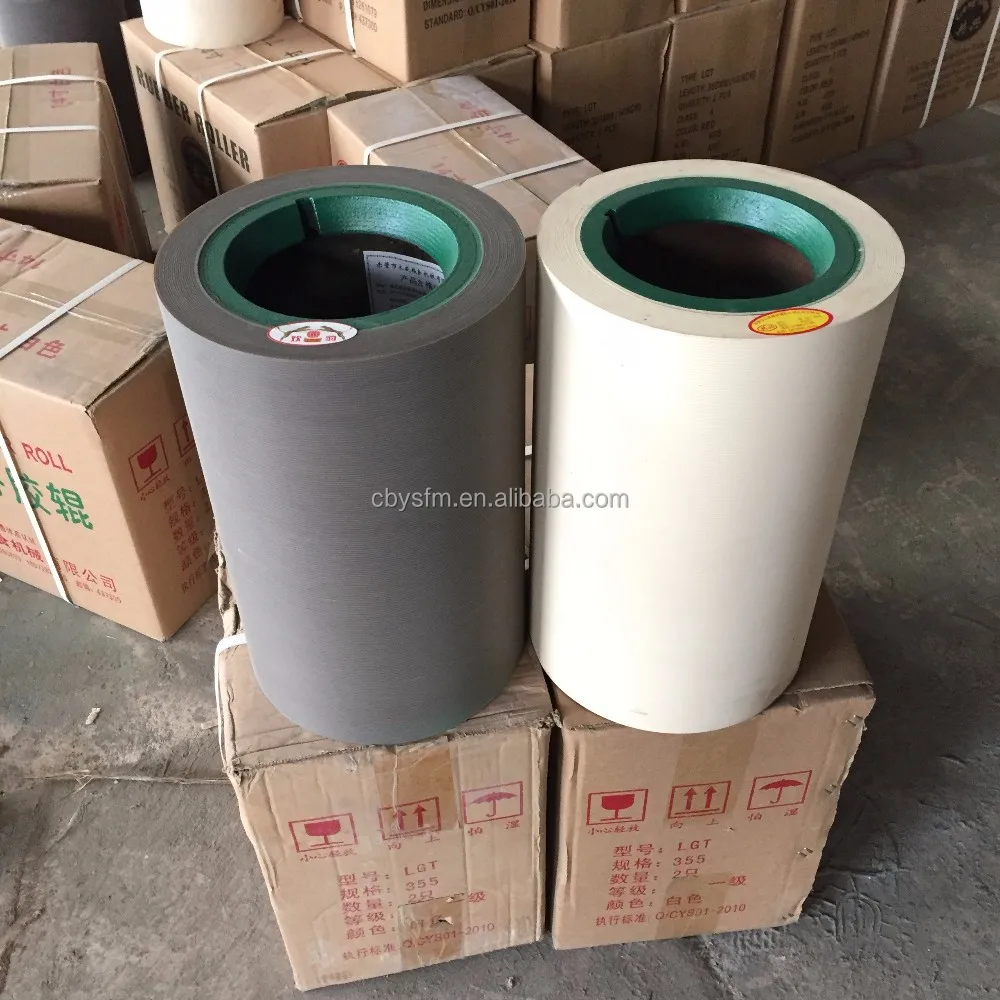

14 inch rice rubber roller for paddy dehusking,Rice Hulling Rubber Roller on steel drum

Product Overview

Description

14 inch rice rubber roller for paddy dehusking,Rice Hulling Rubber Roller on steel drum

General Information

1. Name: Rice Mill Rubber Rolls

2. Material: SBR/NBR/EPDM

3.Color: brown/white/amber/red

4.Size: 14 inch

5.Minimum Order: 100pcs

6.Delivery Time:  Within 20 days after receiving the payment

7.Packing: shirnk film of each piece, carton box outside

8.Hulling capacity: 14" SBR   white  230mt  brown 200mt  POLY 500mt



Specification:

Type	Inch	Length(mm)	External Diameter           (mm)	Thickness of Rubber        (mm)±0.5mm
Wheel Type	4	100	222	19.5
	6	152	222	19.5
	7	178	222	19.5
	8(small)	200	225	25
	8(big)	200	254	25
	10	254	254	25
	12	300	270	28
	13.8	350	254	25
Casting Type	14	355	227	25.5
	18	457	232	25.5
	20	508	255	29.5
	25	635	255	25.5
	28	708	255	25.5



 Operating principle:

 Bedcause of speed difference of veer and reversion between rubber rollers,

 paddy are torns up by two rubber rollers, in the end, rice grain comes out.







 Features:

1.Our company has over 10 years made of rice rubber roller experience

 2.Our products exported over 10 countries of the world

 3.The enterprise got ISO9001-2008 certification



 Attention:

1.Handle carefully during the transportation.

2.Store in dry place,away from Acid,Alkali,Salt,oil and dirty,forbidden to put under sun for long time.

3.Take sands away from the paddy,keep paddy dry and cleaning when using the rollers.

4.Two rollers should be at the same level,the space must be equal.

5.The paddy inputting should be keep the blance.

6.Keep the rate of the re-hulling under the limited.

7.Don't make the machine work for a long time,in case effecting the hulling capacity.

8.The surrounding temperature is better under the 50°C.

9.Change the fast and slow roller at a certain time.



14 inch rice rubber roller for paddy dehusking
