Product Overview

Description

Parameters

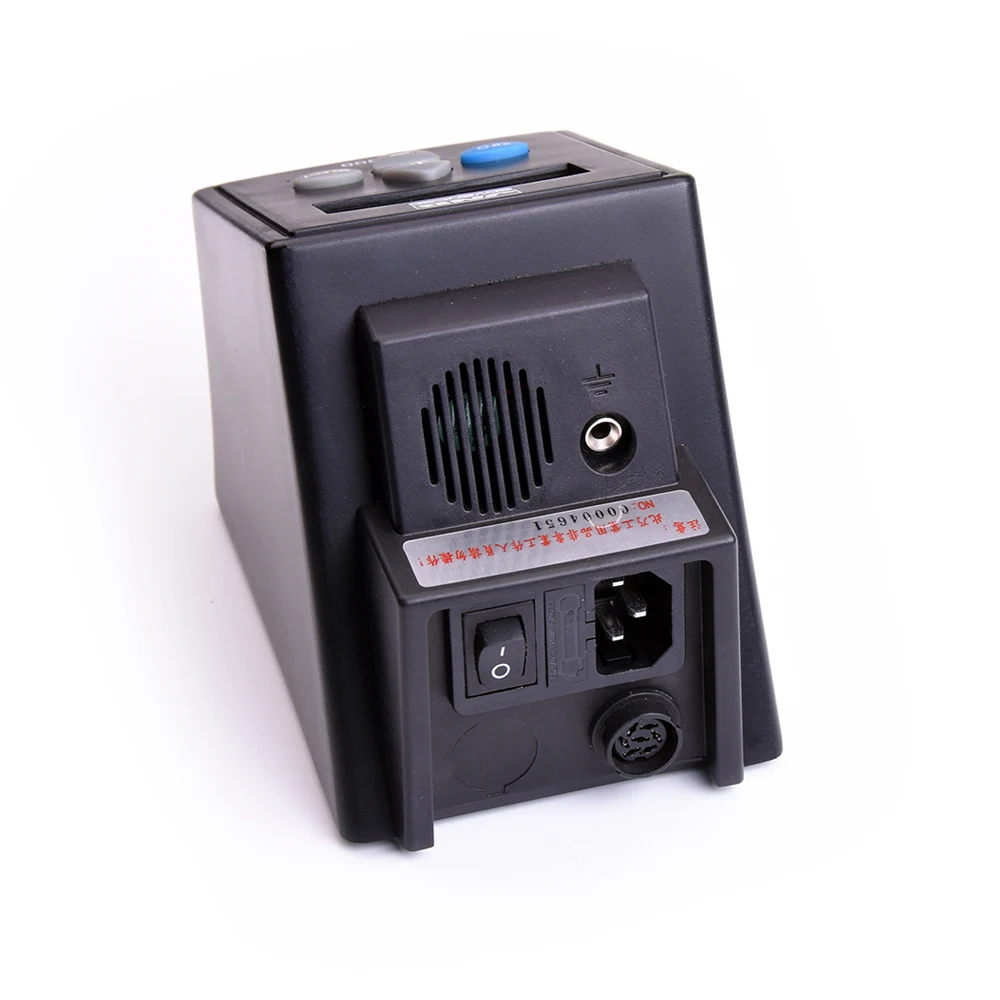

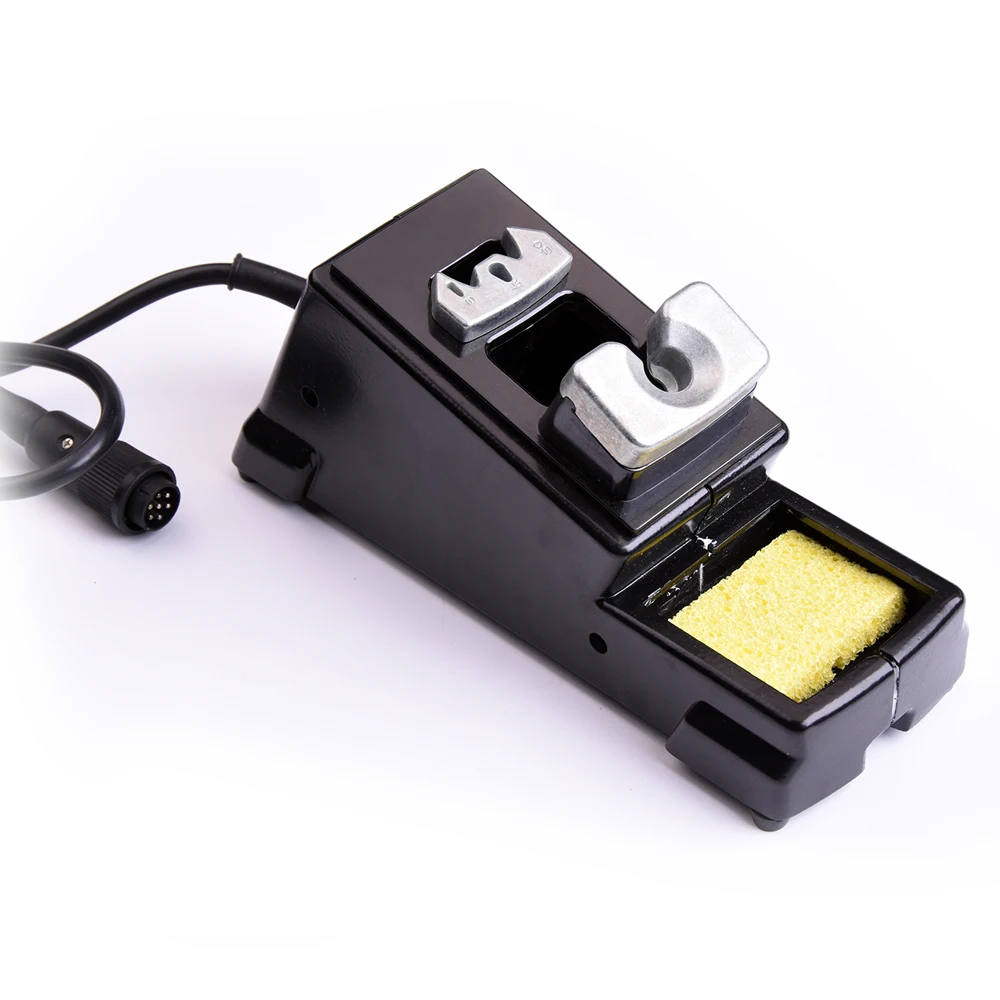

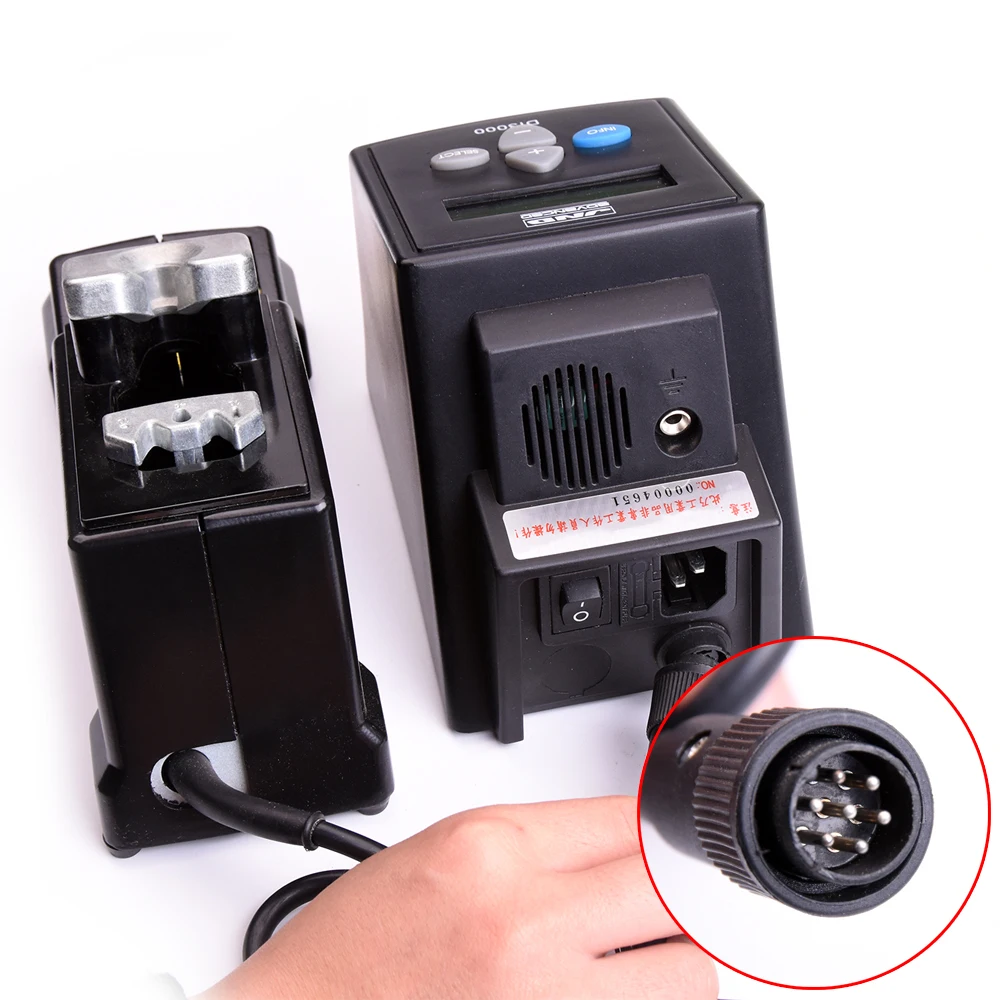

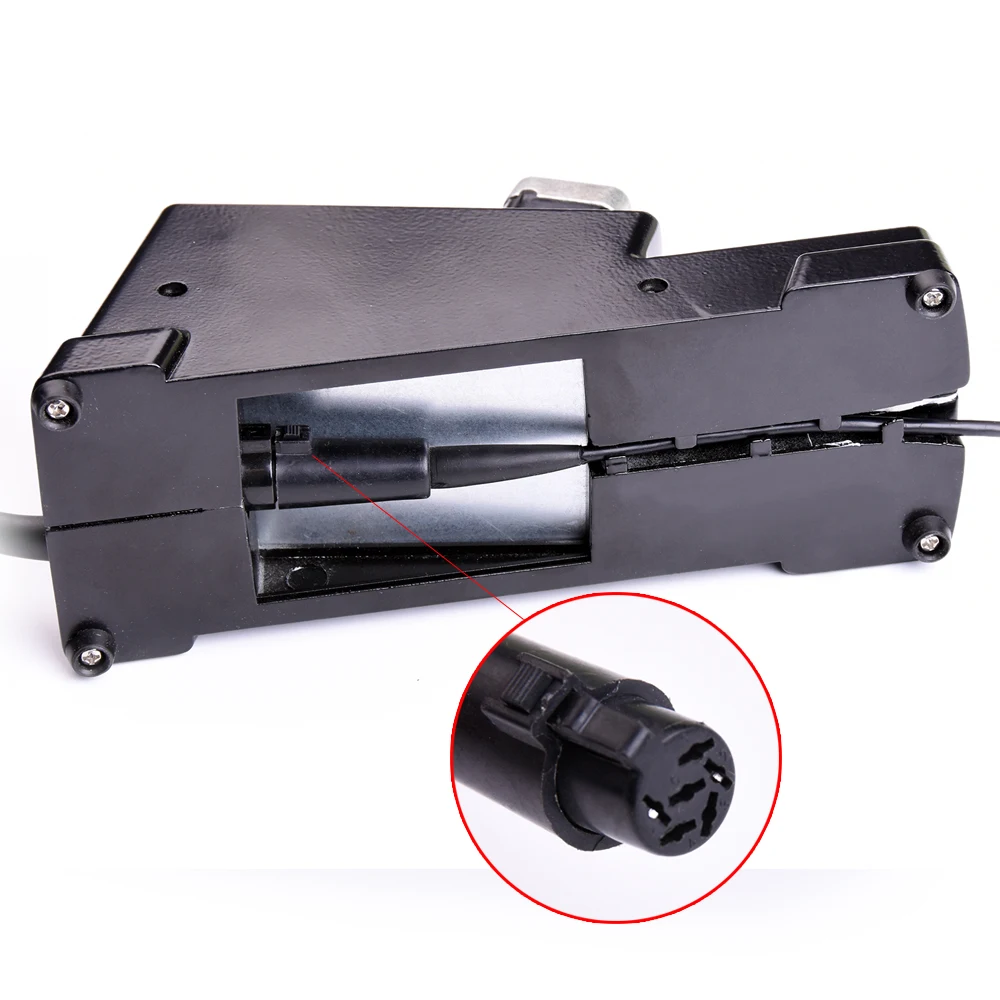

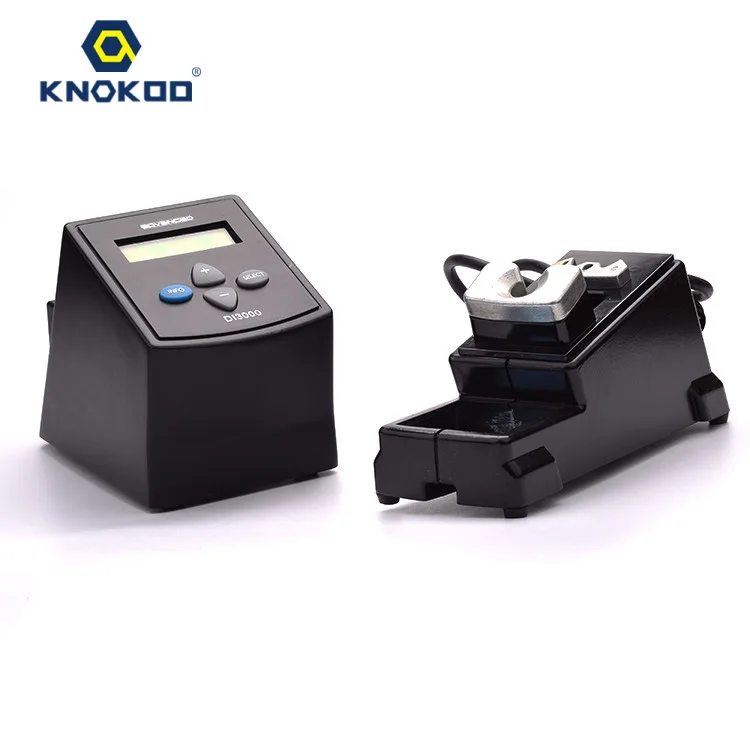

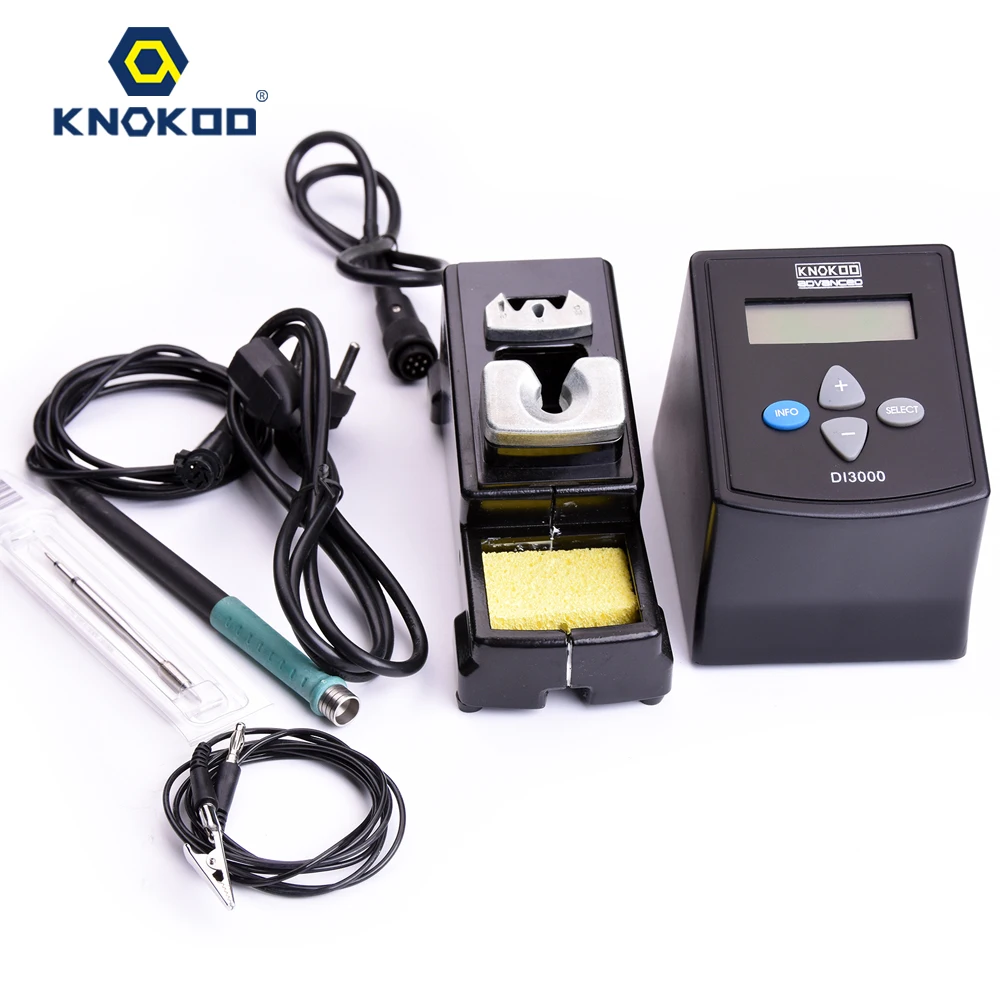

• Model No.:DI3000

• Brand name: KNOKOO

• Temperature selection: 90 to 450C or 190 to 840F (5%).

• Power: 75W -Safety transformer, mains separator and double isolation, with integrated temperature protection fuse.

• Voltage: 100-230V

• Input voltage: 100-230V

• Output voltage:24V

• Total weight of unit: 2.5Kg (6,25lbs).

• Temp. increase time:3S

• Soldering tips:3000 series

• Design:ESD safe

• ESD protected housing "skin effect". Typical surface resistance: 105-1011Ohms/square.

• Complies with CE standards on electricalsafety, electromagnetic compatibility andantistatic protection.

• RoHS compliant.

• Equipotential connector and the tool tip areconnected to station mains ground supply for ESD protection.

• This product should not be thrown in thegarbage.

Features

• The exclusive heating system achieves an exceptional thermal recovery, which increases productivity, quality, reduces cost of ownership and ensures fast return on investment.

• Adjusting temperature by digital display, intelligent lead free soldering stations

• Unequalled thermal response. An excellent soldering tool features instant thermalresponse conceived by a high power/mass ratio.

• A high power/mass ratio is being used to maintain the tips temperature as close as possible to the one selected on the control unit, even when thethermal load is significant.

• This is the formula needed to perform high quality solder joints and avoid cold ones, protect the PCB that is being soldered and increase productivity.

• "INTELLIGENT HEAT MANAGEMENT" The only time that a soldering tool should be at working temperature is when it is actually being used.

• KNOKOO station identify if and how a tool is being used and depending on this switches the tool to one of the following modes with their respective temperatures:

• Work mode: selected working temperature i.e.350C.

• Sleep mode: during short periods of inactivity the tools temperature is being lowered to an intermediate temperature i.e. 220C.

• Hibernation mode: During larger periods of inactivity i.e. 30 minutes, the tools power is being cut off and it cools down to room temperature.

• The advantages of this heat management are significantly increased catridge life span and substantial energy savings which ensures low cost of ownership.

• KNOKOO Tools save money by managing Heat efficiently saving energy, time and improving processes.
