Product Overview
Description
Good reputation 8x2 802 lcm small size big font character lcd display module
Product Description
1. FUNCTIONS & FEATURES
| Product parameters | |
| Characters | 8×2 Lines |
| LCD Mode | STN |
| Controller IC | SPLC780D or Equivalent |
| Driving Method | 1/16 Duty; 1/5Bias |
| Viewing Angie | 6 O’clock direction |
| Interface | 6800 serial 8-Bit/4-Bit MPU |
| Backlight | LED |
| Operating Temperature Range | -20 to +70℃ |
| Storage Temperature Range | -30 to +80℃ |
| Module Size | 58.0L×32.0W×13.2(max)H mm |
| View Area | 38.0×16.0mm |
| Character Size | 2.96×5.56mm |
| Character Pitch | 3.55×5.94mm |

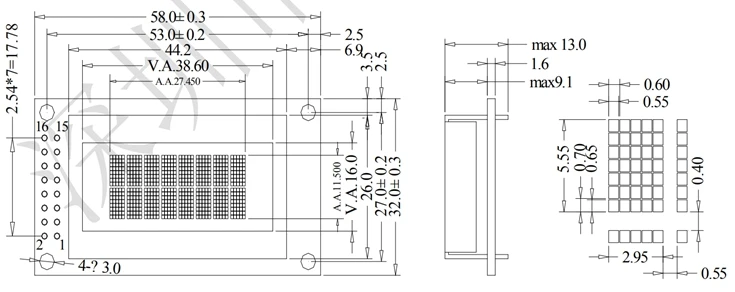

2.EXTERNAL DIMENSIONS

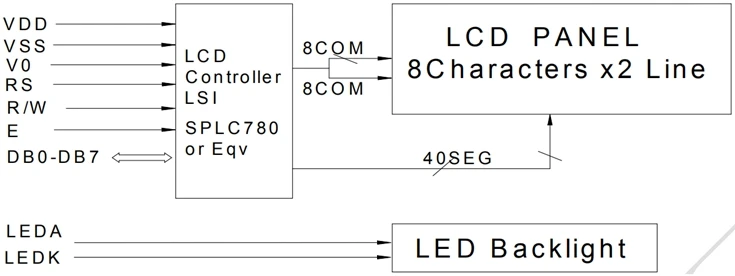

3.BLOCK DIAGRAM

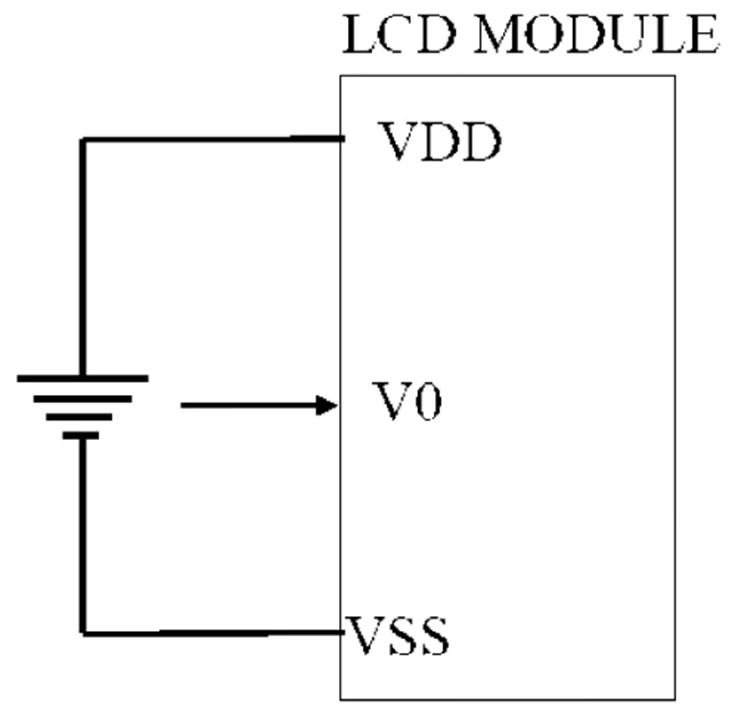

4. POWER SUPPLY

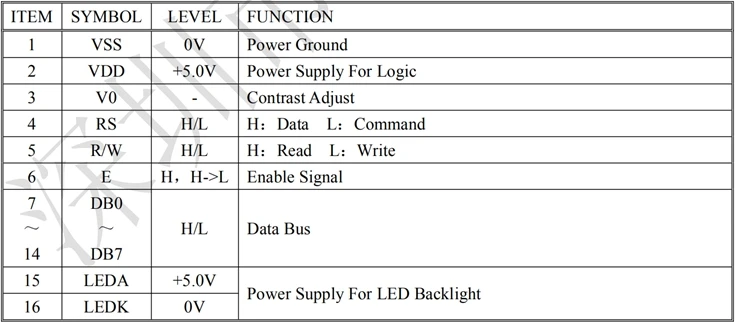

5. PIN DESCRIPTION

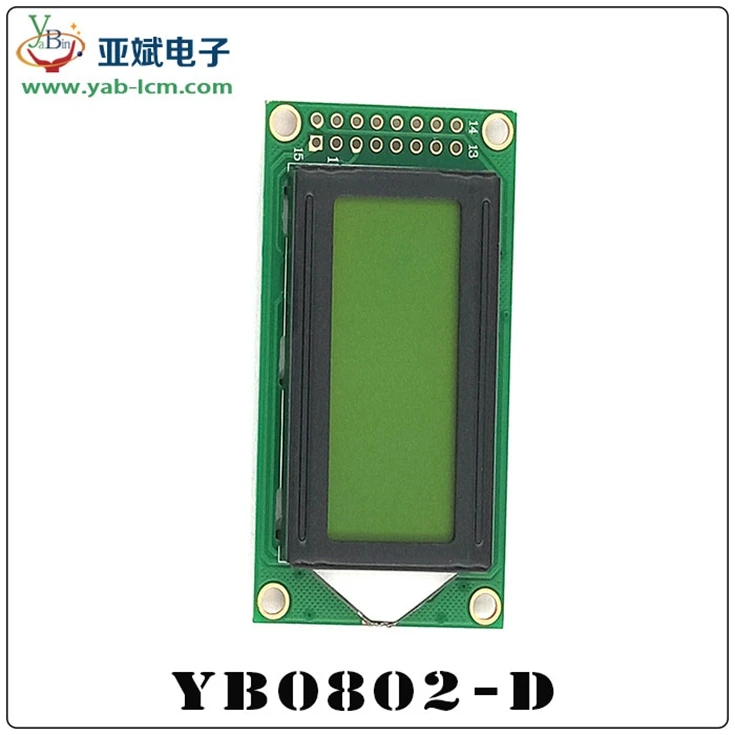

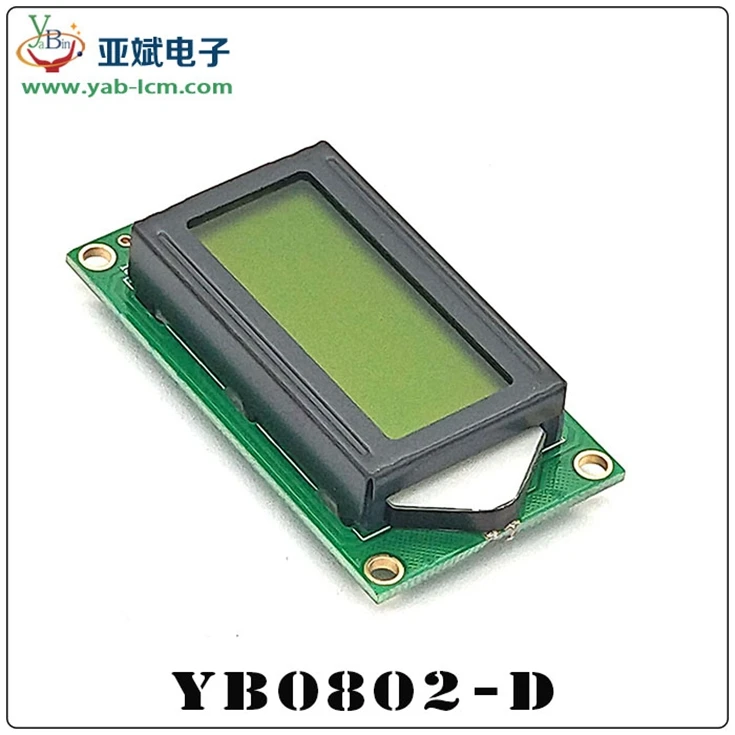

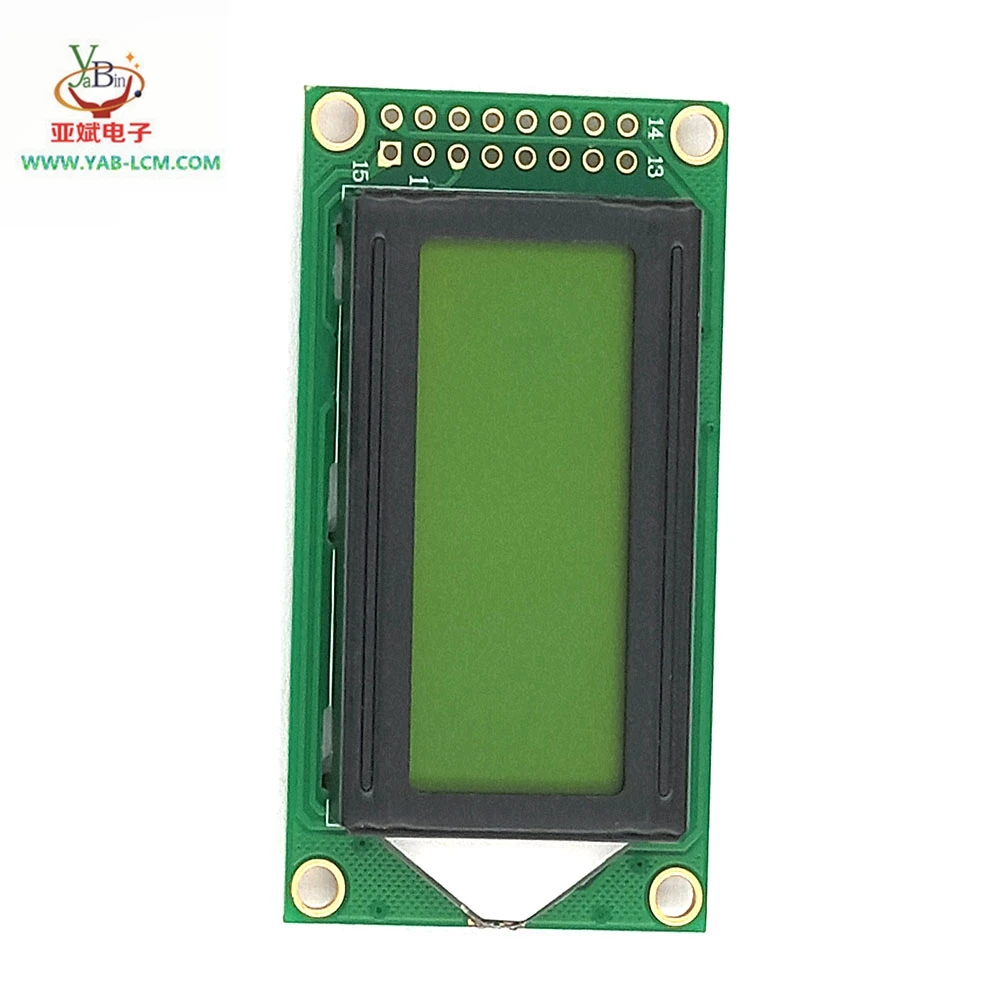

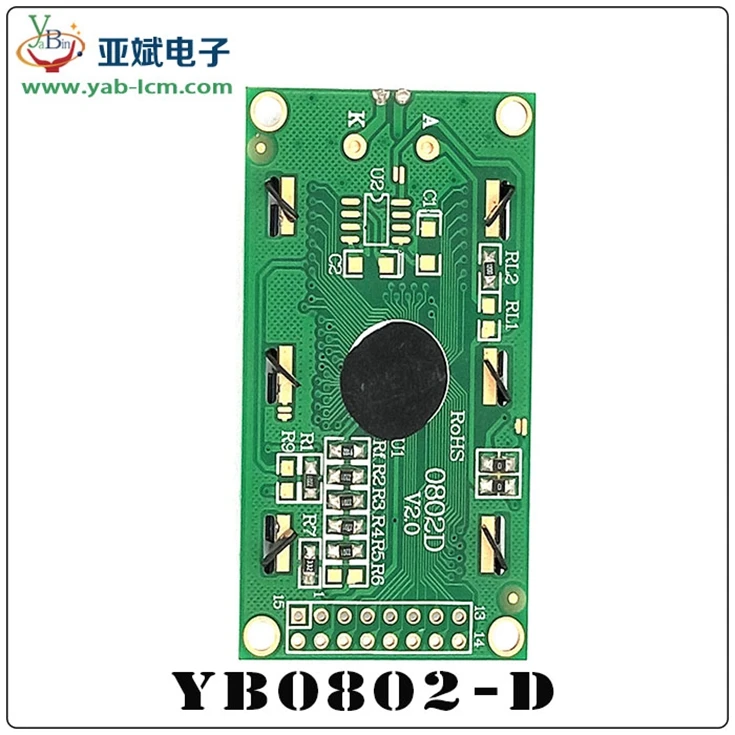

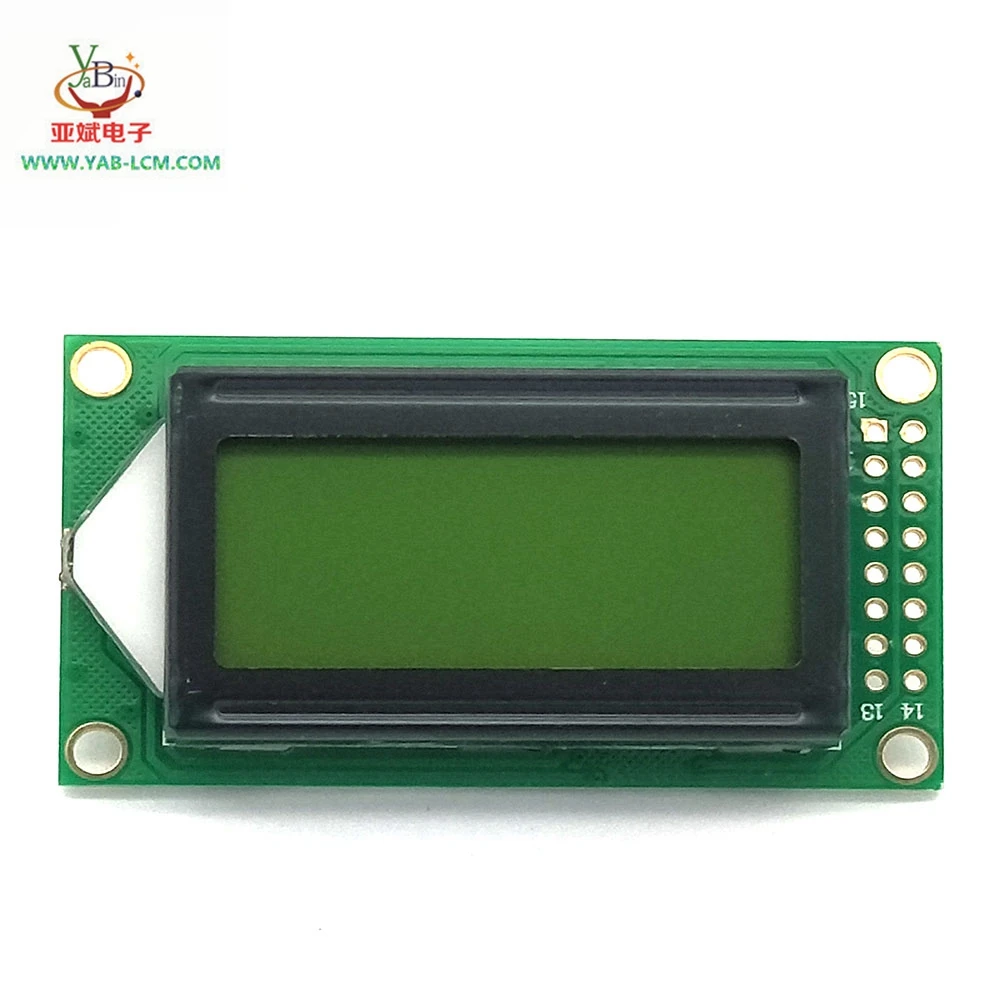

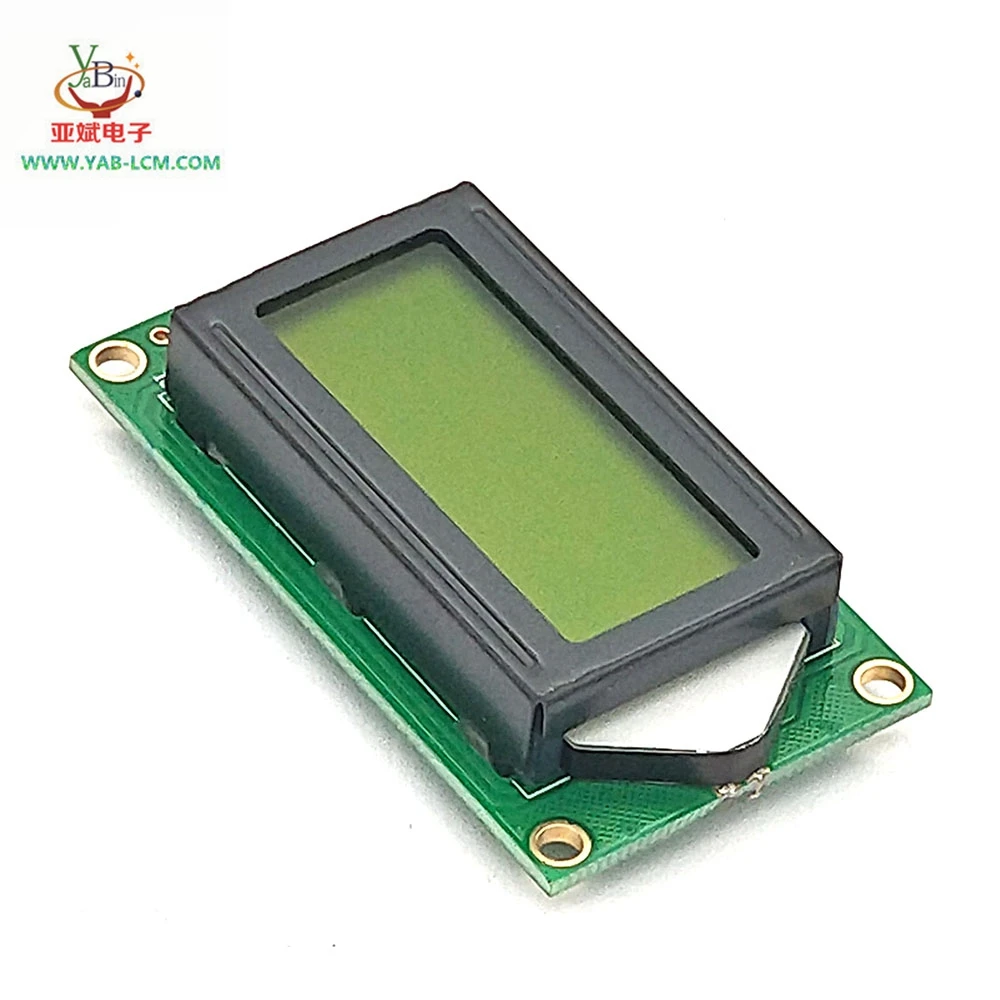

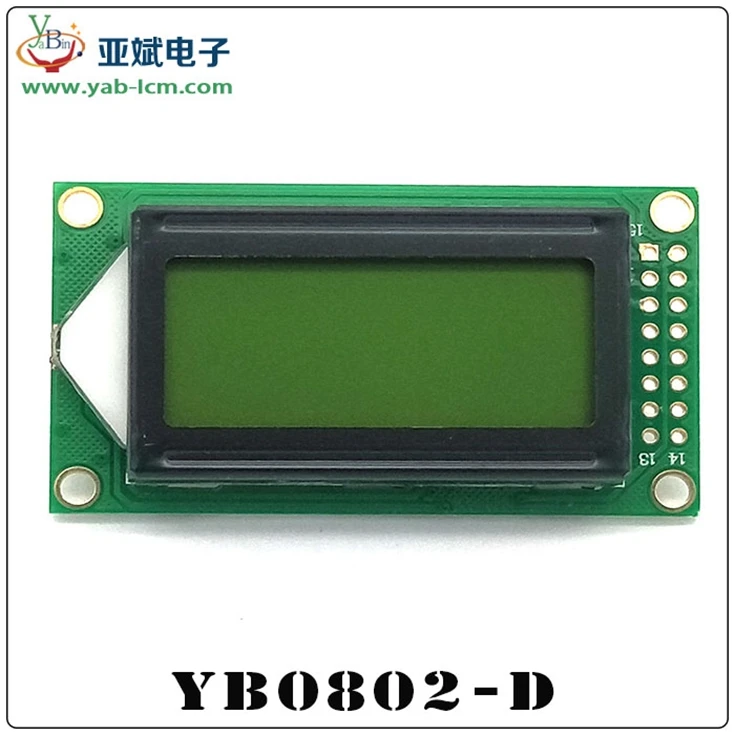

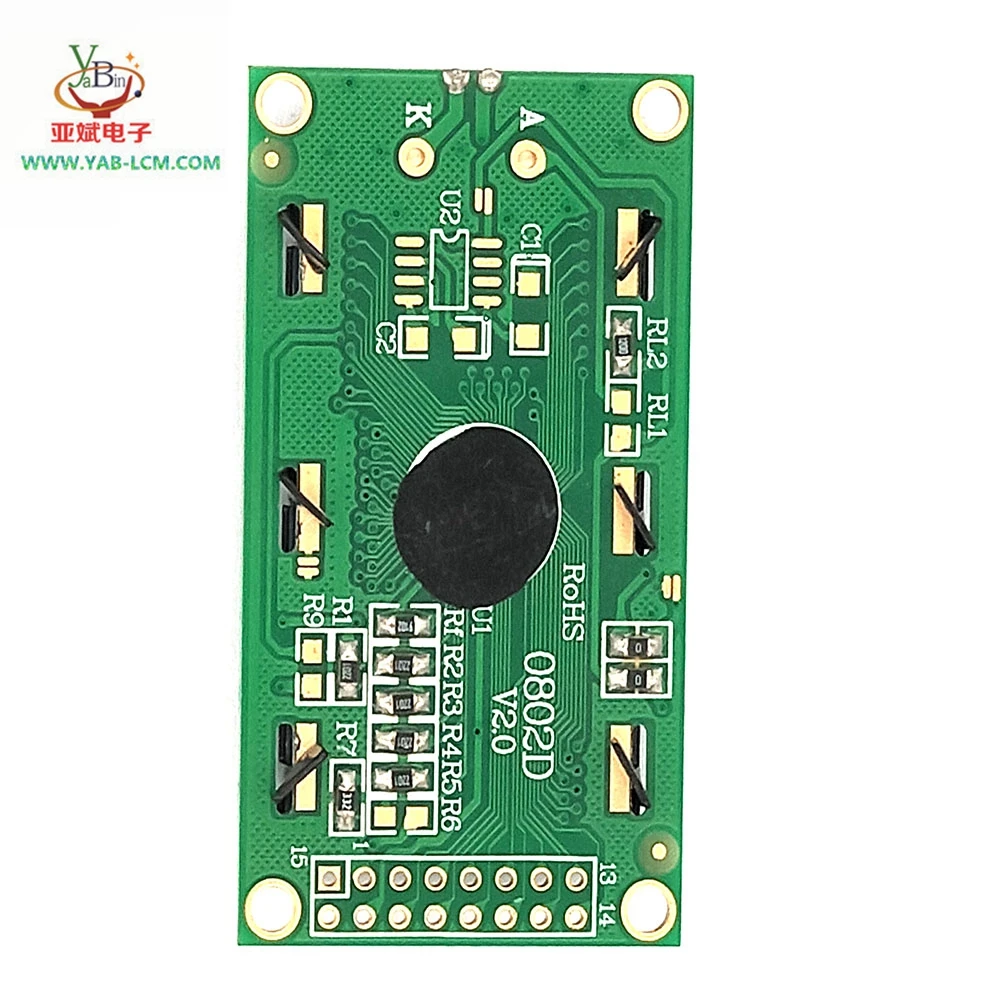

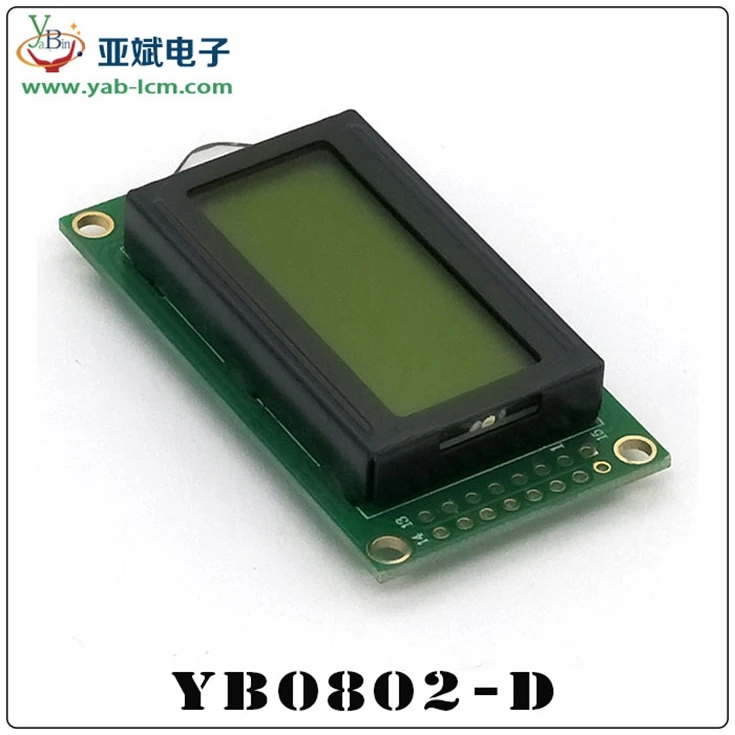

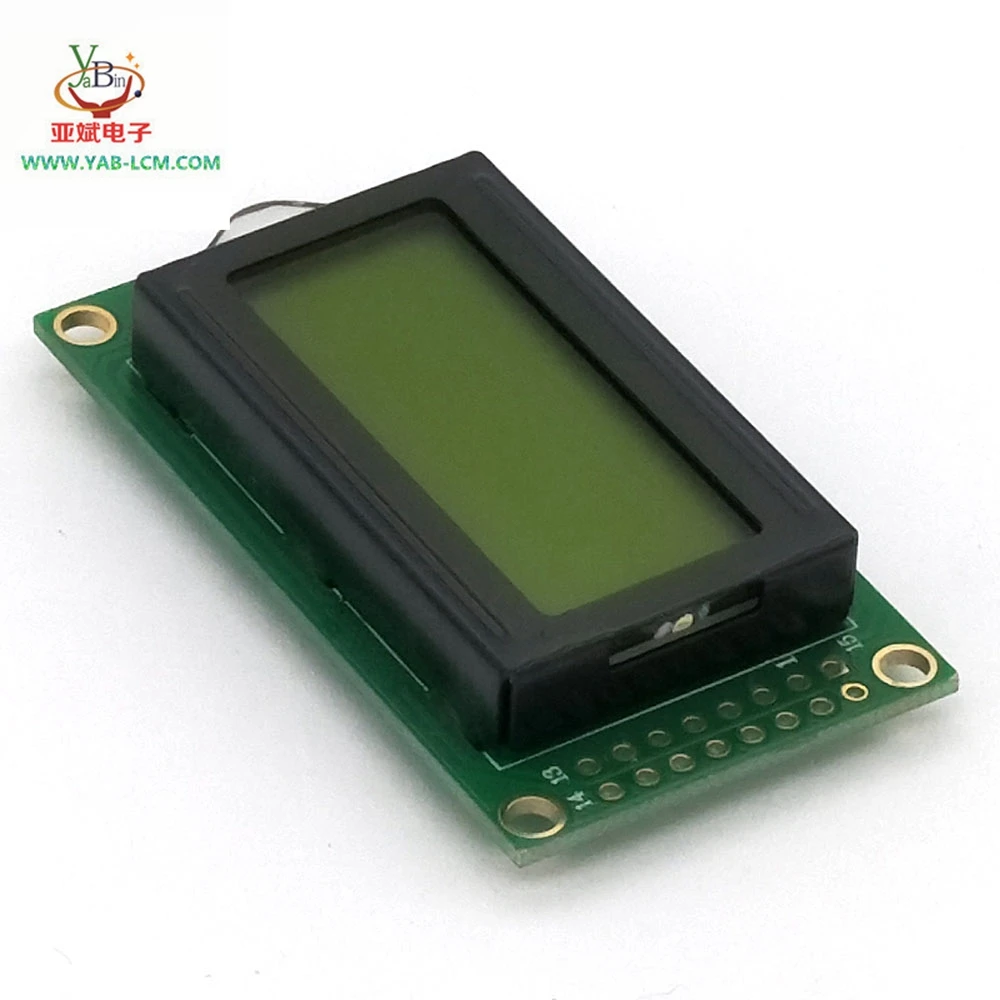

6.PRODUCT PICTURE
