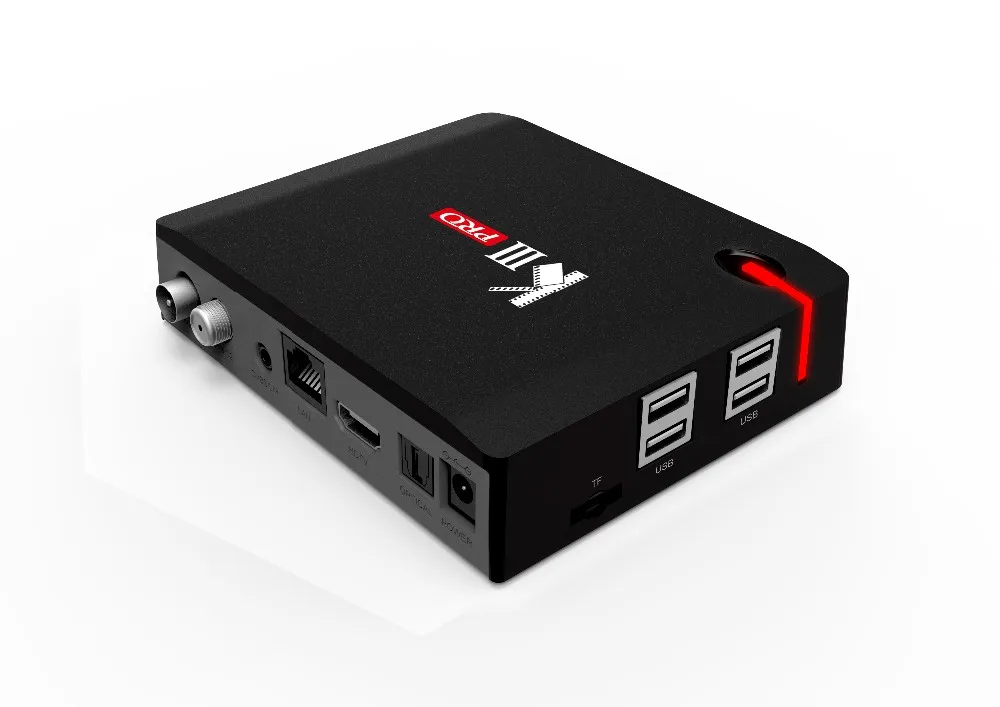

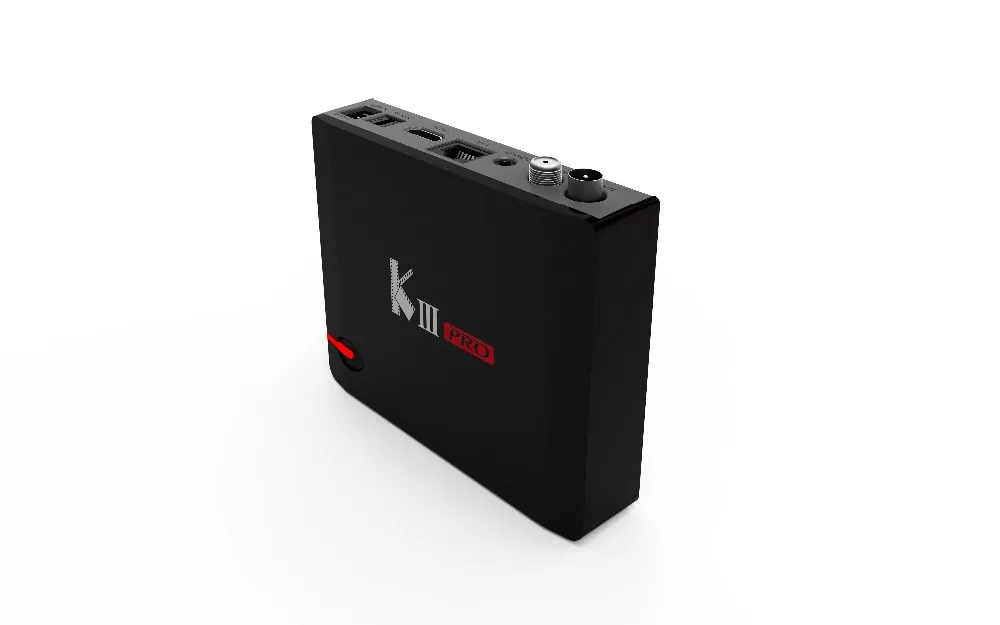

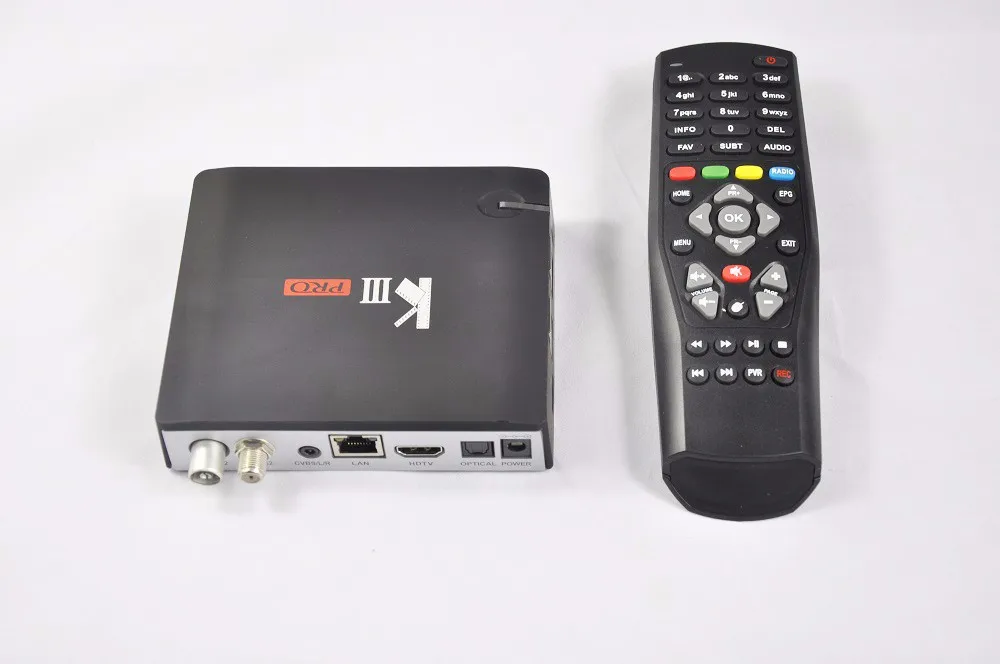

2018 Cheapest Android 7.1 KIII Pro S912 Combo TV box 3GB 16GB Amlogic S912 Octa Core 64bit 4K Combo Set Top Box

Share on (60735214339):


Price:$110.00

Quantity:


Product Overview

Description


2018 Cheapest Android 7.1 KIII Pro S912 Combo TV box 3GB 16GB Amlogic S912 Octa Core 64bit 4K Combo Set Top Box



ACEMAX KIII Pro Amlogic S912 OCTA-core free channels satellite receiver  DVB-S2/DVB-T2 dual tuner cccam receiver 4K UHD dual band wifi, 3G RAM 16G ROM 1000M Lan

Amlogic S912 64Bit OCTA-core Android 6.0 DVB-S2 DVB-T2 Combo

Hardware

CPU

Amlogic S912 OCTA Core 64-bit  Cortex A53 Up to 2.0GHz

GPU

Penta-core  Mali-450 Up to 750MHZ

3D Graphics

OpenGL ES 1.1/2.0 and Open VG 1.1 support

Video Decoder

4Kp60 10-bit HEVC, 4Kp30 MPEG / VC-1 / AVS+ / H.264

Video Encoder

 H.264,1080P@60fps

Ram

DDR3  3GB

Rom

eMMC 16GB

WiFi

Built in 2.4G and 5.8G Dual WIFI Supporting 802.11 b/g/n AC Bluetooth 4.0 Gigabit Lan

IR

Infra Remote Control

LED Indicator

Power On: Blue; Standby:Red

DVB-T2

DVB-T2 system standard:ETSIEN 302 755

Support MPLP

Demodulation: QPSK,16QAM,64QAM or 256QAM

Forward error correction rate 1/2,2/3,3/4,3/5,5/6

Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128

Bandwidth: 6/7/8MHz

Input Frequency range:54--860MHz Input Impedance:75 Ω

Input Signal level: -84 dBm to  0 dBm (average power)

ANT. Connector: IEC TYPE, female Loop Output:IEC TYPE, male,

DVB-S2

DVB-S2 system standard: ETS 302 307

Symbol Rates: QPSK,8PSK

Forward error correction rate 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10

Carrier frequency acquisition range: ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates

Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35

Symbol Rates: 1- 55 Msps

Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8

Input Signal level: -84 dBm to  0 dBm (average power)

ANT. Connector:IEC TYPE, female Loop Output:IEC TYPE, male

I/O

HDMI 2.0

4K 2K HDMI2.0,HDCP2.2

4*USB Host

4 High Speed USB 2.0,Support U DISK and USB HDD

1*TF Card

Support 1-32GB

1*AV

AV Output

1*SPDIF

Audio Output

1*RJ45

10/100 BaseT

Power

DC Adapter 12V/1A

Accessories

Adapter 12V 1A

Gift Box

IR Remote Control

HDMI Cable

User Manual

Software

OS

Android 6.0

Decoder

HD MPEG1/2/4,H.265/HEVC,HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6,RealVideo8/9/10

Video

AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG

Music

MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE


HD JPEG/BMP/GIF/PNG/TIFF

Support Language

English,German,French, Spanish, Italian, etc.  24 languages

Mouse/Keyboard

Support mouse and keyboard via USB
Support 2.4G wireless mouse and keyboard via 2.4G USB dongle

KODI

Support local high-definition play, support plug-in installation and play

Others

Support DLNA/AirPlay/Google TV Remote/LAN/Miracast/3D moive

Appliactions:

Online

Browse all  video websites,support  Netflix,Hulu,Flicker,Picasa,Youtube,Twitter,Facebook,etc

Apps

Apps  download  freely form  android  market/amazon appstore etc

Medium

Local Media playback,support HDD, U disck,SD card

Talk online

Support  SKYPE video  call, facebook,twitter,Netflix,Youtube, etc

Others

Support   Email,office suit etc





kiii pro aKIII PRO BUI

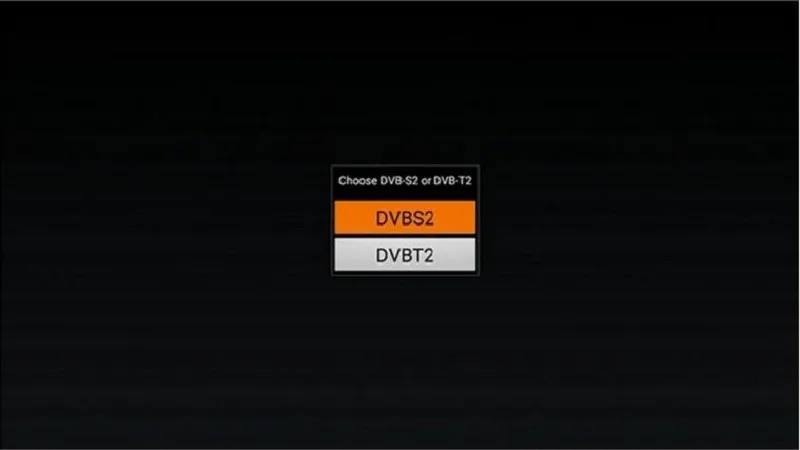

T2 S2.jpg

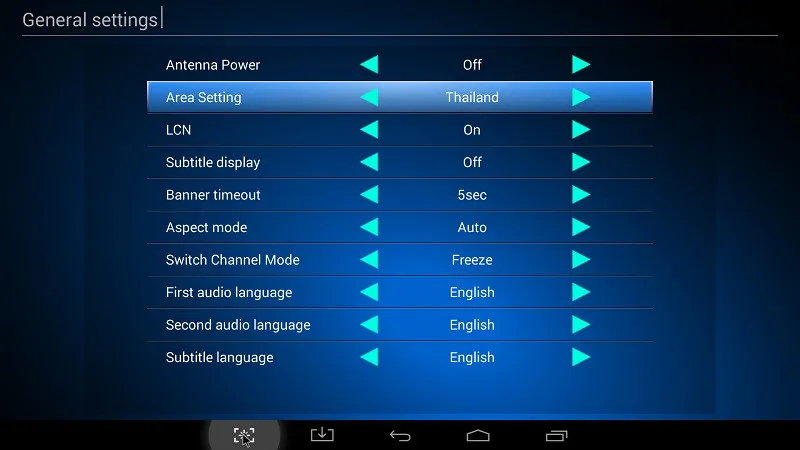

DVB T2-1DVB T2-2DVB S2-1DVB S2-2
