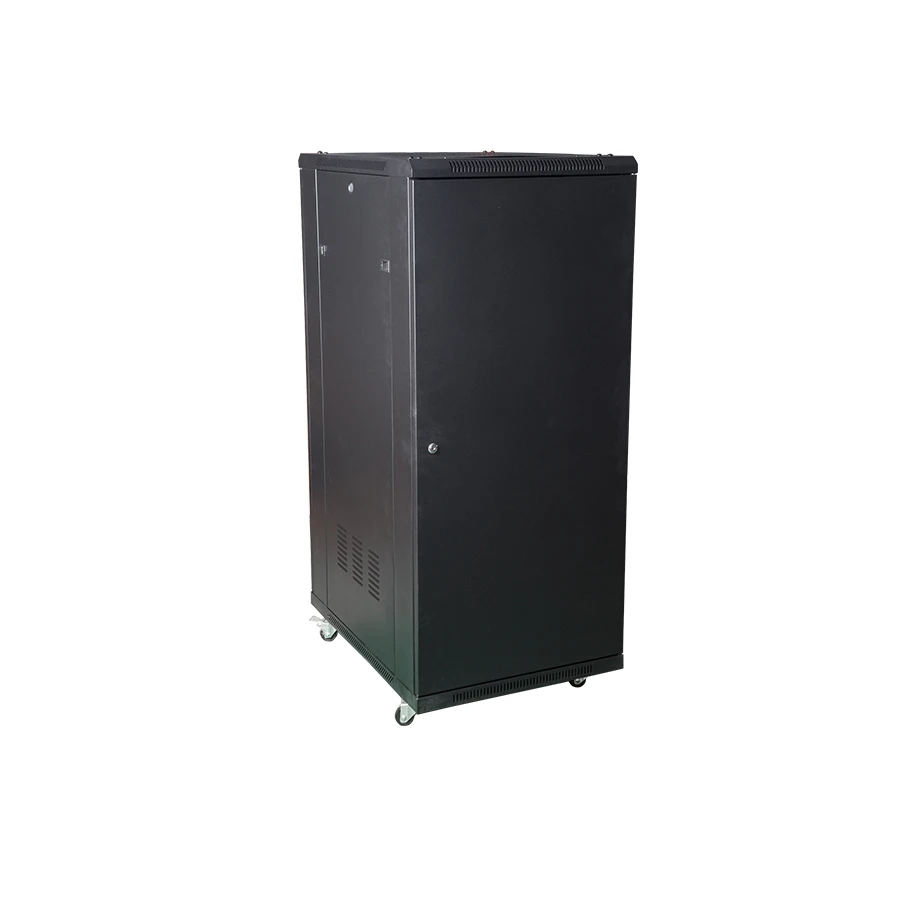

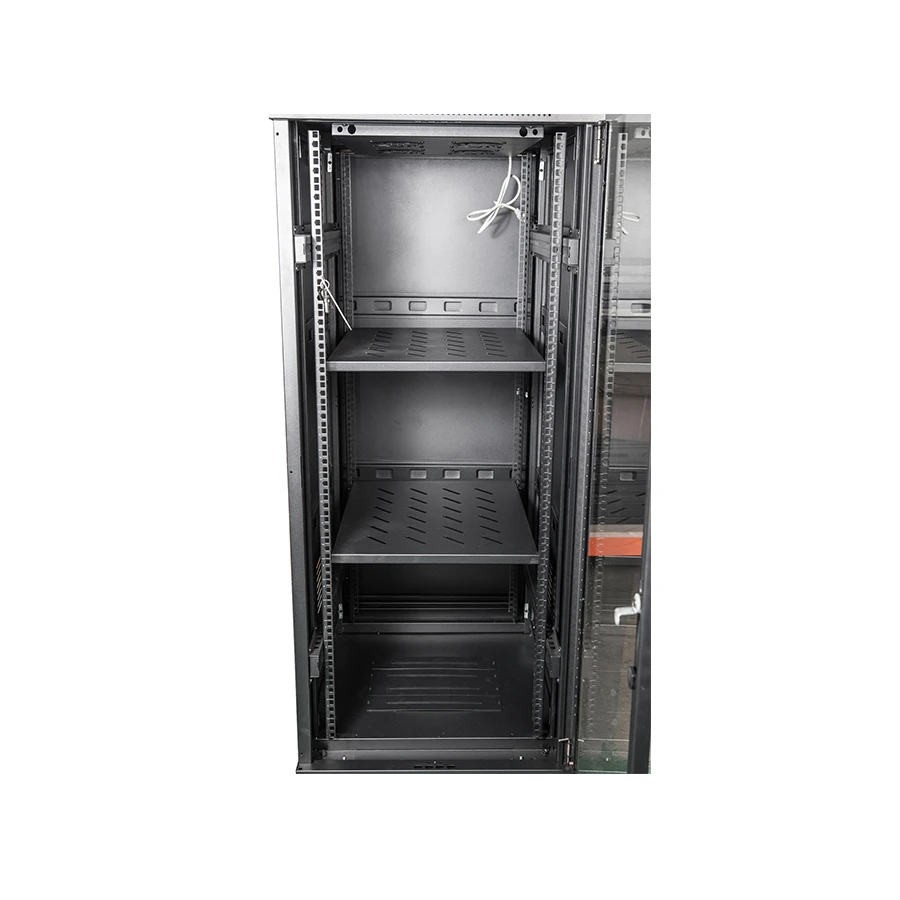

Front glass door with vented door frame 19' Network Rack Mount Cabinet
- Category: >>>
- Supplier: Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co. Ltd.
Share on (60735255374):
Product Overview
Description
Floor Standing Server Rack Cabinet with Vented Door Frame
WB-NC-xxxx15B cabinet is a standardized enclosure for mounting data and telecommunication devices and their distribution systems.
# 19" rack mountable, GLASS DOOR structure
Back solid metal door.
Specially designed Server
19" rack mountable, Commercial rack structure - possible of extending the load capacity up to 800KG.
* Usually for office and DATA ROOM group.

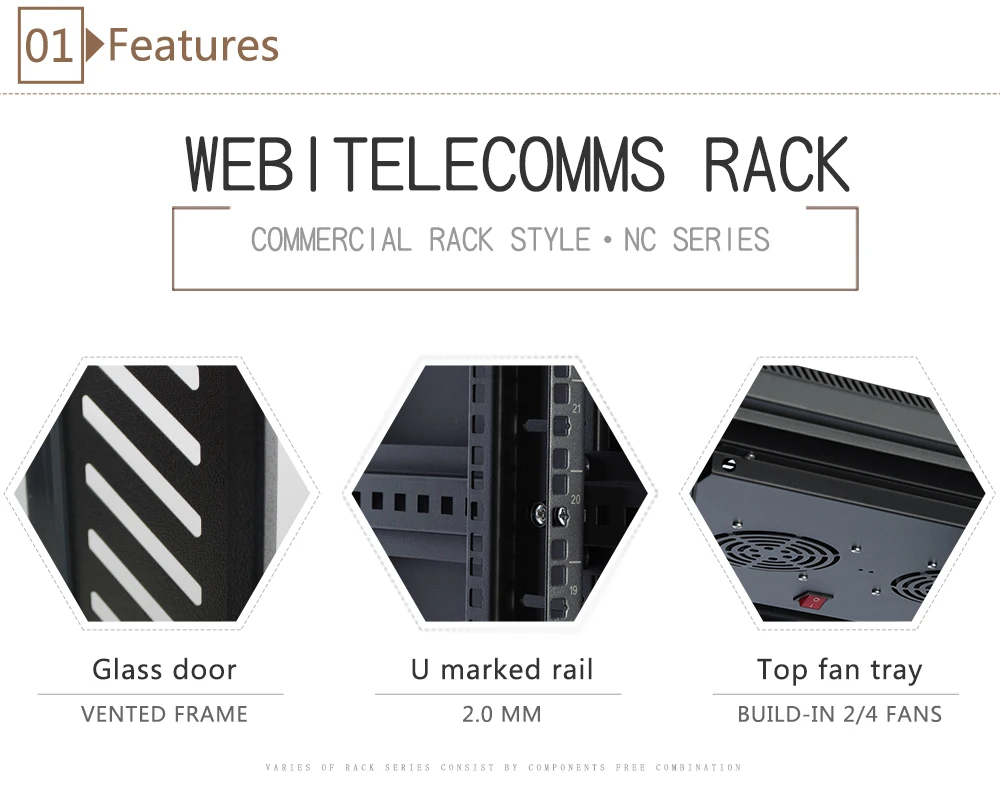

Features

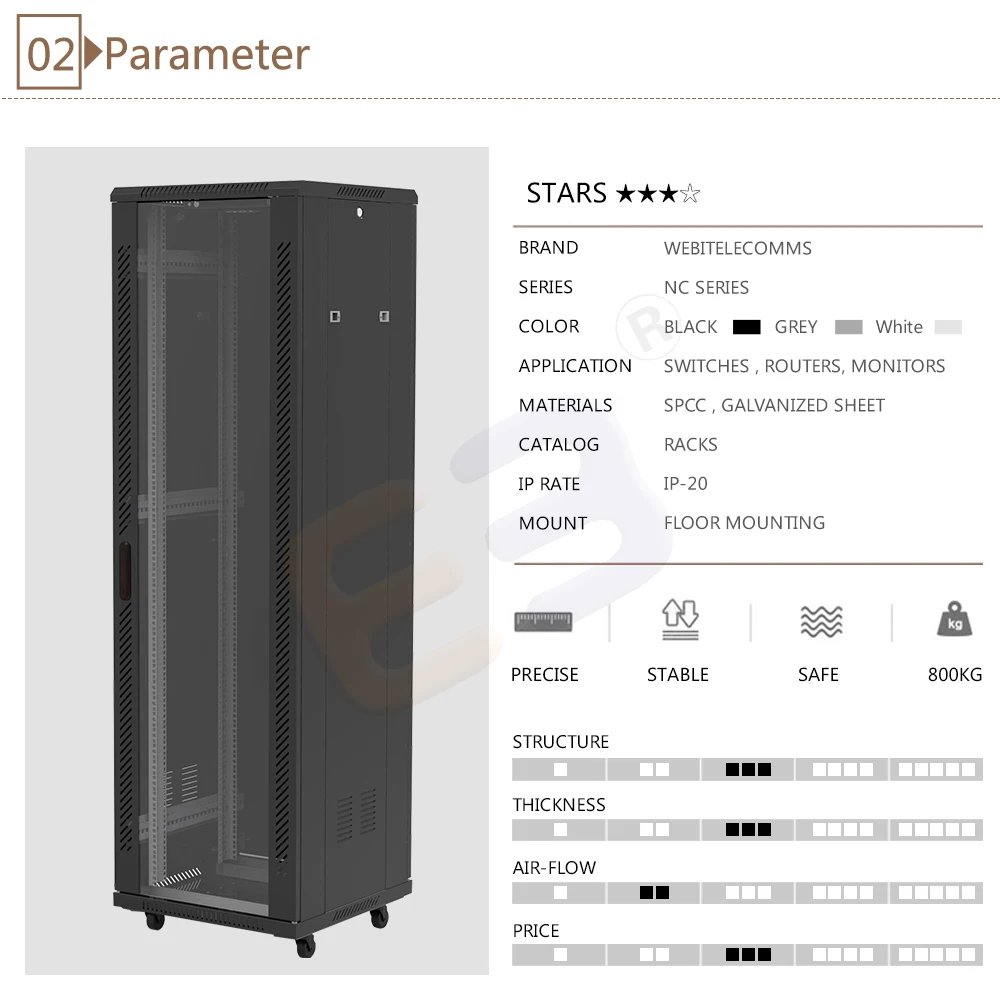

Parameter

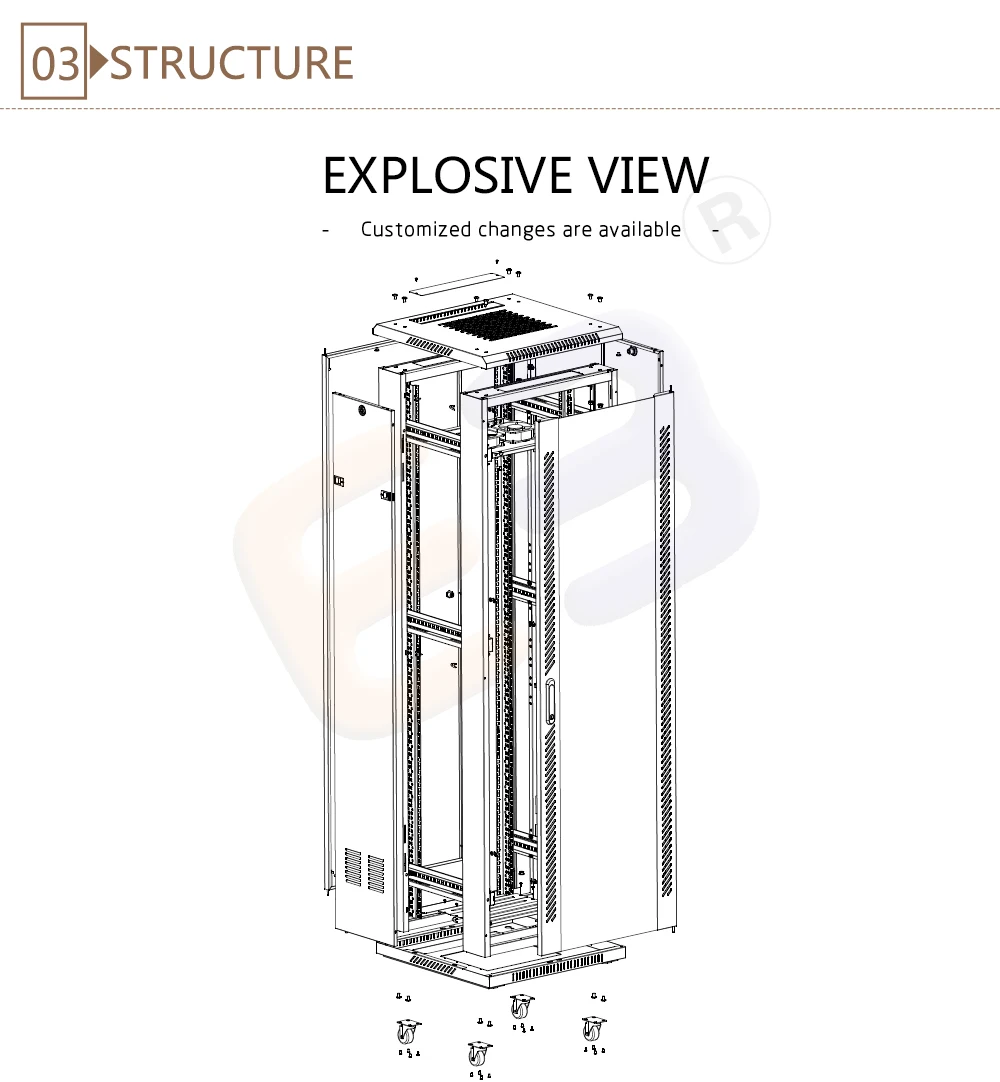

Structure
| NO. | Item | 600W | 800W | Materials | Treatment | Remarks |
| 1 | Frame | 2 | 2 | 1.5mm SPCC steel | Powder coated | |
| 2 | Front door | 1 | 1 | 1.2mm SPCC steel & 5 mm tempered glass | Powder coated | vetned frame |
| 3 | Side panels | 2 | 2 | 1.0mm SPCC steel | Powder coated | Removable |
| 4 | Back door | 2 | 2 | 1.2mm SPCC steel | Powder coated | Solid metal |
| 5 | Lock | 2 | 2 | Zinc-alloy steel | Powder coated | Handle lock |
| 6 | Top cover | 1 | 1 | 1.2mm SPCC steel | Powder coated | |
| 7 | Fan tray | 1 | 1 | 1.2mm SPCC steel | Powder coated | build-inA 4 fans |
| 8 | AC fan | 2/4 | 2/4 | 110V/220V 2-core sleeve fan | - | |
| 9 | Quick-open latch | 4 | 4 | ABS | Plastic Injection | for side panel |
| 10 | Fan power cord | 1 | 1 | PVC power cable with plug | - | L = 1.5Mtr |
| 11 | Bottom panel | 1 | 1 | 1.2mm SPCC steel | Powder coated | |
| 12 | Mounting angle | 6 | 6 | 1.5mm SPCC steel | Powder coated | 4 pcs when ≤ 27U |
| 13 | Mounting profile | 4 | 4 | 2.0mm SPCC steel/Galvanized sheet | Powder coated | 2 with brake |
| 14 | Castor | 4 | 4 | Rubber and Steel | - | |
| 15 | Adjustable feet | 4 | 4 | Mild steel | Galvanized | |
| 16 | M6 caged nuts and screw | 20 | 20 | Mn56 steel | Galvanized |

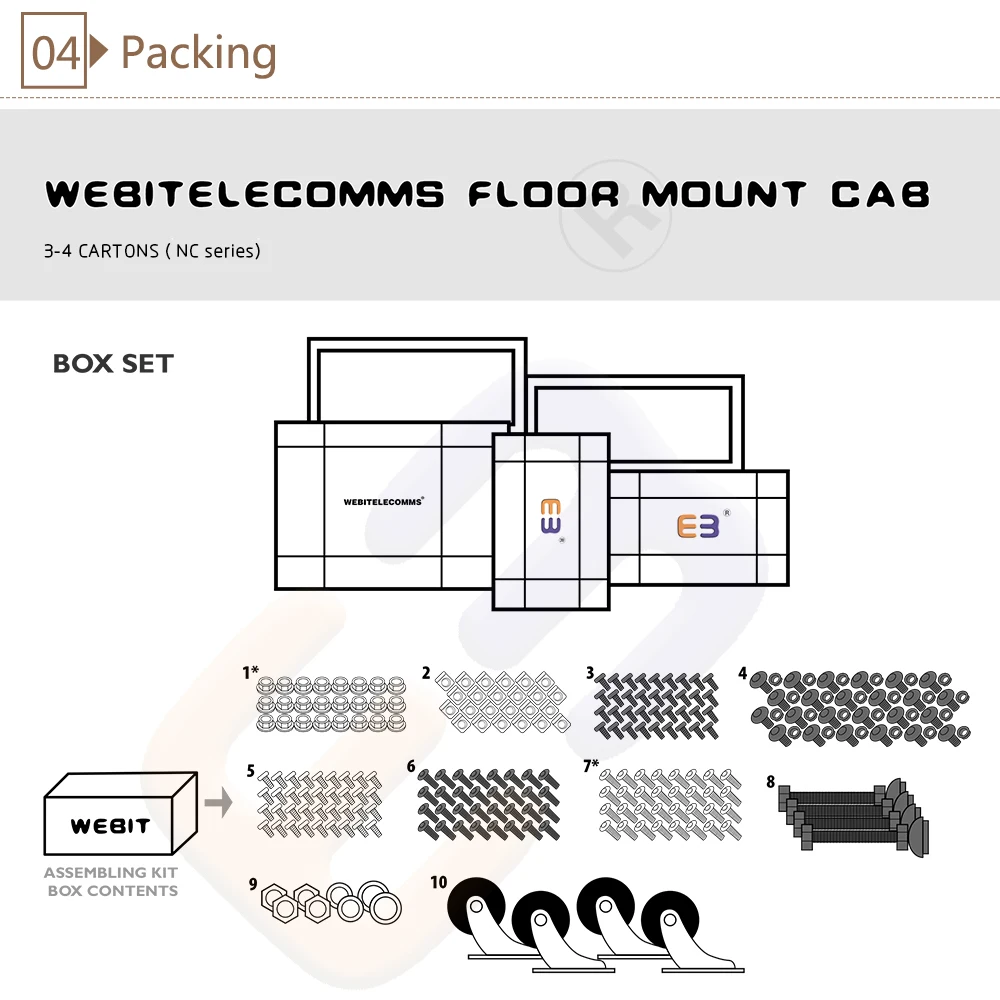

Packing
About us
Our factory
Certifications
FAQ
Q: If Webitelecomms offer OEM service?
A: Yes .
Q: What is the payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: Usuall 30 days after receiving deposit or original L/C.
Q: What certificates do you have?
A: We have CE, RoHs ,ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q. Which port do you often use when export?
A: Ningbo / Shanghai Port, or as customer request.
Q.Can I order with special size ?
A.: Sure no problem, Customized size is very welcome.
Q.What about the warranty
A.:Normally 2 years warranty , working under normal environment; (excluding man-made damage or neutral disaster)
