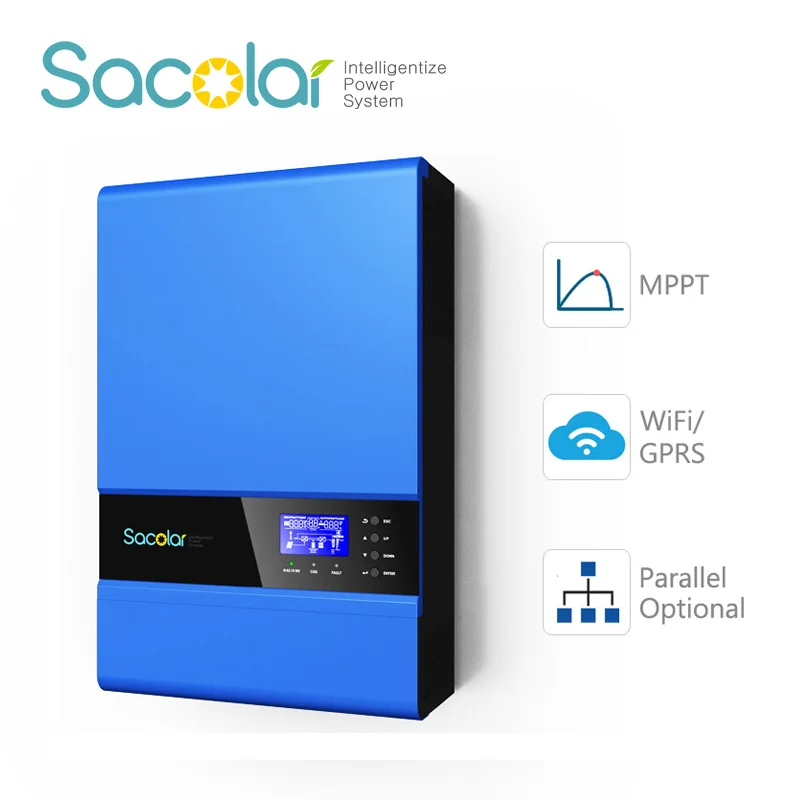

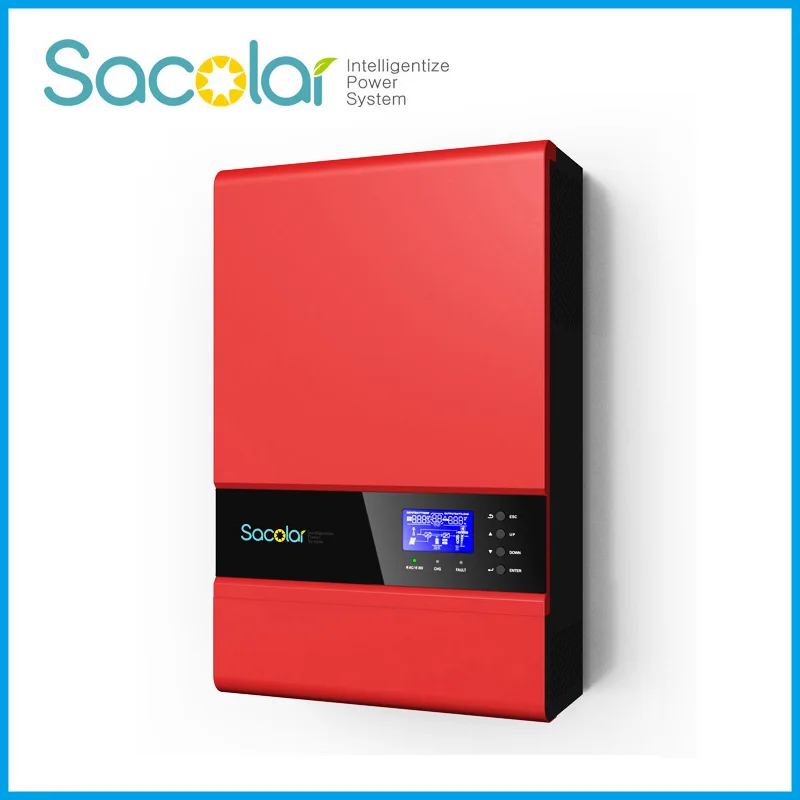

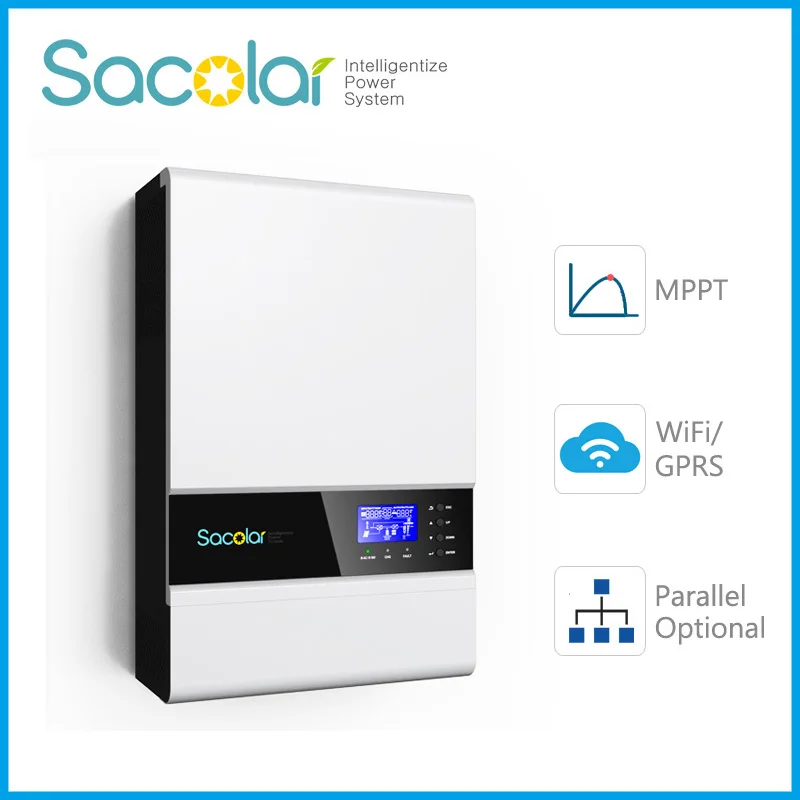

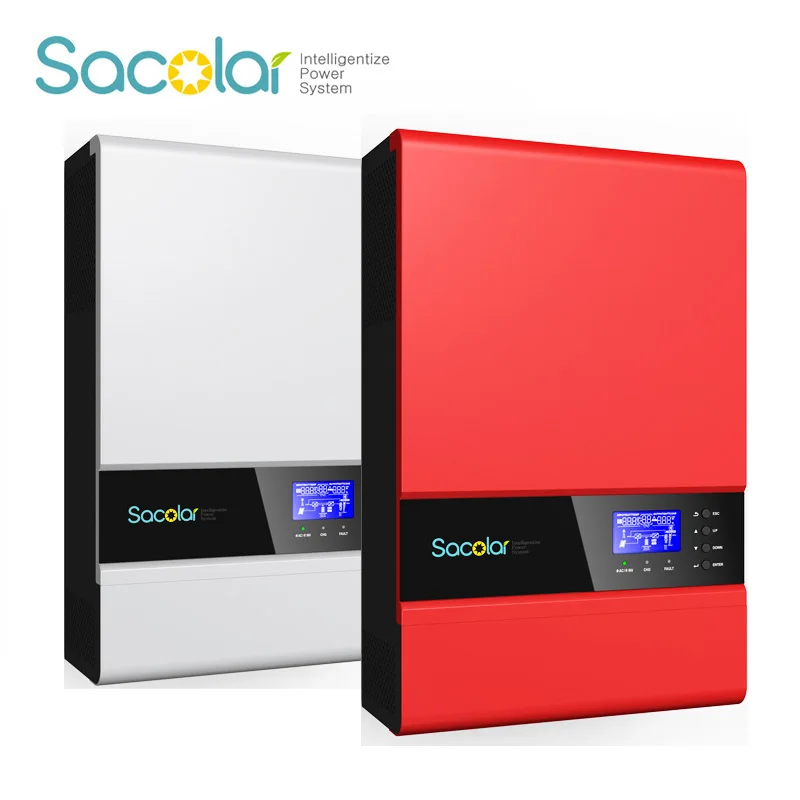

10kw pure sine wave inverter for solar off grid system European approved (2 pcs 5kw inverters in parallel)

 Rated power 2KW to 5KW
 MPPT solar charge controller to maximize the solar output
 High frequency inverter with small size and light weight
 Pure sine wave AC output
 Overload, short circuit and deep discharge protection
 Configurable AC/ solar input priority via LCD setting
 Compatible to mains voltage or generator power
 WIFI/ GPRS remote monitoring (optional)
 Parallel operation for Sunicorn MHP 4KW/5KW

System matching recommendation:

Product Overview

DiSPLAY INFOMATION

1. LCD Display

2. Status indicator

3. Charging indicator

4. Fault display

5. Function buttons

BOTTOM PANEL

6. AC input                   7. WiFi/GPRS communication port
8. USB port                  9. Dry contact

10. PV input                 11. Power on/off switch

12. Battery input

13. Parallel communication ports (only for parallel model)
14. Current sharing ports (only for parallel model)
15. AC output              16. Circuit breaker

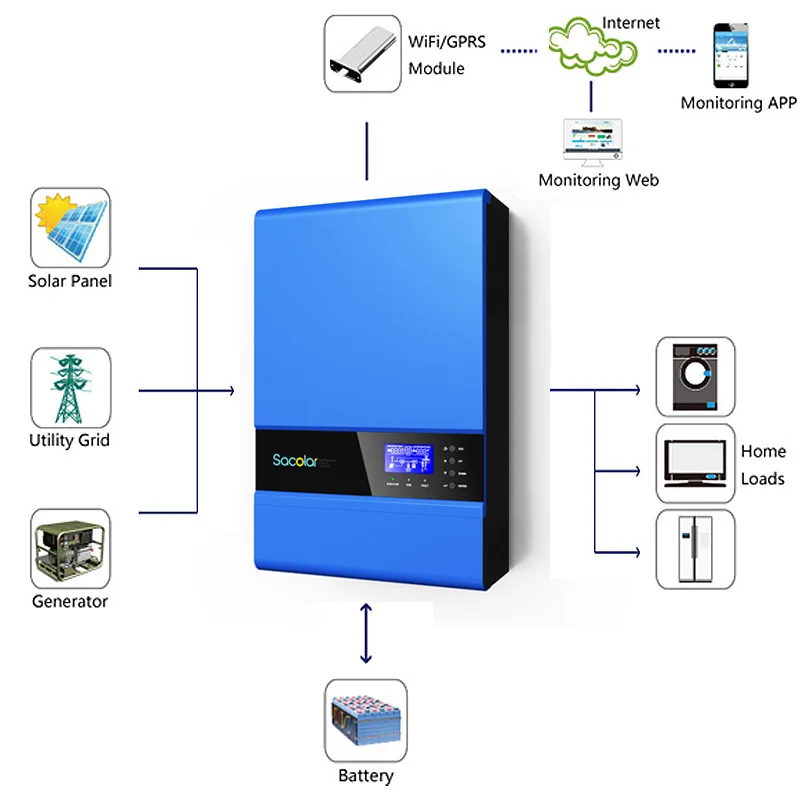

System Connection

Sunicorn series parallel connecting:

Specification

Sunicorn MHP series, with MPPT controller:

Model	Sunicorn MHP-2KW	Sunicorn MHP-3KW	Sunicorn MHP-4KW	Sunicorn MHP-5KW
Input / Output Voltage	DC 24V / AC 220V	DC 24V / AC 220V	DC 48V / AC 220V	DC 48V / AC 220V
Max. PV Power	1000W	1000W	4000W	4000W
Max. PV Charge Current	25A	25A	80A	80A
AC Charge Current	30A	30A	60A	60A

Sunicorn HP series, with PWM controller:

Model	Sunicorn HP-2KW	Sunicorn HP-3KW	Sunicorn HP-4KW	Sunicorn HP-5KW
Input / Output Voltage	DC 24V / AC 220V	DC 24V / AC 220V	DC 48V / AC 220V	DC 48V / AC 220V
Max. PV Power	1200W	1200W	2400W	2400W
Max. PV Charge Current	50A	50A	50A	50A
AC Charge Current	30A	60A	60A	60A

Product Processing

 With a assembly of the top talents in the industry
 One of the most intelligent and automatic inverter production lines in China
 Production capacity over 100, 000 pieces a year

Main Products

2KVA~5KVA OFF GRID INVERTER WITH MPPT CONTROLLER

FOB Price: US $ 160 - 450/Piece

1.2KVA~2.4KVA OFF GRID SOLAR INVERTER / MICRO UPS

FOB Price: US $ 60 - 80/Piece

20A~60A MPPT SOLAR CHARGE CONTROLLER

FOB Price: US $ 60-120/Piece

Contact

Your success is our success. Please feel free to contact with us anytime :)
