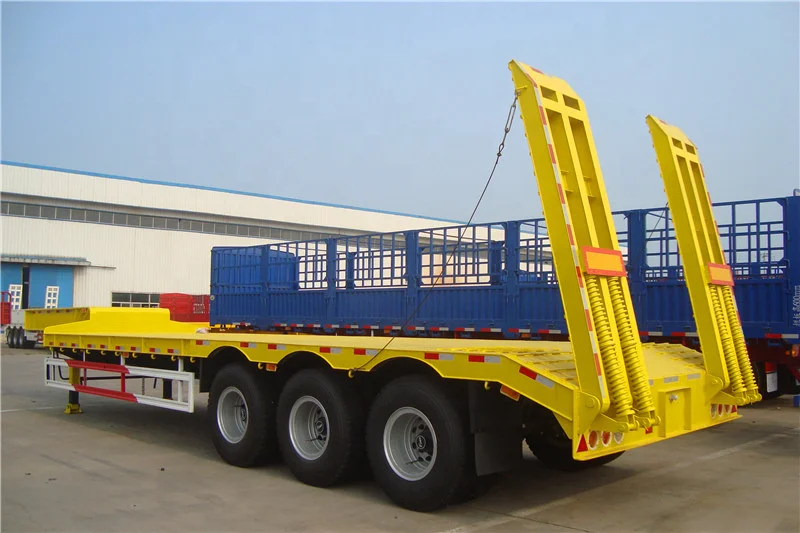

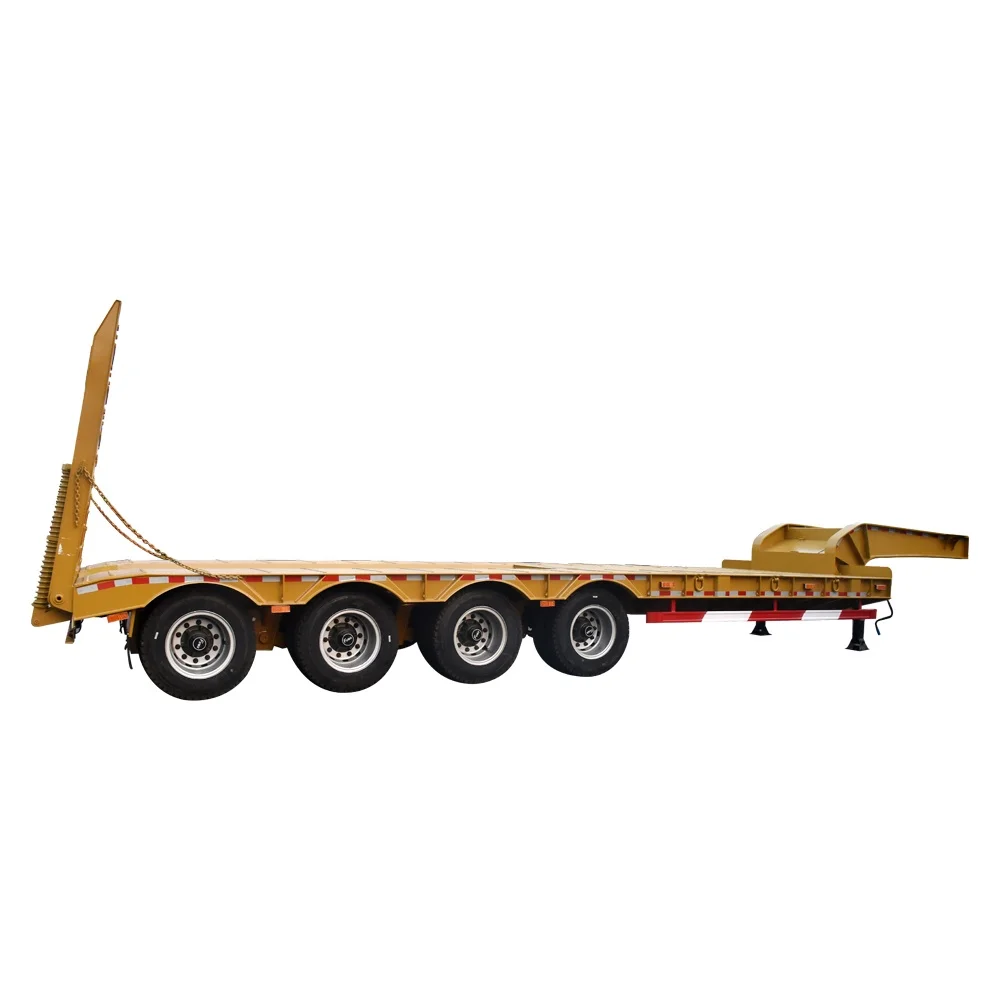

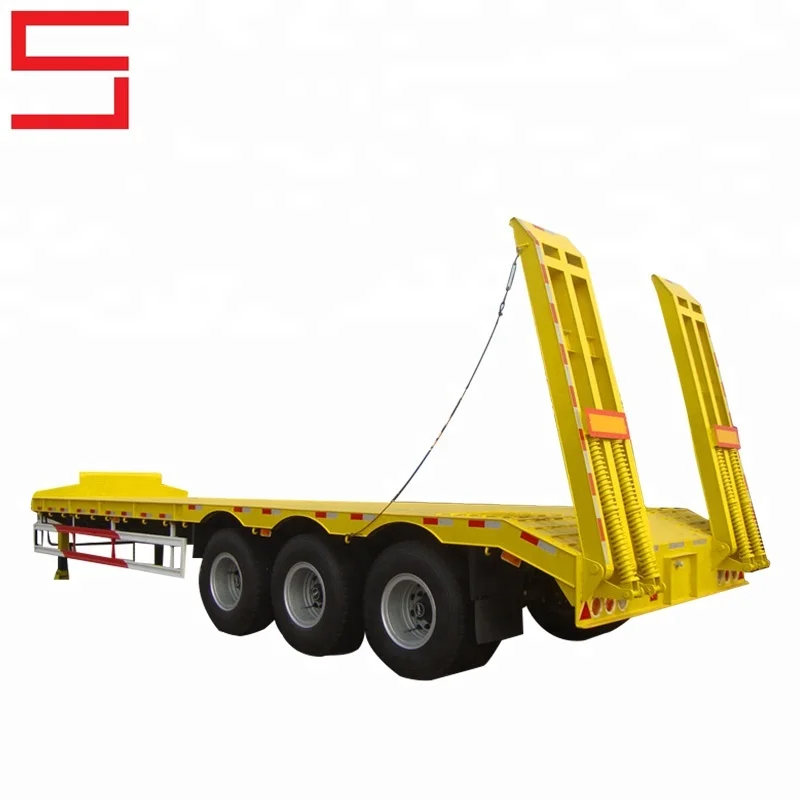

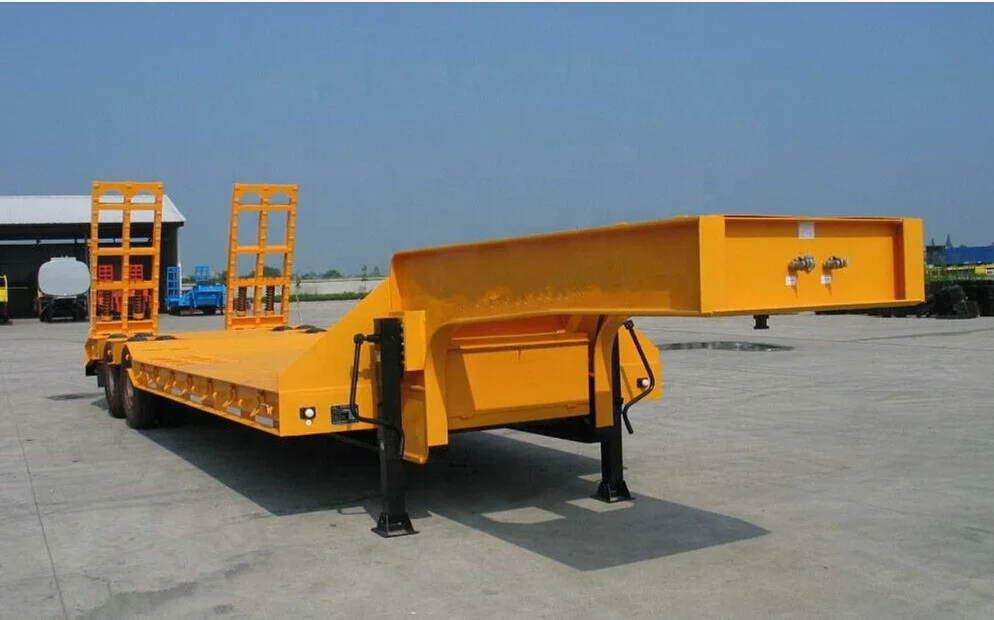

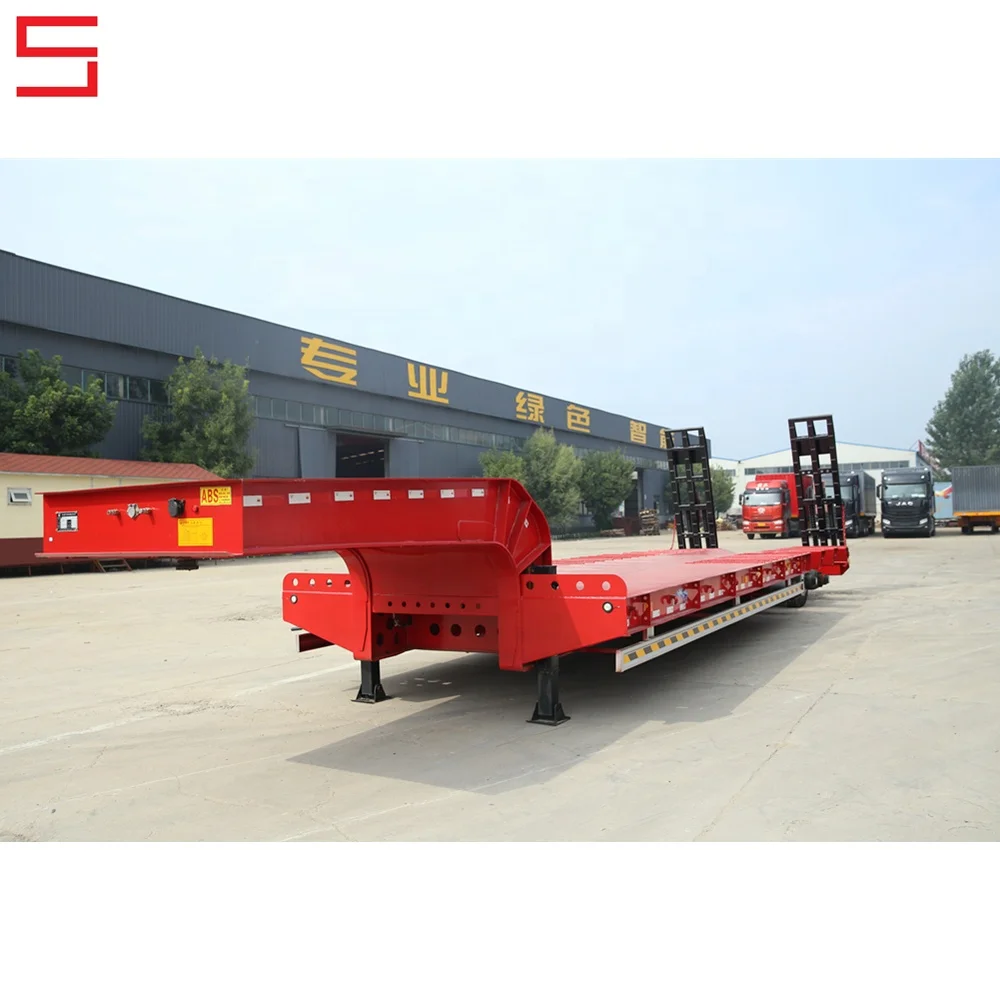

SINO AUTO 60 Tons Lowboy Trailer 40ft Flatbed Trailer 40t Low Bed Trailer
- Category: >>>
- Supplier: Jinan Chengjin Vehicle Sales Co. Ltd.
Share on (60735310510):
Product Overview
Description
Product Description
| Payload | 60,000kg |
| Tare | 10,000kg |
| Total weight | 70,000kg |

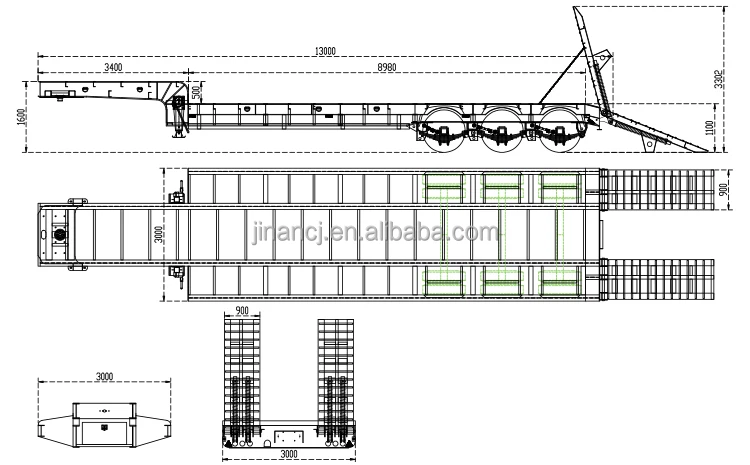

| Over size | 13,000*3,000*3,302mm |
| Platform height | 1,100mm |
| Platform length | 8,980mm |
| Platform width | 3,000mm |
| Floor thickness | 4mm |
| Gooseneck length | 3,400mm |
| Crank height | 500mm |
| Ladder length | 2,500mm |
| Climbing angle | 39% |
| Wheelbase | 1,310mm |
| Tread | 1,840mm |
| Main beam(I beam) | H500*T14,W180*T16,W180*T20 |
| Axle | 3 Unit 13 ton FUWA |
| Suspension | mechanical suspension |
| Leaf spring | 90mm*16mm*16piece |
| Wheel | 8.25*22.5 |
| Tire | 275/70R22.5 |
Landing gear | FUWA 28T double speed |
King pin | JOST 90# 3.5’ |
Fifth-wheel height | customizable |
| Brake | drum brake |
| Brake chamber | Double-chamber spring brake |
| Relay valve | WABCO |
| ABS | Optional |
| Voltage | 24V |
| Style structure | 3 axles flat unexposed tire |
| Painting | 1 primer+1 topcoat, two component polyurethane paint |
Trailer Assembly
Trailer Parts
Other Trailers
Our Services
Packaging & Shipping
We have been engaged in many years of overseas trade and have extensive experience in cargo transportation. We will provide efficient and economical transportation solutions based on your needs. SAFE, SPEED, SAVE & SERVICE are our standards.
