SAE 100R7 Thermoplastic Hydraulic Hose

Product Description

SAE 100R7 non-conductive thermoplastic hydraulic hose is available for applications where there are potential to contact with high voltage sources. Nylon tube is compatible with petroleum, water and synthetic based hydraulic fluids for mobile equipment, lube lines, blowout preventers and hydraulic lifts where nonconductive character is necessary. It consists of a thermoplastic inner tube resistant to hydraulic fluids with suitable synthetic-fiber reinforcement and a hydraulic fluid and weather resistant thermoplastic cover.

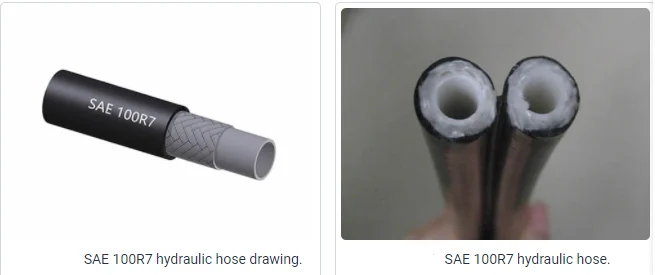

Construction

  • Tube: A thermoplastic inner tube of resistant to hydraulic fluids.
  • Reinforcement: Reinforced with suitable synthetic fiber.
  • Cover: A hydraulic fluid and weather resistant thermoplastic.
  • Temperature: -40 °C to +93 °C (-40 °F to +199.4 °F).



SAE 100R7 Medium Pressure Hydraulic Hose
Metric
Size
Inch
Size
SAE
Dash
Size
Hose I.D.HoseMax. Working
Pressure
Min.Burst PressureMin Bend
Radius
Weight
O.D.

MinMaxMaxpsibarpsibarmmkg/m
53/16-34.65.411.4304521012180840900.073
6.31/4-46.2713.72780192111207681000.09
85/16-57.78.515.62535175101407001150.128
103/8-69.310.318.4227515791006281250.155
12.51/2-812.313.522.5203014081205601800.224
165/8-1015.516.725.8152010560804202050.277
193/4-1218.619.828.612608750403482400.33
251-162526.436.710157040602803000.403

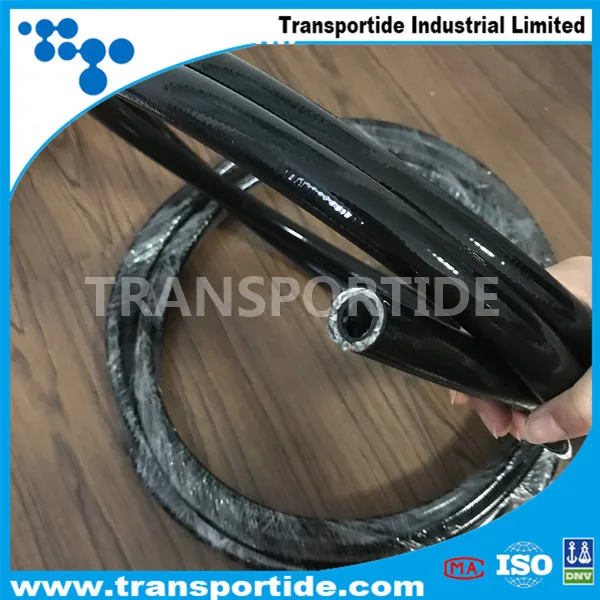

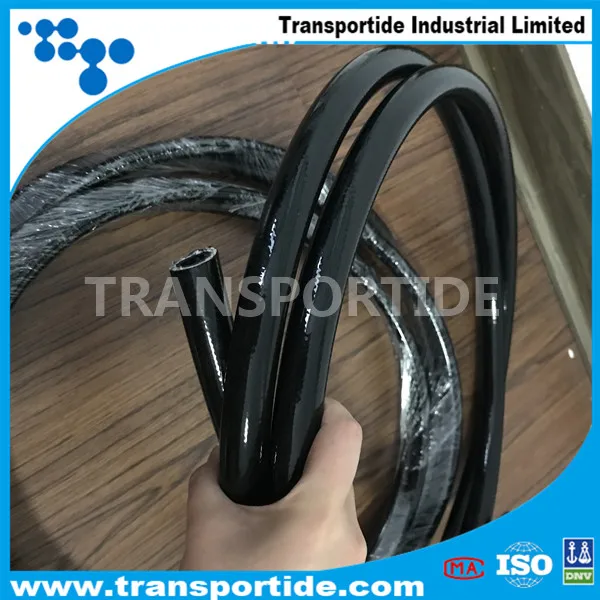

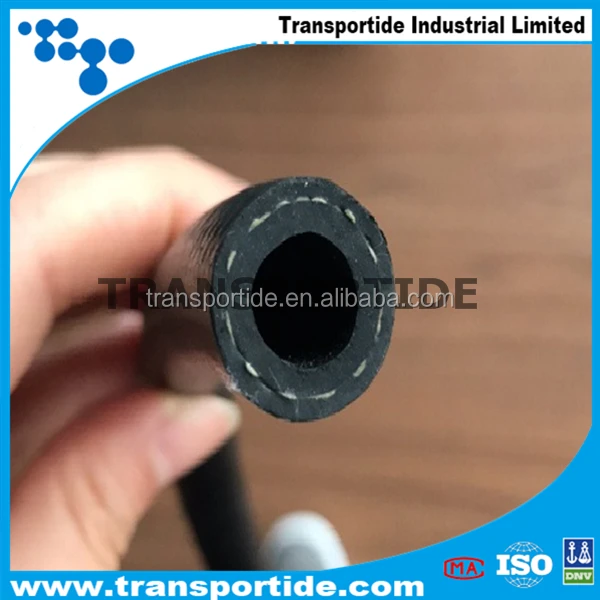

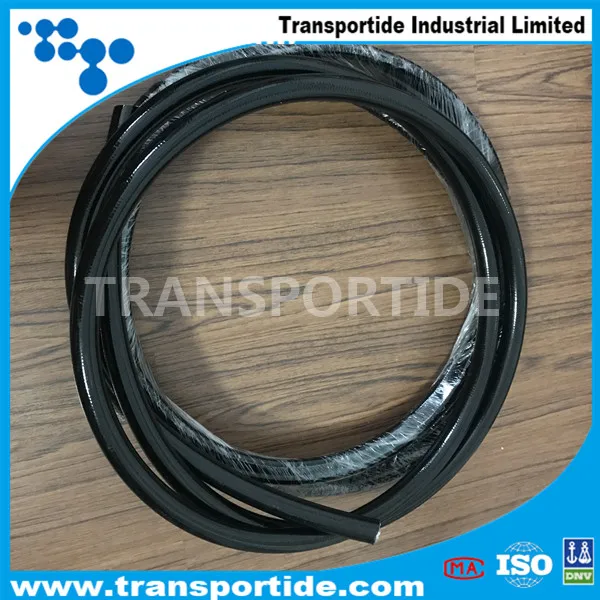

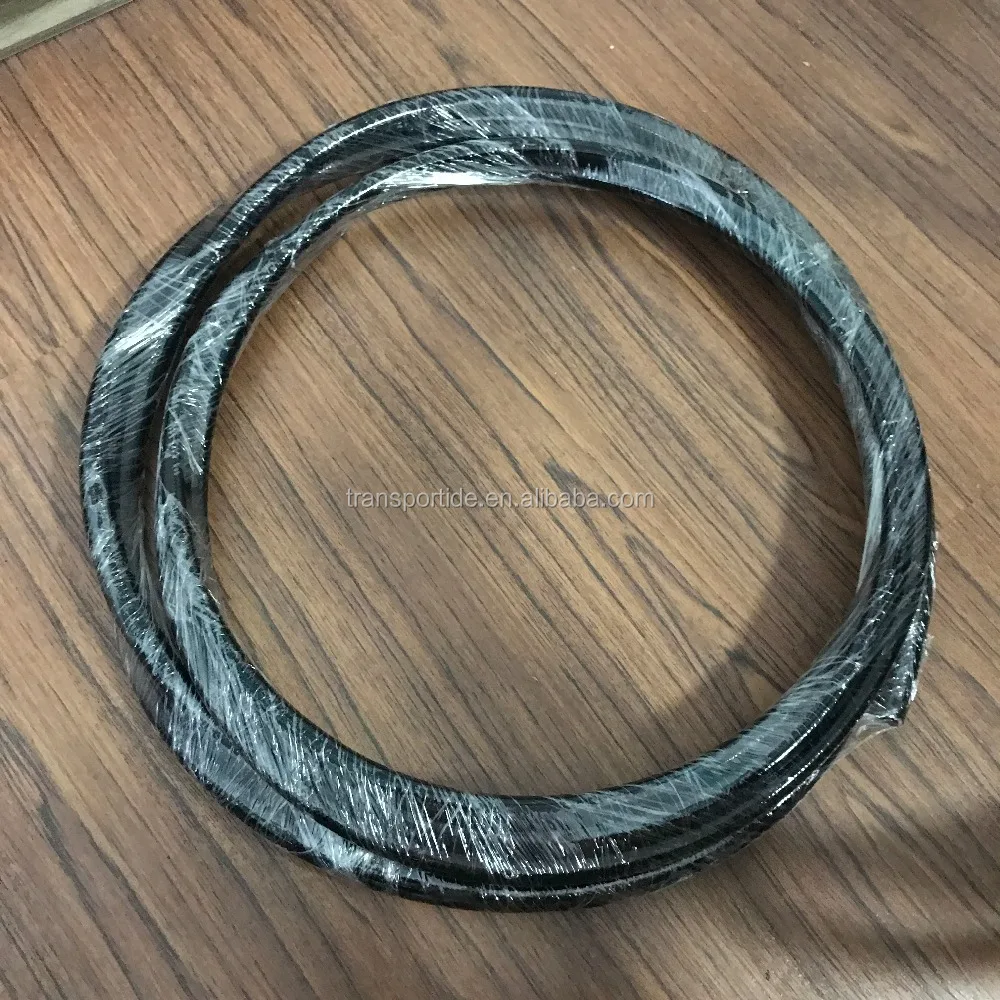

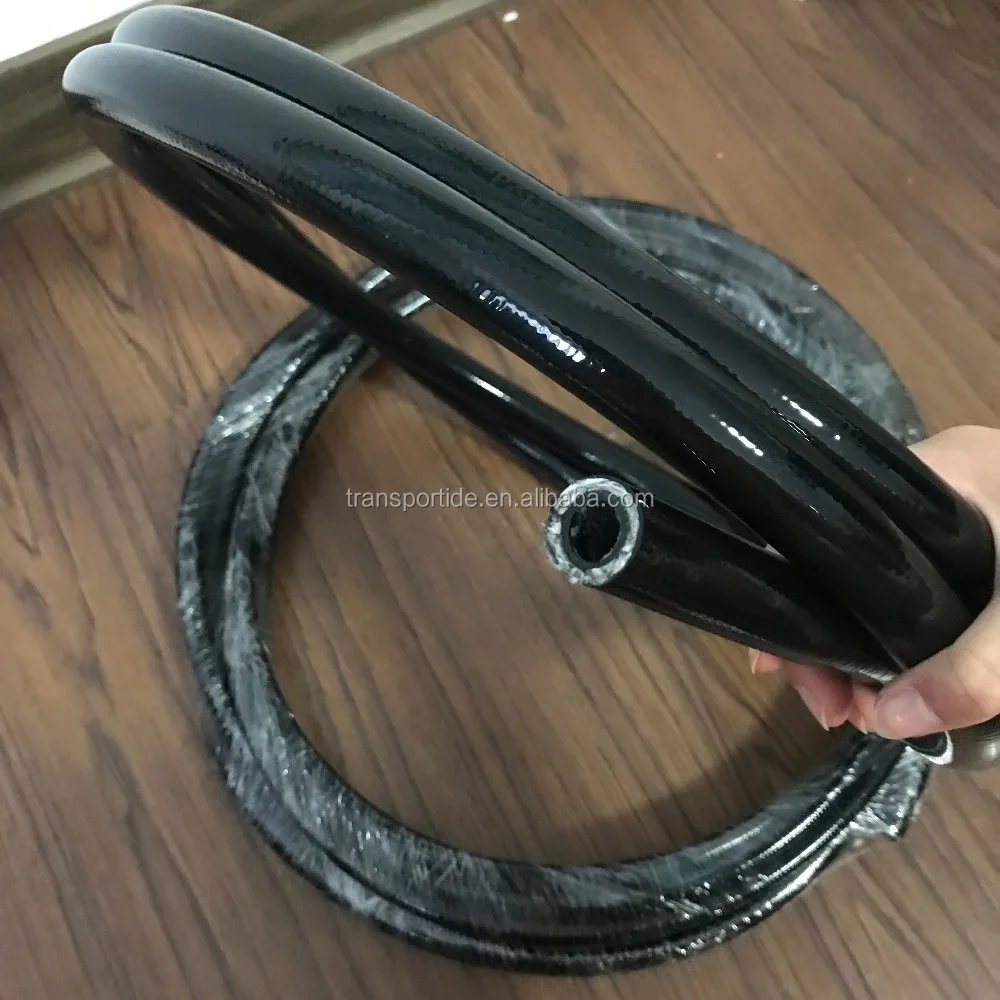

Pictures Show:_________________________________________________________

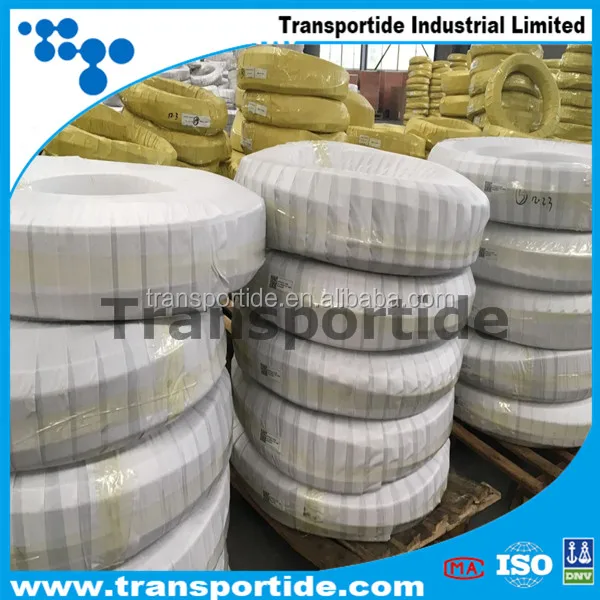

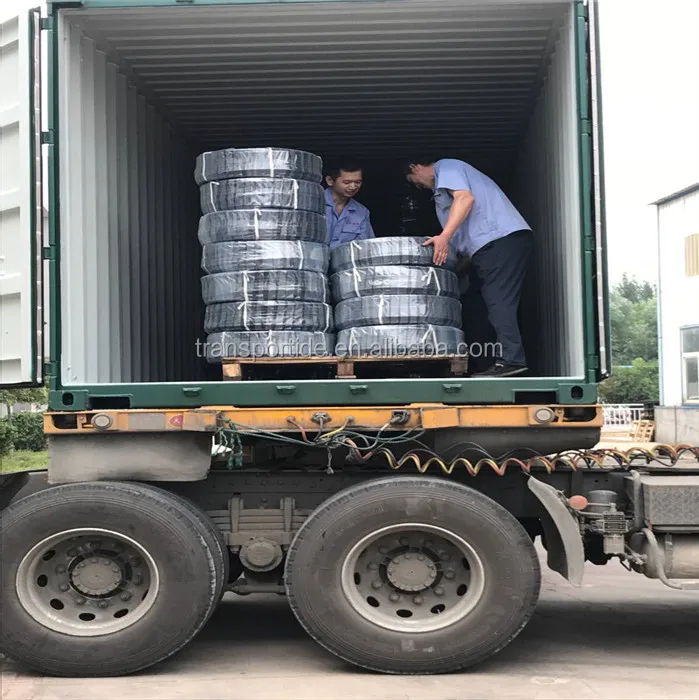

Packaging & Shipping

Hydraulic Hose Manufacturer EN853 1SN 2SN /SAE 100 R1 R2 Wire Braided








FAQ


1. Factory Self-introduction.
Transportide Industrial Limited is one of the largest manufacturers of hydraulic hoses, conveyor belts and related rubber products in the world. In 2010, Transportide has established two new production facilities for greater production capacity and further reduce the manufacturing cost. We will never stop our efforts to offer our customers with best products and best prices.
2. Exporting Experience of our company.
We have 27 years experience on hydraulic hose since 1989.
3. Annual Capacity.
Our annual production capacity is 6 million meters for hydraulic hoses.
4. Special Discount and Service for distributors.
Yes, Since we are focus on supply our rubber hose to Wholesalers and distributors to develop our B2B business.We will provide the most competitive price and best service to support our wholesale customers.
5. Quality Guarantee.
We have strict QC process from raw material to production,then QC before shipment.
7. Delivery Time.
For a 20feet container is about 20 days.
For a 40feet container is about 35 days.
8. Branding on the hoses.
According to customers' requestments.
