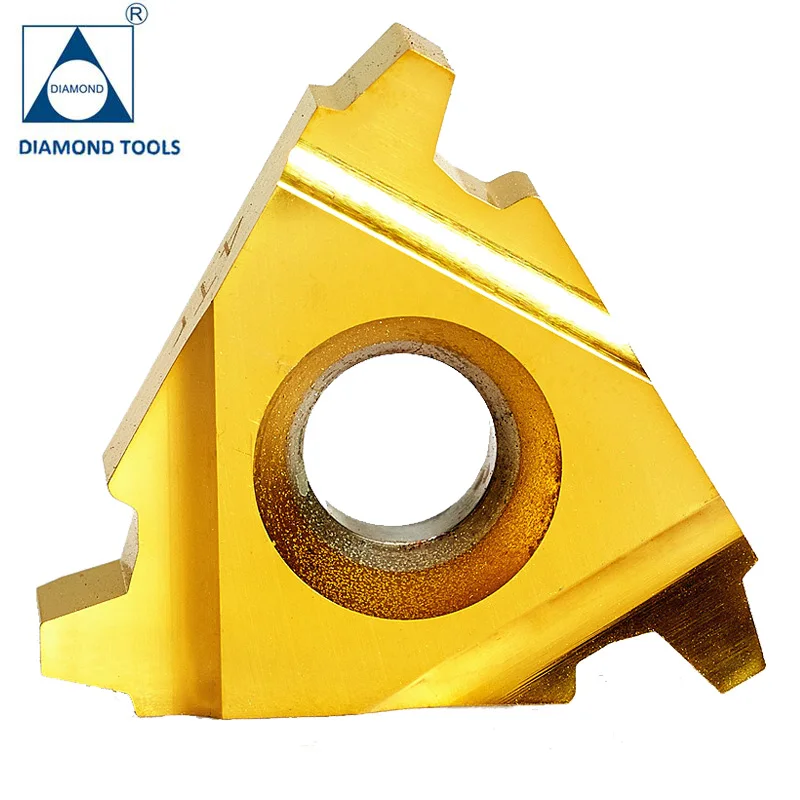

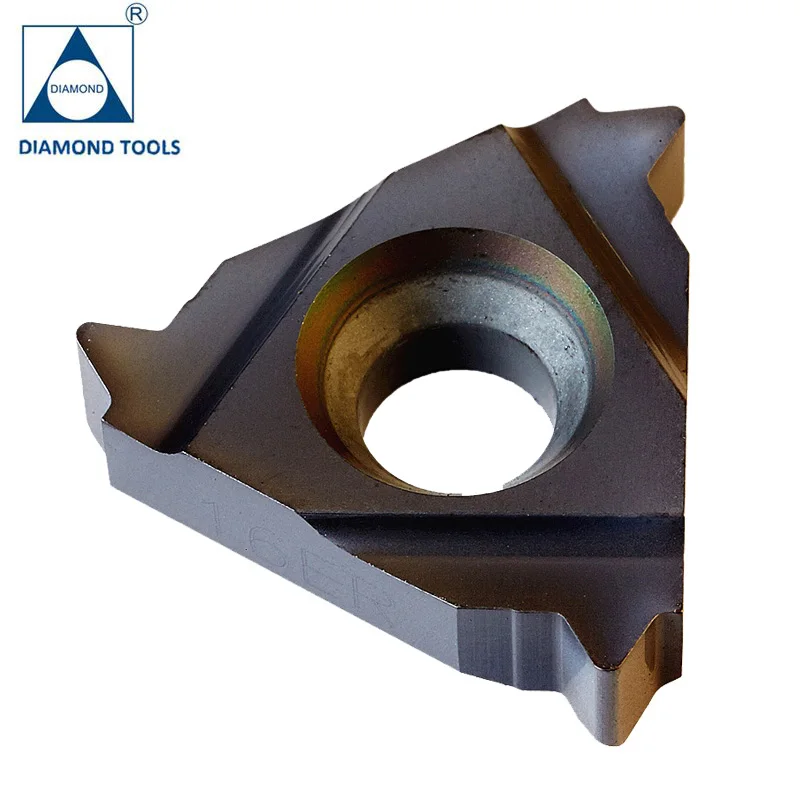

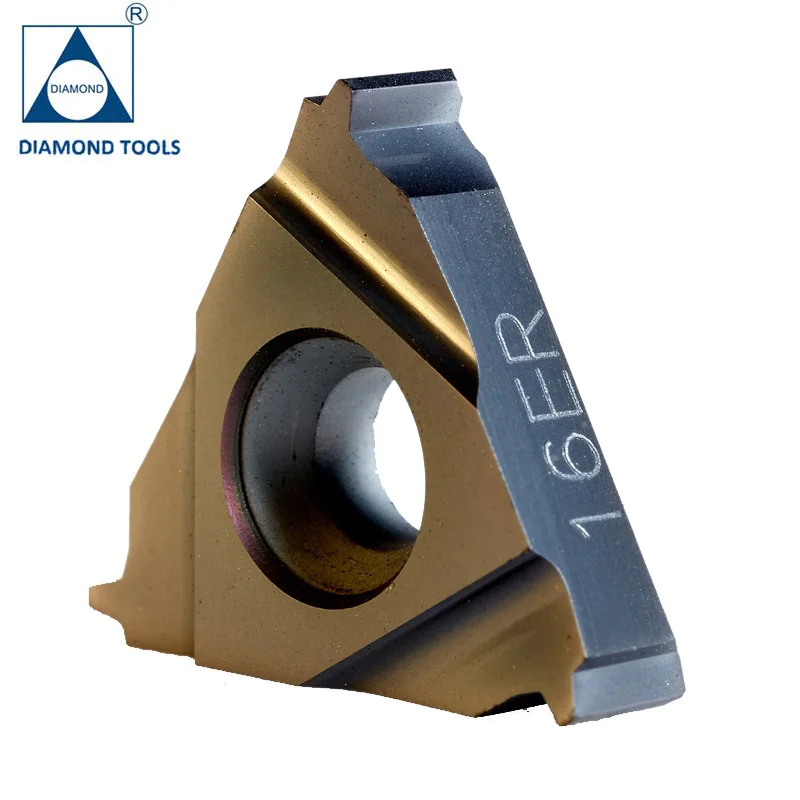

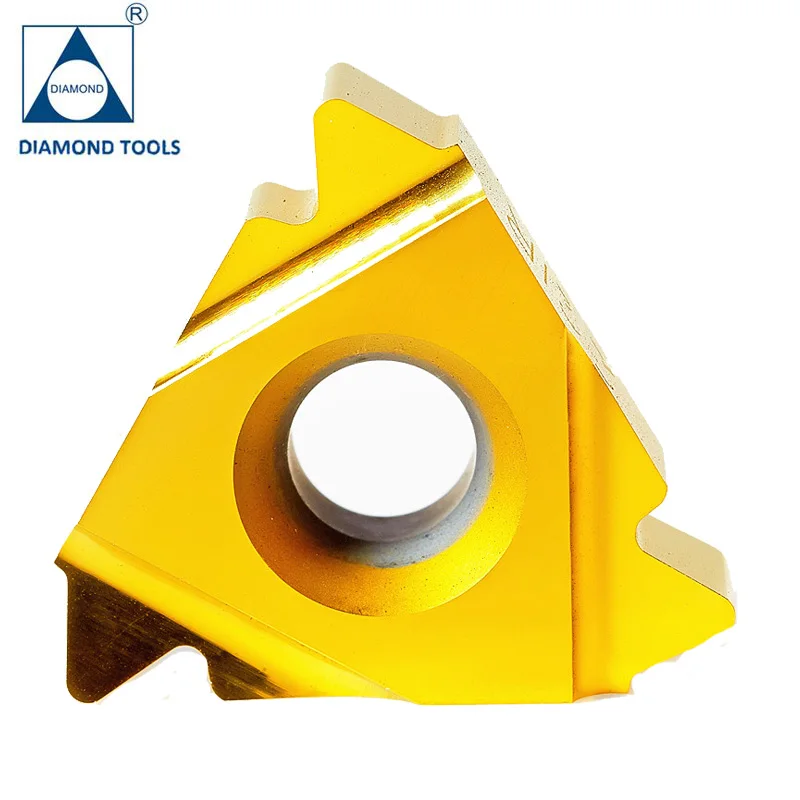

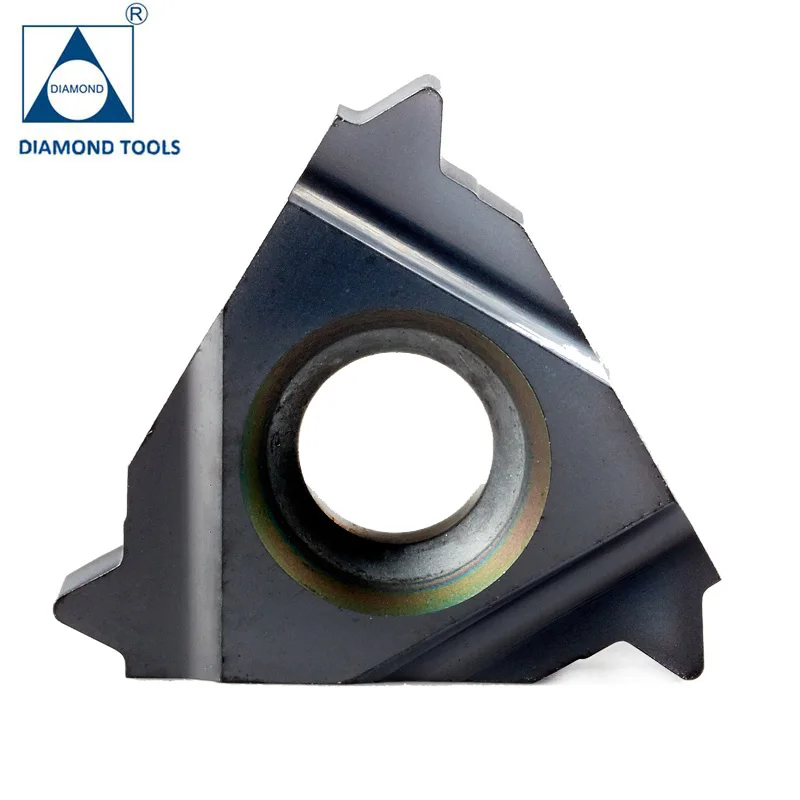

Acme carbide cutting tools CNC tungsten carbide threading insert





Carbide indexable threading insert with Tin coating is suitable for steel, copper and other alloy aluminium processing application, and the other one with TiALN coating is suitable for stainless steel processing application.



Engineering Drawing and Selection Table:





	D	Pitch	Designation		Dimension
		TPI	Right Hand	Left Hand	L	X	Y
Internal	1/4"	28	11IR28 UNJ	11IL28 UNJ	11	0.7	0.7
		24	11IR24 UNJ	11I24 UNJ		0.7	0.8
		20	11IR20 UNJ	11IL20 UNJ		0.8	0.9
		18	11IR18 UNJ	11IL18 UNJ		0.8	1.0
		16	11IR16 UNJ	11IL16 UNJ		0.9	1.1
		14	11IR14 UNJ	11IL14 UNJ		1.0	1.2
	3/8"	28	16IR28 UNJ	16IL28 UNJ	16	0.7	0.7
		24	16IR24 UNJ	16IL24 UNJ		0.7	0.8
		20	16IR20 UNJ	16IL20 UNJ		0.8	0.9
		18	16IR18 UNJ	16IL18 UNJ		0.8	1.0
		16	16IR16 UNJ	16IL16 UNJ		0.9	1.1
		14	16IR14 UNJ	16IL14 UNJ		1.0	1.2
		13	16IR13 UNJ	16IL13 UNJ		1.0	1.3
		12	16IR12 UNJ	16IL12 UNJ		1.1	1.3
		11	16IR11 UNJ	16IL11 UNJ		1.2	1.5
		10	16IR10 UNJ	16IL10 UNJ		1.2	1.5
		9	16IR9 UNJ	16IL9 UNJ		1.3	1.7
		8	16IR8 UNJ	16IL8 UNJ		1.2	1.6
	1/2"	7	22IR7 UNJ	22IL7 UNJ	22	1.7	2.3
		6	22IR6 UNJ	22IL6 UNJ		1.6	2.3
		5	22IR5 UNJ	22IL5 UNJ		1.8	2.5
	5/8"	4.5	27IR4.5 UNJ	27IL4.5 UNJ	27	2.0	2.7
		4	27IR4 UNJ	27IL4 UNJ		2.2	3.0

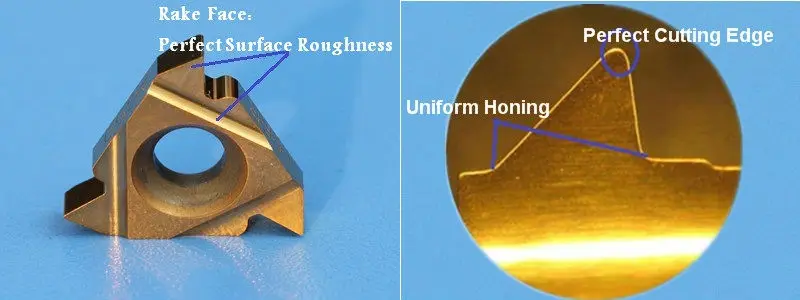

 Engineering Features for Carbide Inserts and Enlarged View:



 Application:





Application Area

-Lathe tool holder : external turning ,boring , threading , grooving, cut-off .

-Carbide insert : turning, threading ,grooving ,milling .
