TK6916 CNC Ground Type Boring mills
- Category: >>>
- Supplier: Qingdao Huiteng Machinery Equipment Co. Ltd.
Share on (60735396808):
Product Overview
Description
Product Description
Parameter Of TK6916 Travel Spindle 1200mm CNC Ground Type Boring mills
| Item | Units |
TK6916-Parameter |
| Spindle bore diameter | mm | Φ160 |
| Spindle taper | ISO 50 (BT 50) | |
| Spindle turning speed |
rpm |
2-1000 (Op:2000) |
| Section dimension of ram | mm | 380x380 |
| Spindle and ram travel total | mm | 1500 |
| Boring spindle travel (W axis) | mm | 800 |
| Ram travel (Z axis) | mm | 700 |
| Boring head travel up/down (Y axis) | mm | 2000-4000 |
| Column longitudinal travel (X axis) | mm | 3000-30000 |
| Ram feedrate (Z axis) | mm/min | 0.5-4800 |
|
Boring spindle feedrate (W axis) |
mm/min | 0.5-4800 |
| Column longitudinal travel speed | mm/min | 1-5600 |
| Boring head travel speed up/down (Y axis) | mm/min | 1-5600 |
| X,Y axis positioning accuracy | mm |
±0.025/1000 |
| X,Y repetitive positioning accuracy | mm | ± 0.013/1000 |
| Z,W repetitive positioning accuracy | mm | ± 0.013/1000 |
| Max. Torque of boring head | N.m | 10000 |
| Boring spindle axial resisting force | N | 90000 |
| Main motor power-(CTB servo motor) | Kw | 30Kw |
Main Purchase Parts Of TK6916 Travel Spindle 1200mm CNC Ground Type Boring mills
|
No |
Name |
Specification |
Quantity |
manufacture |
|
1 |
Front bearing of spindle |
71944ACD/P4ATBTB |
1set |
SKF--Germany |
|
2 |
Rear bearing of spindle |
71940ACD/P4ADBA |
1set |
SKF--Germany |
|
3 |
Fine lubrication oil |
LGLT2 |
1.5kg |
SKF--Germany |
|
4 |
Screw rod bearing |
7602045TVP/P4SQBC |
FAG--Germany |
|
|
5 |
Table bearing |
NN3024 |
1set |
FAG--Germany |
|
6 |
Roll ball screw rod |
63/80, T5 |
5pcs |
BLIS--Germany |
|
7 |
CNC system |
Siemens 840D/Fanuc |
1set |
Siemens/Fanuc |
|
8 |
Feed servo motor |
6pcs |
Siemens/Fanuc |
|
|
9 |
Linear grating scale |
FAGOR |
4pcs |
FAGOR--Spain |
|
10 |
Circular grating scale |
HEIDENHAIN RON |
1set |
HEIDENHAIN-- Germany |
|
11 |
Main hydraulic units |
Compass |
Serial |
Taiwan |
|
12 |
Auto lubrication station |
VERSA III |
3sets |
Yongjia lube-Taiwan |
|
13 |
Electrical parts |
Low voltage |
Siemens, ABB, Schneider |
|
|
14 |
Oil coolant |
CO-24 |
1set |
LOM-Taiwan or Japan |
|
15 |
Roller |
RWB PR |
44pcs |
IKO-Japan or INA-Germany |
|
16 |
Transverse switch |
LXZ |
5pcs |
Omron-Japan |
|
17 |
Seal unit |
Serial |
BUSAK+SHAMBAN-American |

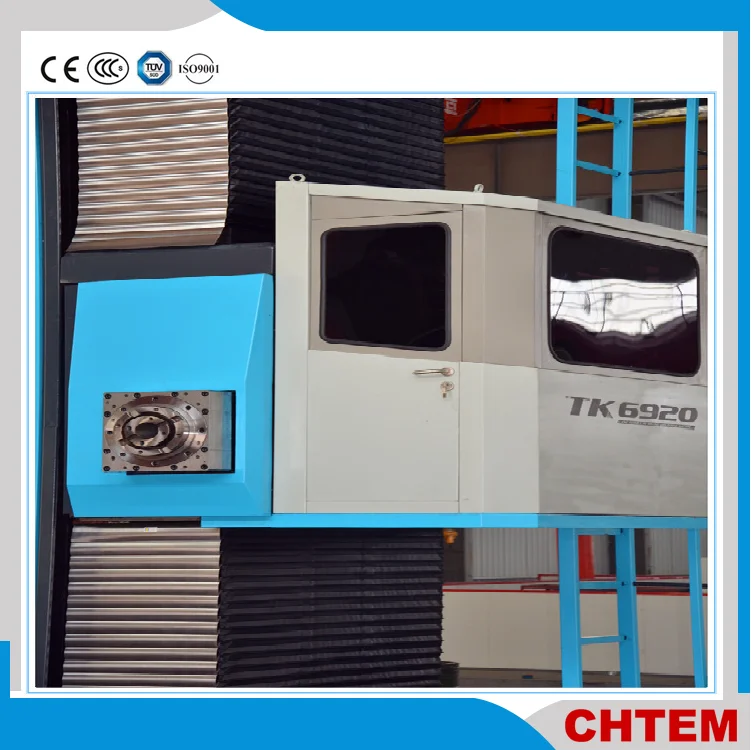

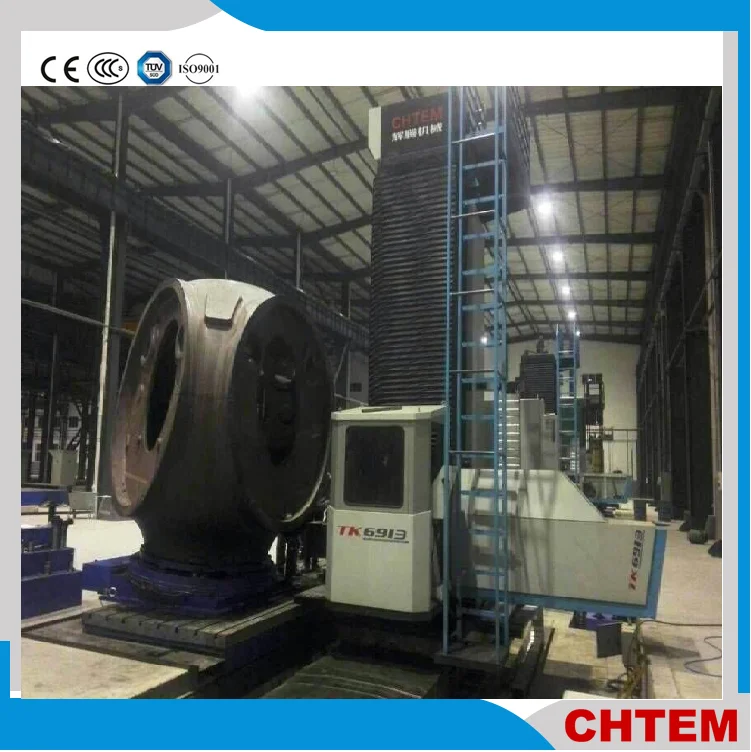

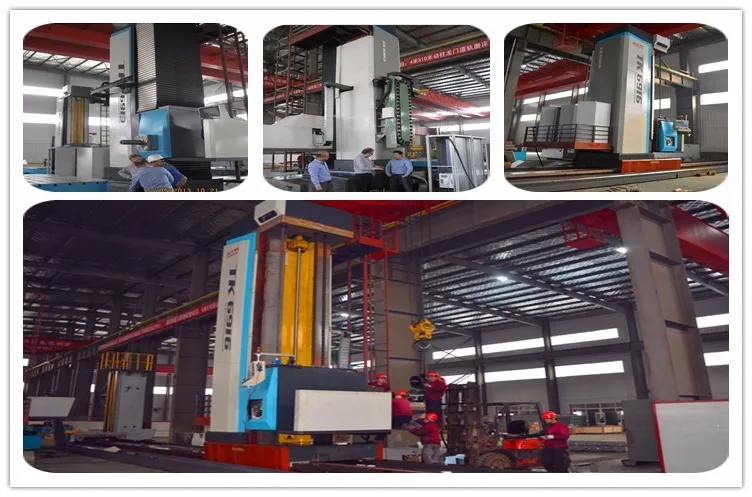

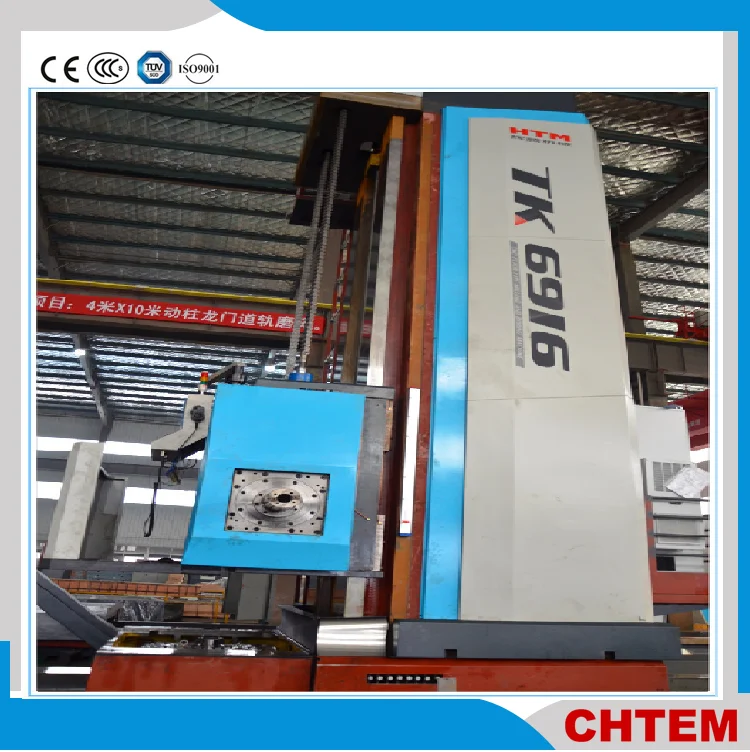

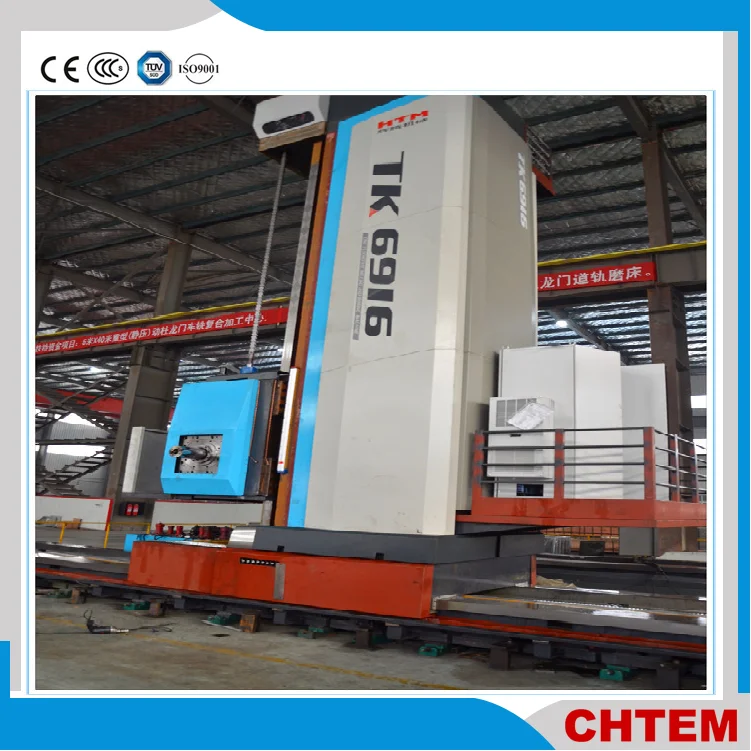

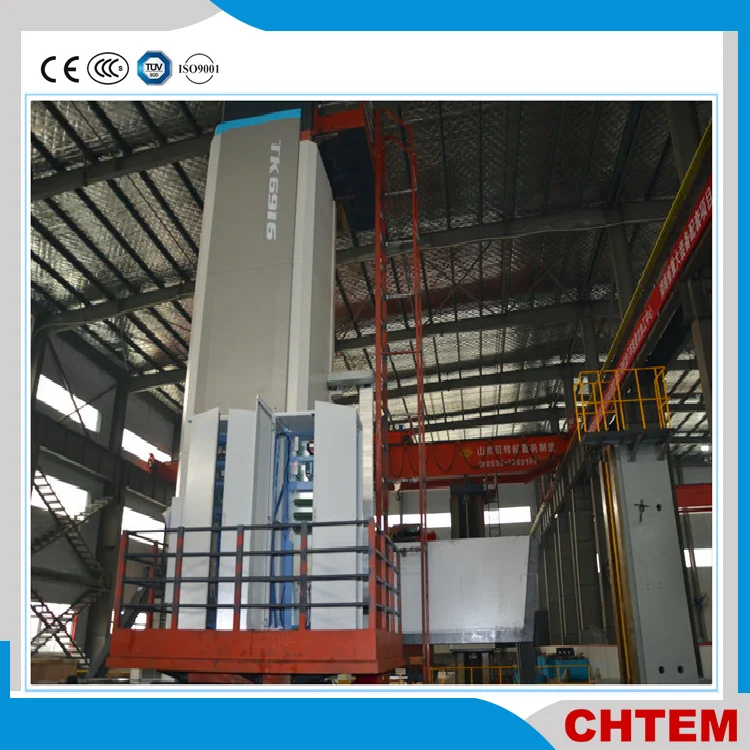

Detail Pictures Of TK6916 Travel Spindle 1200mm CNC Ground Type Boring mills
