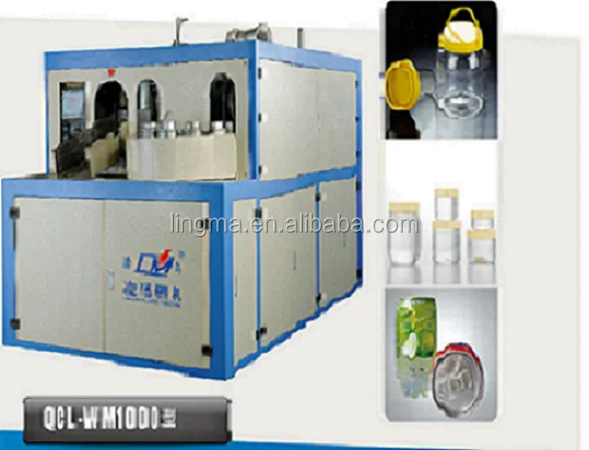

Well sell automatic wide mouth bottle/PET jar blow job making,molding machine

Different system

1. Blowing and Pneumatic system: Simple operation and high control precision, bottle blow unit is equipped with specially designed PLC control system. It controls the whole bottle production process through a soft touch pad with time control precision up to 0.01 second; Pneumatic unit provides power for machine movements including machine driving and bottle blowing. QCL series is equipped with world famous brand components (Festo or SMC) to reduce the noise, save energy and produce the high quality bottles.

2.Clamping system: this adopts three-plate toggle clamping system to provide powerful clamping force required by high pressure blowing up to 35 bars. Besides, the system has an adjustment device to change the distance between front & middle mold-plate and the position of stretch-seal cylinder required in different mold installation

3.Heating system: QCL series preform heater adopts infrared lamp as heating unit. Infrared has powerful thermal-radiation capacity, which can heat up preform to required temperature in a very short time, while the strong thermal-penetrability provides continuous and uniform heating inside of preform and on surface of the preform, and also adopts independent temperature control unit for each heating zone to offer ideal temperature for various preform. Each heating lamp has a voltage regulator to control the voltage of the heating lamps and keep it working smoothly. With the LED display, it becomes easy and convenient to inspect and adjust the voltage value.

4. Safety system: In order to keep both machine and operator safe, this machine installs twin startup switches on two sides of the machine, which should be pressed at the same time to start the machine, while there is also an emergency stop button on the machine to stop machine urgently if necessary.

Certifications

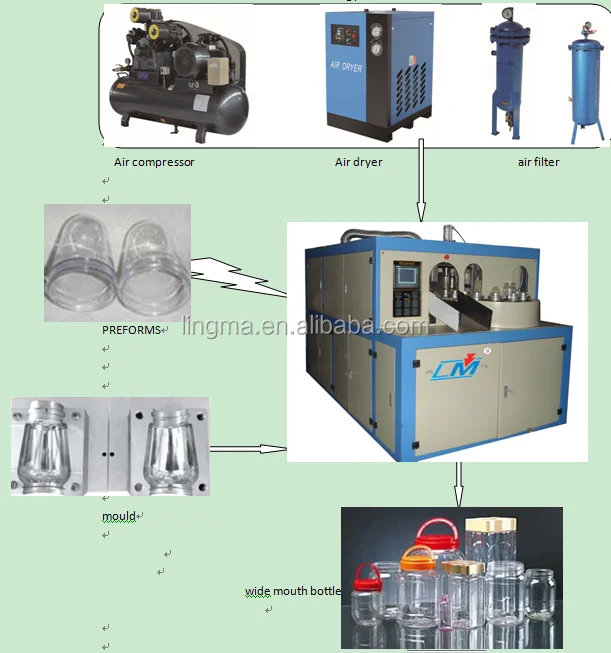

Detailed Image

Automatic pet Bottle pet Blowing Machine Price

Capacity:1000BPH

Material: PET

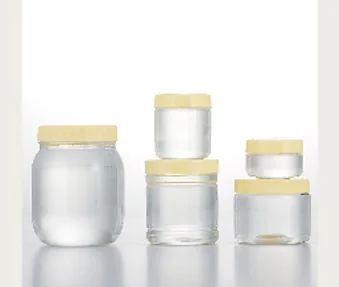

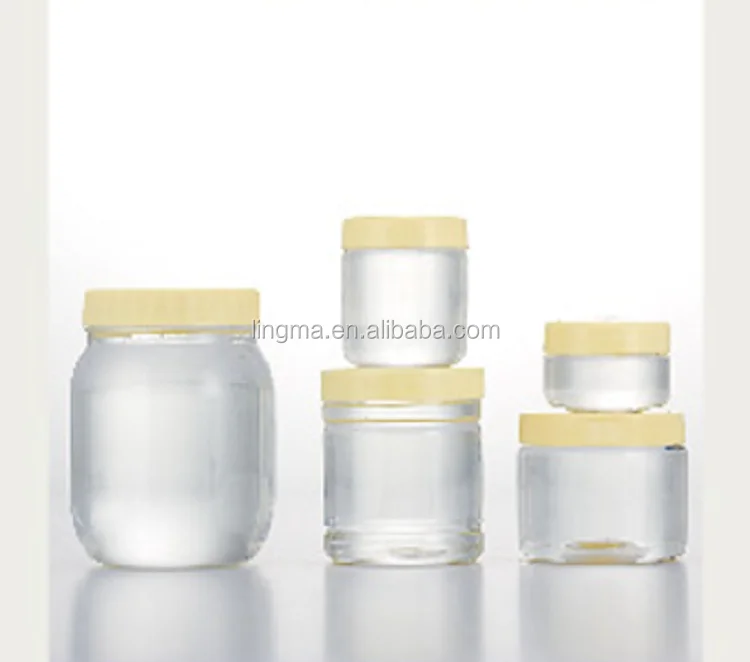

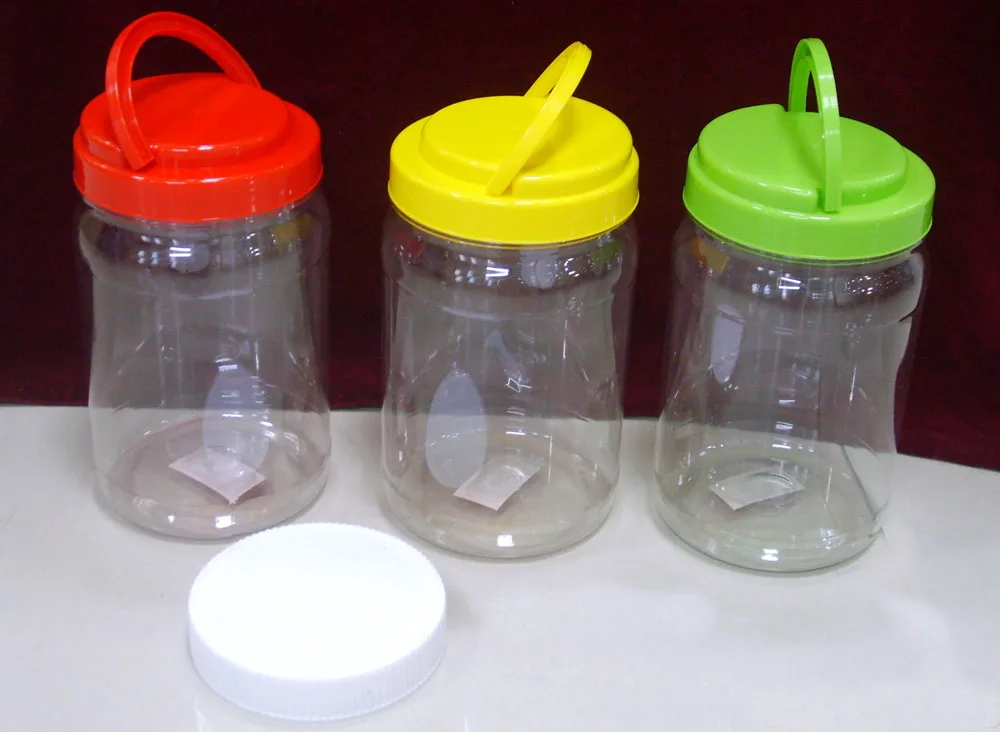

Bottle: wide mouth bottle /jar

Electric Supply : 220v/380v 50hz

FOB price : USD18000

Machine Features: 1. High safety: No body injury hidden danger, machine avoids the danger of manual bottle taking, reduce the lost caused by accident, and increase productivity. 2.High speed and efficiency: adopts to high speed precision servo motor to control the pathway running. 3.The heating oven is adopted infrared light tube, heating control device, strong penetrating power, heat evenly, Fast and reliable, to ensure that the bottle preform has ideal heating effect. 4.Testing components use famous electrical equipment from Germany and Japan. Strong current control use international famous brand, the performance stable and accurate.

Packing & Delivery

Our Service

One year warranty for the whole system . Free equipment installation and debugging. After one year , we can help you to maintain the machine and the accessories are provided only one the cost price. We can provide internship service and help you train the operator and mechanic. Free production technology and process configuration.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1. your inquiry related to our product & price will be replied within 24hours. 2.Well-trained & experienced staff are to answer all your inquires in English of course. 3.OEM&ODM projects are highly welcomed. We have strong R&D team here to help. 4.Your business relationship with us will be confidential to any third party. 5.Good after sale service offered, please get back if you got question.

Company Inforamtion

Zhejiang Lingma Plastic Machine Co.Ltd is one of the earliestly-established company specializing in production and researching of plastic molding machine and plastic molds with the strength of CE and ISO.

Founded in 1994, the company has all kinds of advanced automatic mechanical processing equipment and has a group pf team-spirit and experienced service technicians providing high quality and satisfactory services for customers at any time.Meanwhile,the company long-term cooperated and communicated with famous research institutes at home and abroad and imported the most advanced technologies Europe and America to keep product technology at the same pace with the world level.

Lingma produces the QCM series fully automatic hollow molding machines and QCL series two stage reheat stretch blow molding machine for PET bottle have not only been sold all over China, but sold to overseas markets in southeast Asia, Middle East, Africa,Europe, South America,etc.Accordingly, Lingma brand has enjoyed the good reputation in and out of China.

Our company will constantly adhere to business philosophy to create maximum profits for customers and to seek maximum welfare for working staff, with great potential to grow and with business objectives to achieve.Finally,Lingma hopes to create a brilliant future with you.

Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Our Customers

Dearest customers,

In order to save your time and make our business easier. pls write the follows question's anwser in the inqury, or just chat with me online, thanks a lot !

1.what's your ideal bottle shape? (sample picture would be very helpful!)

2.How many kinds of bottle you have? (different bottle size and shape need change mould.)

3.What's the weight of pet bottle? (we need know it to calculate the capacity for you)
