YE3 250M 2 55KW 75HP 380V 400V 2970RPM brushless ac 3 three phase induction electric motor 55 kw 75 hp 380 400 v volt 2970 rpm (60735485735)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

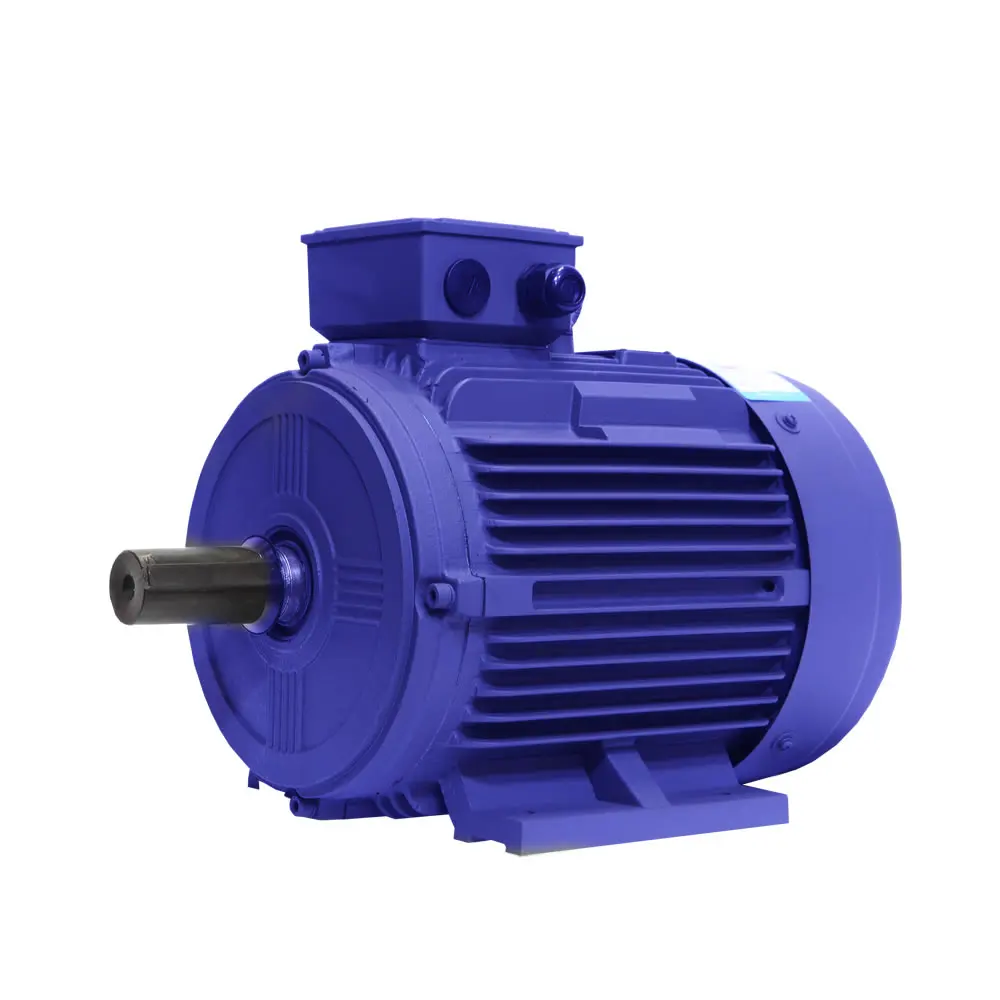

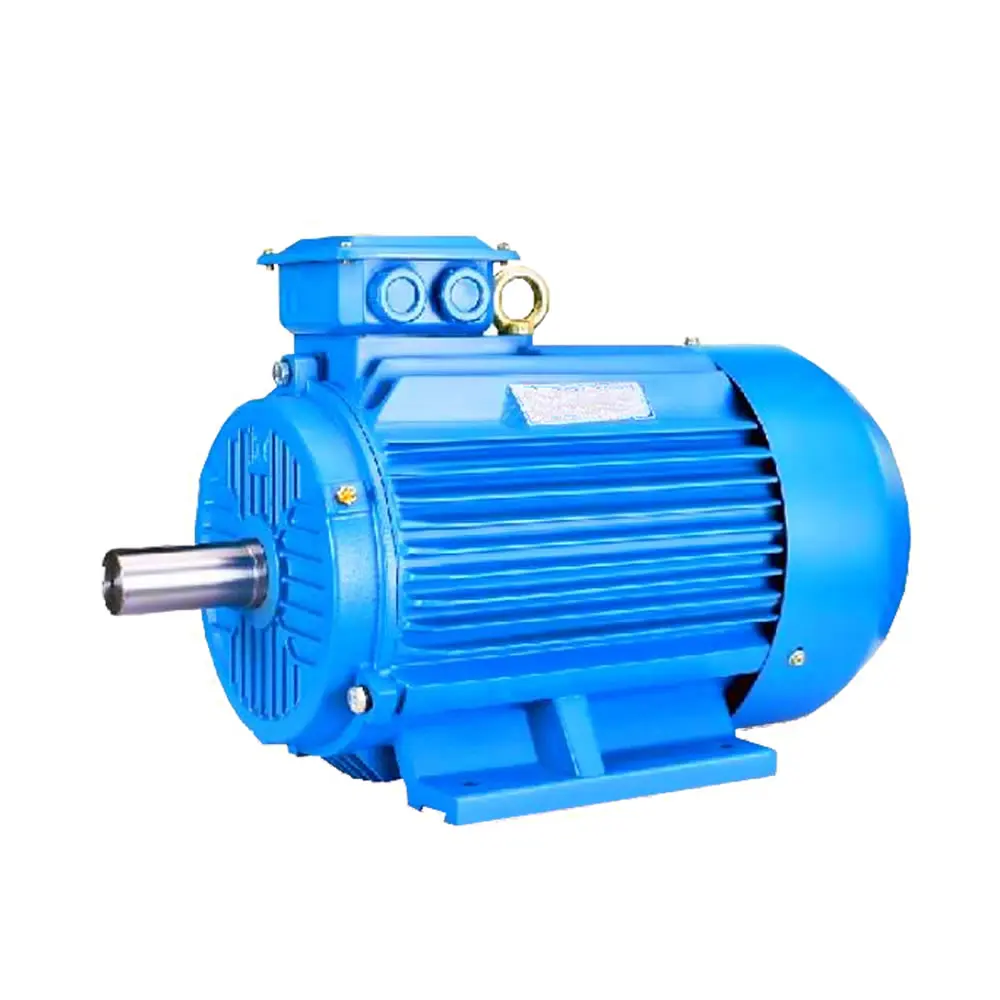

YE3 Series Three Phase Asynchronous Motor



Power: 0.55KW – 315KW

Voltage: Normal 400V

Speed: 3000r/min, 1500r/min, 1000r/min

Protection Degree: IP55

Insulation Class: F

Duty: S1

Package: Export Wooden Package

Payment: 30% in advance, balance by T/T or L/C at sight



YE3-250M-2, 55KW, 380V/400V, 2970r/min, IC411, IP55, F Insulation

Product Description

      The YE3 series high efficiency standard three phaseinduction motors are totally enclosed fan cooled squirrel cage motors that are manufactured with new materialand technology. It is a new generation motor and can save energy.

      YE3 series motors center height: H80-H355, Output: 0.55kw, pole: 2, 4, 6 degree of protection: IP55, cooling method: IC411. Mounting dimensions conform to IEC standard, Rated voltage: 400V, Rated frequency: 50HZ, Ambient temperature: 40°C max Altitude: 1000m, Duty: continuous (S1).

      YE3 series ultra efficient three-phase asynchronous motors have some notable advantages such as high efficiency, good starting performance, low noise, improved structure, improved cooling capabilities, this series motors are three phase induction motors which be used for general motors and can be used to drive all kinds of general purpose machines such as compressors, ventilators, pumps, etc. Other uses such as petrol chemical, medical, chemical industries and mining. For special requirements please contact our sales department.

      YE3 series motors are equal with Y2 series three phaseinduction motors in dimensions.

YE3

Order Notice

 1. Pls refer to the catalogue before ordering. If the types rating you need are not covered by our booklet, pls contact us. Should you have any specific needs, pls offer us clear and concrete proposal in advance.

2. Pls write clearly the type, output, voltage, speed, excitation, exciting voltage, duty-cycle, type of construction, Number of shaft-end, location of terminal box, direction of rotation, as well as the name and quantity of necessary accessories and spare parts, etc.

3. If the humid-tropical type required, pls mark TH behind the original type number.
