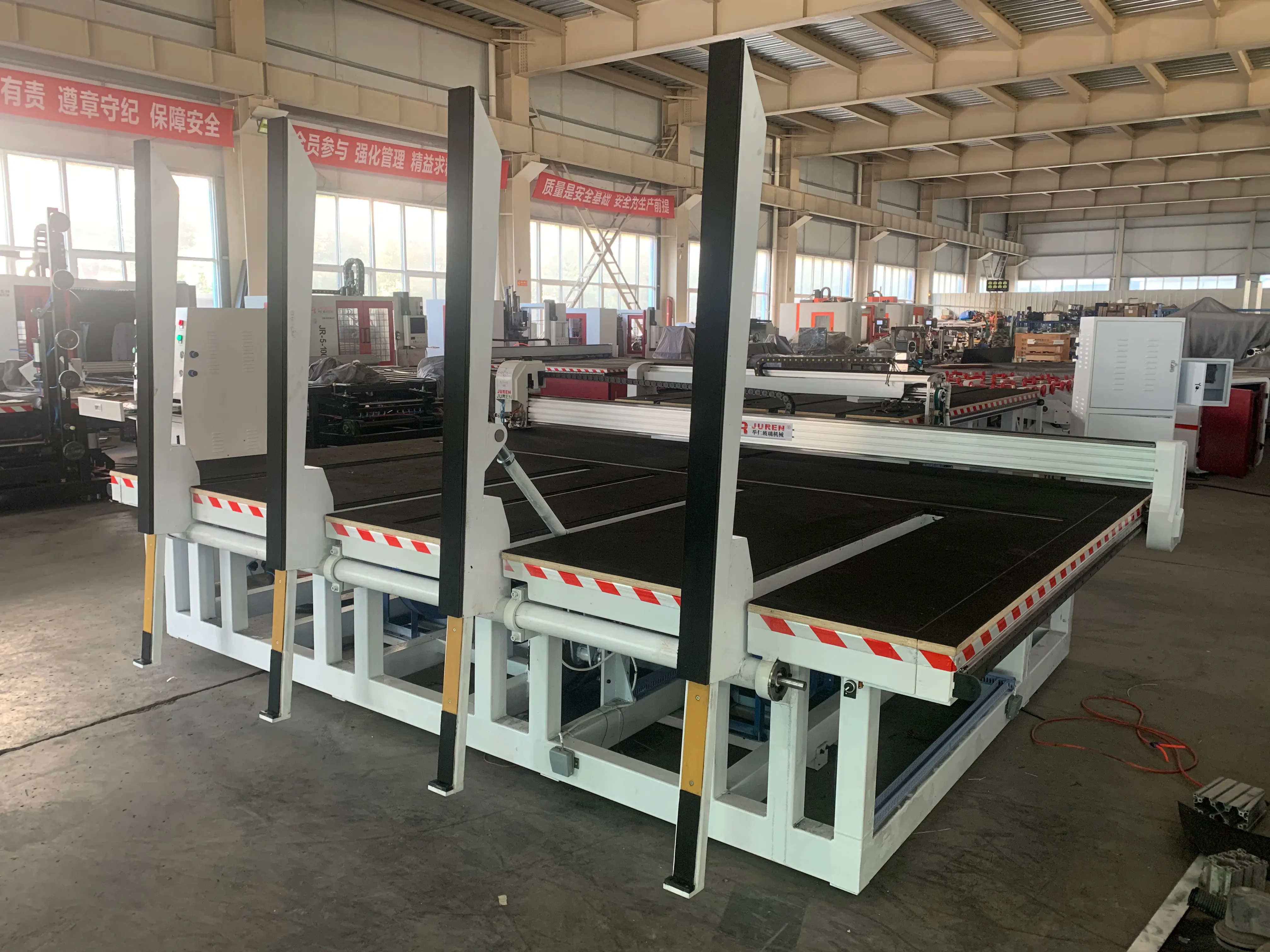

Chinese CNC Automatic Glass Loading Cutting Integrated Machine Glass Cutting Table Glass Processing Machinery

Product Overview

Description

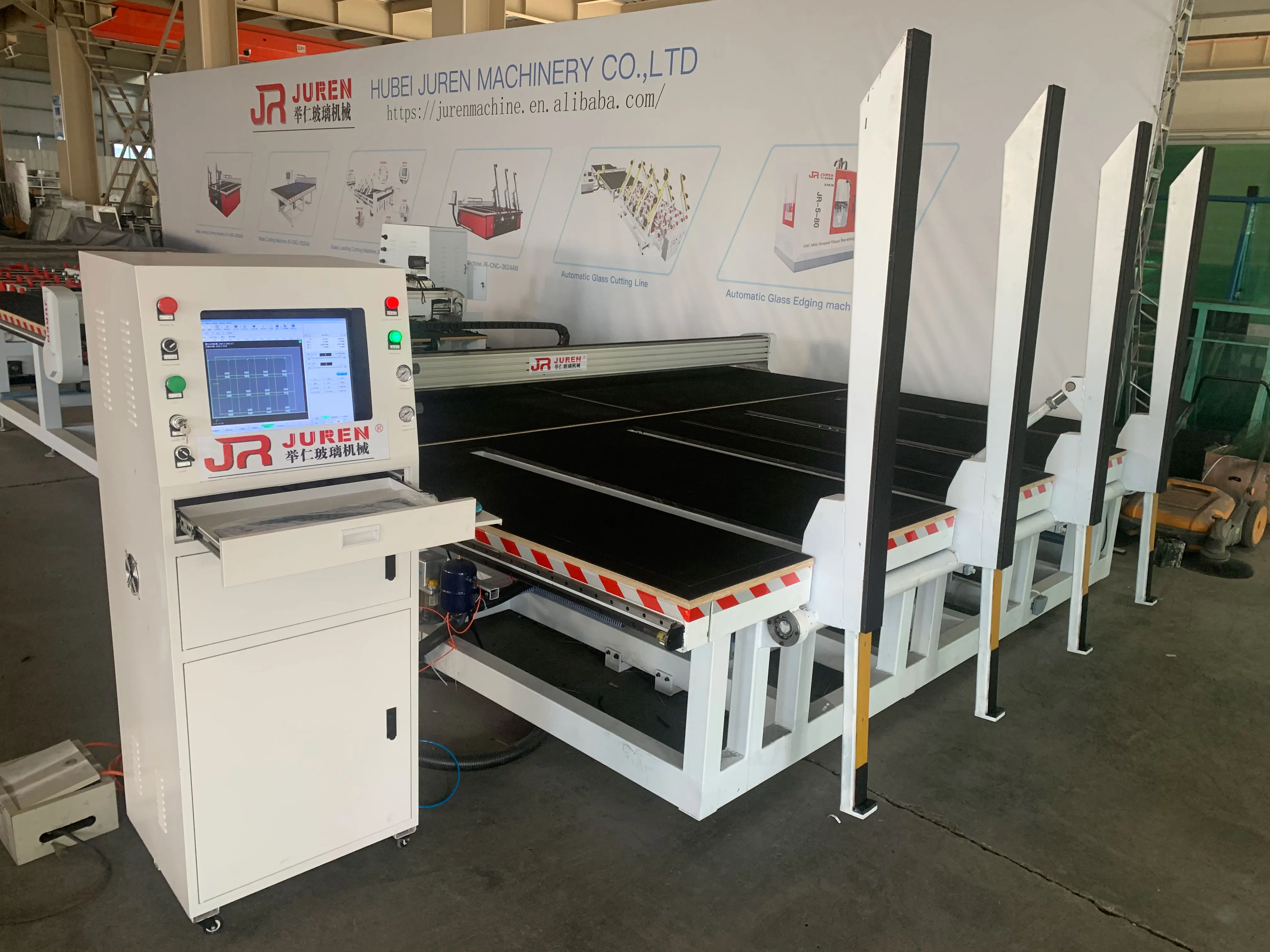

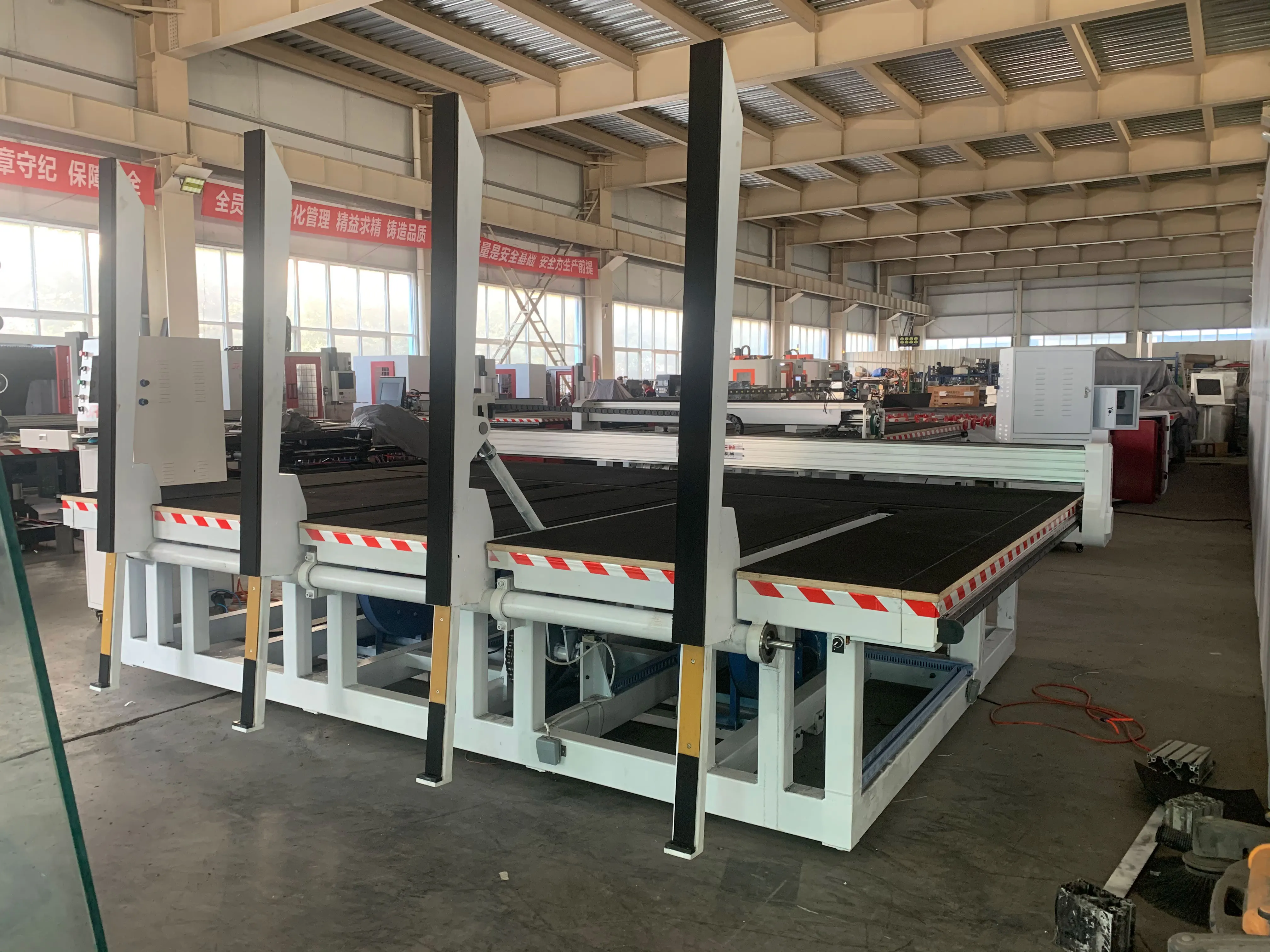

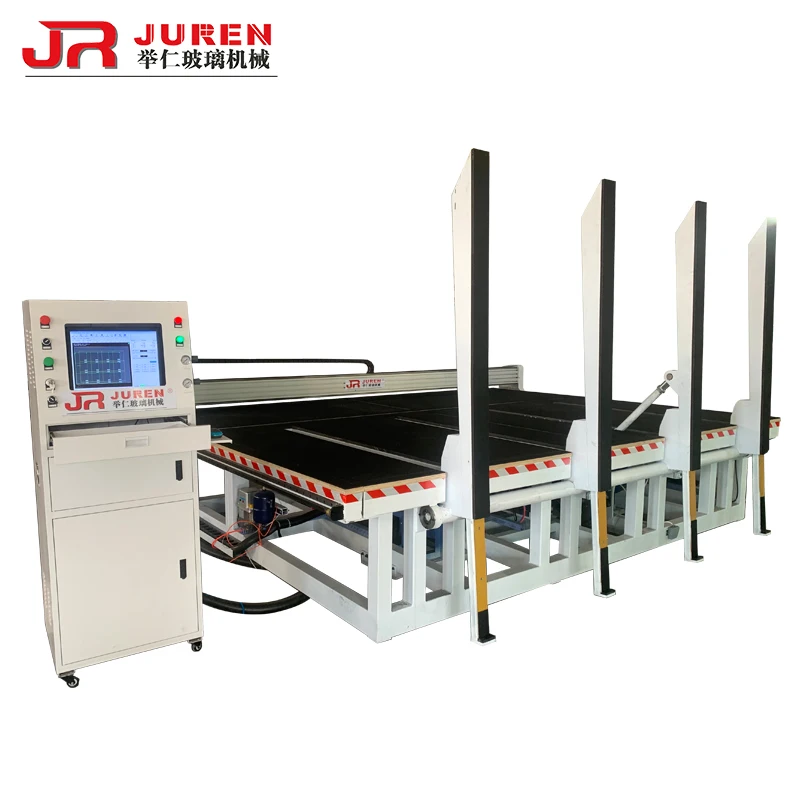

JUREN Full Automatic Glass Loading and Cutting Machine Without Suction Device

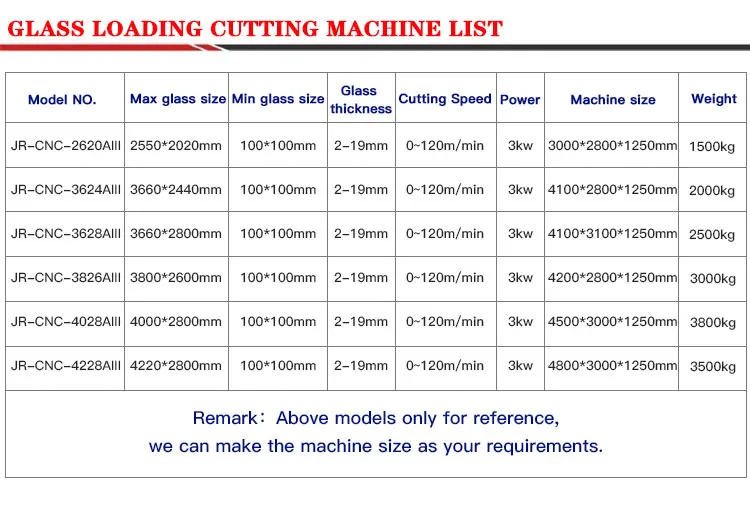

(Models of JR-CNC-3624)



INTRODUCTION:

•    Product Features: Suitable for glass loading, cutting, slicing, remote control walking in the factory.


•    Equipment area: 13m^2


•   Operator: Cutting: one person (know Basic computer operation)


•   Breaking the film: one person (have the experience of glass breaking)



Features:

• The absolute value motor of the bus,imported high precision rack and other top components can effectively guarantee the precision and stability of the glass cutting, the service life is longer, and can satisfy the cutting of various shape glass.


• The machine can automatically record the mechanical coordinates without turning back the origin After the power supply,and the working efficiency is improved.


• No positive and negative limit switches,it reduces the cost of failure points and replacement parts;


• Using a new type of upper slice pattern, the film is fast, and the last film is only 10 seconds.


• Adopt a new operating interface, the host adopts industrial control computer to prevent the system collapse caused by virus invasion;


• Full automatic cutting machine combines loading and Straight and special-shaped cutting, air flotation, bye, automatic walking into an organic whole, actual remote control, one machine replaces three machines,full automatic control from loading to cutting, is the substitutes for the loading machine,cutting machine, broken table, greatly reduce the labor intensity of workers and security risks. It has the advantages of convenient operation, small investment and high efficiency, and reduces the comprehensive cost of equipment use. It is the best choice for small and medium-sized glass enterprises.


• At the same time, it has the integration of cutting and engraving function to realize high precision and high technology level.


• High intelligent cutting machine optimization software, greatly improve the glass utilization rate, lower production cost;


• The gas float function, improve work efficiency, cooperate with the tablet machine and the separation machine, can form the glass cutting line;


• Automatic oil filling and pressure regulating function of cutting machine, effectively ensure cutting stability and cutting effect;


• No special requirement for operators, easy to operate, easy to manage.



Equipment configuration:

• Equipment frame:choose the national standard high quality profile welding and aging treatment, ensure the frame and the table are invariable


• Cutting edge: automatically adjust the pressure according to the thickness of the glass, the blade is rotated 360 degrees, and the knife cutting can be cut (accurately cutting any straight line and various types of glass).


• Positioning system: photoelectric automatic homing positioning


• Oil supply system: pneumatic automatic filling, oil supply and lower knife synchronization


• Conveying device: gas floating conveyor system

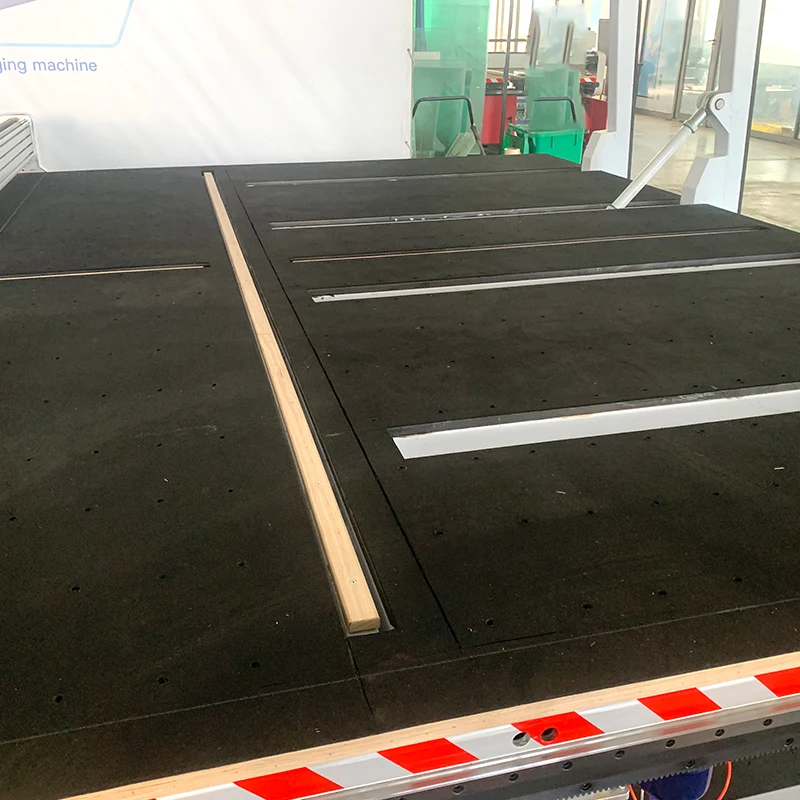

• Platform: adopt high-quality PVC waterproof panel (joint venture product). It can be effective to prevent moisture from moisture and not deform


• Woollen felt: high density hair felt in sino-foreign joint venture, anti-static, high wear-resisting


• Solid wood wrap: choose the anti-corrosive solid wood with high temperature treatment, no deformation. (effective protection of felt)

Software:

• Windows operating interface, straight line, alien design automatic layout, and operate on the console;Select and match the domestic matching cutting software, according to the actual needs of the customer to make timely modification


• All equipment procedures, production tasks, graphics and so on can be recorded all the time


• The number of hours of the day can be counted and the number of cuts can be recorded in order to record the number of work in each shift


• Compatible with AUTO CAD drawing software


• Automatic correction function to ensure cutting accuracy


• It can achieve the best cutting result with the automatic pressure function


• Remote control walk, turn, upper piece, double cross foot pole piece


• Note: the above supporting optimization cutting system can be upgraded to import system as needed.
