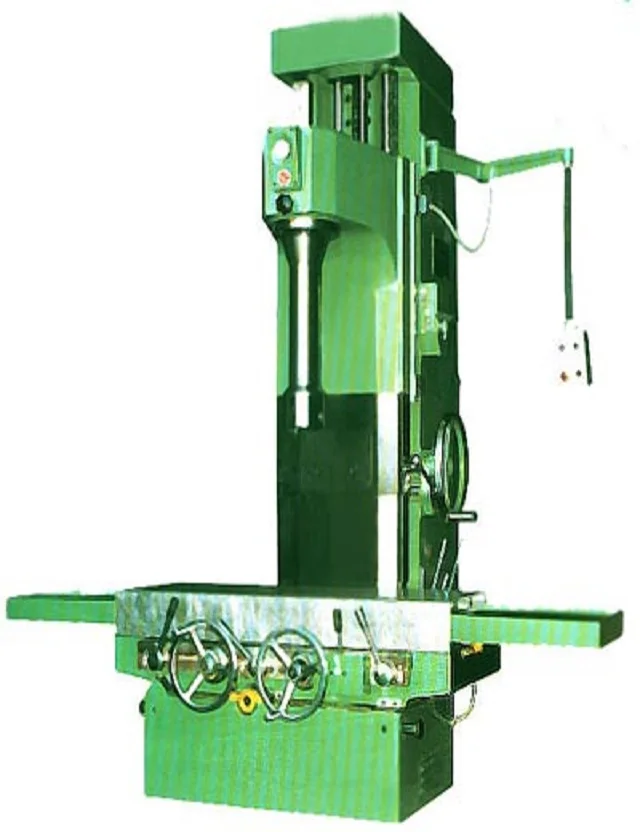

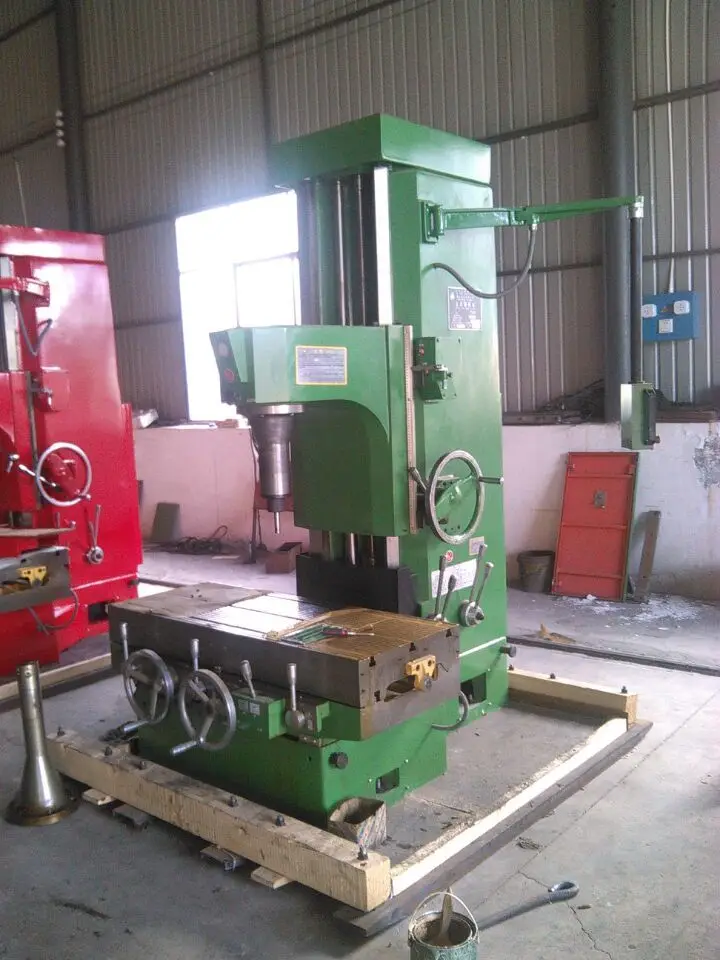

T7220B VERTICAL BORING MACHINE
T7220B Vertical fine boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other

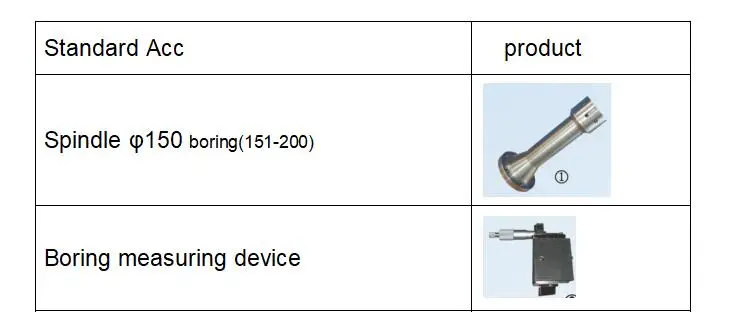

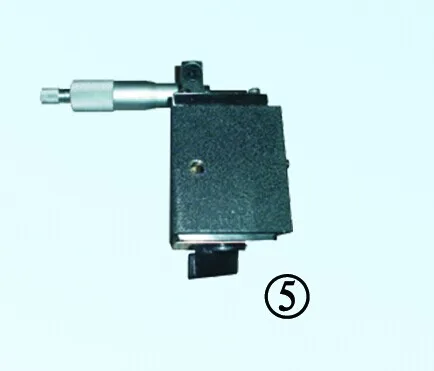

accurate holes. The table longitudinal and latitudinal moving device; The workpiece fast centering device; Boring measuring
device;
accurate holes. The table longitudinal and latitudinal moving device; The workpiece fast centering device; Boring measuring
device;
Also provides optional digital readout for the table's longitudinal and cross moving accessories to serve the users.
SPECIFICATIONS | SPECIFICATIONS |
Max. Boring Diameter | Φ200 mm |
Max. Boring Depth | 500 mm |
Spindle Speed Range | 53~840 rev/mm |
Spindle Feed Range | 0.05~0.20 mm/ rev |
Distance From Spindle Axis to Carriage Vertical Plan | 315 mm |
Table Longitudinal Travel | 900mm |
Table LatitudinalTravel | 100mm |
Table Dimensions(LXW) | 1250 ×500 mm |
Machining Accuracy : Boring Dimension Accuracy | IT7 |
Machining Accuracy :Rundness | 0.005 |
Machining Accuracy:Cylingricity | 0.02/300 |
Boring Roughness | Ra1.8UM |
Overall Dimensions(LxWxH) | 2610x1655x2345mm |
N.W/G.W | 3800/4200KG |
