din 741 hot dip galvanized wire rope clip
US $0.27-$0.56
Electric Galvanized DIN 741 Malleable Wire Rope Clip
- Category: Wire Rope Clips >>>
- Supplier: Qingdao Yumetal Hardware Rigging Co. Ltd.
Share on (60735571377):
Product Overview
Description

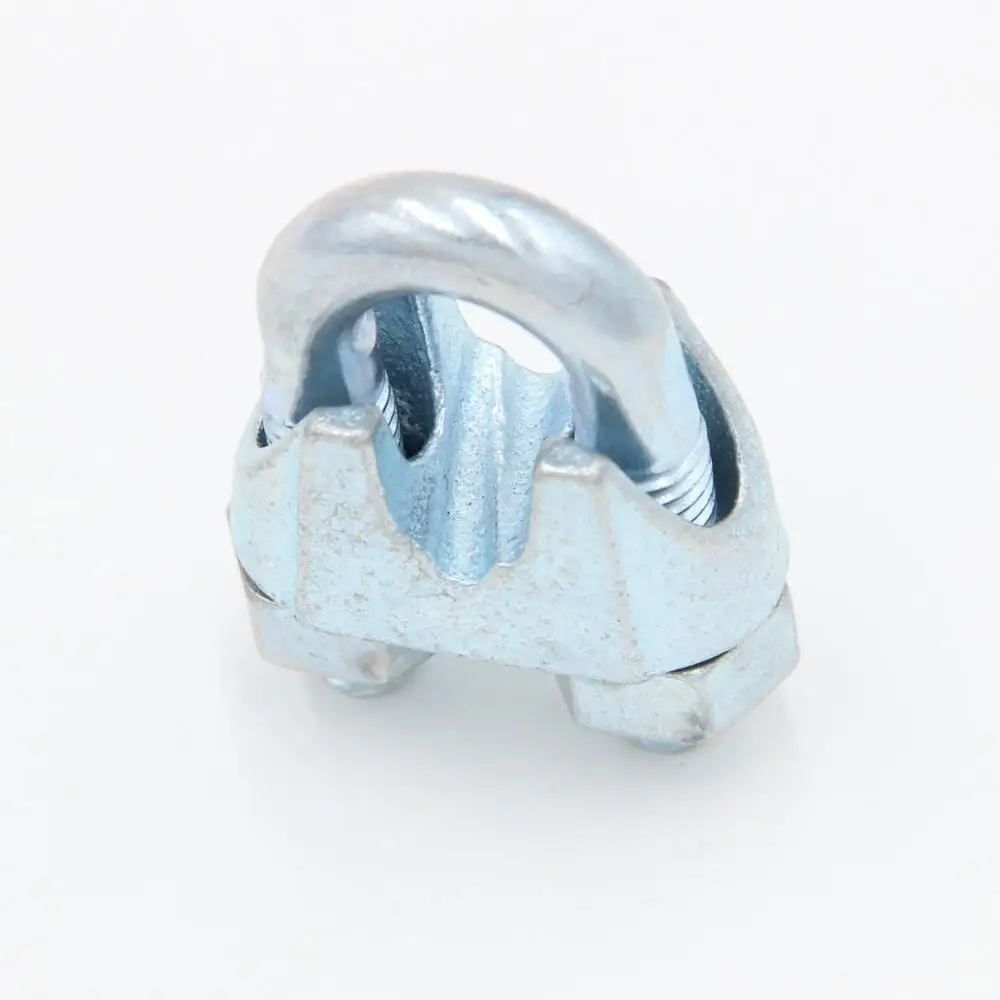

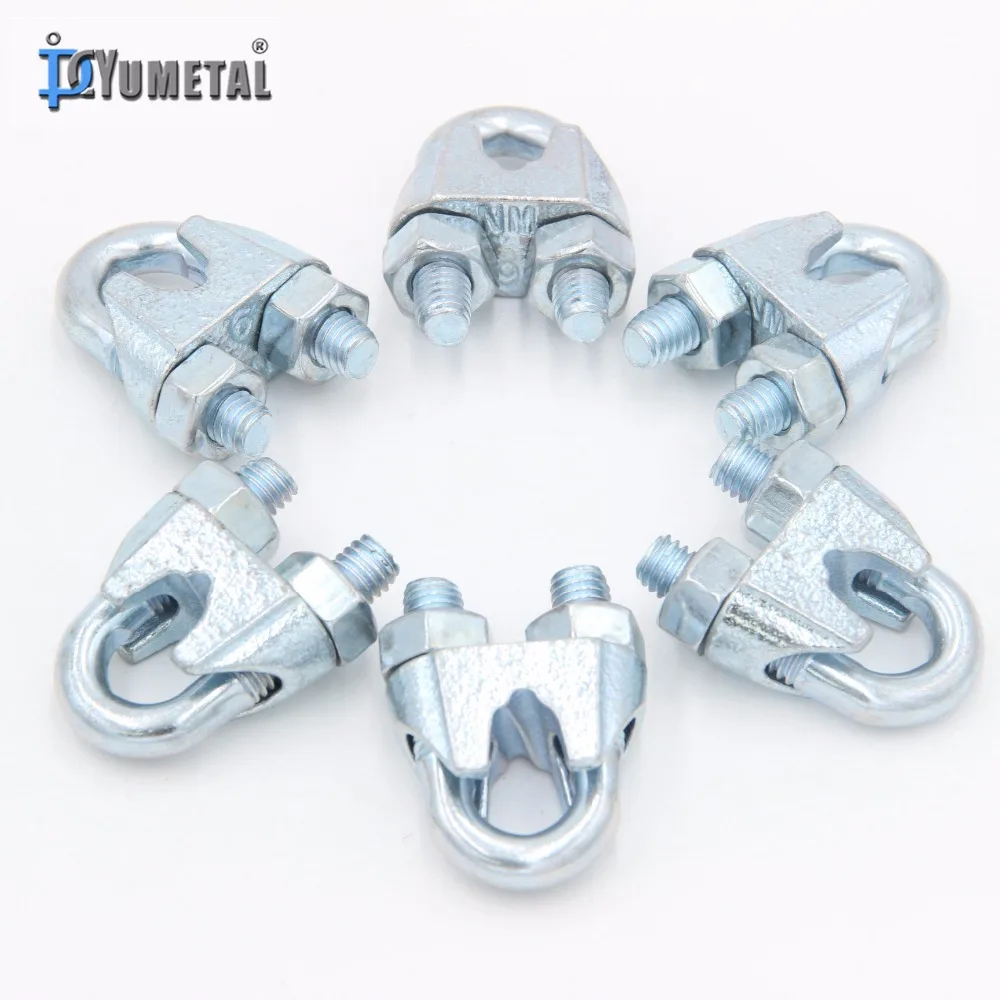

Electric Galvanized DIN 741 Malleable Wire Rope Clip
| Art No. | Size | Dimensions (mm) | |||||||
| mm | inch | A | B | C | D | E | F | G | |
| CL0301 | 3.00 | 1/8" | 9.00 | 10.00 | 12.00 | 4.00 | 10.00 | 21.00 | 16.00 |
| CL0302 | 5.00 | 3/16" | 11.00 | 11.00 | 13.00 | 5.00 | 10.00 | 23.00 | 19.00 |
| CL0303 | 6.50 | 1/4" | 13.00 | 12.00 | 15.00 | 5.00 | 11.00 | 26.00 | 23.00 |
| CL0304 | 8.00 | 5/16" | 16.00 | 14.00 | 19.00 | 6.00 | 15.00 | 30.00 | 28.00 |
| CL0305 | 10.00 | 3/8" | 19.00 | 18.00 | 22.00 | 8.00 | 17.00 | 34.00 | 34.00 |
| CL0306 | 11.00 | 7/16" | 20.00 | 19.00 | 22.00 | 8.00 | 18.00 | 36.00 | 36.00 |
| CL0307 | 13.00 | 1/2" | 24.00 | 23.00 | 30.00 | 10.00 | 21.00 | 42.00 | 45.00 |
| CL0308 | 14.00 | 9/16" | 25.00 | 23.00 | 30.00 | 10.00 | 22.00 | 44.00 | 47.00 |
| CL0309 | 16.00 | 5/8" | 29.00 | 26.00 | 33.00 | 12.00 | 26.00 | 50.00 | 51.00 |
| CL0310 | 19.00 | 3/4" | 32.00 | 29.00 | 38.00 | 12.00 | 30.00 | 54.00 | 63.00 |
| CL0311 | 22.00 | 7/8" | 37.00 | 33.00 | 44.00 | 14.00 | 34.00 | 61.00 | 71.00 |
| CL0312 | 26.00 | 1" | 41.00 | 35.00 | 45.00 | 14.00 | 37.00 | 65.00 | 81.00 |
| CL0313 | 30.00 | 1-1/8" | 48.00 | 37.00 | 50.00 | 16.00 | 43.00 | 74.00 | 94.00 |
| CL0314 | 34.00 | 1-1/4" | 52.00 | 42.00 | 55.00 | 16.00 | 50.00 | 80.00 | 104.00 |
| CL0315 | 40.00 | 1-1/2" | 58.00 | 45.00 | 60.00 | 16.00 | 55.00 | 88.00 | 124.00 |
