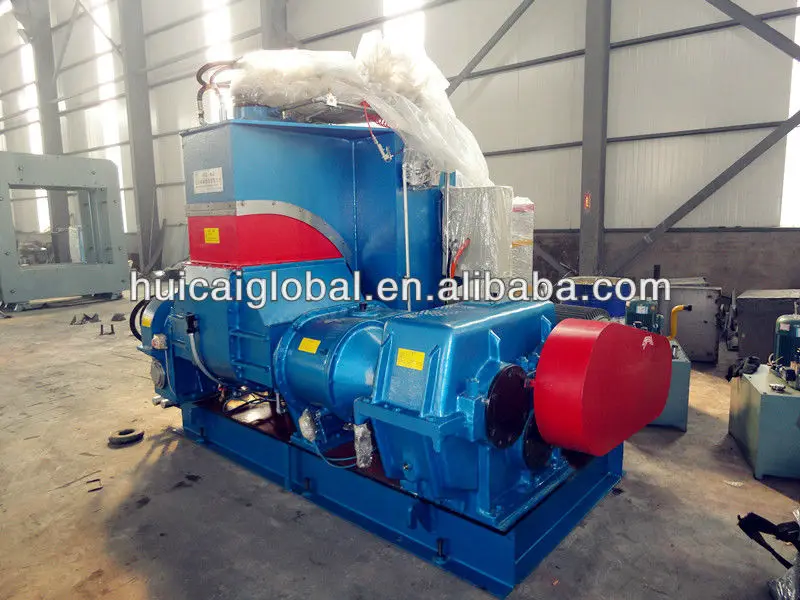

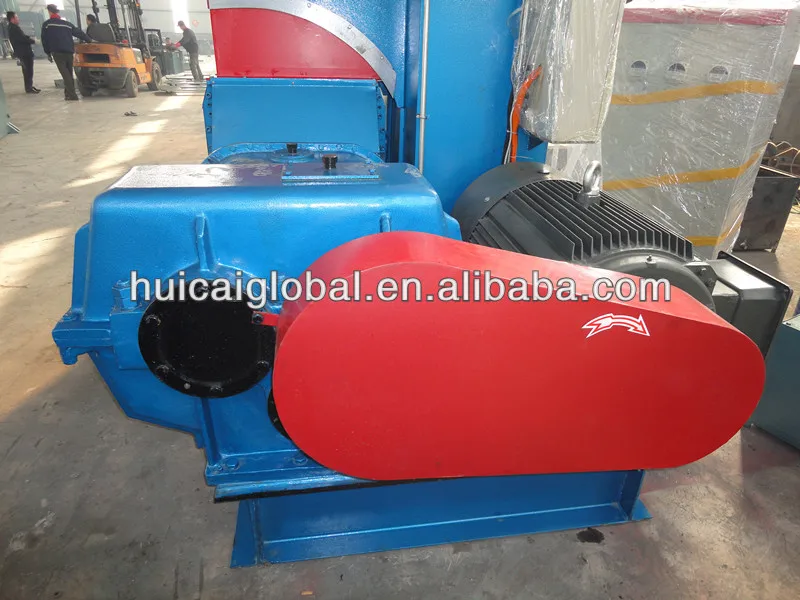

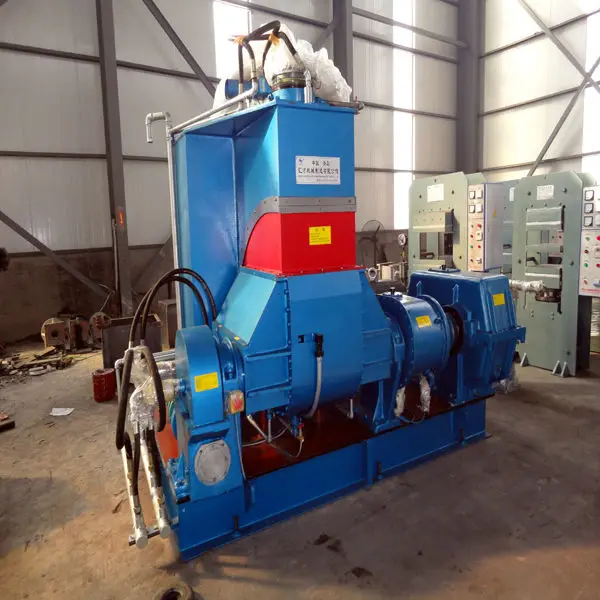

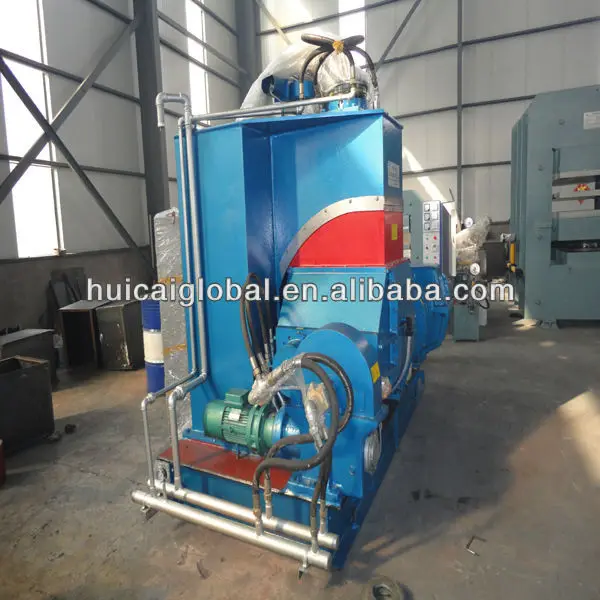

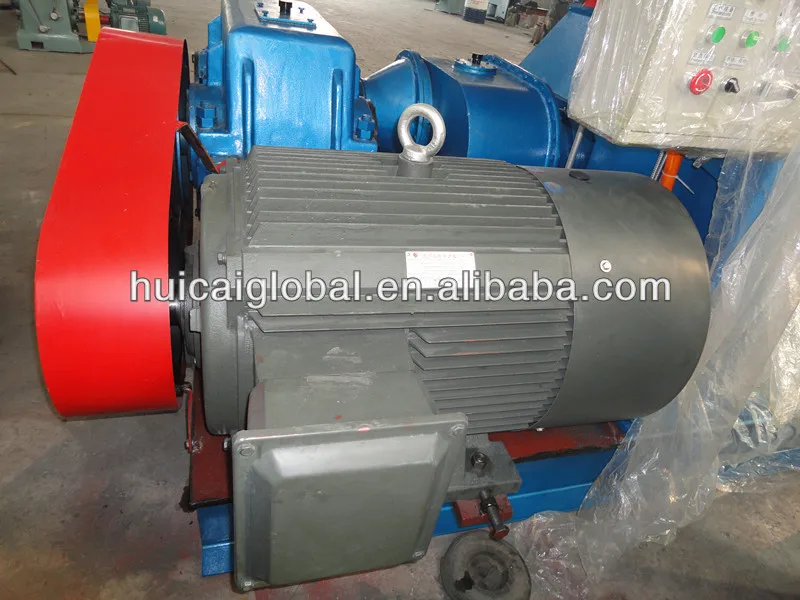

rubber dispersion kneader hard dough kneader 55 liter rubber kneader mixer with CE ISO9001 certificate

Product Overview

Description

Customize OEM/ODM SERVICE



WELCOME TO OUR FACTORY VISIT AND NEGOTIATION

Good Qualtiy Internal Rubber Kneader/ Rubber Kneader Machine CE & ISO BV Certified

Describtion of rubber kneader

This rubber kneader is mainly used for natural rubber, synthetic rubber, reclaimed rubber and plastic smelting and mixing, rubber and plastic blending, but also for blending of variety of low viscosity materials.

This rubber kneader is widely used in rubber and related products industry, such as tire plant, cable plant, adhesive tape & hose factory, rubber shoes factory, sealed fittings factory, rubber and plastic products factory, also applies to blend in paints, dyes, ceramics, medicine, tapes, movie film line etc..

This machine is the best new-type mixing equipment in rubber, plastics industry, the performance indicators are at or near advanced level of similar products in domestic and abroad. It has the following features:

1.Advanced and reasonable design

2.Compact structure,

3.Occupies small space

4.Easy to install and operate

5.High efficiency

6.Easy removal of mixing chamber and replacing pigment

7.High effective cooling and heating

8.Mixing and dispersing evenly and the use of fully closed structure both safe and greatly improve the operating environment

9.New sealed structural design, good sealing effect and long life.

Advantages:



1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.







2.Super sealing,no powder leakages.



Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.



3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.

4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.

5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.







6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.







Model Item		X(S)N-1.5	X(S)N-3	X(S)N-10x32	X(S)N-20x32	X(S)N-35x32	X(S)N-55x32	X(S)N-75x32	X(S)N-110x32	X(S)N-150x32	X(S)N-200x32
Total volume( L )		4	8	25	45	75	125	180	250	325	440
Working volume(L)		1.5	3	10	20	35	55	75	110	150	200
Motor power ( KW )		4	7.5	18.5	37	55	75	110	185	220	280
Tilting		Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear	Worm gear/ Hydraulic	Worm gear/ Hydraulic	Worm gear/ Hydraulic	HHydraulic
Sealing		Spring type	Spring type	Spring type	Spring type	Spring type	Spring type	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic	Spring type/ Hydraulic
Rotor speed (F/R) (r/min )		8.8-88/ 6.9/69	25-100/ 18-72	32/25	32/26	32/26	32/26	32/26	30/24.5	30/24.5	30/24.5
Dimension (mm)	L	1550	1600	2300	2500	3150	3370	3770	4060	4200	4520
	W	750	950	1360	1750	2020	1950	2570	2750	3300	3400
	H	1825	1880	2120	2450	2960	3020	3160	3590	3900	4215
Total weight( kg )		750	1050	3000	4500	7200	8200	11600	15600	19500	22500
