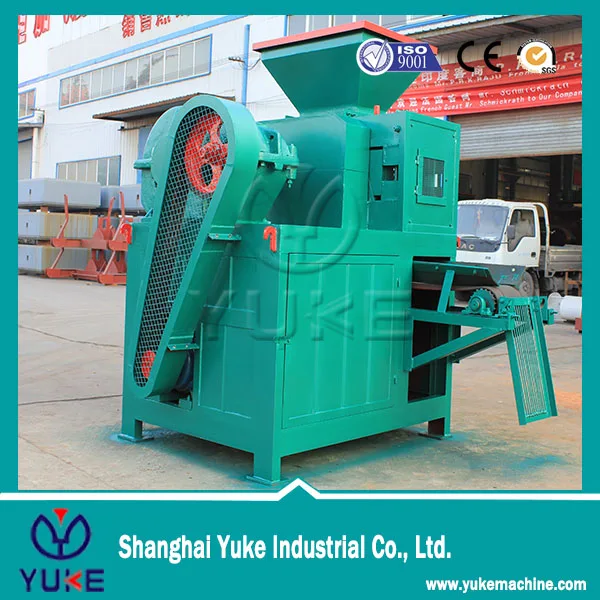

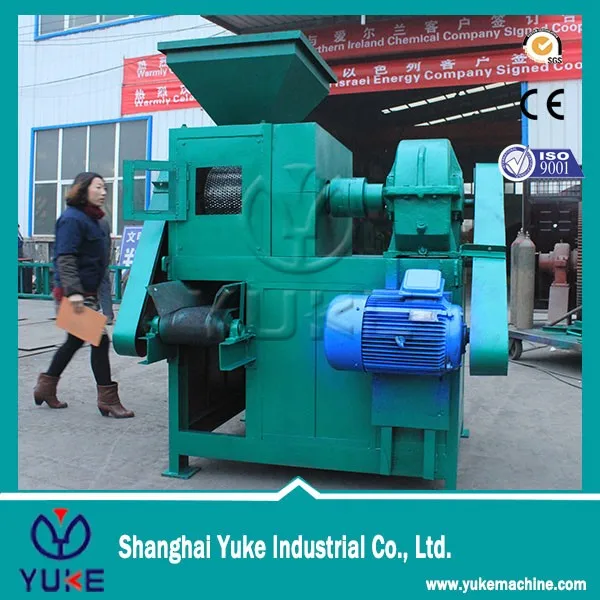

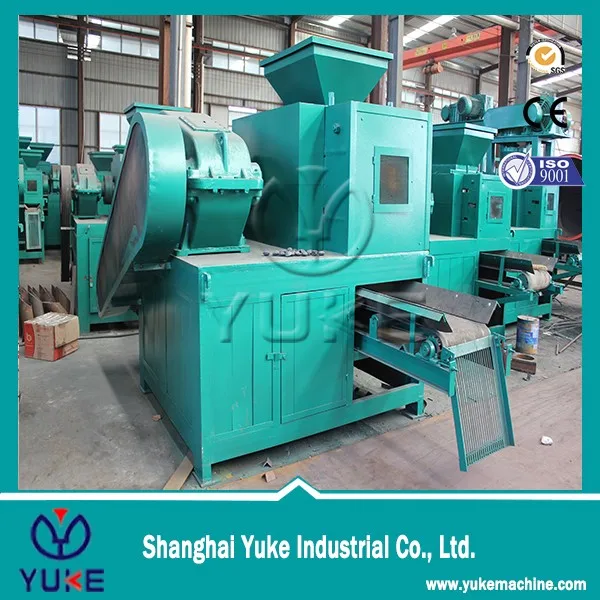

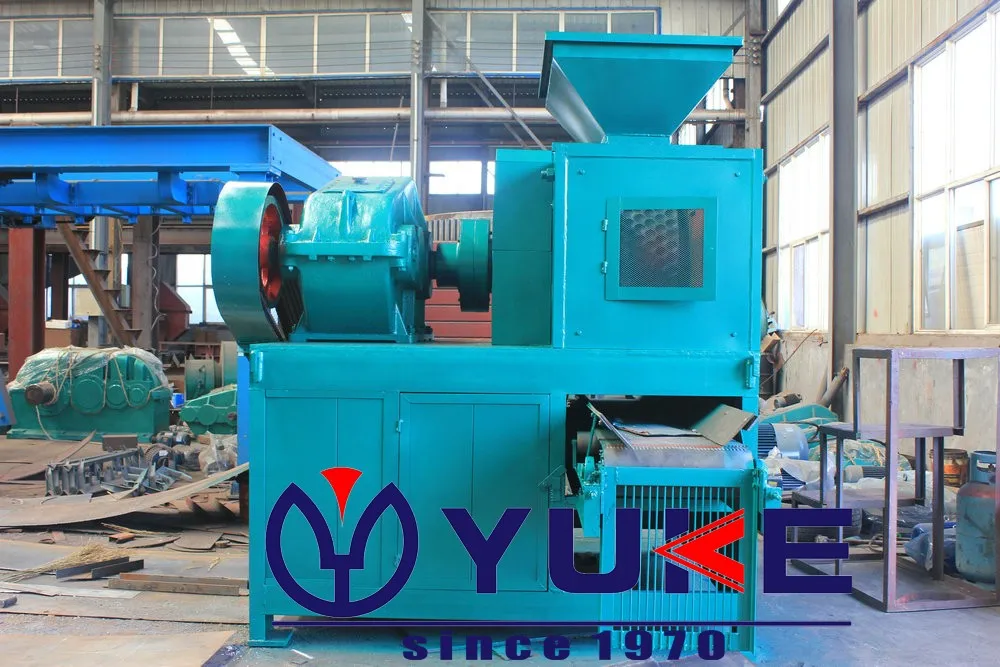

powder pressing machine Furnace Slag Powder Small Ball Briquette Machine

Furnace Slag Powder Small Ball Briquette Machine is  used for  aliuminum scrap powder,fly ash,coke powder,cast iron,charcoal powder,gypsum powder,coal fines, ore fines, desulfurization gypsum, iron fines, mill scale, fluorite powder, manganese ore finesand other material fines into briquette. This  briquette machine is widely used in coal industry and metallurgy industry etc.

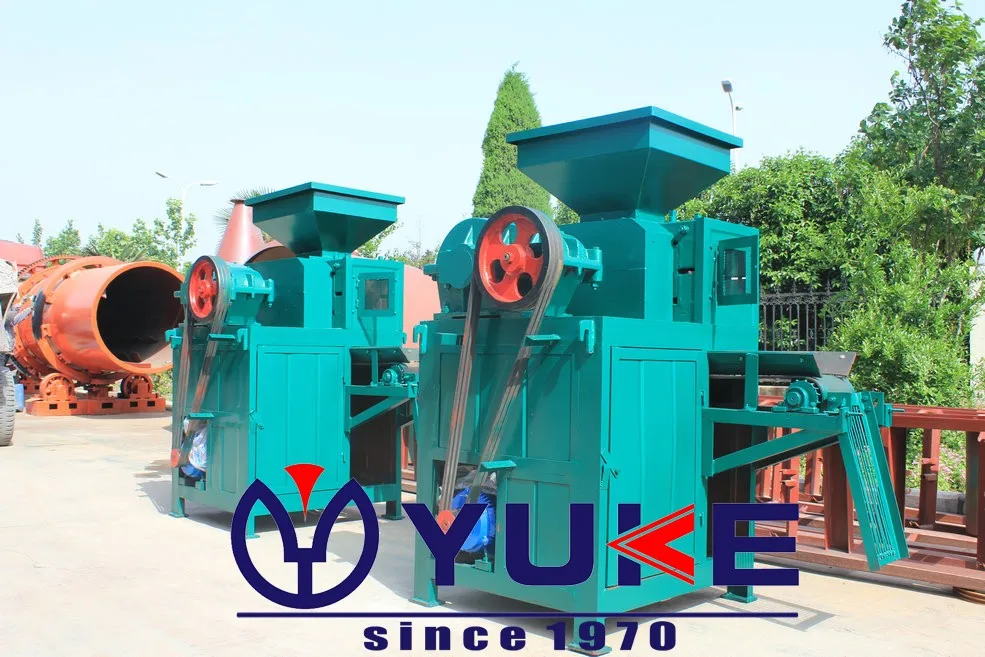

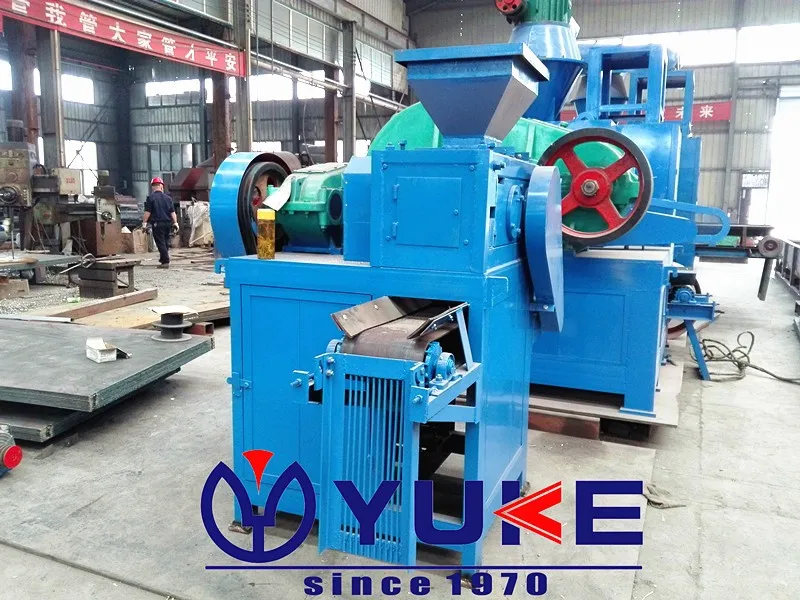

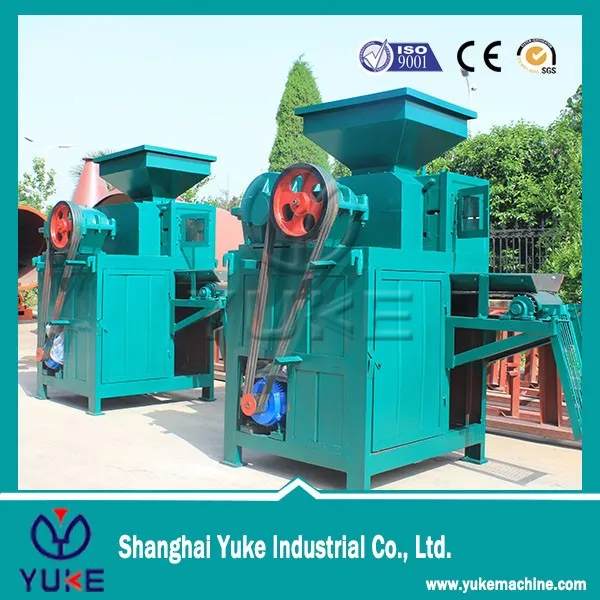

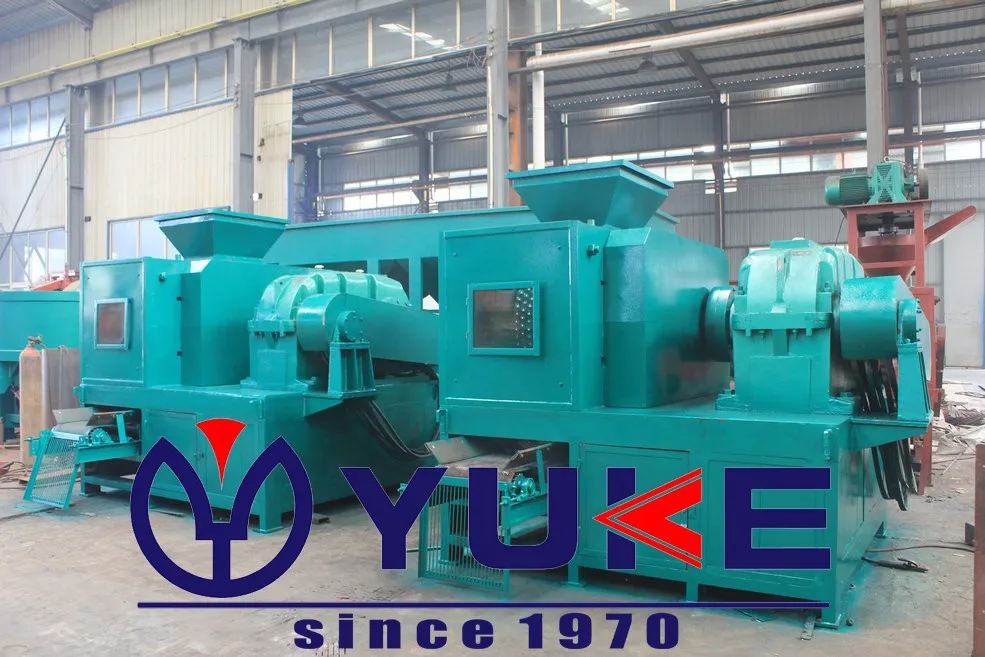

Different Model of  Briquette Machine Show

YKBM290

YKBM360

YKBM500

YKBM650

YKBM750

YKBM1000

Briquette machine Main technical parameter

\t
Model
\t
Roll diameter(mm)
\t
Capacity(t/h)
\t
Power(kw)
\t
YKBM290
\t
290
\t
1-3
\t
5.5
\t
YKBM360
\t
360
\t
4-6
\t
11-15
\t
YKBM430
\t
430
\t
6-8
\t
18.5
\t
YKBM500
\t
500
\t
8-12
\t
18.5-55
\t
YKBM500-3
\t
500
\t
5-8
\t
37
\t
YKBM500-4
\t
500
\t
8-12
\t
55
\t
YKBM650
\t
650
\t
10-15
\t
37-45
\t
YKBM750
\t
750
\t
15-20
\t
75-110
\t
YKBM850
\t
850
\t
20-25
\t
90-110
\t
YKBM1000
\t
1000
\t
25-35
\t
90-132

Above technical parameters are for reference,can be separately designed according to customer`s actual situation.And we can manufacture briquette machine whether with oil pump as your demands.

Features of  briquette machine :

A:High pressure,strong stability, and resist wear-resisting, high production quality, good performance, easy to use, economize investment, get quick returns.
B:Materials made by briquette are energy saving and environmental protection, and easy to transportate.it has a good economic and social benefits.
C:There briquettes can be designed of round ball shape, oval shape, oblateness, pillow shape,elongated shape, square shape.(briquette could also be designed according to the customer requirements.)

D:Professional powder materials briquette machine manufacturer.

E:  High briquetting efficiency

 Raw Materials and request of briqette machine:

Size: It's better to be less than 3mm(not a big block). If not, crusher is needed.
Uniformity: Mixer may be needed to make materials homogeneous.
Moisture content: 9-12%. If higher than this, rotary dryer is needed.

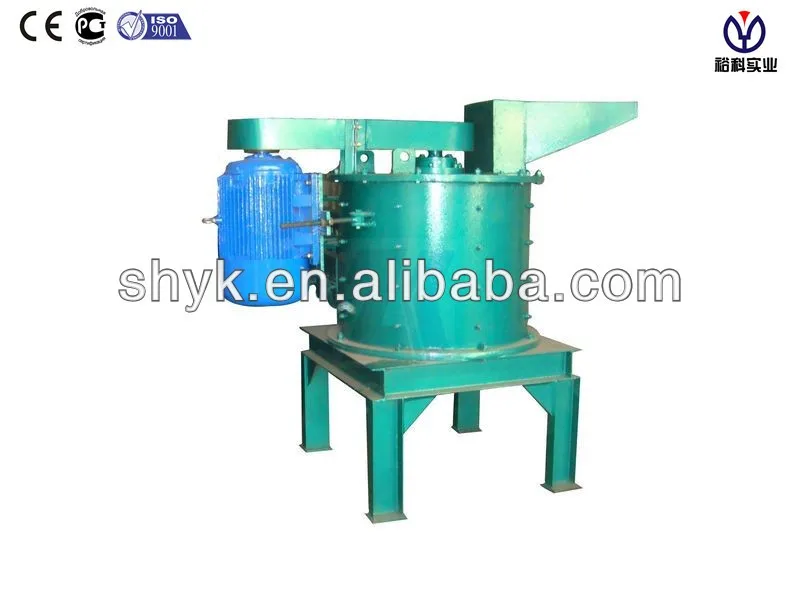

YKVC Vertical Crusher

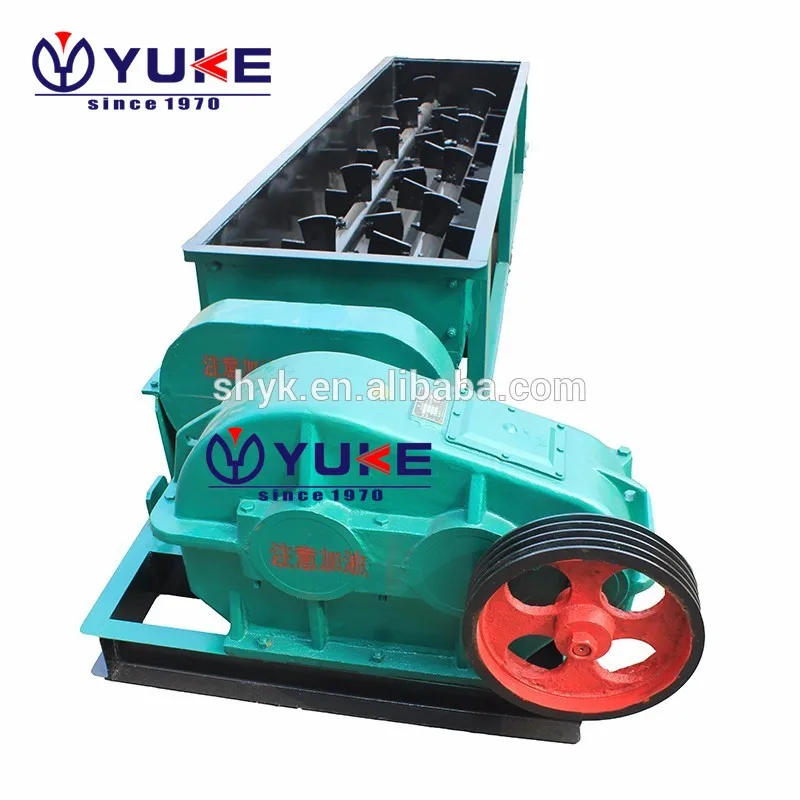

YKM Double Shaft Mixer

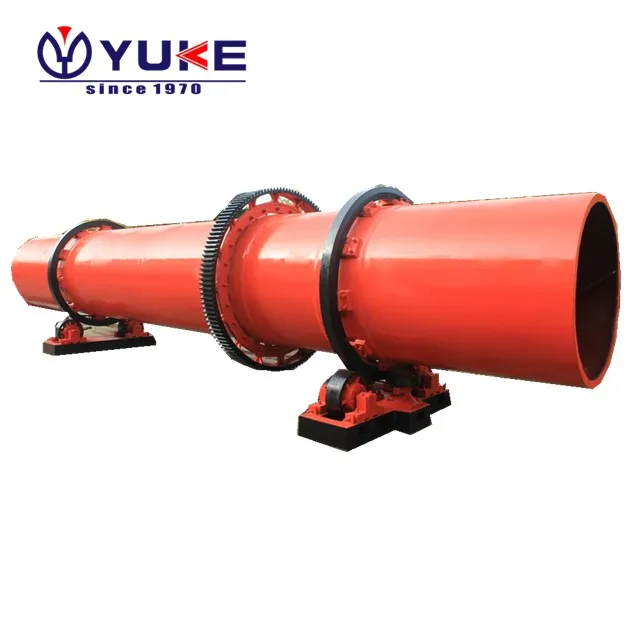

YKRD Rotary Dryer

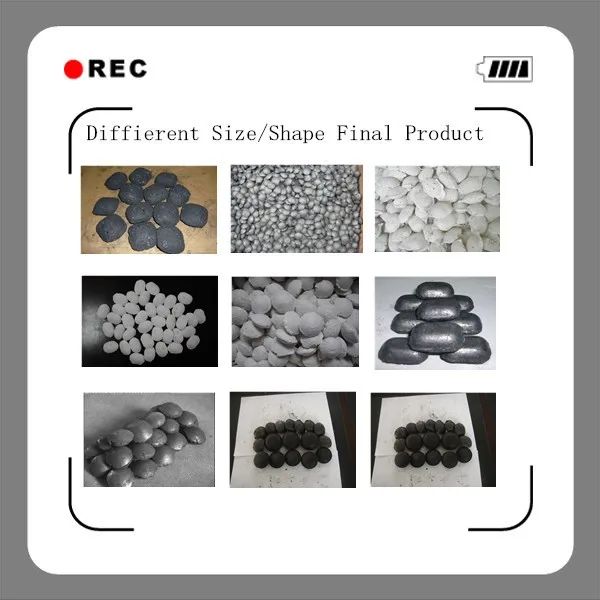

Final briquettes

You can requirement about the shape  and diameter.

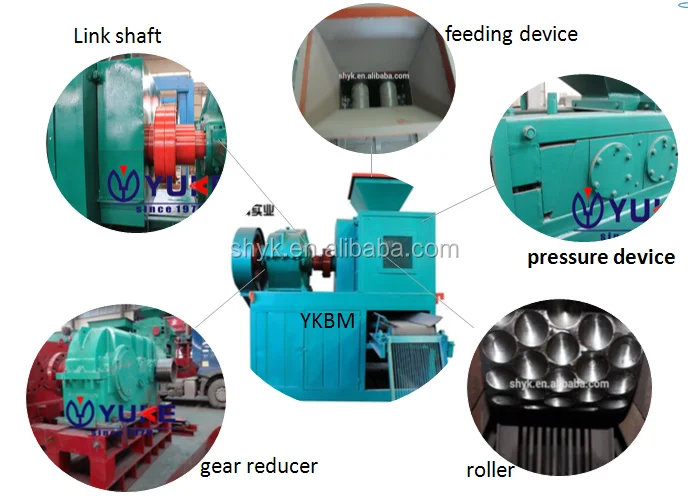

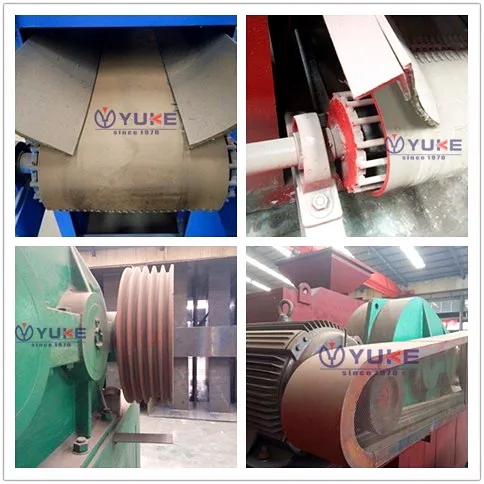

Detailed Images

The main rollers of  powder briquette machine,we adopt high-quality manganese steel materials(65Mn/9Cr2Mo), greatly improving the wear resistance and pressure ability, make the briquette machine has a long service life, has been widely used in recent years.

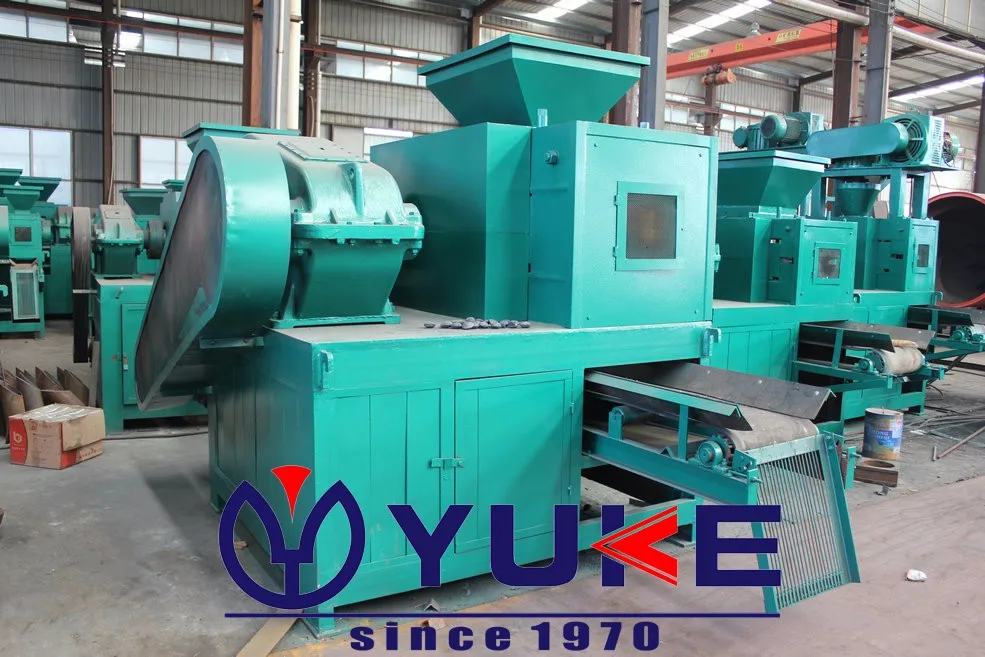

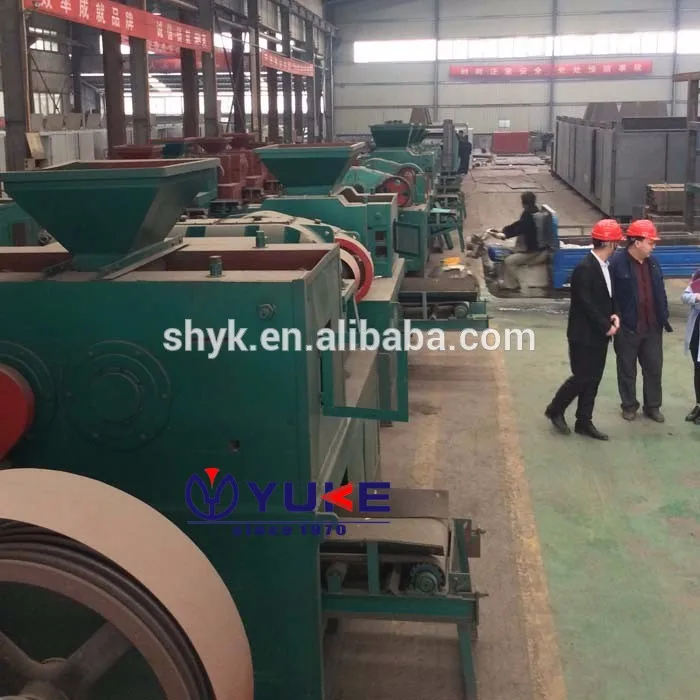

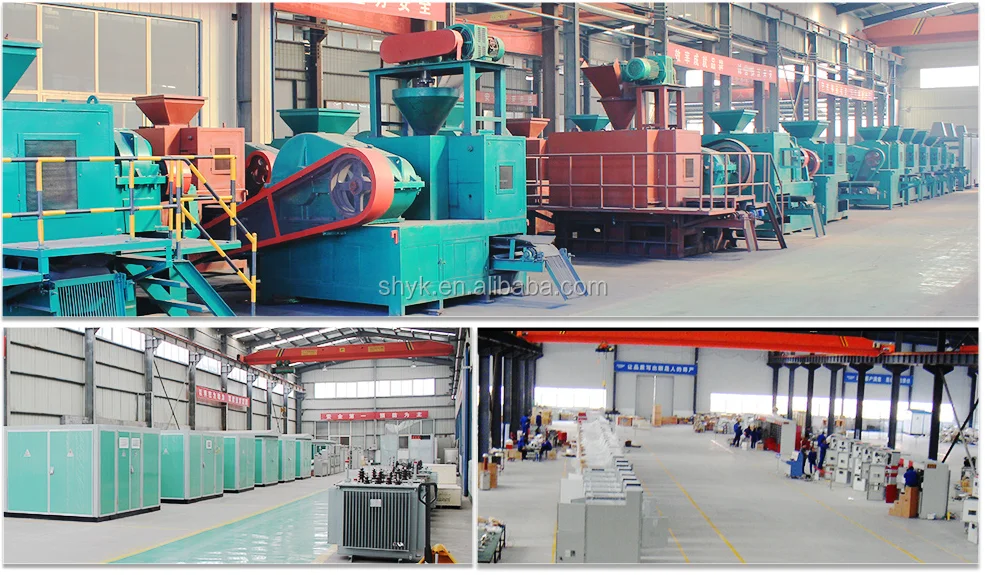

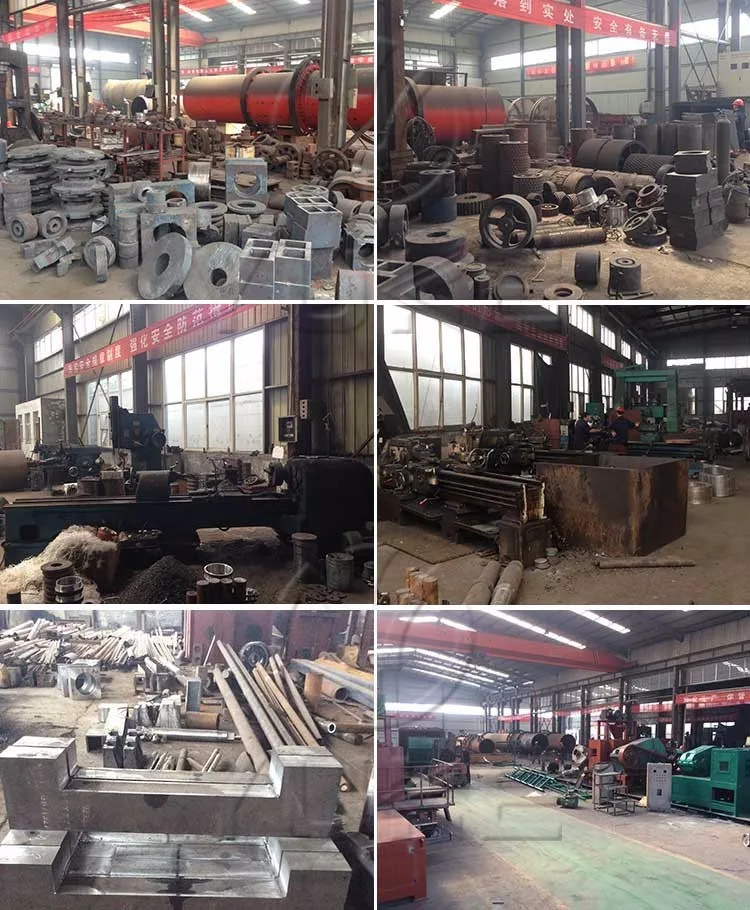

Briquette Machine Workshop and Warehouse

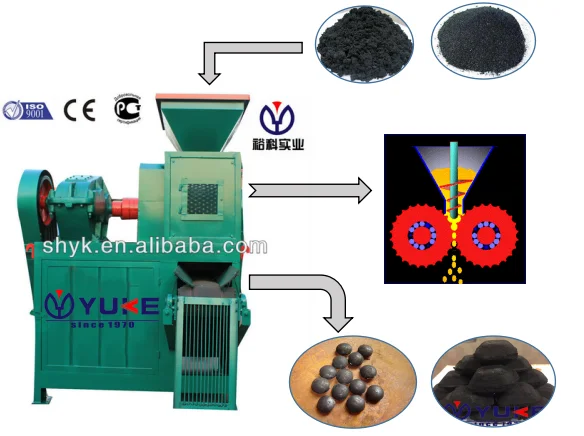

Work Principle

1)This series of briquette machine will pass the powder on to the two pressure roller through the reducer.
2)The two sides and roll rotation, in both the rotating roll, natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger.
3)When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product from the powder ball.

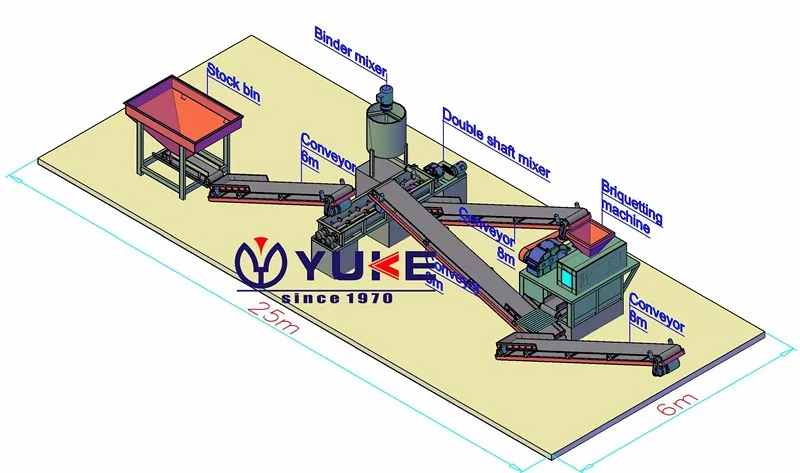

Briquette Line:

This line is an example,we can design as your requirement.

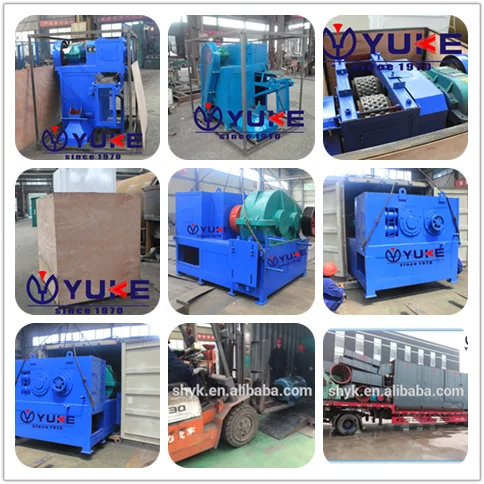

Packing & Delivery

1.The powder pressing machine Furnace Slag Powder Small Ball Briquette Machine packing in wood case(small machine) and standard export container,or as your requirement.
2.The delivery will be at 15-30 days after prepayment.

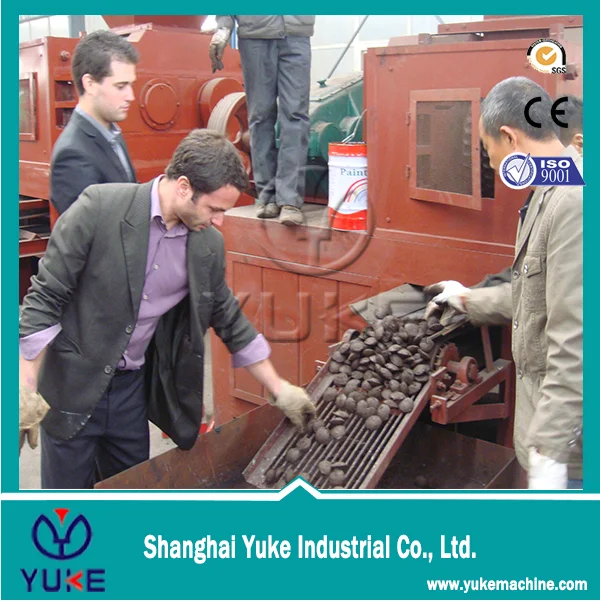

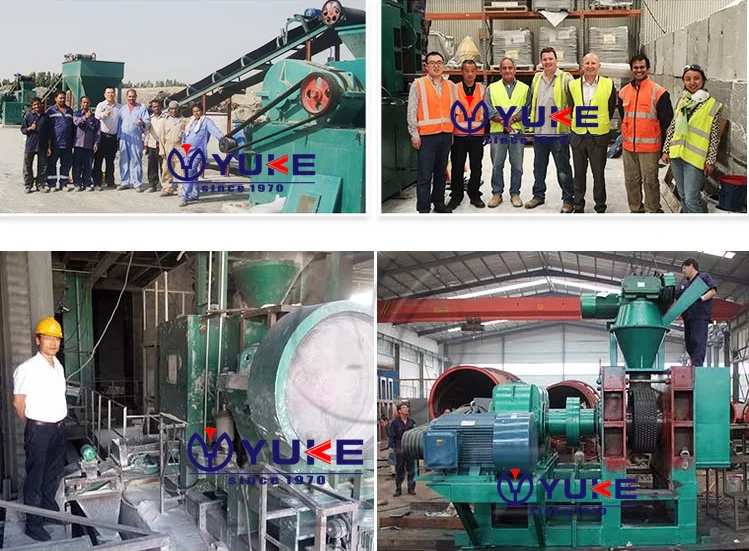

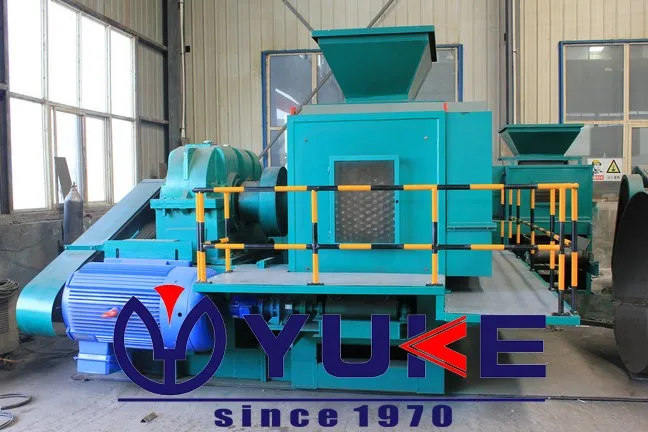

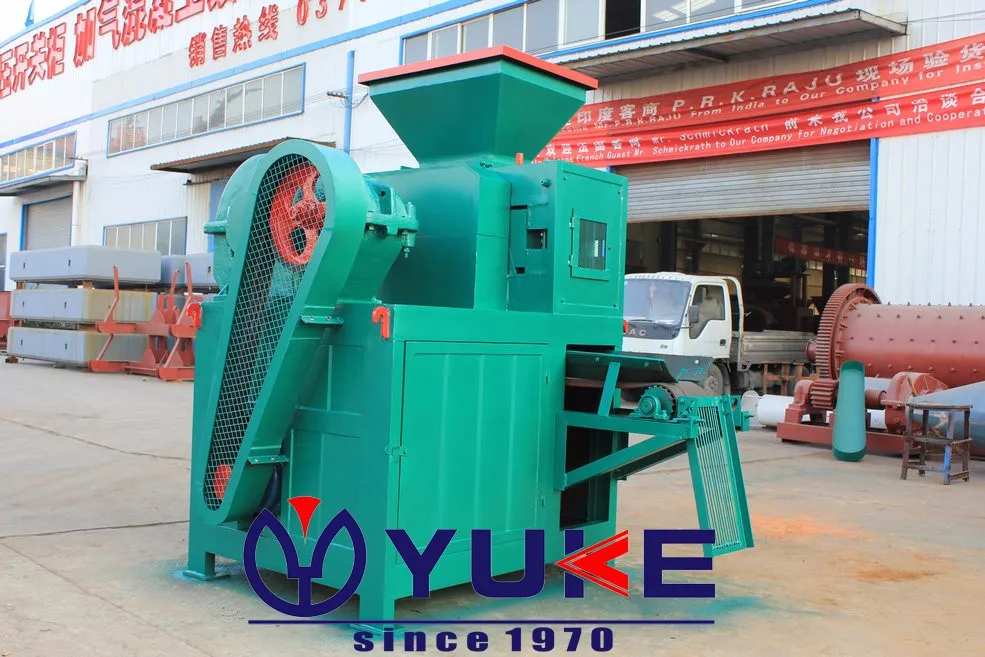

Customer Site
About Us

Our Company:

Shanghai YUKE Industrial co.,ltd. is a trustworthy and specialist designer and manufacturer of industrial dryer,powder briquette machine briquette,etc.Following strictly the standards of ISO9001,and have obtained the certificartes of CE,GOST,and other international authority bodies.

Our Factory:

Our factory has established in 1970s,with great experiences.And our products have been widely exported to Malaysia,Thailand,Philippines,India,Northern Irealand of United Kingdom,Australia,Indonesia,Israel,Egypt,Oman,South Africa and so on.Our product are popular in the flied and are well accepted by new and existing customers.

Exhibition and part of  cooperation clients:

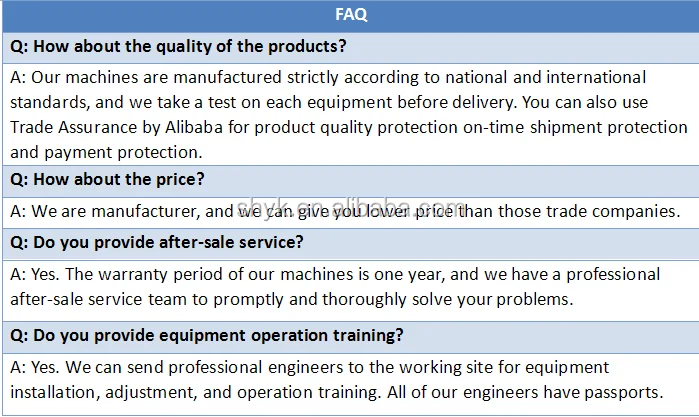

FAQ
