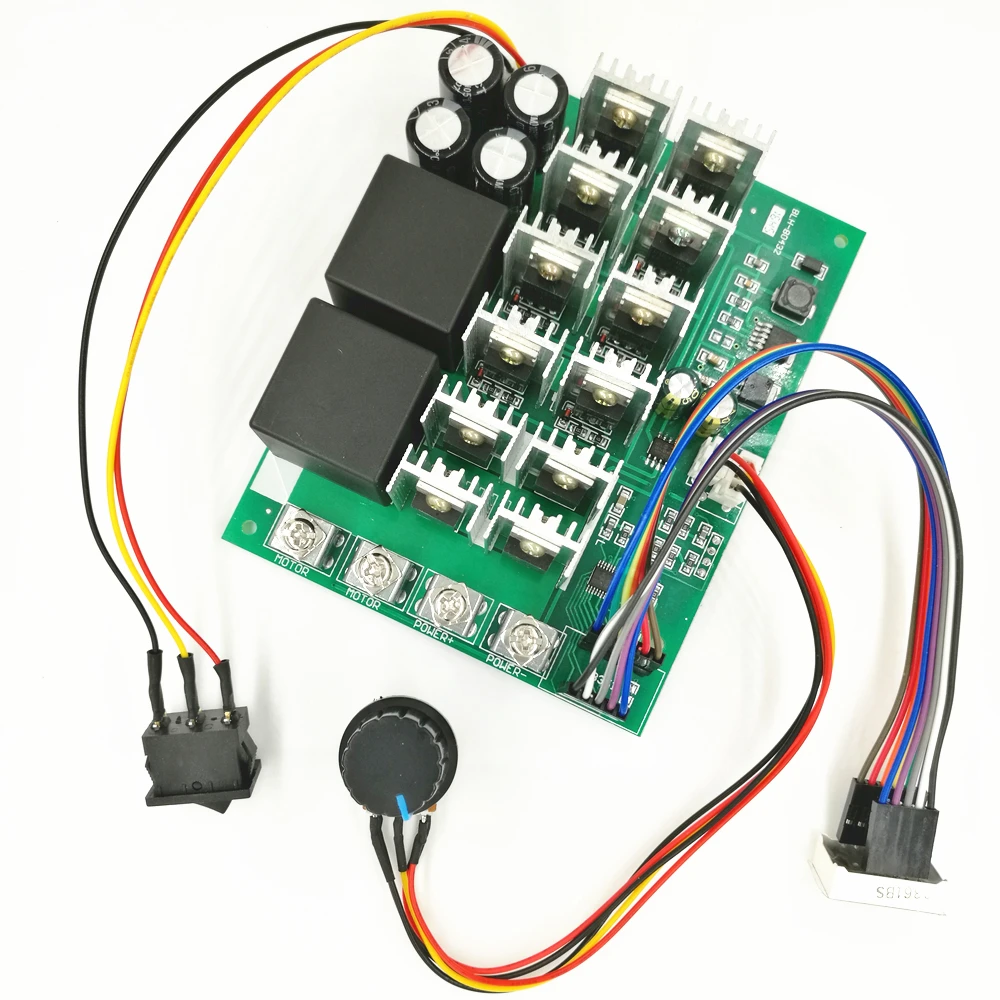

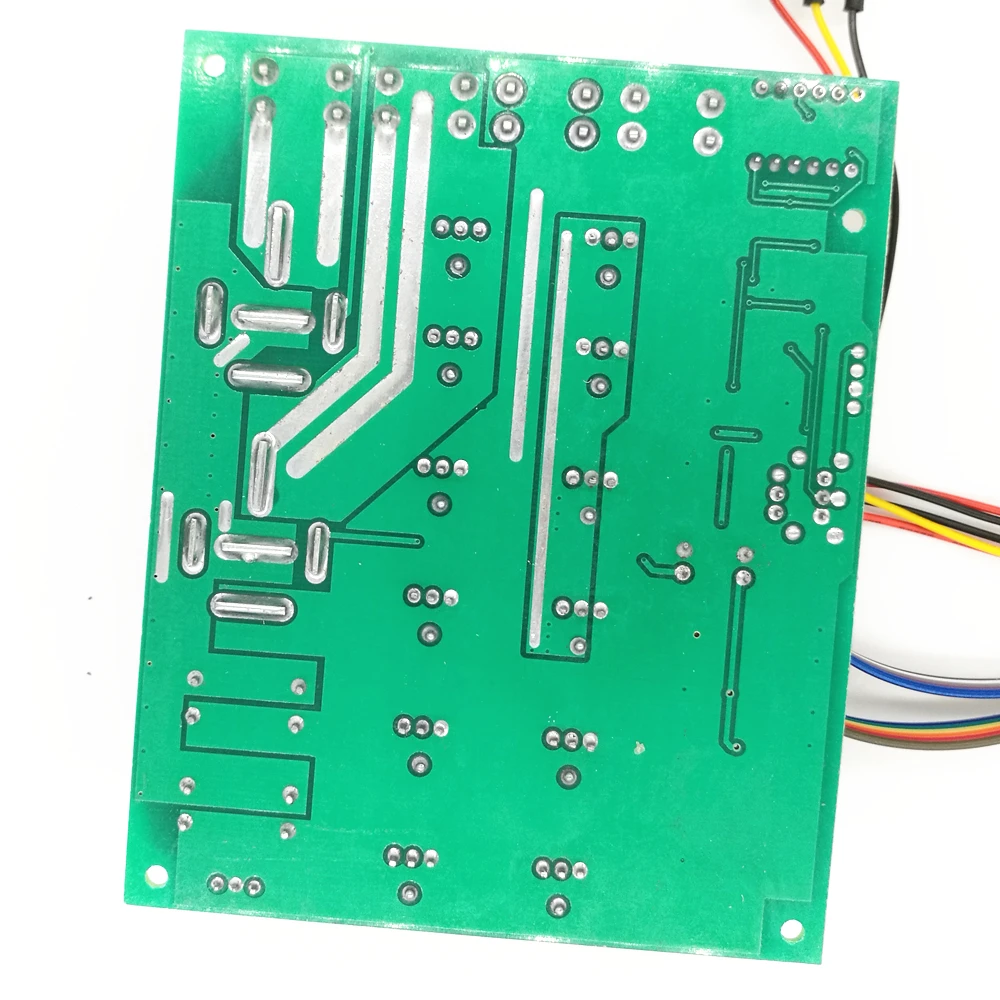

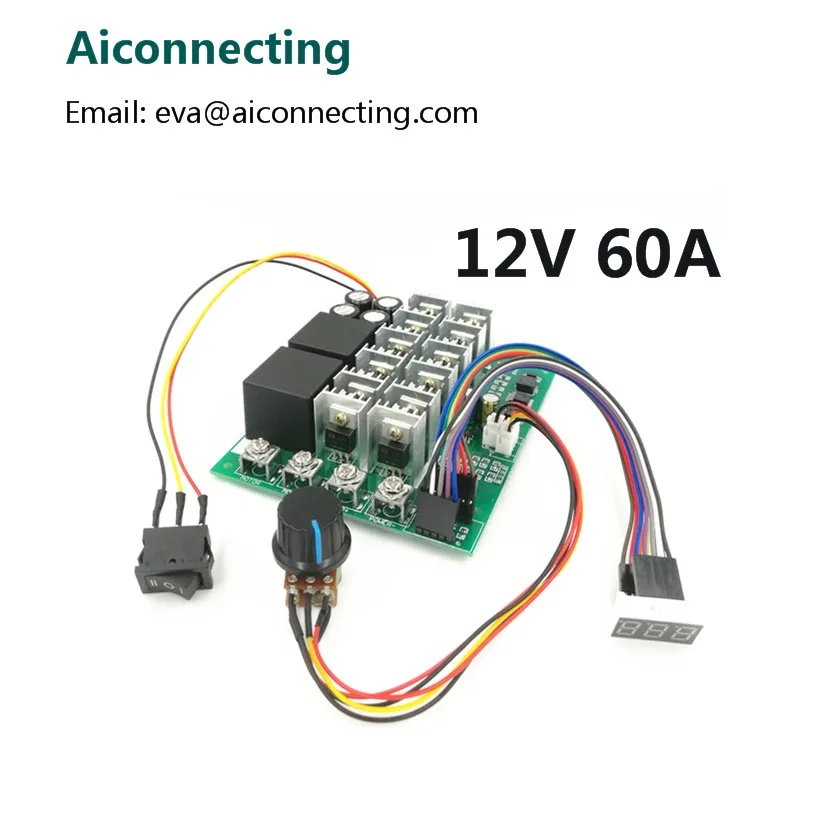

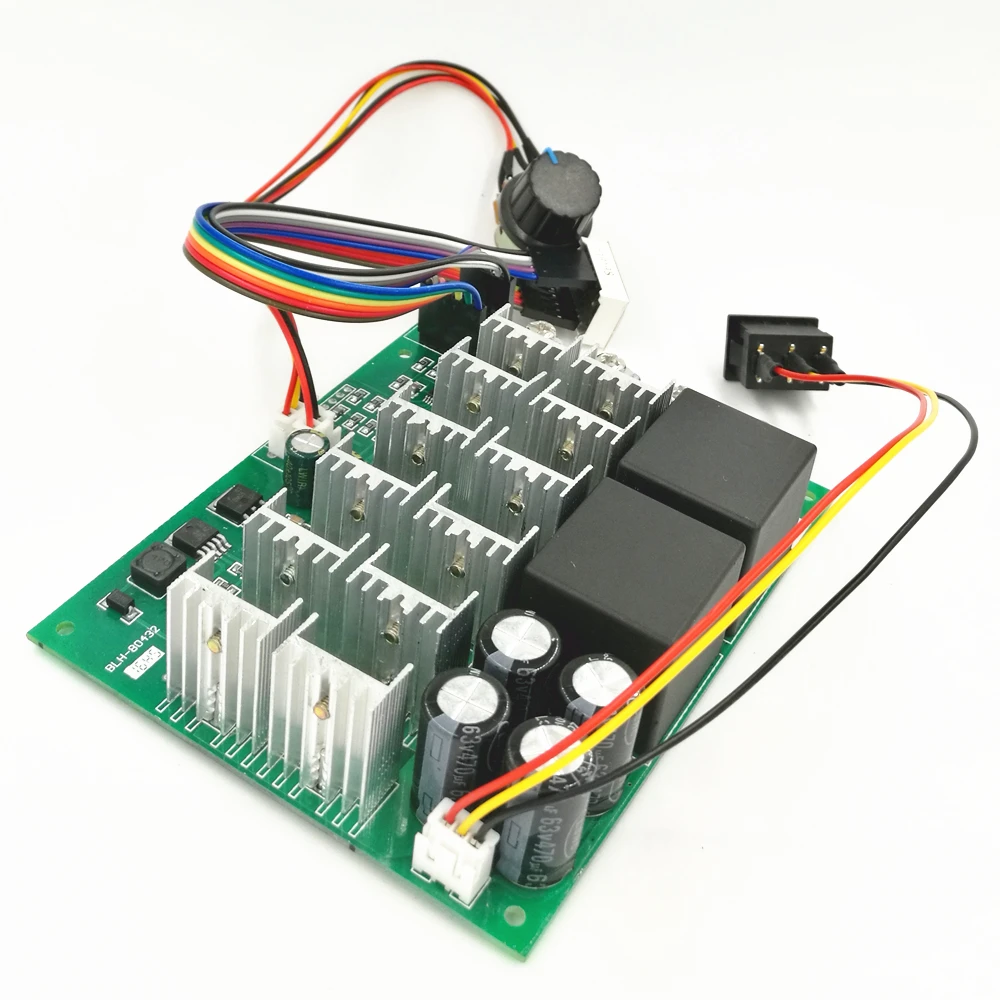

DC 12V 60A 3000W Motor Speed Controller With Reverse Switch
- Category: >>>
- Supplier: Shenzhen Aiconnecting Electronic Co. Ltd.
Share on (60735607301):
Product Overview
Description
Product Description
Technical Parameter
Motor Type | DC brush motor |
| Input voltage | DC10-55V |
| Output voltag | linear under load |
| Output current | 0-100A |
| Continuous current | 60A |
| Speed Type | Tuning |
| Speed control mode | potentiometer (linear) |
| Speed range | 0--100% |
| Control frequency | 15KHZ |
| Wiring type | terminal |
| Knob Specifications | 100K (with switch) |
| Module size | length * width * height 120mm * 96mm * 28mm |
| Product weight | 260 grams |
| Motherboard loading size | length * width 111mm * 88mm |
| Potentiometer installed by opening | 7MM |
| Note: The digital display is the motor full speed percentage 0-100 non-motor actual speed | |
