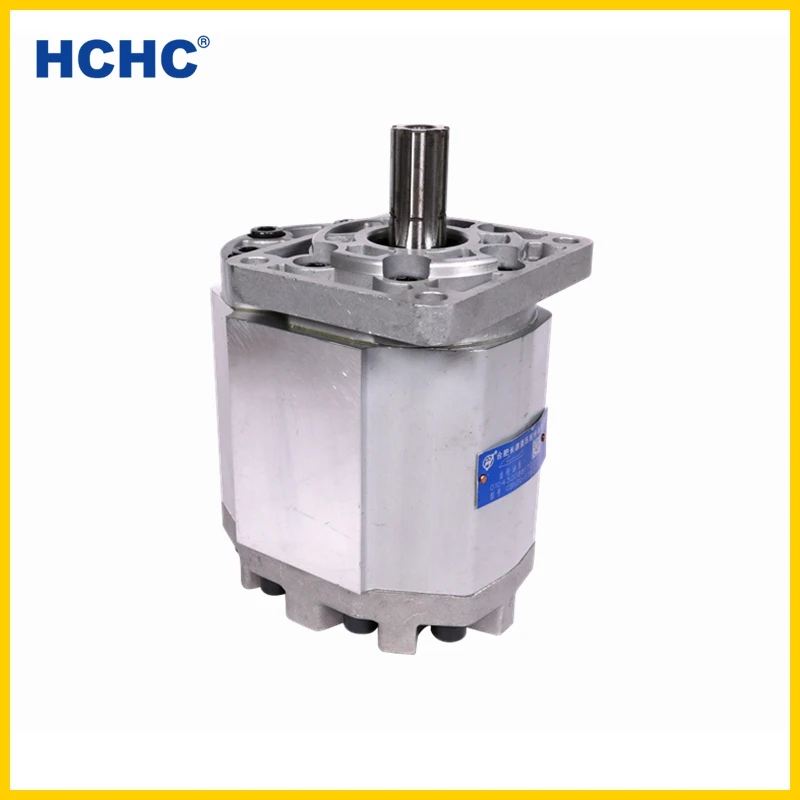

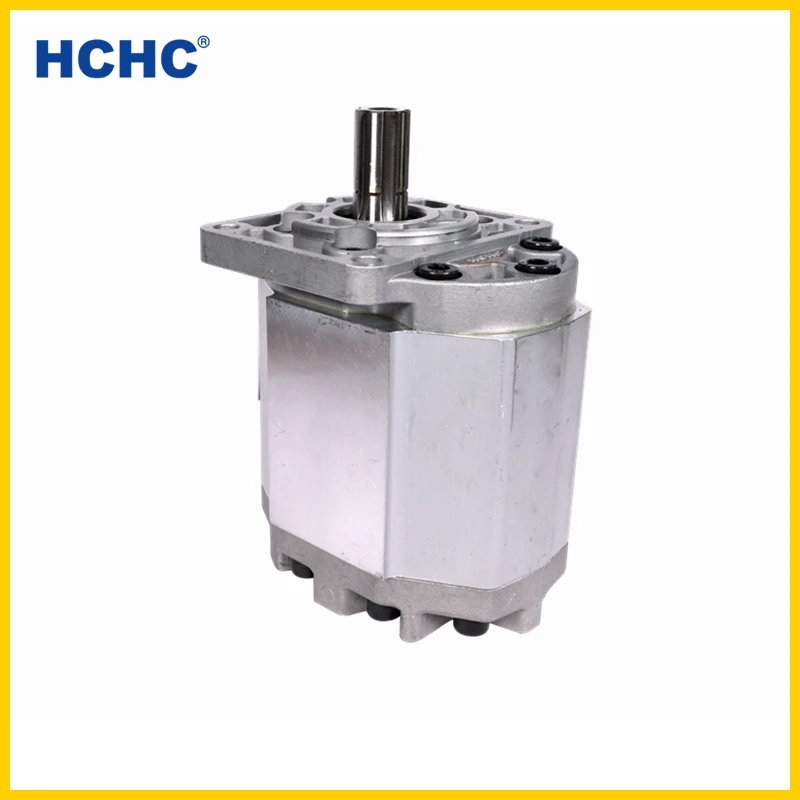

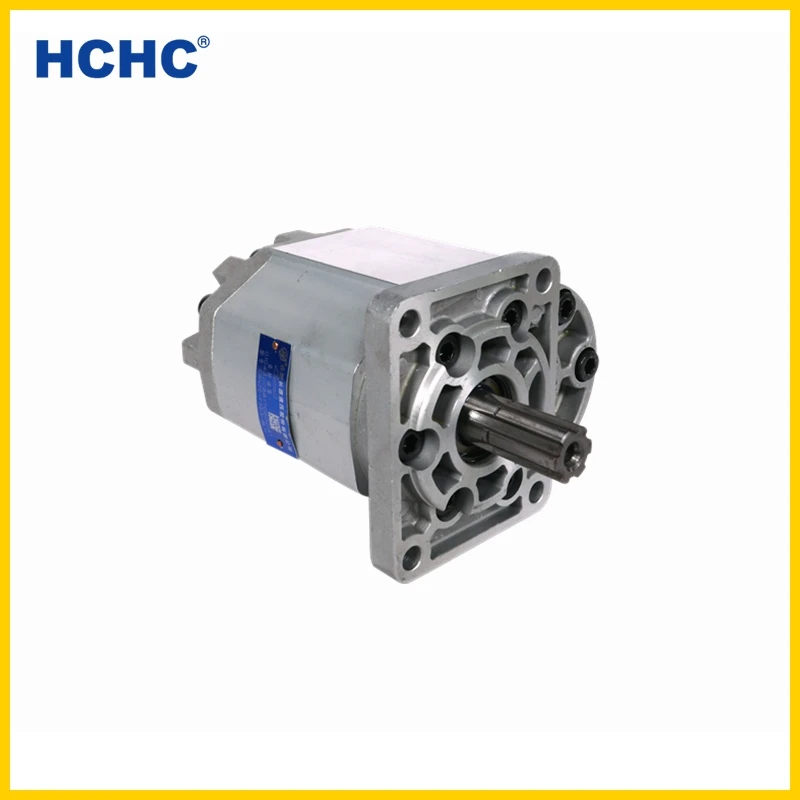

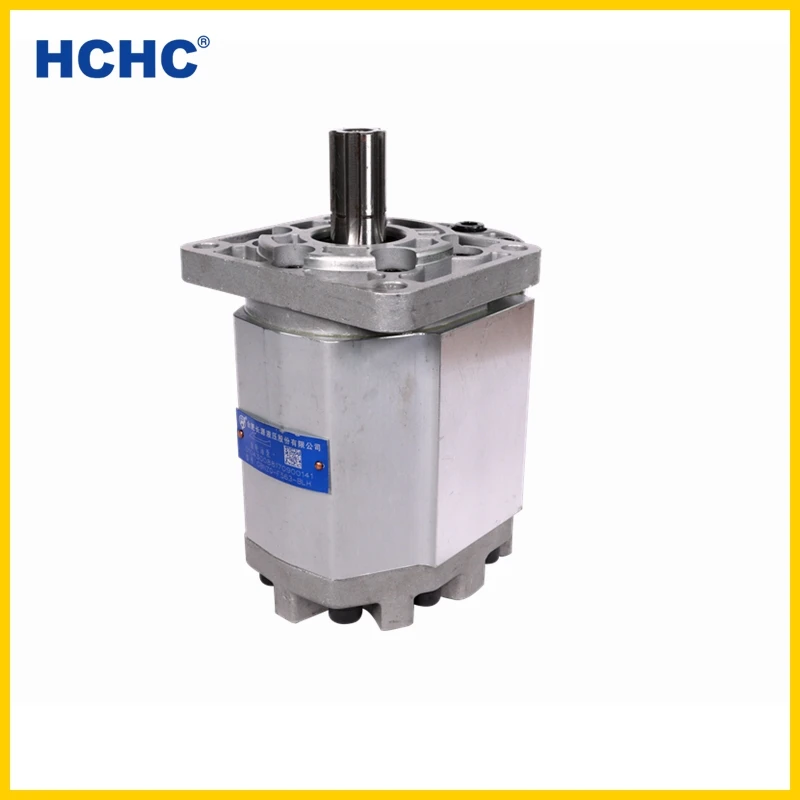

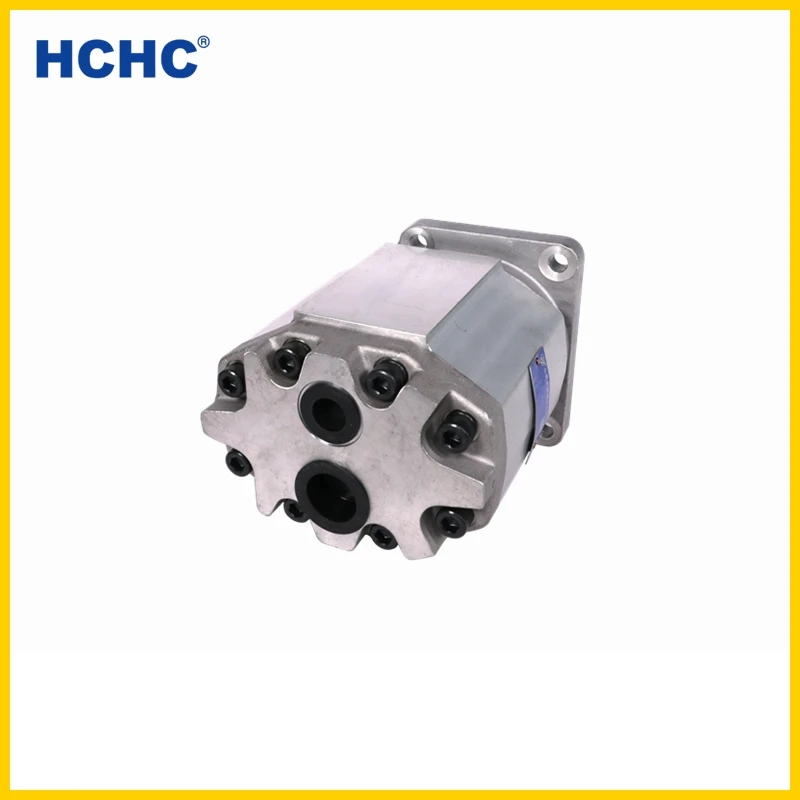

HCHC high pressure large displacement aluminum hydraulic gear pump aluminum CBNZQ

★ Pump housing is made of high strength aluminum alloy material.
★ The shaft extension type: plain key (P), rectangular spline (H).
★ The joining type of inlet/outlet position is flange (F) or thread (L).
★ The auto-compensation unit of axial clearance ensures the high volume efficiency.
★ Higher working pressure, wider speed range.
★ Keep higher volume efficiency when the speed is 600 rpm/min.

Specification

Model Code

CBNZQ - F 563 - B   L   H

①           ②③④  ⑤ ⑥ ⑦

①Product code
②Pressure grade: F=200 bar
③Gear modulus: 5
④Nominal displacement(mL/r)
⑤Mounting type: B=square flange
⑥Joining port type: L=thread
⑦Shaft extension type: H= rectangular spline

Model	Nominal Displacement (mL/r)	Pressure (MPa)			Speed (r/min)					Volume Efficiency (≥%)
				Rated	Max.	Min.	Rated	Max.
CBNZQ-F563-BLH	63	20	25	600	2500	3000	92
