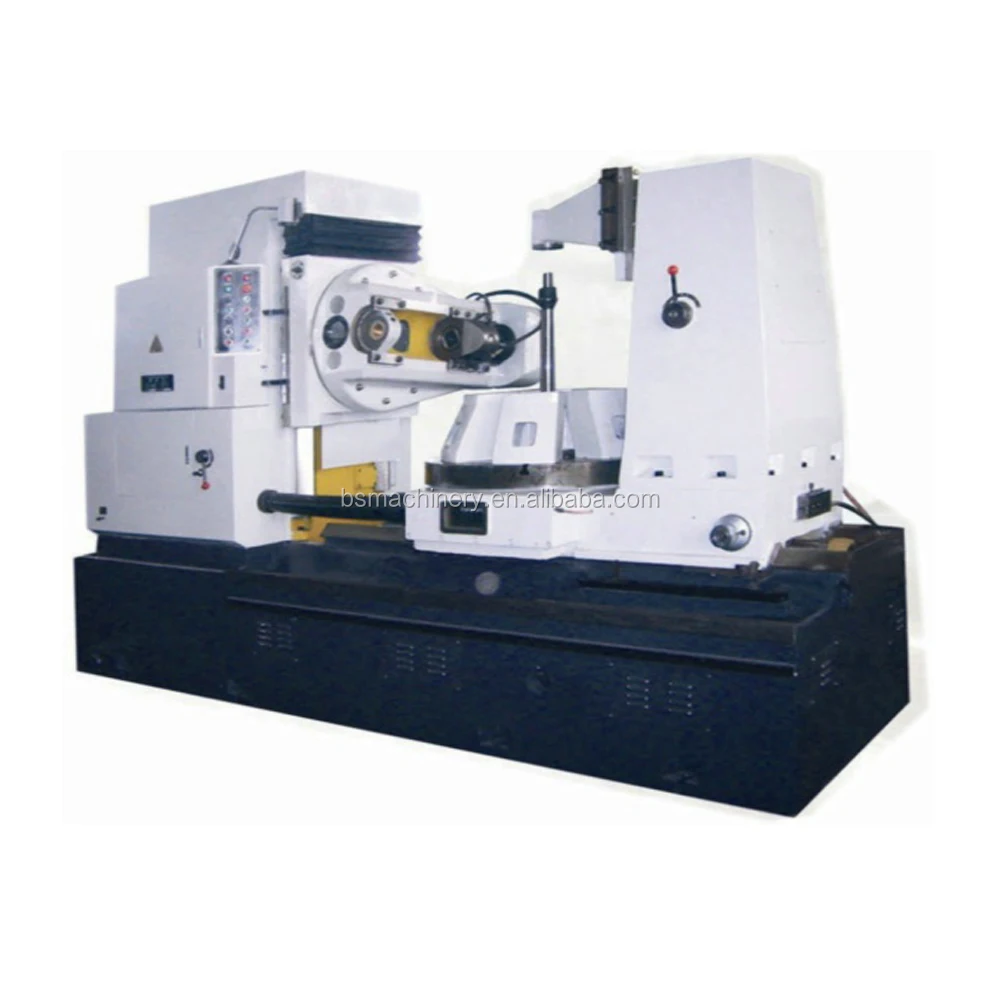

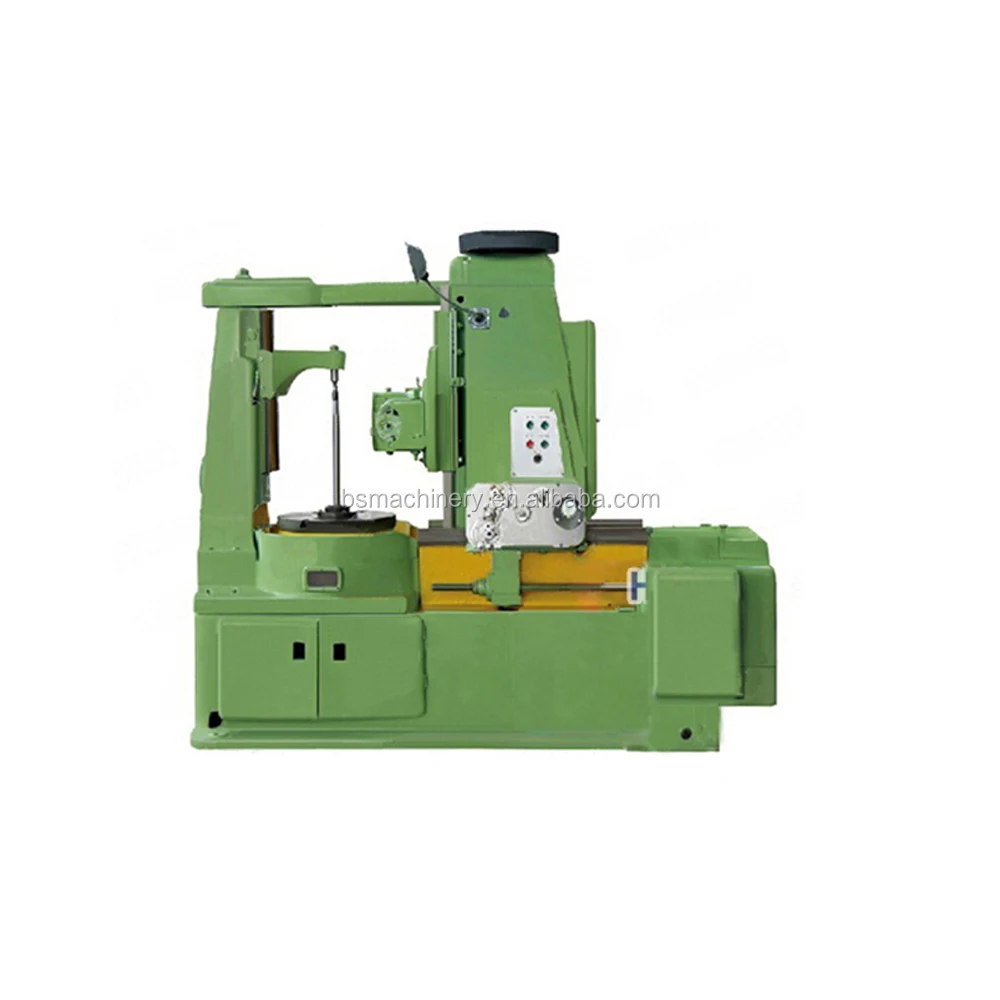

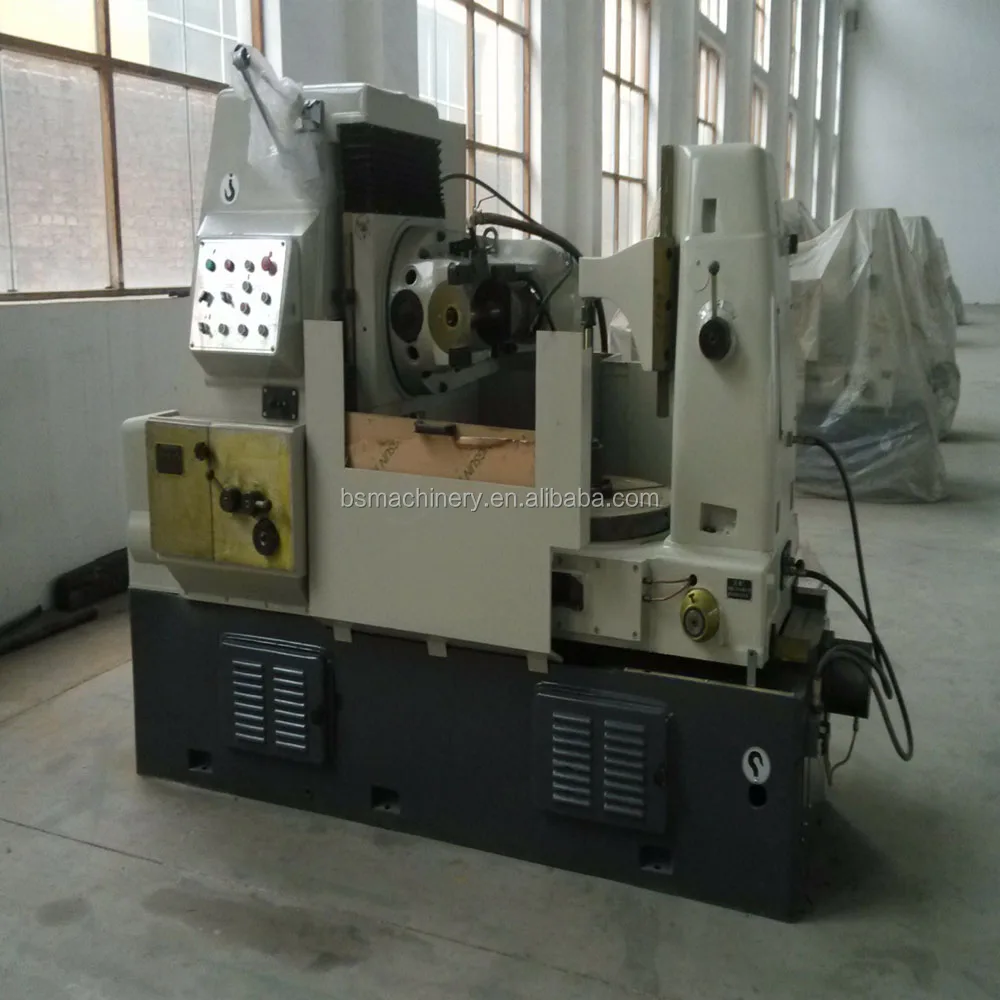

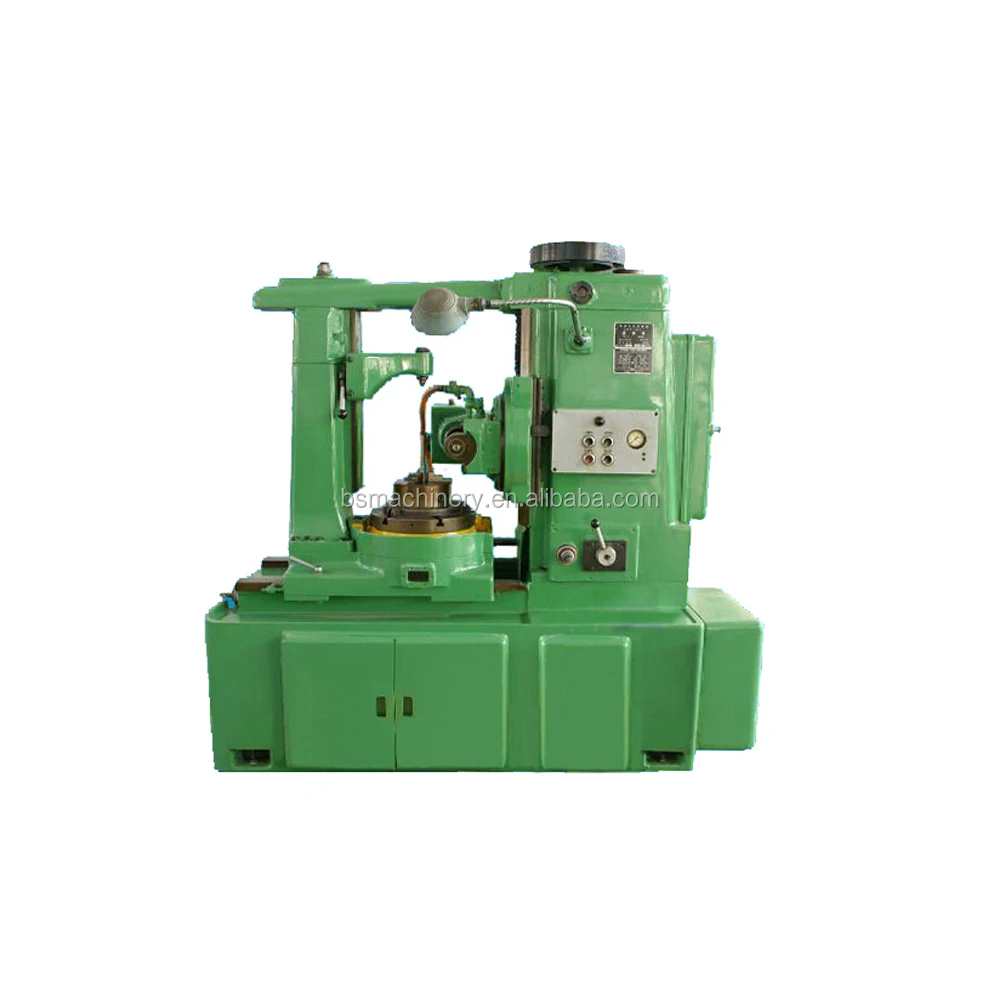

Небольшая зубчатая машина для продажи

 Technical Parameter

Unit

Y3150E

Max work piece diameter

mm

500

Max modulus

mm

8

Max machining width

mm

250

Min machining number of teeth

6

The largest machining spiral angle

+-45

Scope of main tool turning speed and grade

rpm/grade

40-250/9

Max turning angle of tool

240

Max tool loading dimensions(diameter* length)

mm

160 *160

Main motor

kw

6.45

Spindle taper

Morse 5

Max axial amount of movement of tool

mm

50

Distance between axis line of tool and worktable face

mm

235-535

Min distance between tool axis and worktable axis

mm

30

Distance between back rest under face and worktable face

mm

380-630

Machine size(length* width* height)

mm

2440*1370* 1800

Weight

kg

4500
