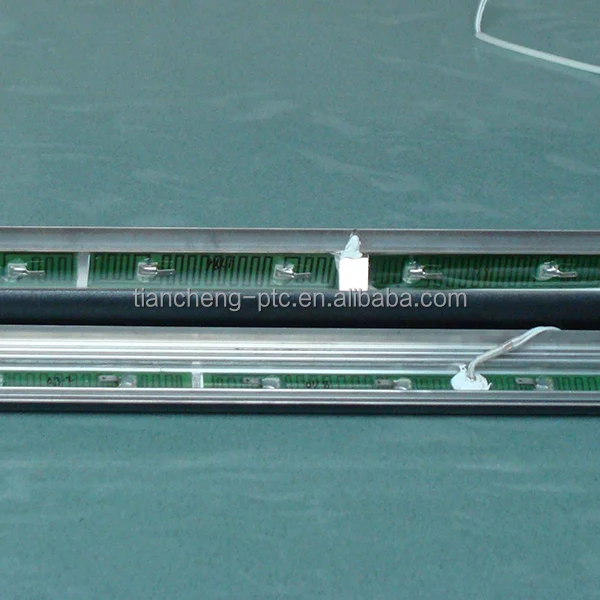

PTC bottom mounted water heating plate
- Category: Hair Care and Styling Appliances >>>
- Supplier: Dongguan Tiancheng Thermistors Co. Ltd.
Share on (60735683476):
Product Overview
Description

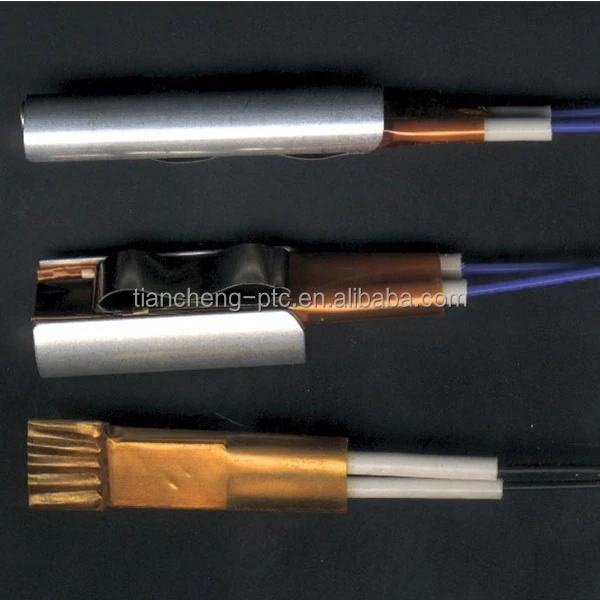

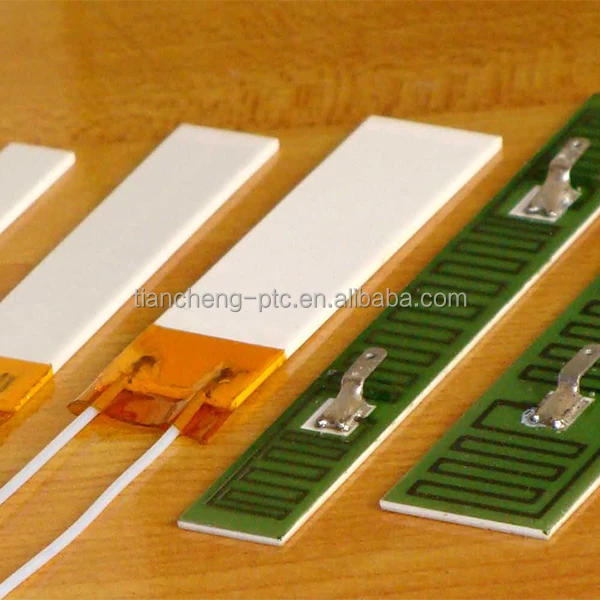

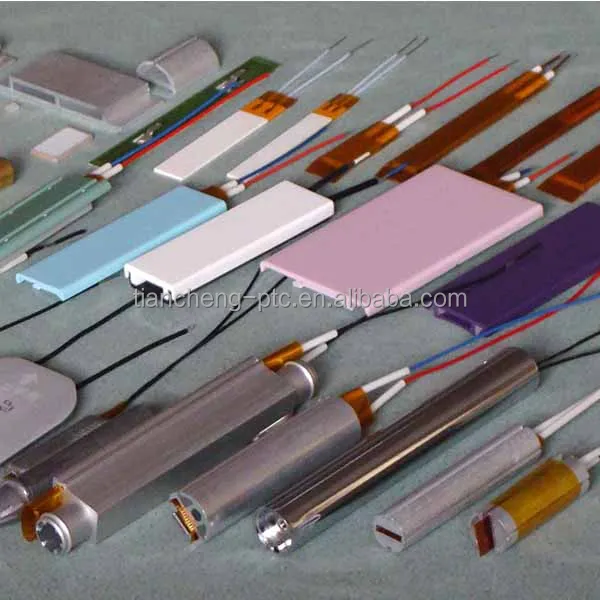

Our company can supply PTC straightener plate, PTC heater with insulating film, or PTC heating pellet. But for getting quick temperature rising, uniform temperature, good insulation, the PTC straightener plate is commended firstly.
Our PTC straightener plates are selected by many known customers.
We also supply several kinds of straighteners.
Straightener plate usually used:
part number | Length | Width | Thickness | part number | Length | Width | Thickness |
543 | 90 | 34 | 7.5 | 568 | 90 | 44 | 8.5 |
541P | 90 | 25 | 10.8 | 574 | 90 | 24.85 | 10.6 |
571 | 90 | 28 | 7.5 | 572/598 | 100 | 60 | 8.8 |
575 | 90 | 40 | 7.8 | 575P | 80 | 33 | 7.5 |
584/569 | 83 | 15 | 10.5 | 585 | 90 | 44 | 8.7 |
567 | 100 | 60 | 10.5 | 597 | 90 | 25 | 8 |
568 with arc convexity | 90 | 44 | 10 | 568 with arc concave | 90 | 44 | 14.8 |
578 with arc convexity | 90 | 24 | 10.5 | 578 with arc concave | 90 | 25 | 12 |
587 with arc convexity | 90 | 41 | 9.6 | 587 with arc concave | 90 | 41 | 12.8 |
566 with stream holes | 100 | 26 | 11.3 | 636 with stream holes | 90 | 31 | 11 |
614 | 90 | 30.8 | 10.5 | 605 | 90 | 25 | 8.5 |
615 | 90 | 57 | 10.5 | 619P | 83 | 20 | 6 |
647 | 90 | 26 | 8.8 | 638K | 90 | 24 | 10.5 |
622 | 90 | 34 | 12 | 641 | 90 | 31 | 11.5 |
679 | 90 | 26 | 10.5 | 650 | 90 | 25 | 7 |
680 with stream holes | 90 | 60 | 7.1 | 6218 | 90 | 35 | 7.4 |
903 | 90 | 30 | 7 | 906 | 90 | 54 | 7 |
907 | 90 | 25 | 6.6 | 908 | 90 | 39.5 | 6.6 |
027 | 100.9 | 57.1 | 13.55 | 028 teflon coated | 100.8 | 51.5 | 13.5 |
044 | 109 | 53.3 | 11.65 | 049 oxygenated | 100.9 | 57.1 | 13.55 |
048 ceramic complex aluminum pate | 100.9 | 57.2 | 13.5 | 047 with stream holes | 100.5 | 54.9 | 11 |
597 polished ceramic plate | 89.5 | 25 | 8 | WIN polished ceramic plate | 90 | 28 | 9 |
Note: 1) material is aluminum coated with ceramic paint unless labeled.
2) customer fond color is possible.
3) surface temperature is 220 usually, or customer required.
