Import china goods 16x4 stn standard mini character lcd display module

Product Description

 1. FUNCTIONS & FEATURES

Product parameters
Characters16×4 Lines
LCD ModeSTN
Controller ICSPLC780D or Equivalent
Driving Method1/16 Duty; 1/5Bias
Viewing Angie6 O’clock direction
Interface6800 serial 8-Bit/4-Bit MPU
BacklightLED
Operating Temperature Range-20 to +60℃
Storage Temperature Range-30 to +70℃
Module Size74.5L×55.0W×13.5(MAX)H mm
View Area61.8×25.2mm
Character Size2.95×4.75mm
Character Pitch3.55×5.35mm

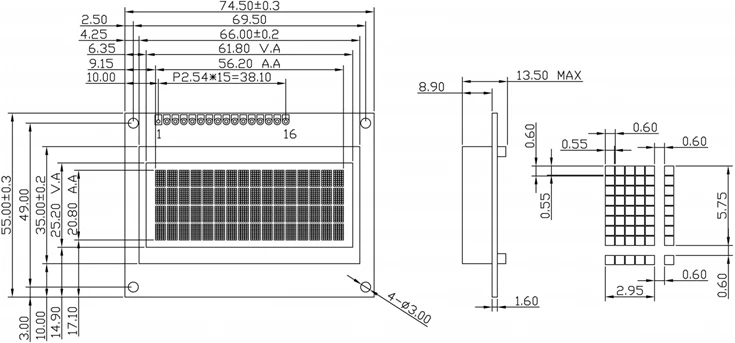

2.EXTERNAL DIMENSIONS
EXTERNAL DIMENSIONS.jpg

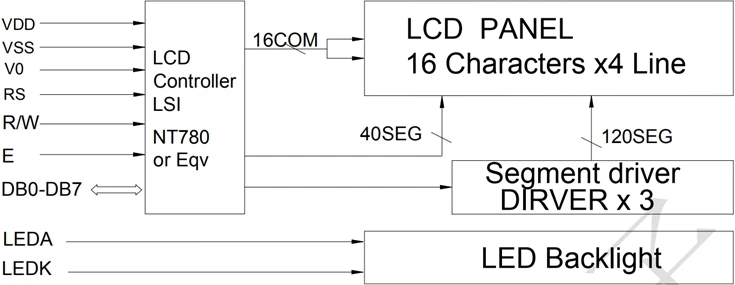

3.BLOCK DIAGRAM
BLOCK DIAGRAM.jpg

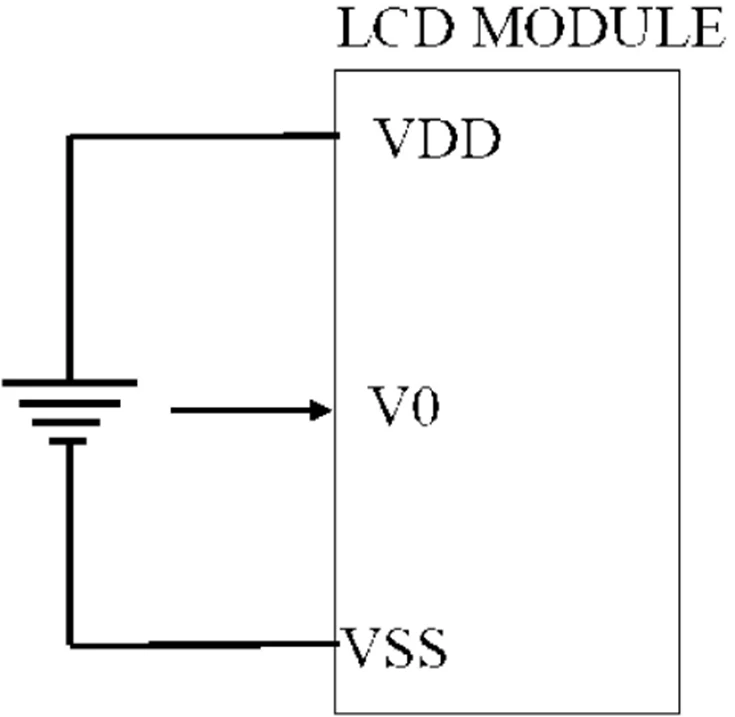

4. POWER SUPPLY
POWER SUPPLY.jpg

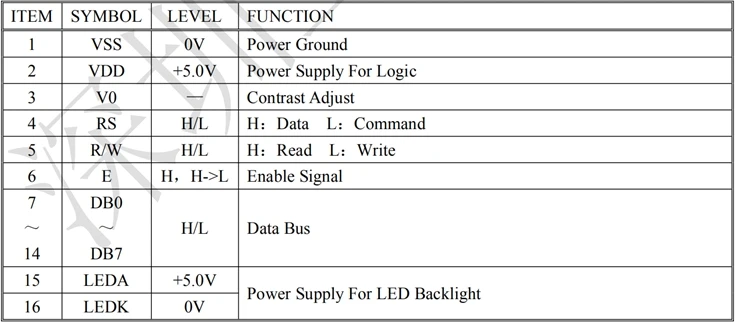

5. PIN DESCRIPTION
PIN DESCRIPTION.jpg
6.PRODUCT  PICTURE

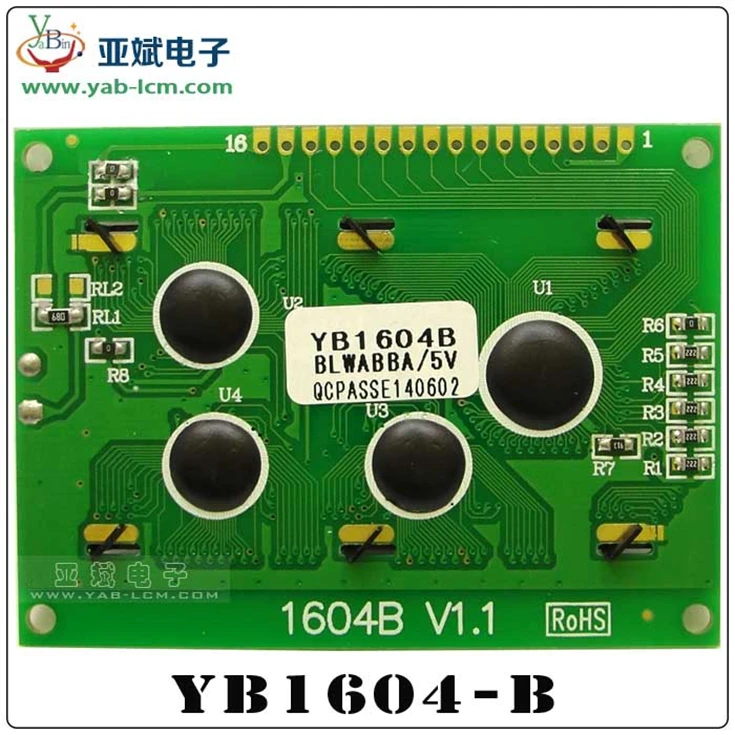

1604-B .jpg1604-B .jpg1604-B .jpg1604-B .jpg1604-B .jpg
