High quality best price industrial pasta macaroni making machine
- Category: >>>
- Supplier: Jinan Saibainuo Machinery Co. Ltd.
Share on (60735759314):
Product Overview
Description
Product Description
1.Description of high quality best price industrial pasta macaroni making machine :
1).Single-screw pasta macaroni processing line adopts the semolina,wheat flour, corn starch and potato starch as the raw material then form a kind of leisure food after extruding, slaking, forming and drying. Various shapes of pasta macaroni can be made by this line just changing the dies of extruder.
3.Raw materials: adopts potato starch, corn starch, cassava starch, wheat flour, corn flour etc as raw materials
4. Flow chart: Mixing system---Extrusion system----Cutting system---Drying system---Frying system---Flavoring System --Packing system
5.Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
6.pasta making machine machines materials: All the machines are made by stainless steel
7.Specification of the pasta macaroni making machine.
Model | DLG100 | DLG150 | |
Install Power | 110KW | 180KW | |
Consumption Power | 77KW | 126KW | |
Output | 120-150KG/H | 220-250KG/H | |
Dimension | 22000×1300×2200M | 26000×1300×2200M |
Jinan Saibainuo Machinery Co., Ltd for food machine manufacturering in China since 2004, offer competitive advantage machines, so with us your money in safe, your business in safe.
Our pasta production line in our factory.

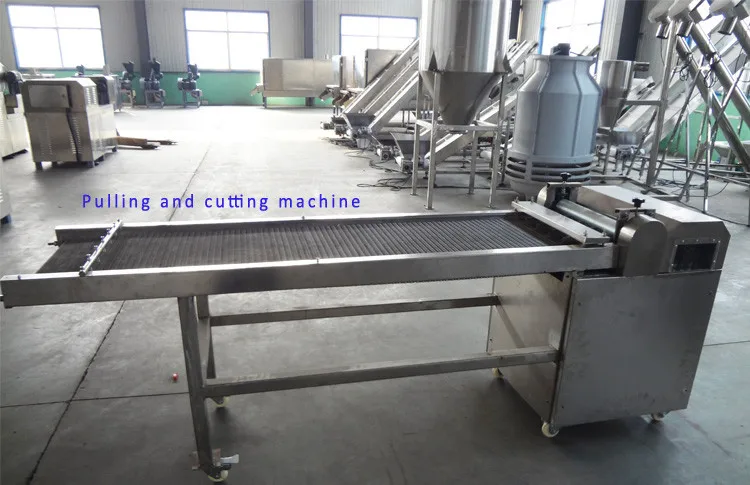

Our cutting machine.

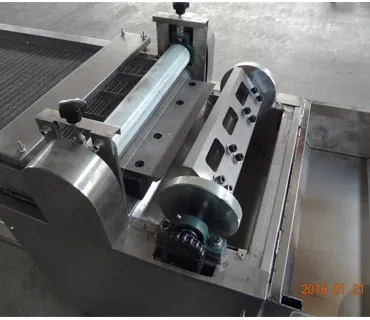

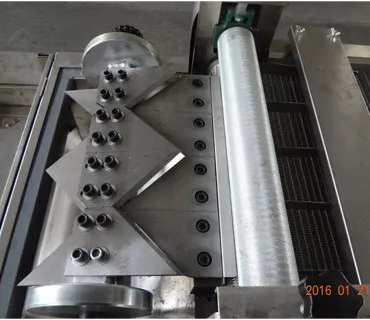

The blade on the cutting machine.
The pasta mould, we can make many shapes.
Detailed Images
Name: high speed mixer
Dimension(m): 1.1×0.8×1.4
Motor Power: 4KW
Speed: 400rpm
Throughput: 30kg per loading (5-6 minutes per loading)
Functions:
mix raw powder material with water
Features:
1. stainless steel material(1.5mm).
2. no material leak
3.High speed can mix material better than slow speed mixer.
Name: screw conveyor
Dimension(m): 3.2×0.6×0.7
Motor Power: 1.1KW
Screw speed: 300rpm
convey height range:1.5~2.5M
barrel diameter:\tΦ141mm
Function:
Power material can be conveyed in the stainless steel roller to the feeder of extruder without leaking, dust and pollution;
Features:
stainless steel material(1.5mm).

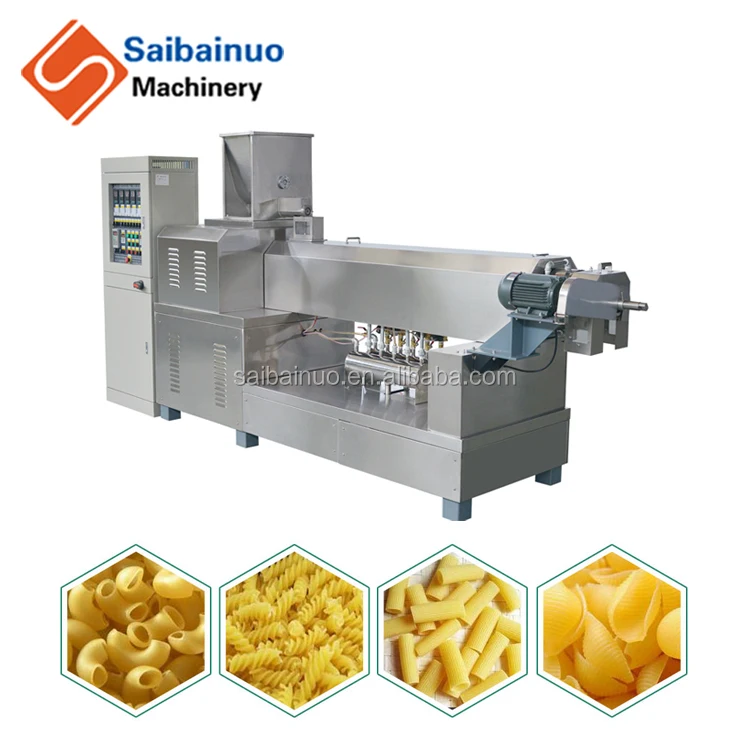

Name: twin screw extruder
Dimension(m): 2.6×1.0×1.3
Total power : 40kw
Main Motor Power:22KW
Feeder motor:0.75kw
Cutting motor: 0.75kw
Heating power:15kw
Screw diameter:Φ110 mm
Screw Material: 38CrMoAl alloy steel
System:
Feeding system
Extruding system
Heating system
Cutting system
Lubrication system
Name: cutting machine
Dimension(m): 2.2×0.6×1.2
total Power: 1.5KW
Function:
To pull the pasta and cut them

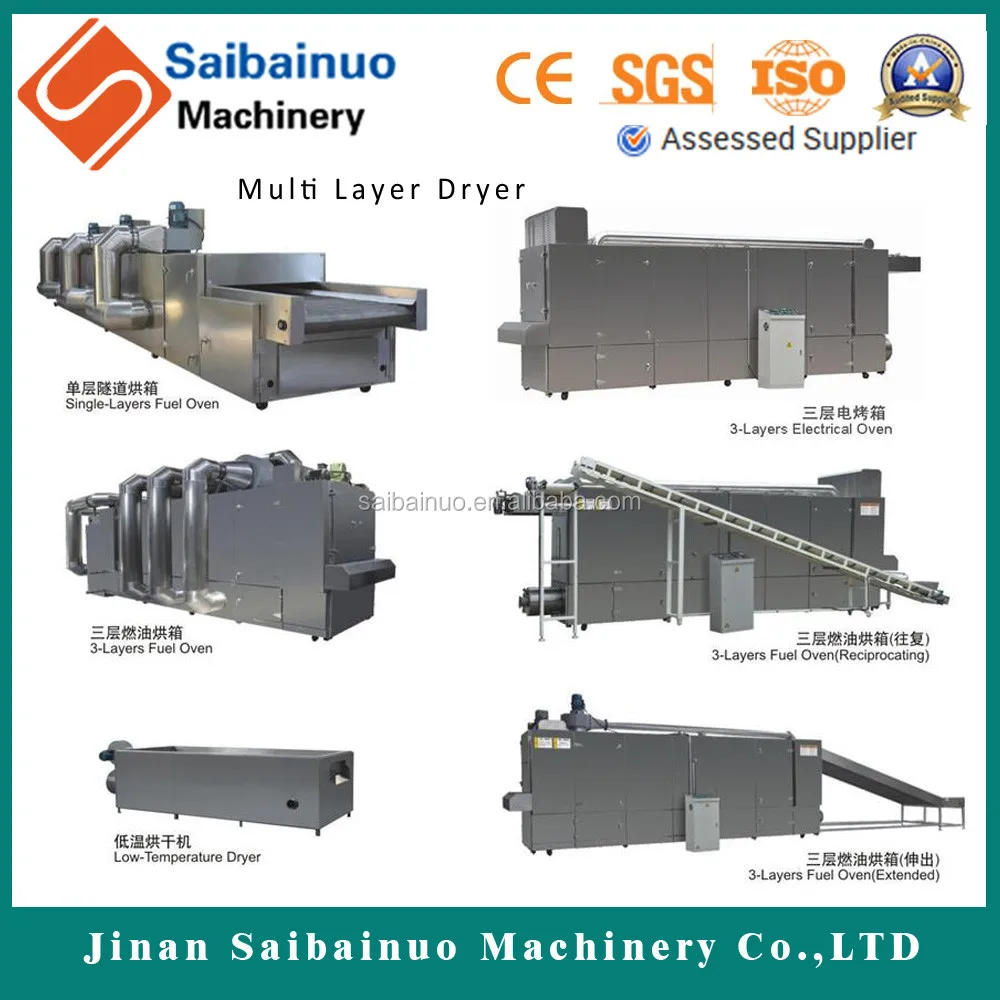

Name: multi-layer dryer
Dimension(m): 8.4×1.3×1.8
Heating Power:80kw
Motor power:0.75kw
Belt speed:0.1-10M/minute
Temperature: 20-200℃
Function:
There are Seven layer inside,each layer is 8 meters long, it can save space and energy. Electricity heating,used to bake and dry food.
Features:
The net belt running speed can be controlled by Inverter, to change the food drying time in the dryer.
Heating adopts the electric heating
It has automatic temperature Control system.
The belt and the cover are all stainless steel.
Name: cooling conveyor
Dimension(m): 5.0×0.7×1.1
Motor Power:1 KW
Function:
Cool the food after drying , make the food suitable for packing.
Feature:
Stainless steel material.
Certifications
Our Service
Packing & Delivery
Welcome to contact to US!
Mr.Fred
WhatsApp/Wechat:+0086 186 6898 8231
