Customized immersion stainless steel cartridge heater heating rod for machinery
- Category: >>>
- Supplier: Shenzhen Superb Heater Technology Co. Limited
Share on (60735770050):
Product Overview
Description
Customized immersion stainless steel cartridge heater heating rod for machinery
We manufacture Cartridge Heaters engineered to satisfy the full spectrum of Cartridge Heater applications. Whilst a standard range of Cartridge heaters are available, we specialise in designing and manufacturing cartridge heaters to our customers requirements. It is important to choose the correct construction heater to suit your application.
Performance parameter:
Cartridge heater for | Mould Tools, Tooling, Platens, Packaging Machinery, Heat Sealing Equipment, Plastic Process Machinery, Food Process Machinery, Catering, Printing, Hot Foil Printing, Shoe manufacturing Machinery, Laboratory / Test Equipment, Vacuum Pumps, and many more. |
The maximum temperature | 927°C |
Available with a built in Thermocouple | Type J or K Thermocouple |
Diameter (mm) | 2.50mm;2.80mm;3mm;3.2mm;3.5mm;3.8mm;4mm;4.5mm;5mm;6mm;;6.5mm; 7mm;7.5mm;8.0mm;9mm;9.53mm;10mm;10.5mm;11mm;12mm;12.50mm;12.7mm; 13mm;13.50,mm;14mm;15mm;15.88mm;16mm;18mm;19mm;20mm;22mm;25mm; 28mm;30mm;32mm;35mm(Non-standard,can be customized) |
Tube Material | stainless steel 304 321 316L B. 310S C. INCOLOY 625 ;INCOLOY 800;NCF800 INCOLOY 840 |
Resistive material | NiCr8020 |
High voltage stability (temperature) Rated voltage | ≤24V -500V-DC> 24V 1500V-AC |
Insulation resistance (500 [V-DC] unheated) | ≥50MΩ |
The maximum leakage current (253 [V-AC] unheated) | ≤0.5mA |
Length error | ± 0.5mm |
Wattage Tolerance | +5% - 10% (closer tolerances are available upon special request) |
Input voltage | 12V-440V (non-standard can be customized) |
Non-terminal unheated length | <3mm-20mm |
product manual:
Tube diameter | φ2.5mm-φ35mm |
Tolerance | -0.02mm-0.08mm |
Tube material | SS321, SS316L, INCOLY840, Titanium |
Insulation material | high-purity MGO imported from USA |
Resistance wire | Ni80Cr20 |
Density | Max 40W/CM2 |
Operating temperature | Max 927ºC |
Wattage tolerance | +5%,-10% |
Electrical property | leak current is less than 0.5mA |
Input voltage and wattage | customized as request. |
Element component:
1. China and Europe High-grade nickel chromium resistance wire,
2.Japan and USA MgO core,
3. Seamless Stainless steel tube
4 Built in cable, or swaged in
• Special sizes, wattages, and materials are available upon request;
• Custom-designed to meet your specifications.
• Pin leads are available
Main features:
High-quality materials
Insulation: UCM(UK) Magnesium Oxide Powder ;KANTHAL ,BJH resistance wires ,SS321Seamless Stainless steel tube;OTC(USA) Tateho (Japan) mgo rod...

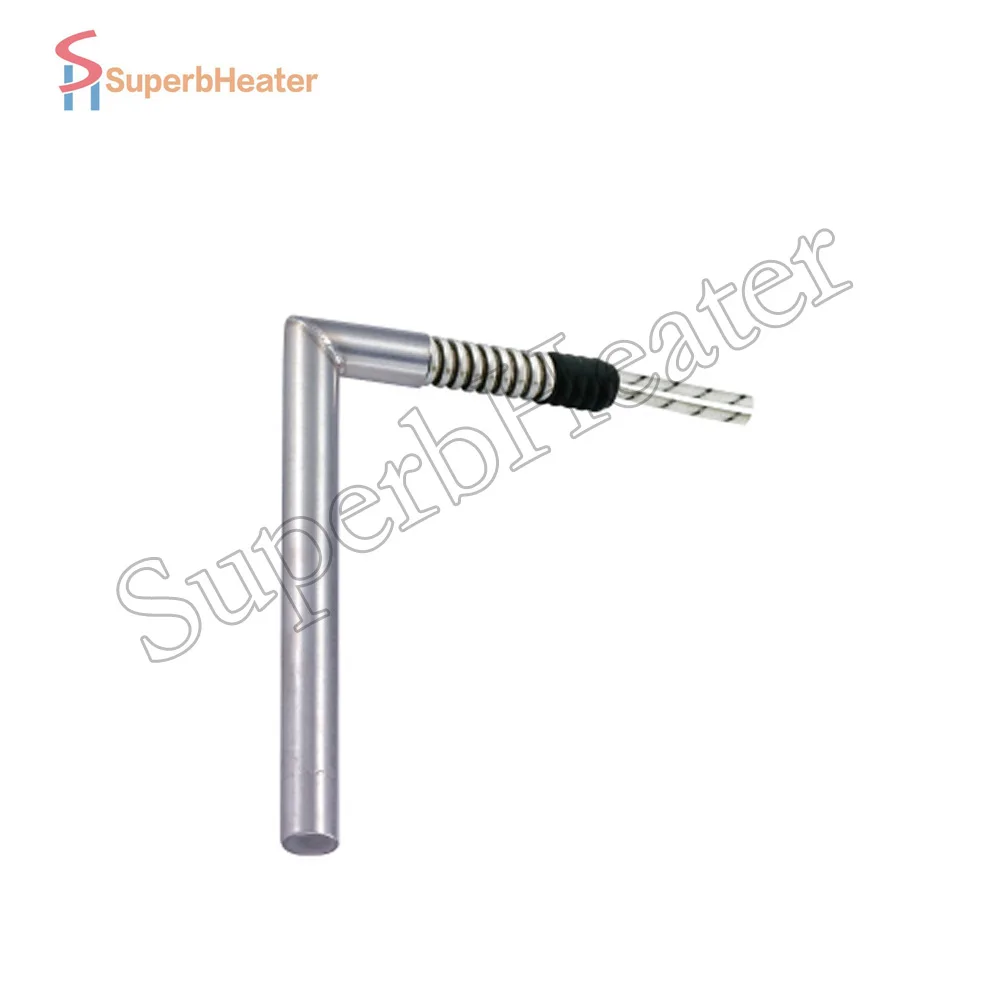

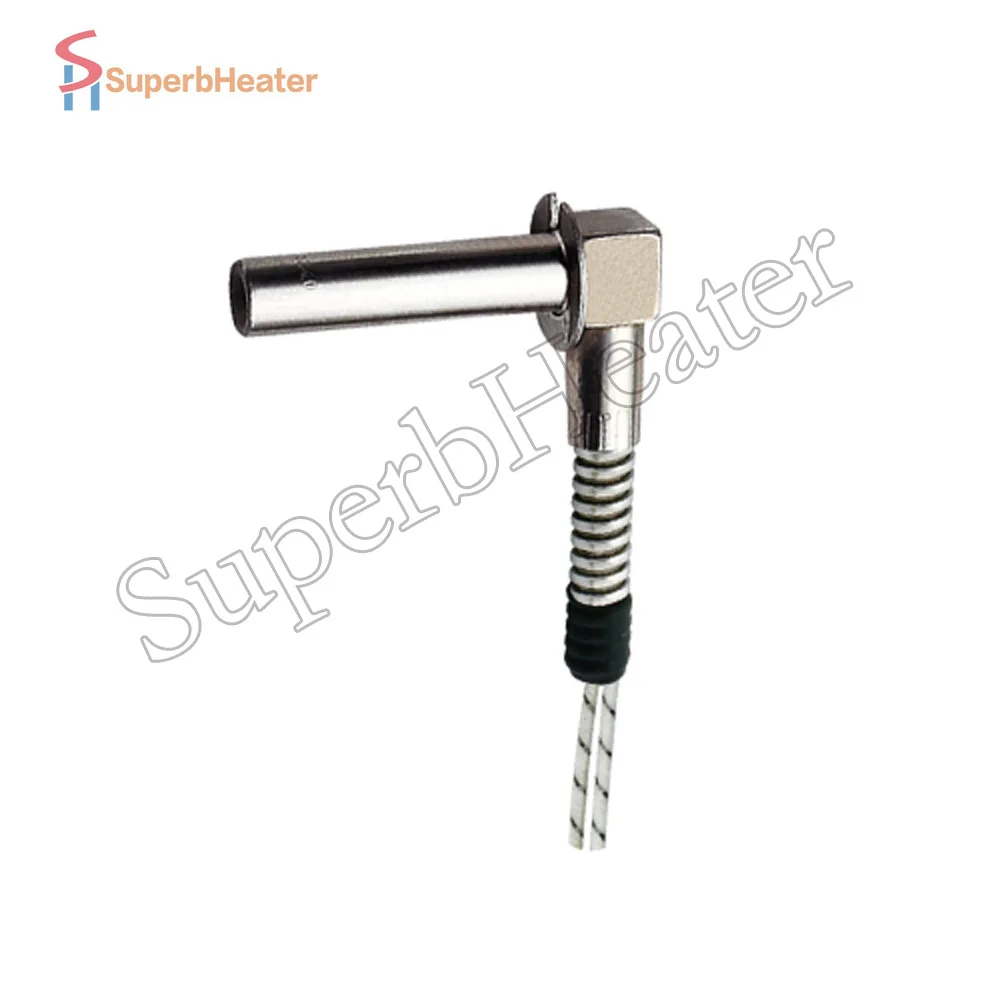

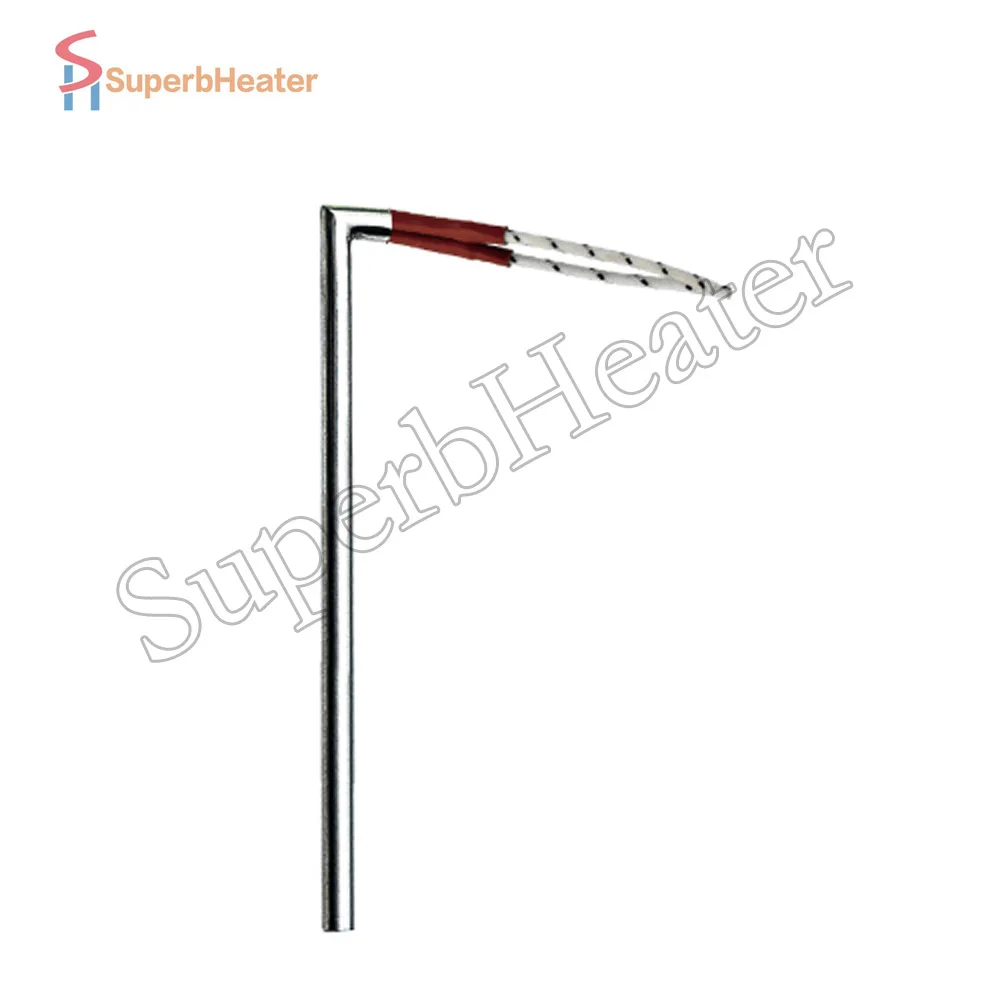

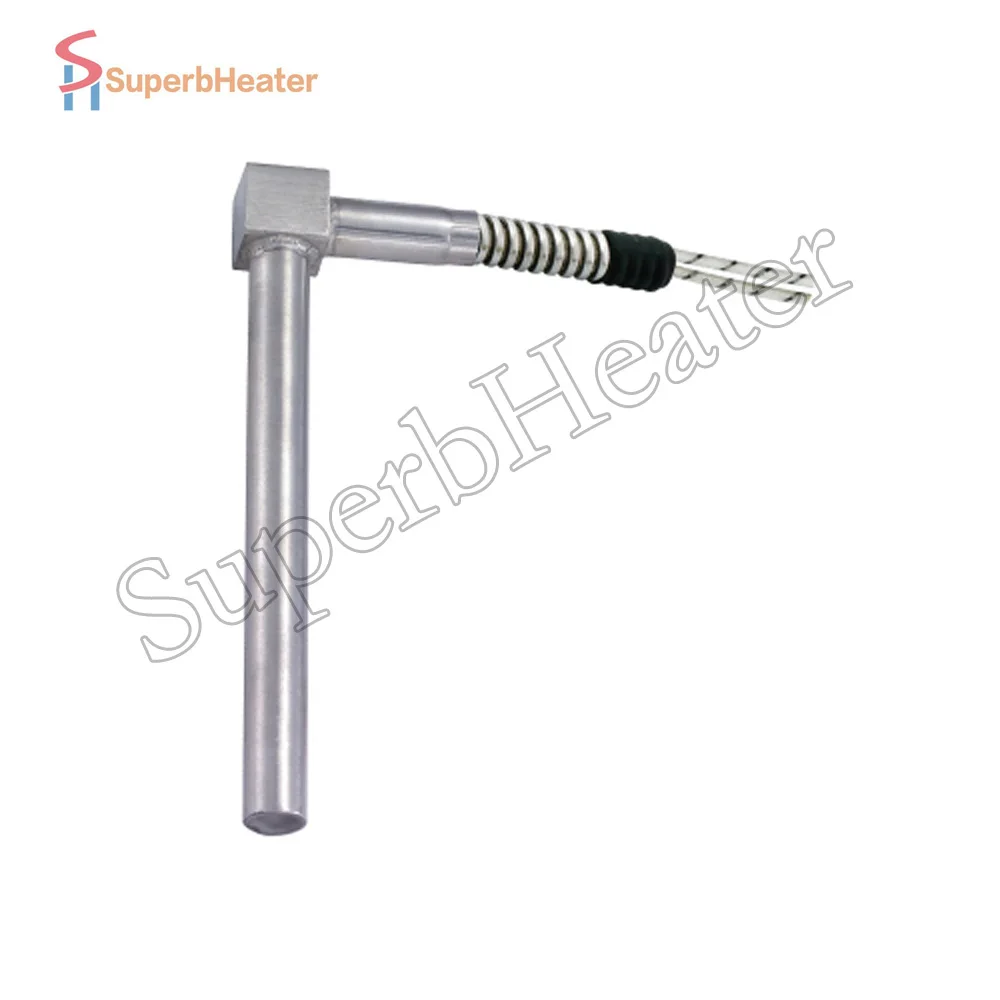

Product show:
OUR ADVANTAGES:
| 1.Delivery time : in stock 1-2days ,out stock 3-7days |
| 2.More than 100 different sizes stock |
| 3.Products are divided into two grades:A grades,B grades |
| 4.Provide OEM service. |
