10.1 inch 800*1280 high resolution MIPI IPS tft lcd display with preferential price
- Category: >>>
- Supplier: Shenzhen Amelin Electronic Technology Co. Ltd.
Share on (60735786157):
Product Overview
Description
10.1 inch 800*1280 high resolution MIPI IPS tft lcd display with preferential price
Product Description

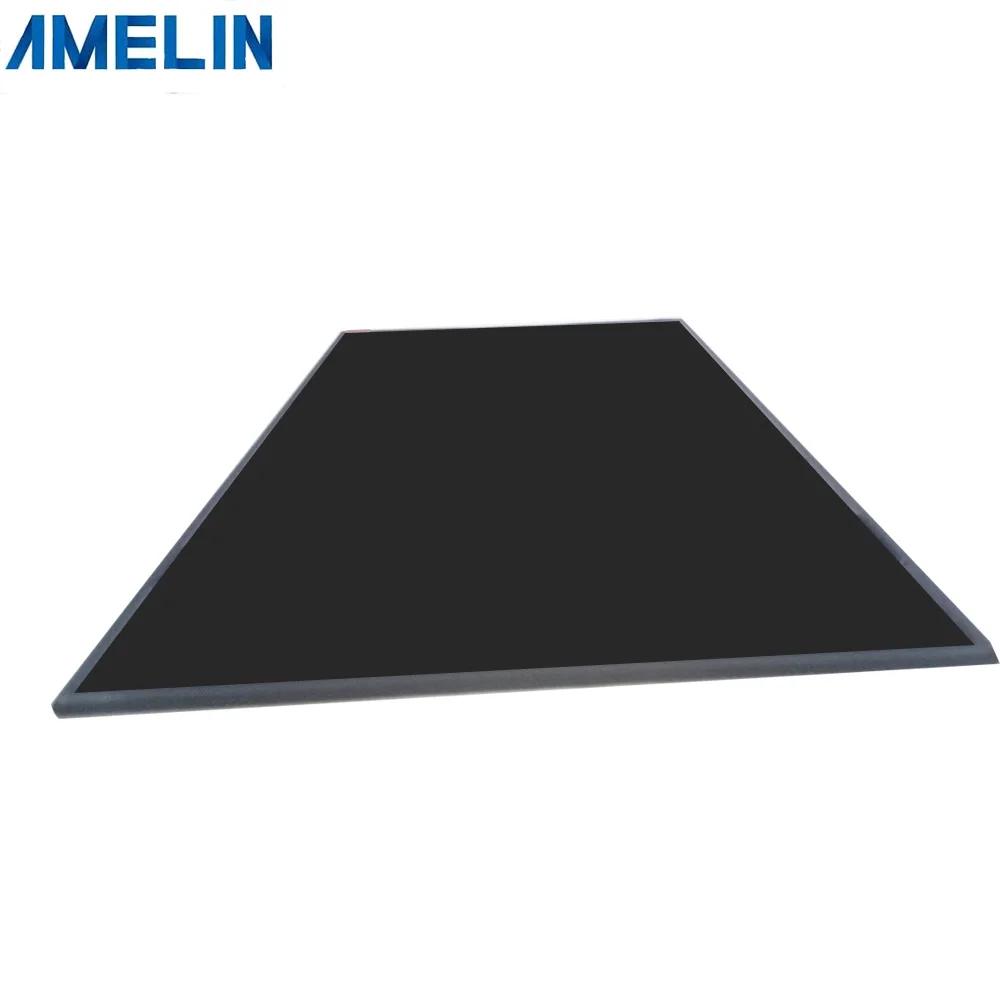

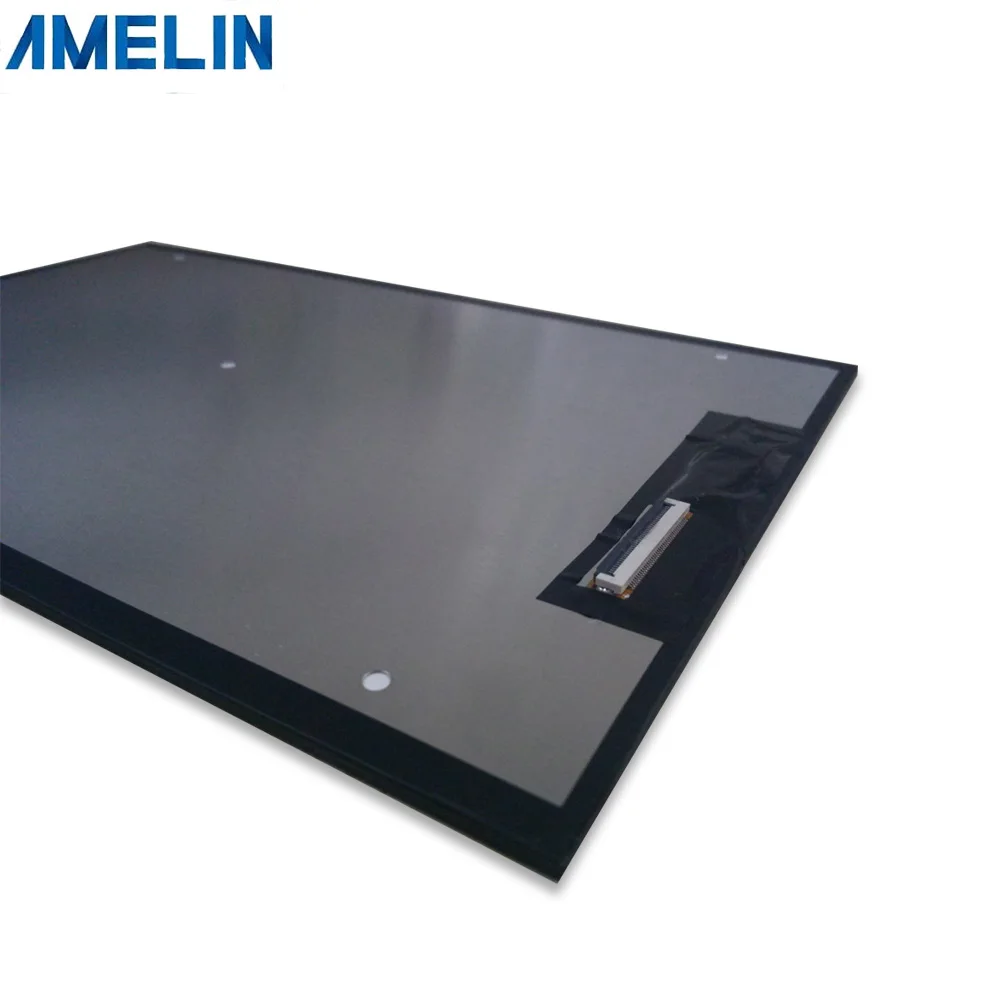

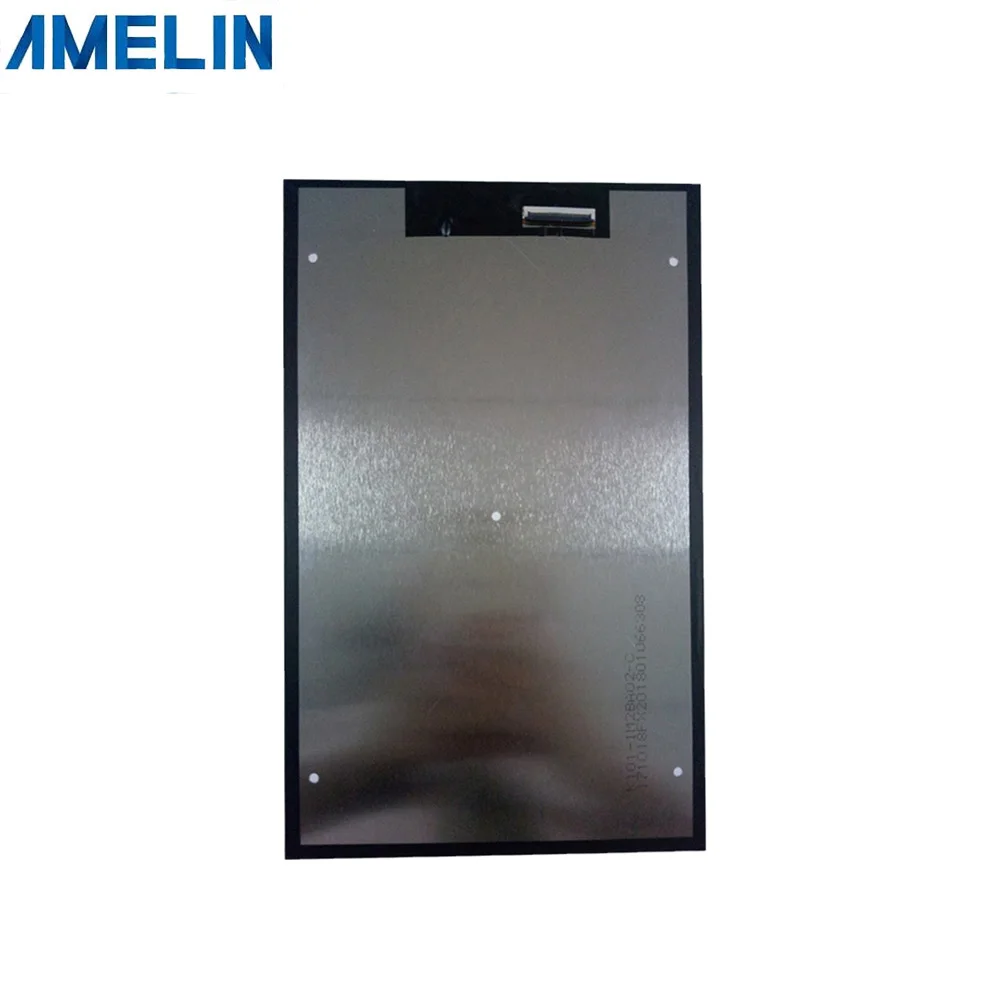

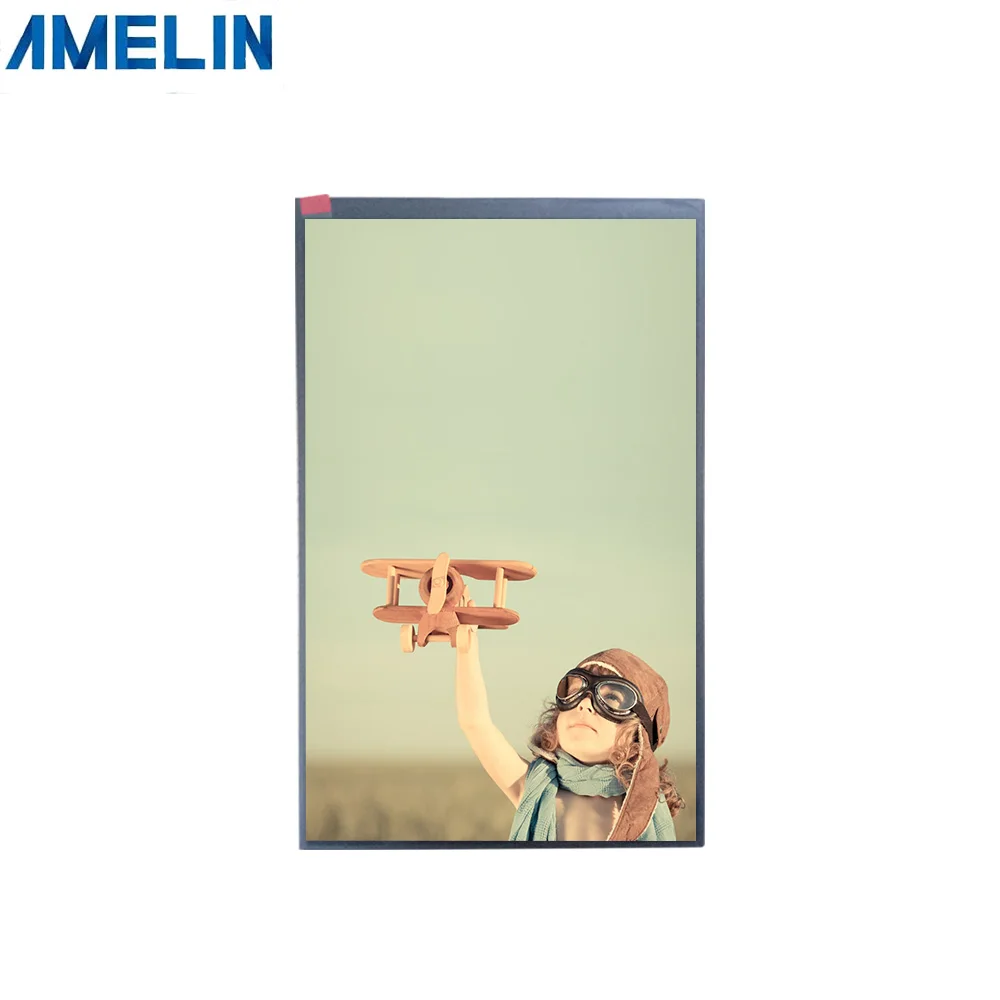

Pictures in kind
General Description
| No | Item | Description |
| 1 | Screen Size(inch) | 10.1” |
| 2 | Display Mode | Normally Black |
| 3 | Display Resolution | 800X1280 |
| 4 | Pixel Pitch | 0. 1692 x 0.1692 |
| 5 | ViewingDirection | IPS |
| 6 | Display Color (M) | 16.7M |
| 7 | Pixel Arrangement | RGB vertical stripe |
| 8 | Interface | MIPI |
| 9 | Outline Dimension (mm*mm*mm) | 228.6 (H) × 143(V) × 2.60(T) |
| 10 | Luminance (cd/m^2) | 230(TYP.) |
| 11 | Contrast Ratio | 900(TYP.) |
| 12 | Surface Treatment | Anti-glare |
| 13 | Backlight | White LED |
| 14 | Operation Temperature | -10~50 |
| 15 | Storage Temperature | -15~55 |
| 16 | Weight | TPD g |

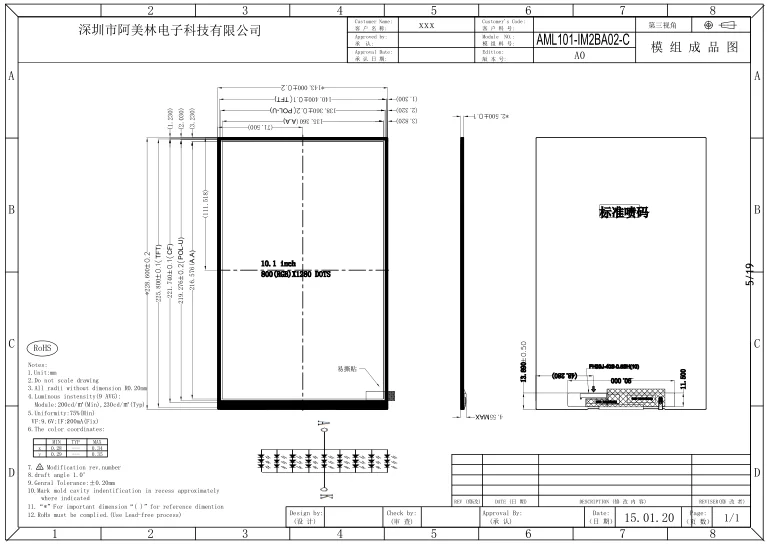

Outline Drawing
Our Services
100% product testing and inspection before shipment.
100% free replacement for defective product.
Lead time
Lead time
| quantity | lead time |
| 1-20(pieces) | Within one working day |
| 21-100(pieces) | Within two working days |
| 101-500(pieces) | Within three working days |
| 501-1000(pieces) | Within a week |
| 1000-3000(pieces) | Within two weeks |
| 3000-5000(pieces) | Within three weeks |
| 5000+ | Within four weeks |
