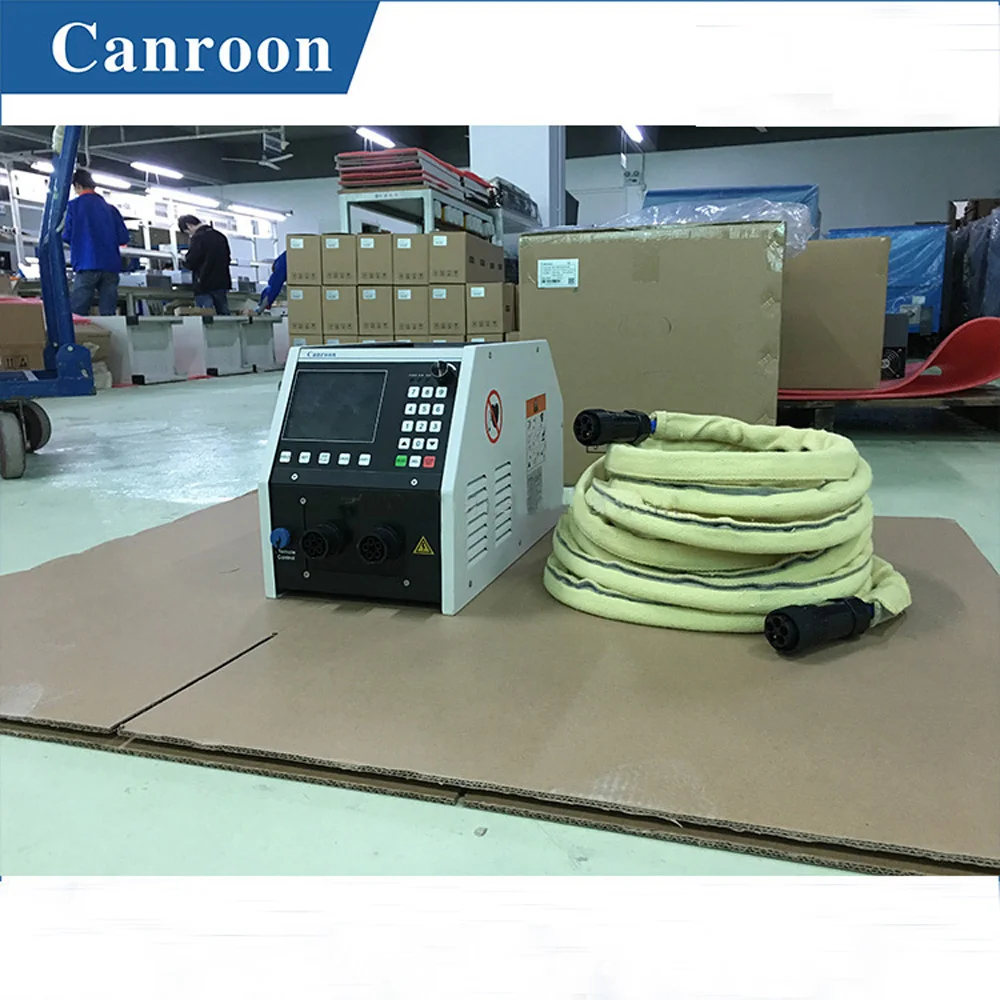

top quality water oil gas pipeline post weld heat treatment machine with soft induction cable
- Category: >>>
- Supplier: Shenzhen Canroon Electrical Appliances Co. Ltd.
Share on (60735796079):
Product Overview
Description

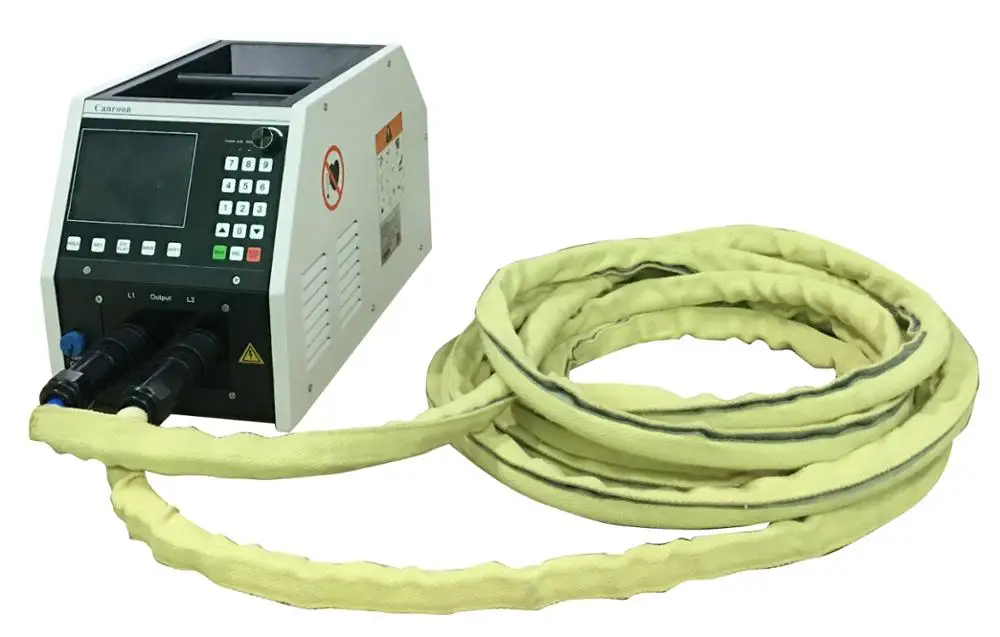

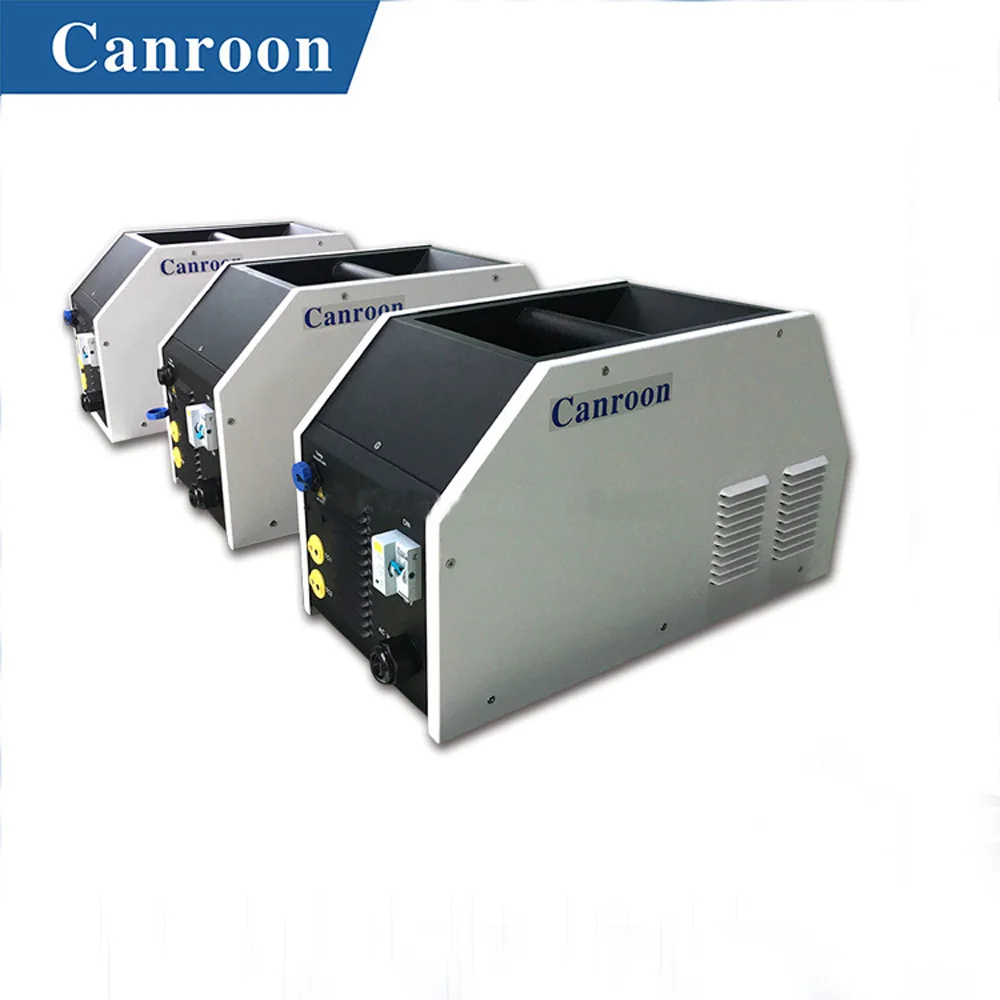

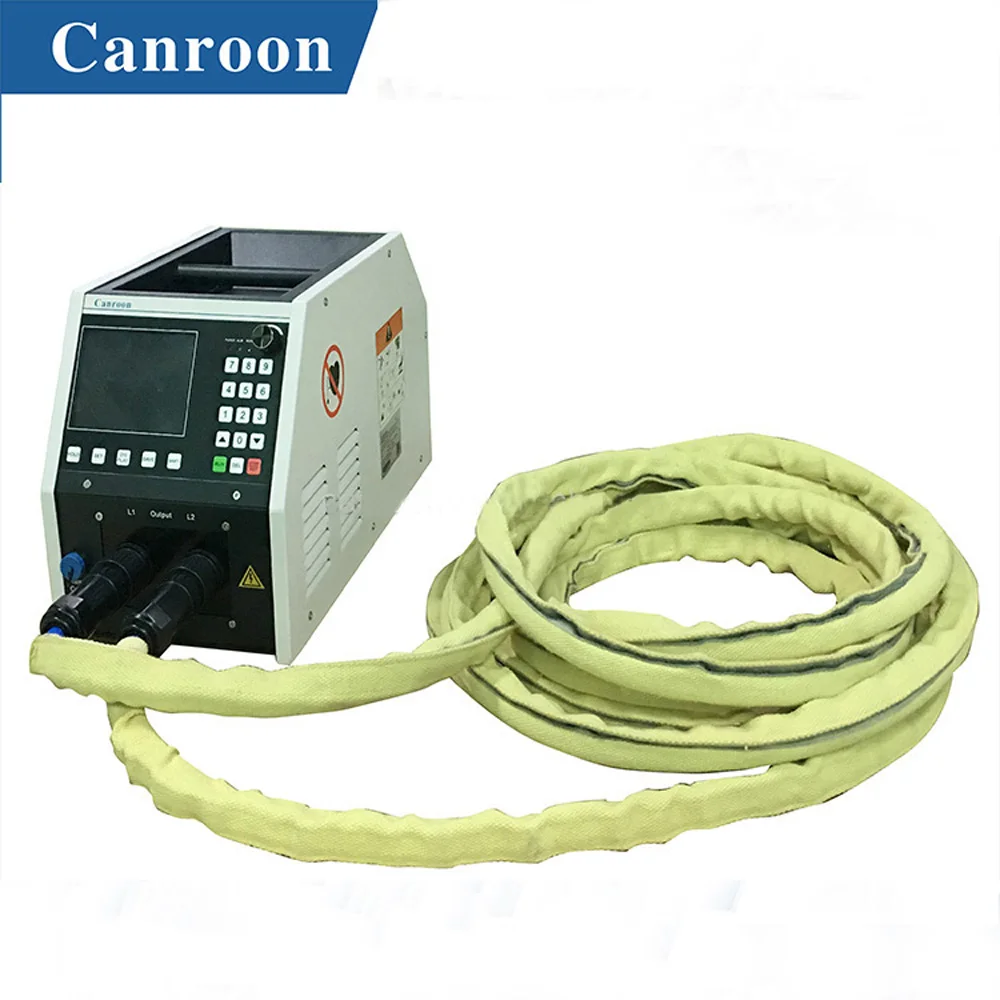

IGBT Induction Post Weld Heat Treatment Machine for Oil Gas Pipeline
Product Description
Contact:Sandy Liu
Mobile/Whatsapp/Wechat:0086-13715137235
Biref introduction of pipeline induction post weld heat treatment machine:
Brand:Canroon(China manufacturer)
Power:5kw, 10kw,
Frequency:5-60kHZ
Heating temperature: can be high as 788℃
Voltage: single phase/3phase, 380-460V, 50/60HZ,
Suitable pipe size: different according to your case, can supply different models
cooling system: air cooling

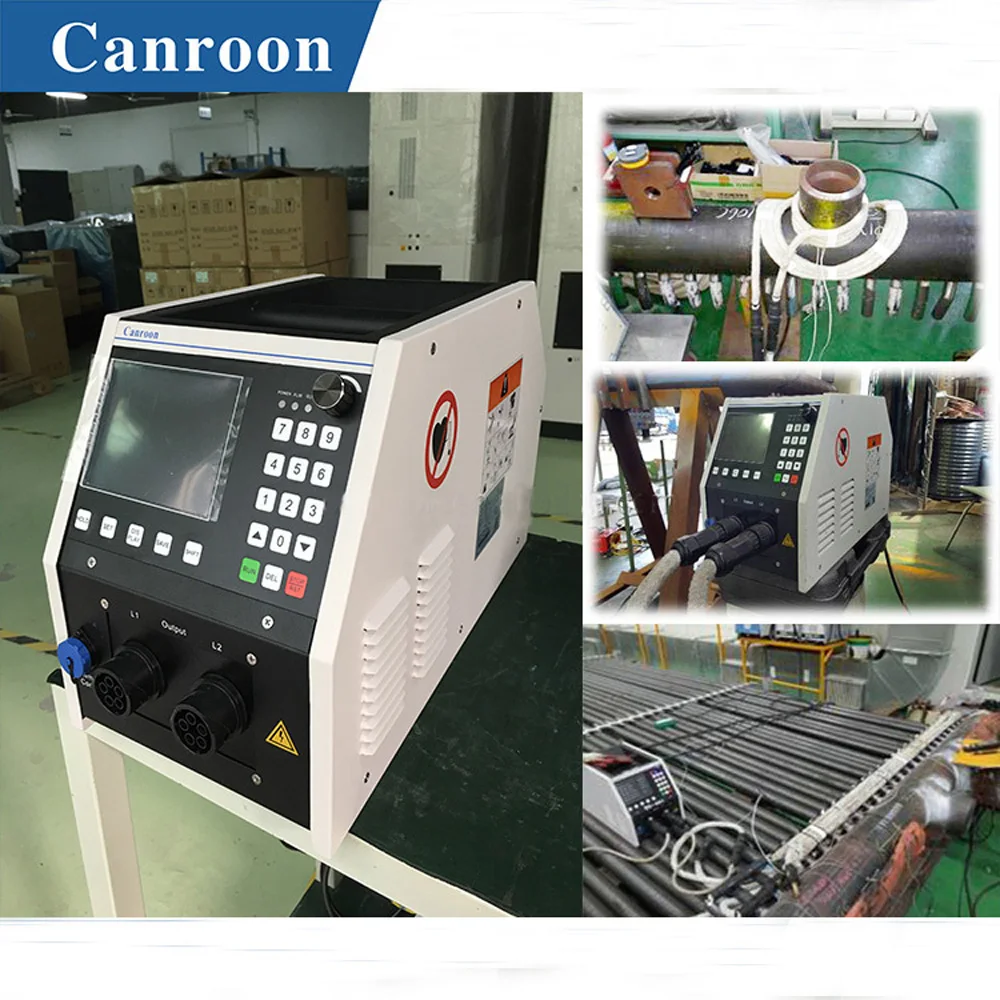

Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: pipe welding preheat, PWHT/ post weld heat treatment, joint anti-corrosion coating, etc
Features: small, portable, accurate temperature control, digital control, self-fault diagnosis, modular design

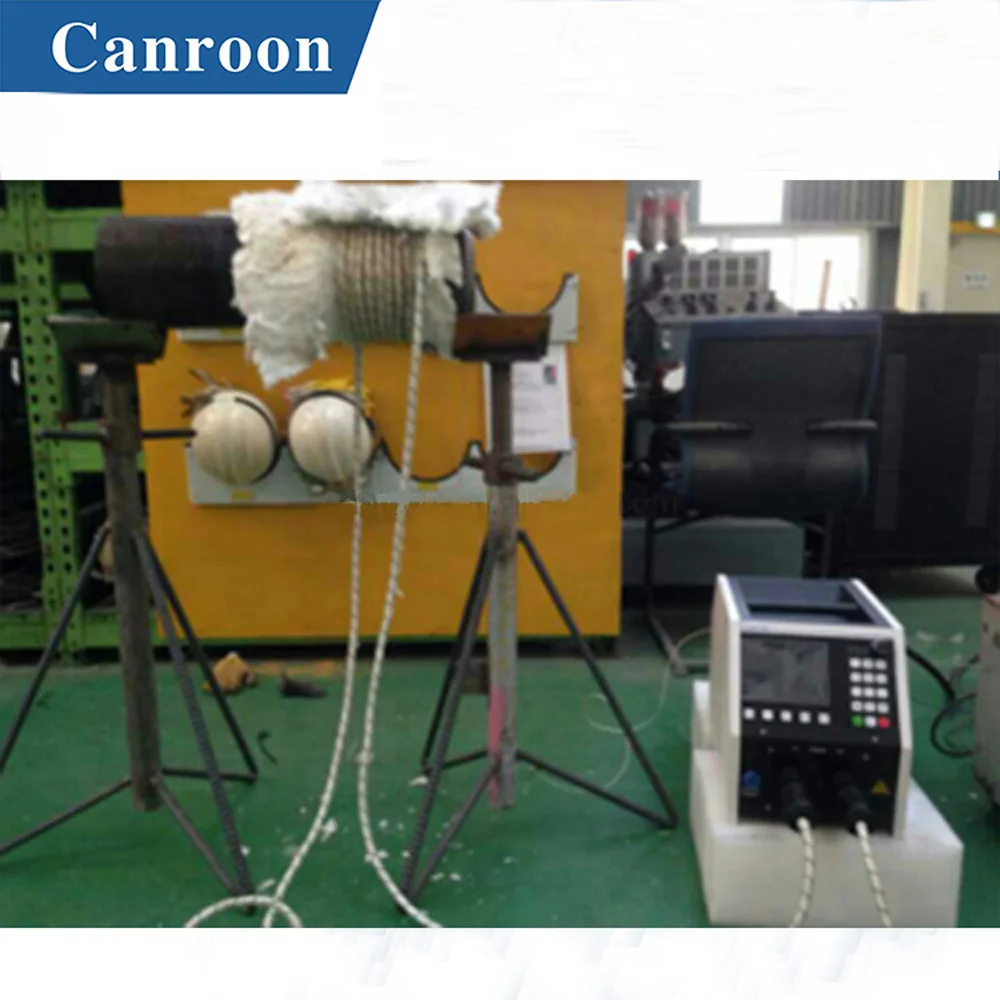

Details of pipeline induction post weld heat treatment machine:
Induction post weld heat treatment machine is applied with new technology, advanced with IGBT induction heating, fast and uniform heating, high efficiency, digital control, modular design, easy for operation, maintenance and repair. 2 thermocouple inputs, temperature recorder, remote control, etc
Technical parameters of pipeline induction post weld heat treatment machine:
| Model | Temperature | Input Power | Input | Output | Dimension | Weight |
| CR2000-005B-12SF2 | 788℃ | 5kVA | 1-phase 220-240V 50-60Hz 20.8-22.7A | 4.2kW 5-60 KHz duty cycle 100% | W:242.9mm H:295.2mm D: 504.4mm
| 16kg
|
CR2000-005B-14TF1
| 788℃ | 5kVA | 3-phase 380-460V 50-60Hz 6.3-7.6A | 4.5kW 3-35 KHz duty cycle 100% | W:263mm H:302mm D:535mm
| 18.6kg
|
CR2000-010B-14TF1
| 788℃ | 10kVA
| 3-phase 380-460V 50-60Hz 12.5-15A
| 9kW 3-35 KHz duty cycle 100% | W:263mm H:302mm D:535mm
| 18.6kg |
Application details of pipeline induction post weld heat treatment machine:

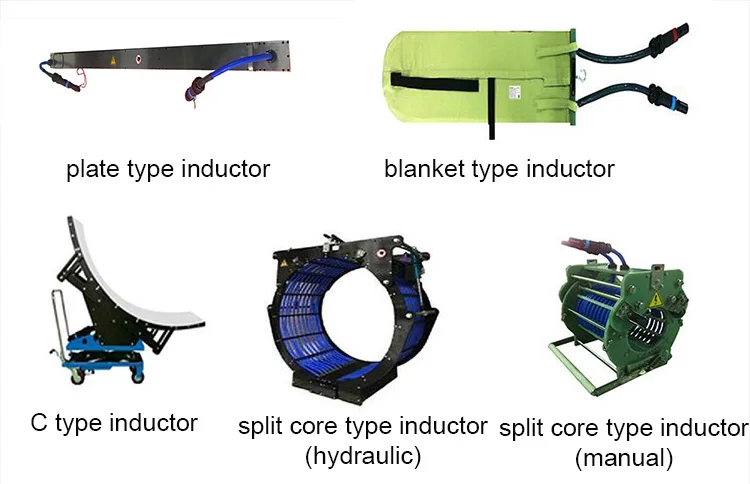

Different inductors designed for different applications:
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT), plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for joint anti-corrosion coating).

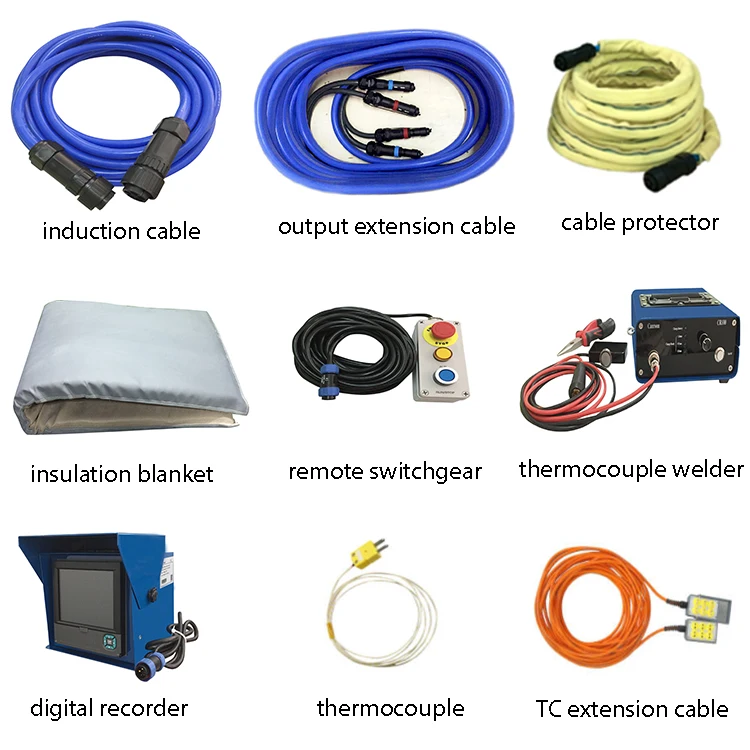

Accessories of pipeline induction post weld heat treatment machine:
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
Advantages of pipeline induction post weld heat treatment machine:
- precise control
We have display panel to show working parameters, and temperature recorder can feedback PWHT curve, you can print it.
- Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control. Thus brings the benefit of wide applicability and precise control.
- Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
- Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.
- Self Diagnosis
Once fault occurs, induction heater will display fault code, which was detailed explained in manual book.
- High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes, reducing cycle time.
- Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
Packaging & Shipping
All of our pipeline induction post weld heat treatment machine is carefully packed in wooden case for safe delivery, by air according to your need.
Our Services
1. keep the quality first and make more products benefit to our customers' need
2.about our Online/Sale service
1)super and solid quality
2)Fast and punctual delivery
3)Standard export package or as customers’ need.
3.After-sale service
1)Assistance to your project
2)Repairing and maintenance if any problem occur in the warranty.
3)Installation and clerks training
4)Spare and wearing parts for free or with big discount
5)Any feedback of machines can be told to us, and we will try our best to support you.
4.Other cooperation service
1)Technology knowledge share
2)Factory building advising
3)Business expansion advising
Company Information
FAQ
1. Are you a trading company or manufacturer?
We are manufacturer in Shenzhen, China, specialized in pipeline induction post weld heat treatment machine for many years.
2. What's the delivery time for sample and bulk order?
Normally for machines in stock, will deliver within 5 days, if not, 7-30 days according to your order.
3. What's your quality guarantee period?
12 months warranty
4. Can I get a lower price if I order large quantities?
Of course. Cheaper price with larger quantity
5. can you customize the machine for us?
Yes, of course, just tell me your detailed requirement, so I can suggest you most suitable model.
