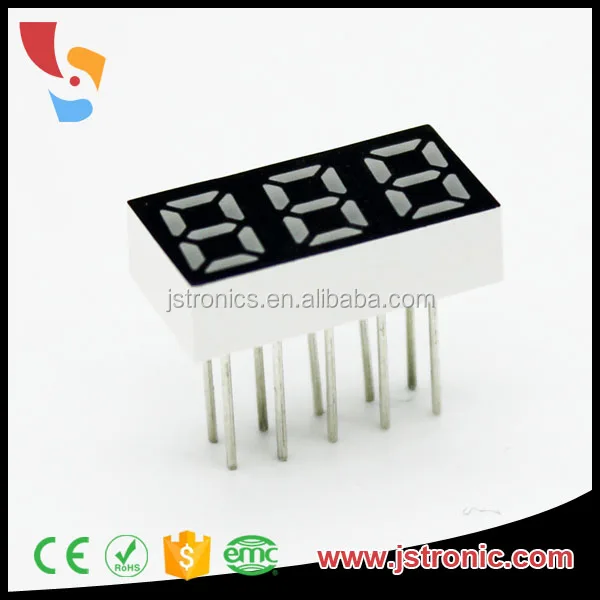

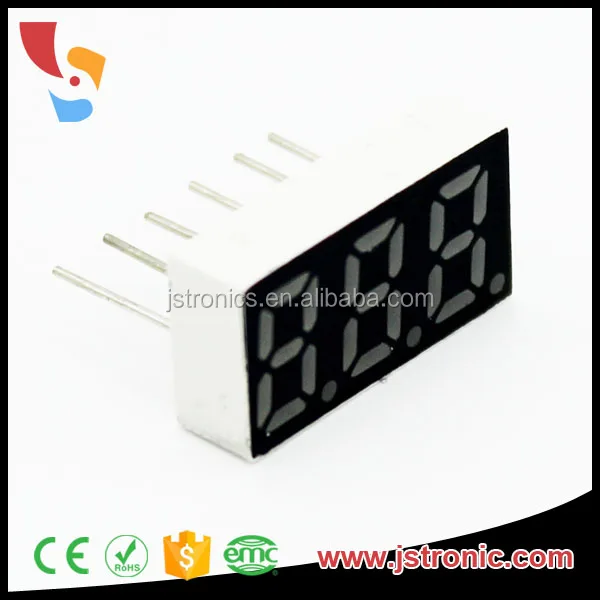

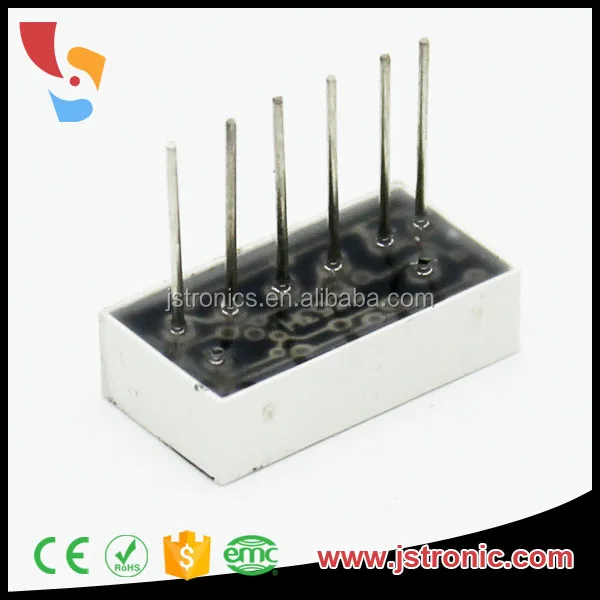

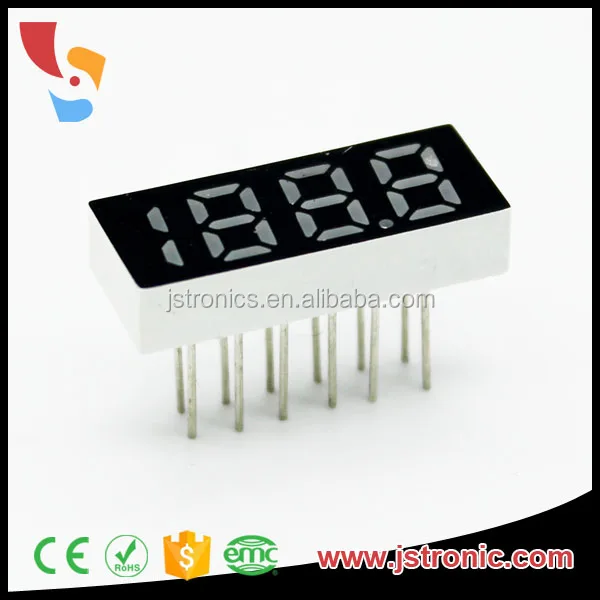

Jstronic Single line 6 pins red/blue/green/yellow 0.25 inch 3 digit small 7 segment led display
- Category: >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60735798070):
Product Overview
Description
Single line 6 pins red/blue/green/yellow 0.25 inches 3 digit small 7 segment led display

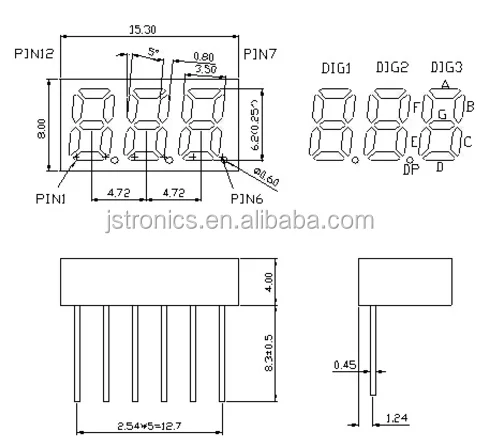

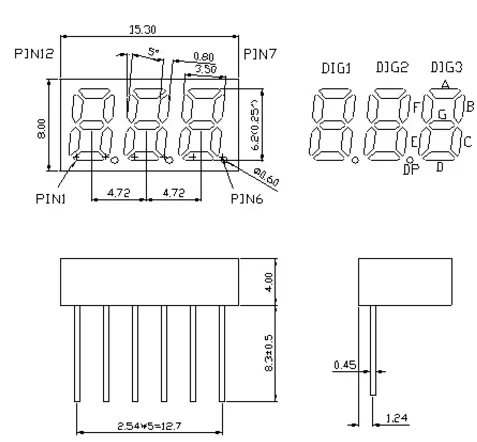

0.25 inch 3 digit led 7 segment display dimension
Note: If this PCB layout don't meet your requirements, please contact me for other choices.
Product Description
*Ultra segment intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant
*7 segment display 0.25 inch
0.25 inch 3 digit led 7 segment display
Electro/Optical Characteristics If=20mA Ta=25 C
Part Number | EMITTED COLOR | Peak Wavelength (mn) | Vf(V) | Iv(mcd) | |||
Common Cathode | Common Anode | Type | Max | Min | Typ | ||
JS1-2531CUR | JS1-2531DUR | AlGaInP/GaAs Super red | 635 | 2.0 | 2.5 | 50 | 100 |
JS1-2531CUE | JS1-2531DUE | AlGaInP/GaAs Ultra red | 625 | 2.0 | 2.5 | 230 | 380 |
JS1-2531CUA | JS1-2531DUA | AlGaInP/GaAs Ultra Amber | 605 | 2.0 | 2.5 | 200 | 300 |
JS1-2531CUY | JS1-2531DUY | AlGaInP/GaAs Ultra Yellow | 590 | 2.0 | 2.5 | 200 | 300 |
JS1-2531CUG | JS1-2531DUG | AlGaInP/GaAs Yellow Green | 574 | 2.0 | 2.5 | 50 | 75 |
JS1-2531CPG | JS1-2531DPG | InGaN/Sic Pure Green | 525 | 3.2 | 3.8 | 750 | 1000 |
JS1-2531CUB | JS1-2531DUB | InGaN/Sic Ultra Blue | 470 | 3.2 | 3.8 | 200 | 250 |
0.25 inch 3 digit 7 segment led display second circuit pins

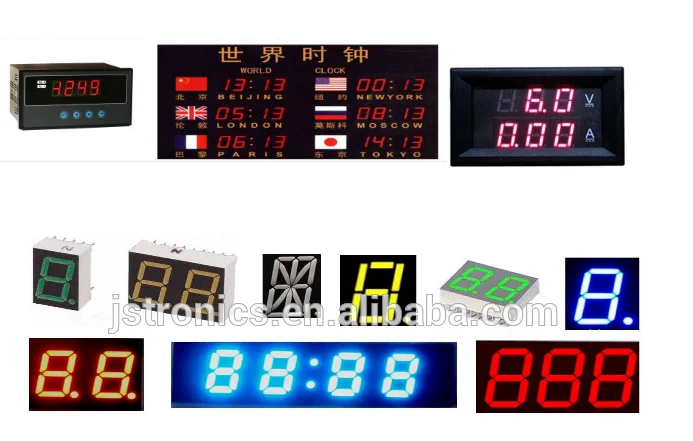

1.We can supply you all kinds of led 7 segment display
---Digit Size:From 0.25" to 16"
---Digit Number:1,2,3,4,5 to 6 digits
2.7 Segment and 14 Segment both avaliable.
3.Available Color:red,yellow,amber,blue,green,white,bicolor.
4.Available Surfacce color:Grey or Black.
5.Lens Color:White diffused or same as emiting color diffused.
Related Products
Applications:
1). Household eletronics-----DVD/VCD player, Induction cooker, Micro-wave oven, Air-conditioner, E-fan, Washing machine, Soya-bean milk machine,etc.
2). Factory/company equipment-------Instrument panels, Digital read out display, Calendar, Smart meter, Electronic scale,etc.
3). Elevator/lift, Bank exchange rate display, Led clock display, Led oil price display for gas satation and other different display areas of equipment/machine.
Factory view:
Ningbo Junsheng Electronics Co., Ltd. was founded in 2008. We are specialized in
high quality LED Light source and LED components including research, development, production and marketing. We also provide LED Lighting Solution and OEM service to help customer making high cost perfomance products.
Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.
Jstronic will work with you to fullfill your requirements strive to meet your targets.
FAQ
1. How to shipping ?
(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .
(2) it will be shipping out by air or sea once the weight and size is huge enough.
(3) the shpping way from our clients' advise.
2.what will be the types of payment?
The payment we can accept are T/T transaction,Paypal,Western Union,etc.
3.Could you please send me the samples for comfirm the quality?
Of course ,We can provide some free samples for our clients comfirm the quality.
Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.
Welcome to visit our factory.
For more details or free samples testing,please"send"now
