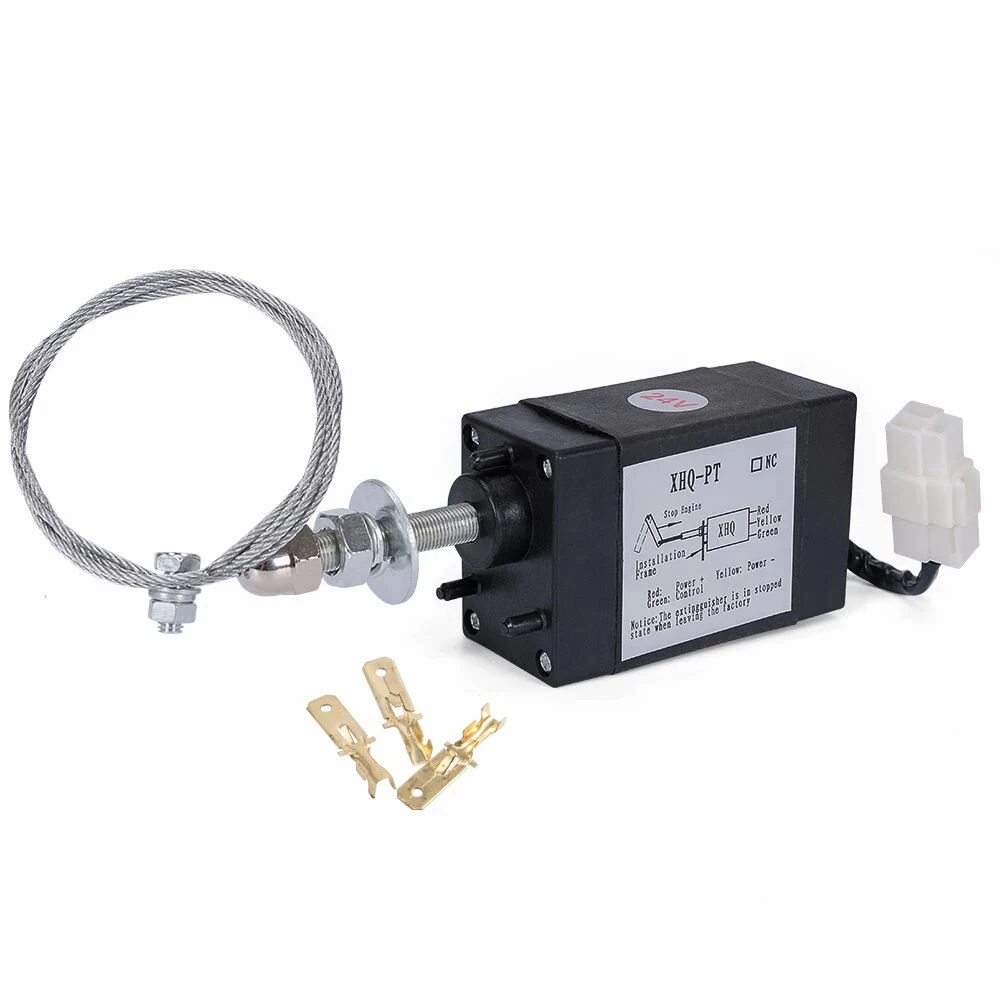

Solenoid valve Engine electric fuel shut off Valve fire extinguisher 24v
- Category: >>>
- Supplier: Fuan Shaluo Electronic Co. Ltd.
Share on (60735875030):
Product Overview
Description
Product Description

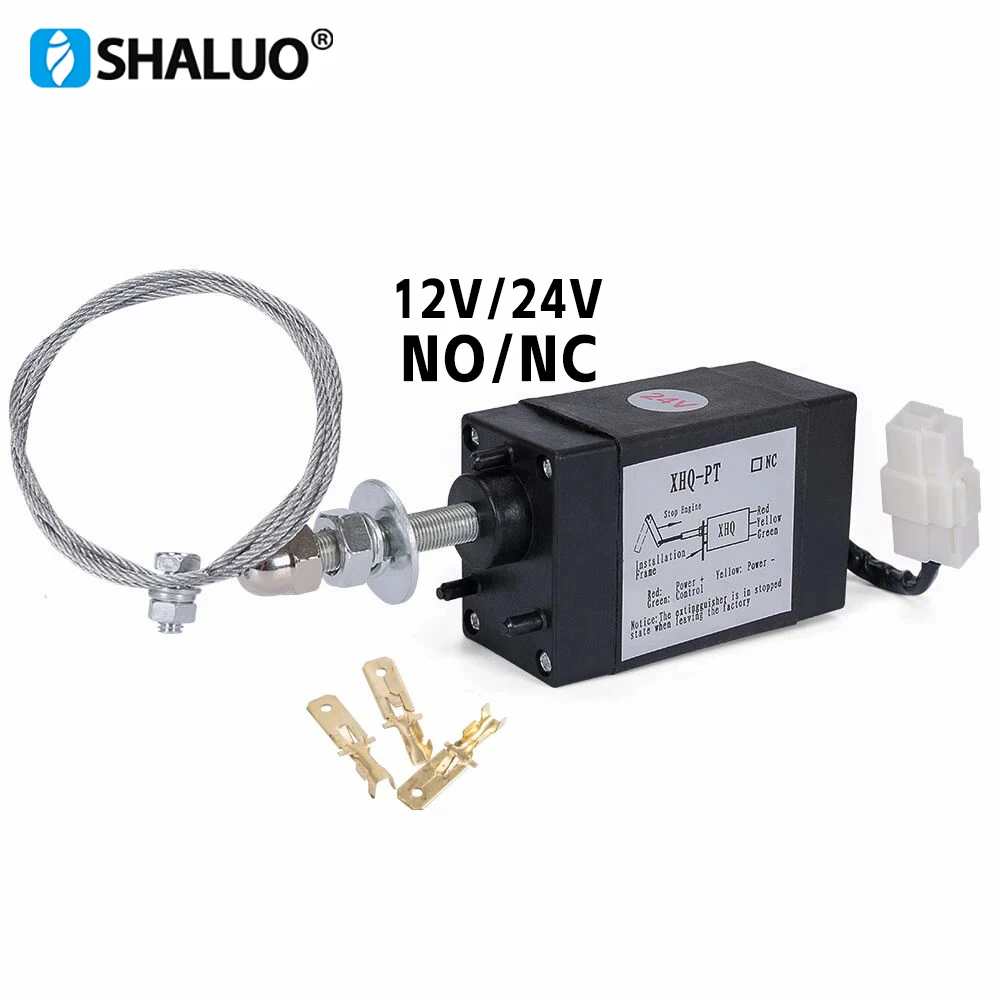

Normal close NC （√）12V 24V Engine flameout device off valve XHQ-PT-NC
The appearance of normal close and normal close are the same, just difference:

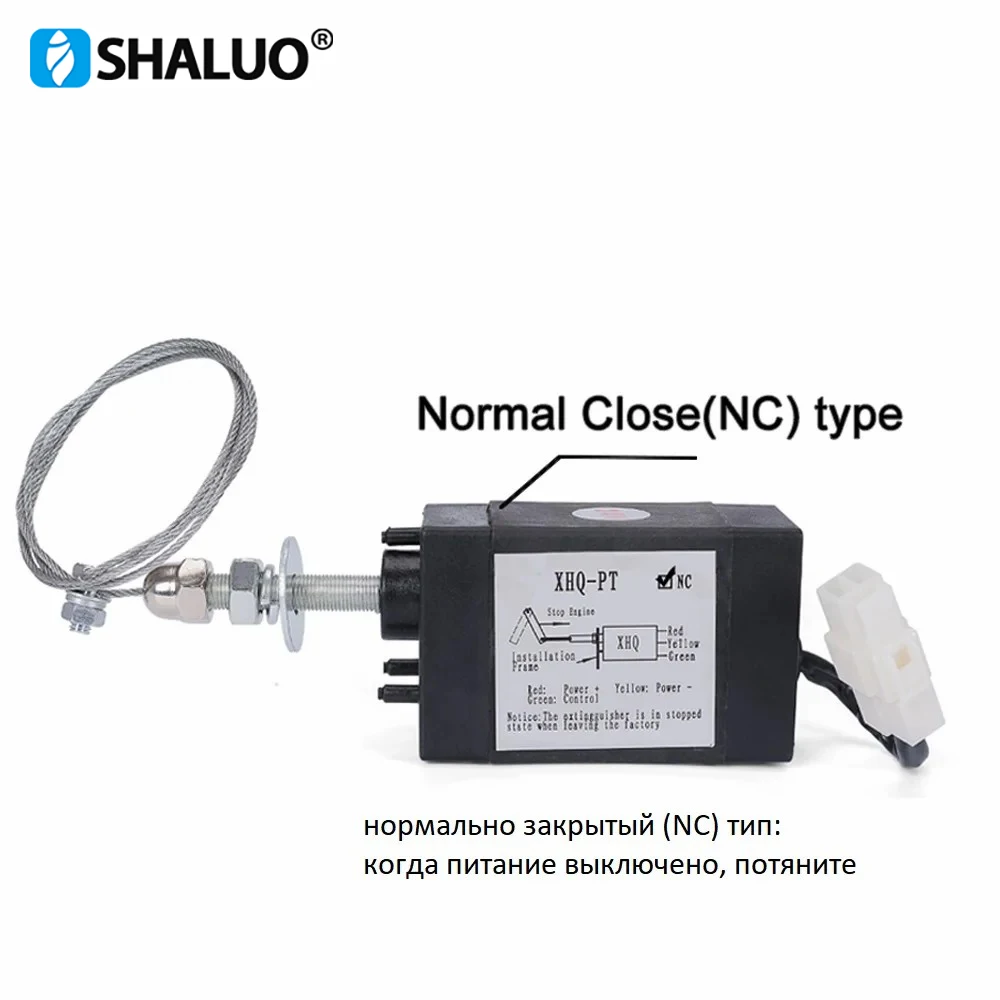

normal close stype:NC （√）,when power off ,it will pull .When power on,it will push.
normal open stype:NC （ ）,When power on, it will pull .when power off, it will push.
The appearance of normal close and normal close are the same, just difference:
normal close stype:NC （√）,when power off ,it will pull .When power on,it will push.
normal open stype:NC （ ）,When power on, it will pull .when power off, it will push.
normal close stype:NC （√）,when power off ,it will pull .When power on,it will push.
normal open stype:NC （ ）,When power on, it will pull .when power off, it will push.
Specification
The purpose of working voltage | 12V (9-15V DC) 24V (18-30V DC) |
Purpose | 12V-2.0A 24V-1.0A (full of action current moves in place automatically disconnect the power supply, the working current of ＜15mA） |
In the line of control working current | ＜15mA |
Travel | ± 1mm. |
Wire length | about 100mm |
Wire diameter | 10mm |
The maximum tension | 90N |
An ambient temperature | -30℃to 60℃ |
The action time | less than 2 seconds |
Product Description
The action time: less than 2 seconds
An overload protection extinguisher: the load is too large or stuck, stop working automatically,avoid flameout device damage. Disconnect the power off after a period of time, re power,extinguisher from fault reset, can resume normal work.
Two, flameout device wiring:

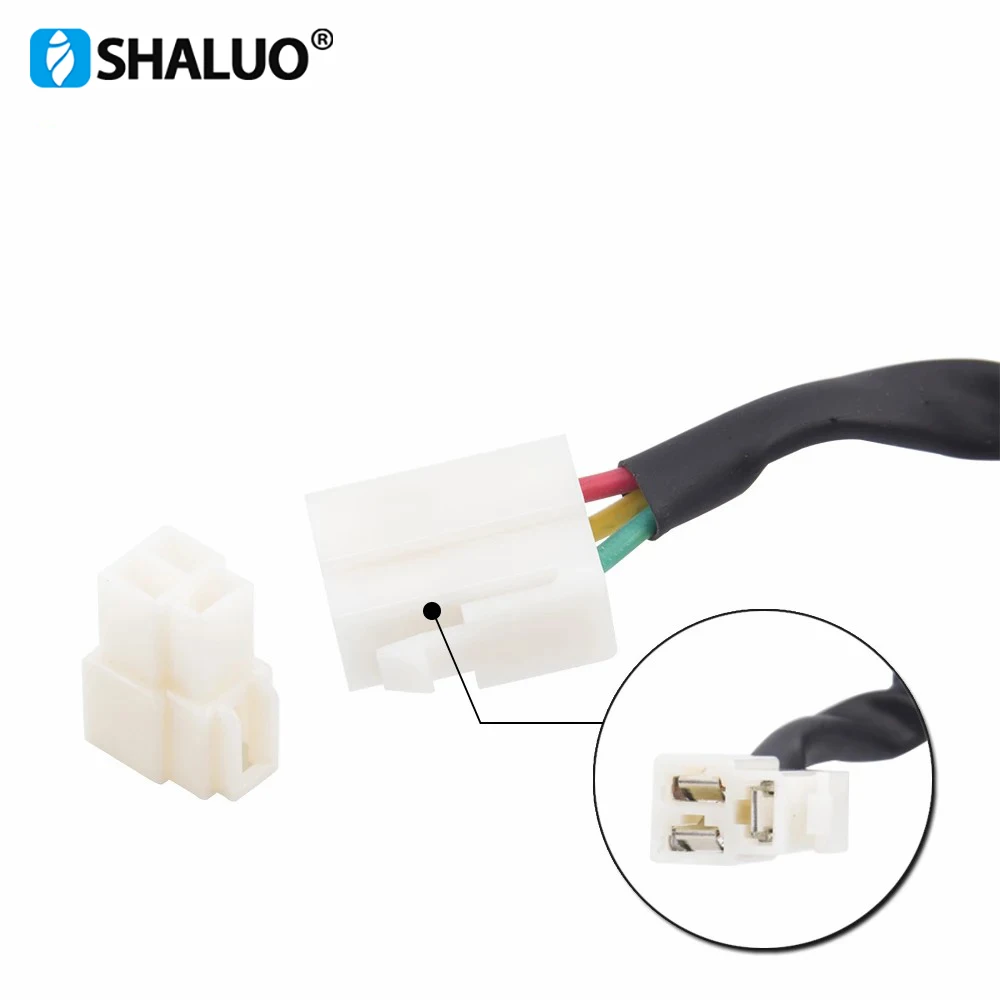

The flameout device has 3 lead wires, as follows:
Red: connect the positive power supply: the cathode of a power supply (yellow green or blue)as the line of control:
Open type: control line power extinguisher action, action in place, automatic stop. The release of extinguisher power, action in place, automatic stop.
Closed type: control line power extinguisher action, action in place, automatic stop.Release extinguisher power control line, automatic stop action in place.
Three, installation and notice
The installation and commissioning should ensure the extinguisher action in place before,diesel engine stop control rod no action to the limit position and the extinguisher stuck,otherwise the extinguisher internal overload protection circuit, automatic flameout device stops working, the extinguisher should disconnect the power, adjust the mounting position, back to the extinguisher on electricity, flameout which can resume normal work.
An overload protection extinguisher: the load is too large or stuck, stop working automatically,avoid flameout device damage. Disconnect the power off after a period of time, re power,extinguisher from fault reset, can resume normal work.
Two, flameout device wiring:
The flameout device has 3 lead wires, as follows:
Red: connect the positive power supply: the cathode of a power supply (yellow green or blue)as the line of control:
Open type: control line power extinguisher action, action in place, automatic stop. The release of extinguisher power, action in place, automatic stop.
Closed type: control line power extinguisher action, action in place, automatic stop.Release extinguisher power control line, automatic stop action in place.
Three, installation and notice
The installation and commissioning should ensure the extinguisher action in place before,diesel engine stop control rod no action to the limit position and the extinguisher stuck,otherwise the extinguisher internal overload protection circuit, automatic flameout device stops working, the extinguisher should disconnect the power, adjust the mounting position, back to the extinguisher on electricity, flameout which can resume normal work.
