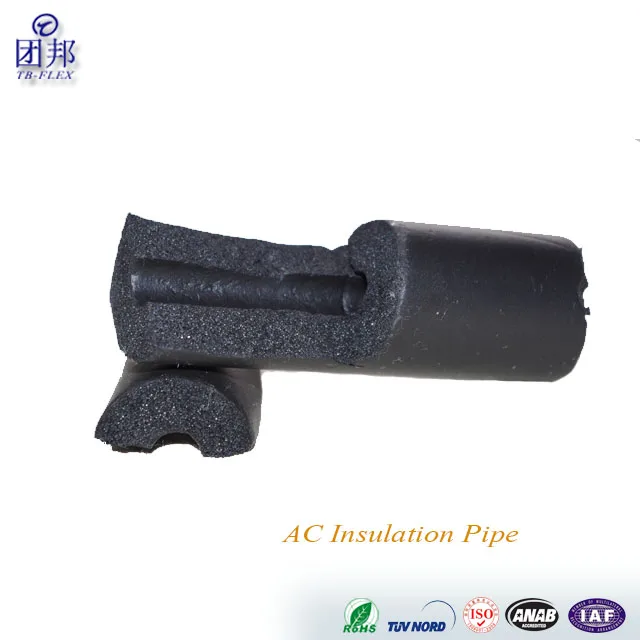

AC Refrigerant Line Insulation Pipe Rubber Foam Insulation Pipe

Product Overview

Description

AC Refrigerant Line Insulation Pipe Rubber Foam Insulation Pipe



Rubber Foam Plastic Insulation Pipe is widely used for piping heat & cold insulation such as:

Air conditioners in household.
Solar energy water piping thermal insulation.
Buildings and industries metalized piping and tube insulation.
Special insulation and protecting for some small pipes and electrical pipelines.



TB Rubber Foam Plastic Insulation Pipe have the following advantages:



-PERFECT HEAT PRESERVATION INSULATION: The high density and closed structure of selected raw material has the ability of low thermal conductivity and stable temperature and has an isolation effect of hot and cold medium.



-GOOD FLAME RETARDANT PROPERTIES: When burned by fire, the insulation material do not melt and resulting in low somke and do not make the flame spread which can guarantee the using safety; the material is determined as nonflammable material and the range of Using temperature is from -40℃ to 105℃.



-ECO-FRIENDLY MATERIAL: The environmental friendly raw material has no stimulation and pollution, no hazard to health and environment. Moreover, it can avoid the mold growth and mouse biting; The material has the effection of corrosion-resistant, acid and alkali, it can increase the life of using.



-EASY TO INSTALL, EASY TO USE: It is convenient to install due to it is not need to install other auxiliary layer and it is just cutting and conglutinating. It will save the manual work greatly.





Promotion Tips

Free samples (including freight) for the first 5 customers every month, come to get it now !!!

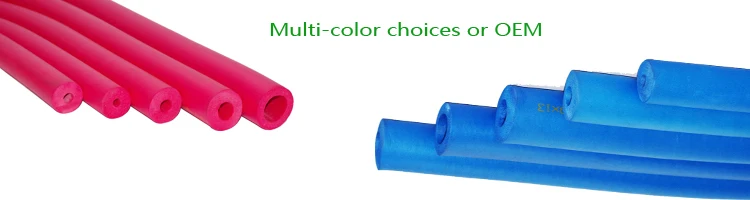

Multiple Choices





Company Information



Founded in 1998, Chongqing Xincheng Refrigeration Equipment Co.,Ltd. is located in Chongqing, China. It mainly produce and sell central air-conditioning, Refrigerator, refrigeration unit, air cooler, water chilling unit and Refrigerant. All products are qualified with IAF, CMA, ANAB, CNAS, AL, ISO9001, TUV NORD, ilac-MRA and etc.

In 2008, Xincheng company was authorized to be the most reliable dealer on refrigeration equipment. With its strictly quality control and management, Xincheng has won many customers’  trust and becomes more and more visibility in Asia, North America, South America, Europe, and Africa.

We core value to build business relationship with our customers are based on honestly, cooperation and mutual benefit. On this foothold, we are struggle to improve our product quality, management and customer service.

Also, any OEM/ODM need are welcomed. Please feel free to let us know your requirements.







Product Details

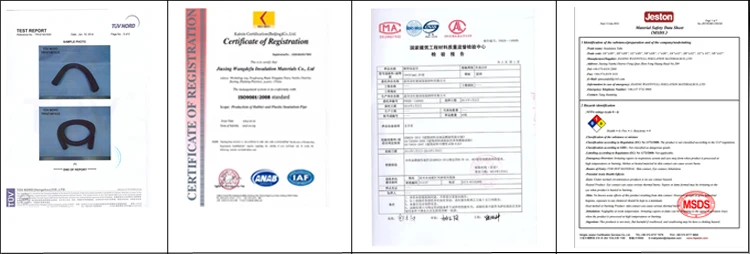

Certificates







Physical Characteristics

Item	Inspection method	Unit	Test Result
Density	Water Replacement Method	KG/m³	60-80
Water absorption ratio	JISA95142	%	3.0
Working Temp.	Actual Experiment	℃	-40~105
Longitudinal temperature	GB6344	MPA	0.49
Horizontal tensile strength	GB6344	MPA	0.40
Compression resistance, 25%	Sample (Length 20mm)	MPA	0.065
Heat compression	110℃/168H	%	5.8
Aging resistance	120℃/1H	/	Passed
Glow-wire	GB5969(550℃)	/	Passed
Flammability	GB5969.5-85	/	Non-flam
Conductivity factor	Steady State Method	W/M.K	0.038
Copper Corrosivity	60℃/100%RH/240H	/	Non-corrosion
Anti-ozone	24H in Sealed Container	/	Odorless





Combustion Performance

Item	Inspection method	Unit	Test Result
Oxygen index	GB/T2406-93	/	35
Vertically burning	GB/T4609-84	/	Class FV-0





What our products can do

The insulation tube can be implicated in many different areas.Such as AC Tube Insulation, Air Duct, Engineering Thermal Insulation, Fireproof Curtain, Thermal Insulation Jacket, Fabric Expansion Joint and Welding Protection, etc.

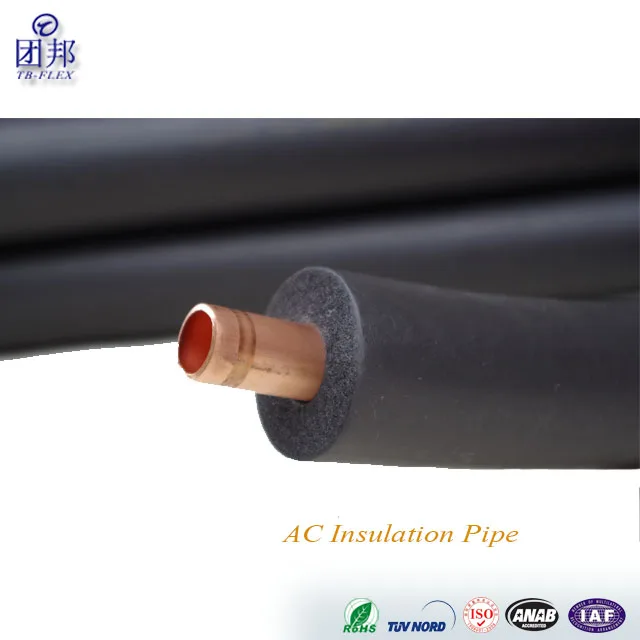

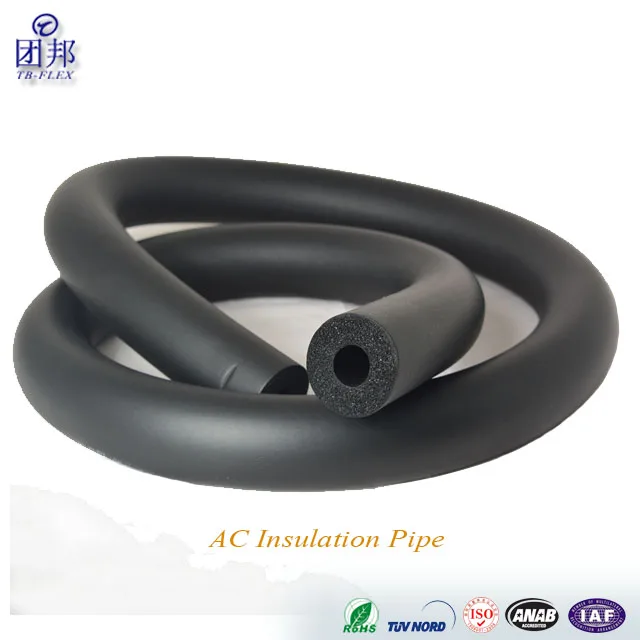

Product Show





Exhibition Show





Payment Method



L/C, T/T, West Union





FAQ



Q: Is this product environmentally friendly?

A: Yes. Our insulation tubes are made of Nistrile which is harmless and odorless.

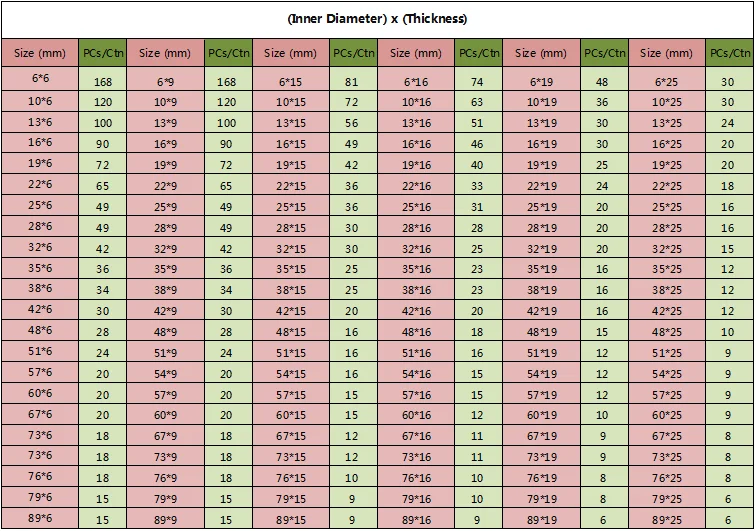

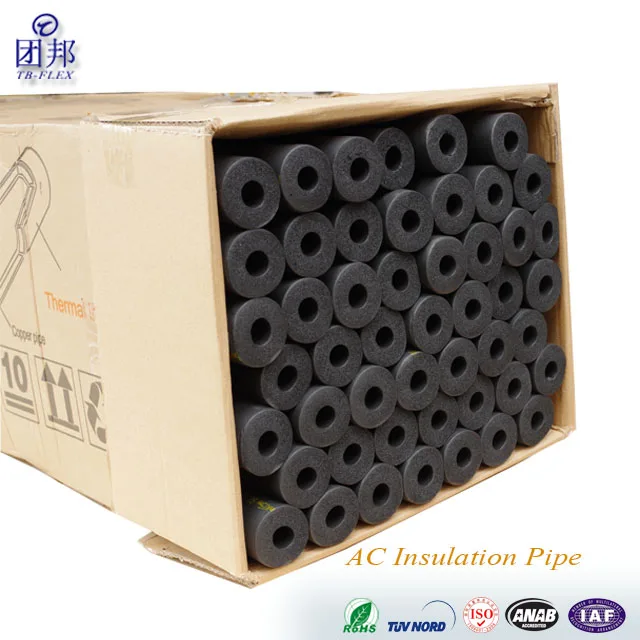

Q: What’s the length for one piece and how many pieces in one carton?

A: The regular length of one piece is 1.8 meter. The carton package number may vary from different thickness of the tube.

     The regular dimension of the carton is: 1.83*0.36*0.23(cm). Usually a 20GP cargo can be by 100 cartons.

Q: What kind of shipping method will be?

     A: It depends on customers requests. We may suggest to choose sea shipping as it is more cost-effective.

Q: What’s the working temperature of this product?

A: The working temperature range is -50℃-105℃.

Q: What’s your production capacity?

A: We offer 15 working days delivery time and our monthly production capacity is 4000 cube meters.





OEM Service



In addition to the regular products, we also accept OEM products. Any idea or requests are welcome here.

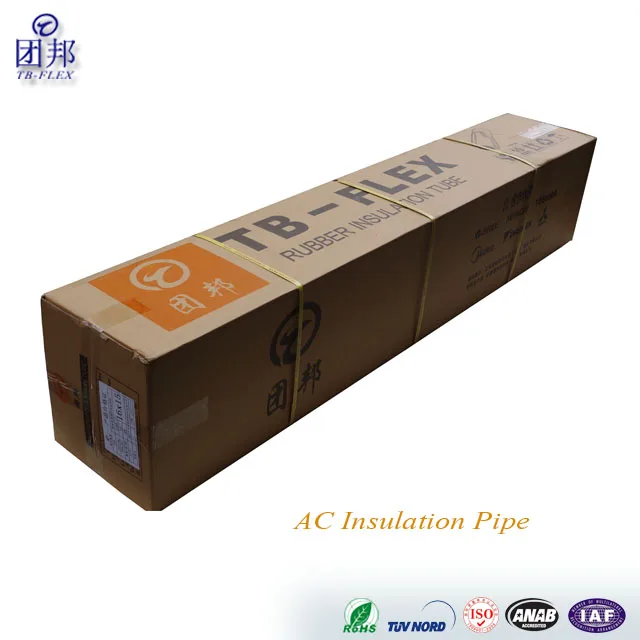

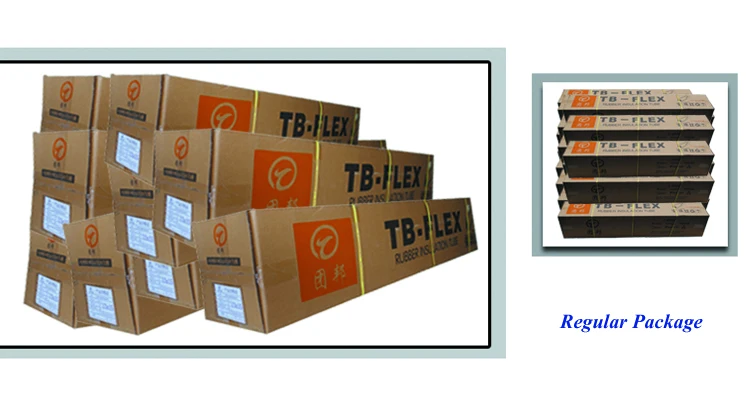

Pakcage & Transportation
