Sugarcane Bagasse Writing Notebook Paper Mill Manufacturing Machine Pulp Mills In China


Product Description

I. Brief Introduction:

this production line can use waste paper to make printing paper ,finished product can be paper roll and paper sheet,it include following section:
1.Pulp making production line;
2. Paper making production line;
3.QCS quality control system
4.Boiler section ;
5.Hot steam recycling system ;
II. Technical parameters:
1. Raw material : waste paper,wood pulp ;
2. Output paper : high quality computer printing paper,copy paper,writing paper, newsprint paper ;
3. Capacity: 50 ton per day;
4. Net paper width: 3200mm;
5. Output paper weight:40-100g/m2;
6. Width of wire: 3650mm ;
7. Rail gauge :4200mm ;
8. Working speed: 300m/min

9. Design machine speed: 350 m/min.

10. Drive and control : Alternating current ,frequency conversion, speed control, section drive ;
III. Paper machine part:

Fourdrinier type paper machine has one wire.

The single fourdrinier paper machine is usually used to make the high quality newsprint paper within

45 g/m2

The basic components of configuration are: wire section--> vacuum pickup device (optional)--> four rollers twin presss ection -> large-diameter press section --> dryer cylinder group --> size machine --> dryer cylinder group -->Four rollers calender machine--> reeling machine.

paper machine detailsa4 paper manufacturing machine

1.Headbox and wire part

Fourdrinier table length is usually between 13m and 24m.(decided by working speed).

It can select open-type headbox when the working speed is less than the 250m/min;

Select the air-cushioned headbox when the working speed is more than 250m/min.

The dewatering components are usually uses the stainless steel vacuum suction box. Full

ceramic girder or inserted ceramic girder.

equipments (2)

2. Press part

The press consists of a vacuum suction device, four rollers twin press and one main press.

Four rollers twin press specially suit for making newsprint paper and writing paper.

The main press can improve press nip width dewatering wet sheet strength and finished paper density.

paper making production line

3. Dryer part

It usually uses several dryer cylinder groups with the diameter of Φ1500mm or Φ1800mm. drive: closed gear box each dryer group single drive or single gear box each dryer group multi-points drive.

When wet paper enters into dryer section, it can select different leading way and paper orientation according to PM working speed, production basis weight and pulp impurity.

The wetting size can increase about 180% finished paper ring crush index.

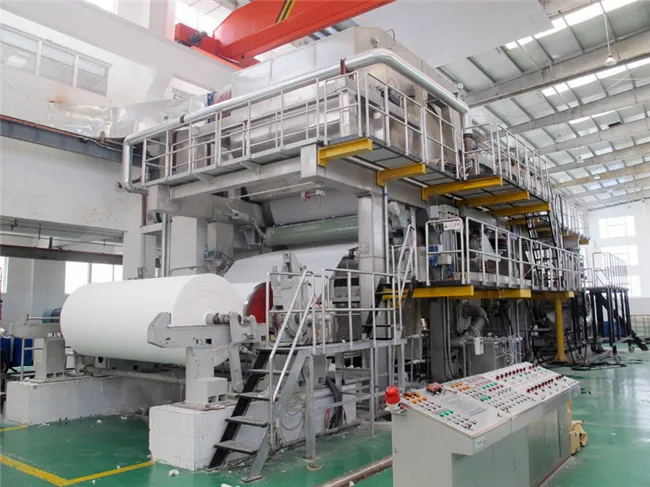

photobank (28)

4. Calender and reeler part

Calender: calender is used to increase the smoothness of paper.

details5

5. Rewinding part

Reeler: It can select horizontal pneumatic reeling machine or horizontal pope reeling machine according to the working speed.

Rewinder: Almost alll our machine are equipping with frame type rewinder.

Photos for raw material

kraft raw materiala4 paper flow chart



Packaging & Shipping



 packaging: standard cover by waterproof PVC film+ free fumigated plywood cases + solid wood pallet + straw.

packaging&delivery



Our Services



-All products adopt all-around computer aided design (CAD)

--Complete sets machine will be pre installed before delivery.

--One year warranty after machine testing and running.

--We will send engineers/technicians to install the whole production line

--After one year,we can guide and help you to maintain the machines.and spare parts will be provided on cost price.

--Every 2 years,we can help to overhaul the complete machines for free.

--Free production technology and process configuration.

--We can provide turn key-project service.

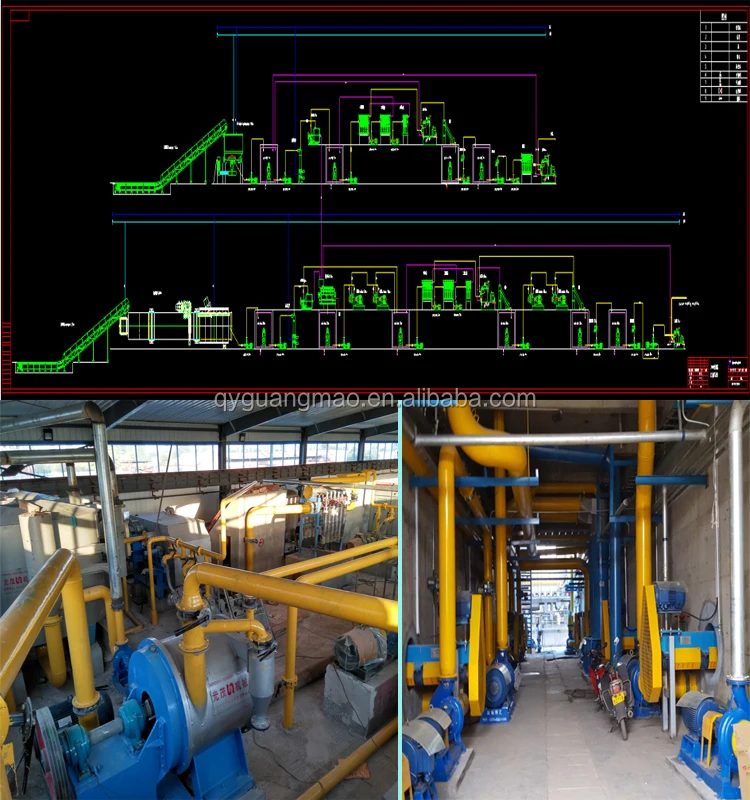

installationdesign and installation



Company Information



1. We are a leading and professional paper machine manufacturer in China,We specialize in the manufacture of toilet paper machines, kraft paper machine, liner paper machine, writing / copy paper machine

2.We are a leading and professional paper machine manufacturer in China.  Kazakstan, Uzbekistan, Mexico, USA, Pakistan, Bhutan,el salvador, Armenia, Afghanistan, Fiji, Paraguay, Egypt, Ghana, Indonesia, Thailand, Ethiopia, Bangladesh... have already established agreeable benefit business relationship with us and high appreciate our professional service

3.One professional technician team of 116 engineers and 12 experts;

4.32 years rich practice experience;

5.One innovative research team,always follow the advanced technology of Finland,Denmark and Italy;

6.Skilled and careful workers;

7.We have our own trademark registration, we have CE, ISO, SGS certification.

8. Factory area is 96000 square meter

guangmao machineryguangmao paper machineryexhibitation

Foreign Client list
NoCountry namePaper machine Model
1Afghanistan1880mm toilet paper production line 1 set.
2Afghanistan1880mm toilet paper production line 1 set.
3Algeria2880mm 10 ton/day toilet paper production line 1 set.
4Algeria3400mm 50 ton/day kraft paper production line 1 set.
5Austrialia2400mm 30T/D testliner paper production line 1 set.
6Bangladesh3200mm 70ton/day fourdrinier type fluting paper production line
7Bangladesh3200mm 45ton/day fourdrinier type newsprint paper production line
8Bangladesh2400mm 40ton/day cylinder mould type liner and fluting paper production line
9Bangladesh3200mm 60ton/day fourdrinier type print paper production line
10Brazil787mm toilet paper production line
11Bhutan787mm writing paper production line
12BurmaReform writing paper machine
13Camerooncore making machine
14Egypt1092mm writing paper production line 3sets
15Egypt2400mm 30T/D testliner paper production line 1set
16EthiopiaWriting paper machine
17Fiji Island1092mm toilet paper production line 1 set
18Fiji Island1880mm toilet paper production line 1 set.
19Ghana1880mm toilet paper production line 1set
20Kenya1880mm toilet paper production line 1 set.
21Mexico2800mm toilet paper production line 2 sets.
22Nigeria1880mm toilet paper production line 1set
23Nigeria1880mm toilet paper production line 1set
24Nigeria1880mm 20 ton/day writing paper production line 1set
25Oman1575mm print paper production line
26RwandaToilet Paper machine
27Salvador1092mm toilet paper production line
28Kazakhstan1575mm 20T/D kraft/fluting paper production line
29Kazakhstan1575mm 30T/D kraft/fluting paper production line
30Kazakhstan3200mm 60T/D twin wires testliner paper production line
31Kenya1880mm 5 ton/day tissue paper production line
32Kenya1092mm 3 ton/day tissue paper production line
33Sudan2 sets of writing paper machine
34Tajikistan787mm toilet paper machine using wheat straw as raw material
35Uganda1092mm 5 ton/day writing paper production line 1 set.
36Ukraine1575mm tissue paper machine
37Uzbekistan2100mm 25ton/day kraft liner paper production line
38Uzbekistan1092mm toilet paper production line 2sets
39Uzbekistan1092mm wheat straw recycling toilet paper production line 1set
40TailandFiber seperator of fluting paper machine
41UAE3200 100 Ton/day fluting paper machine
