Printing Machine/Automatic 5 Colors Printer
- Category: >>>
- Supplier: Dongguang Hairuibao Carton Machinery Co. Ltd.
Share on (60736100472):
Product Overview
Description

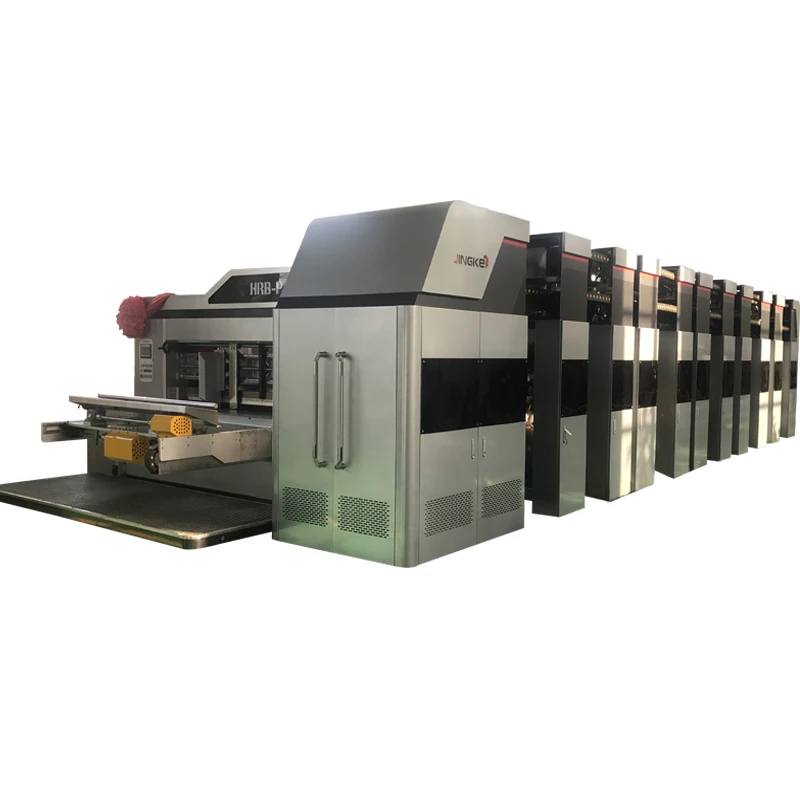

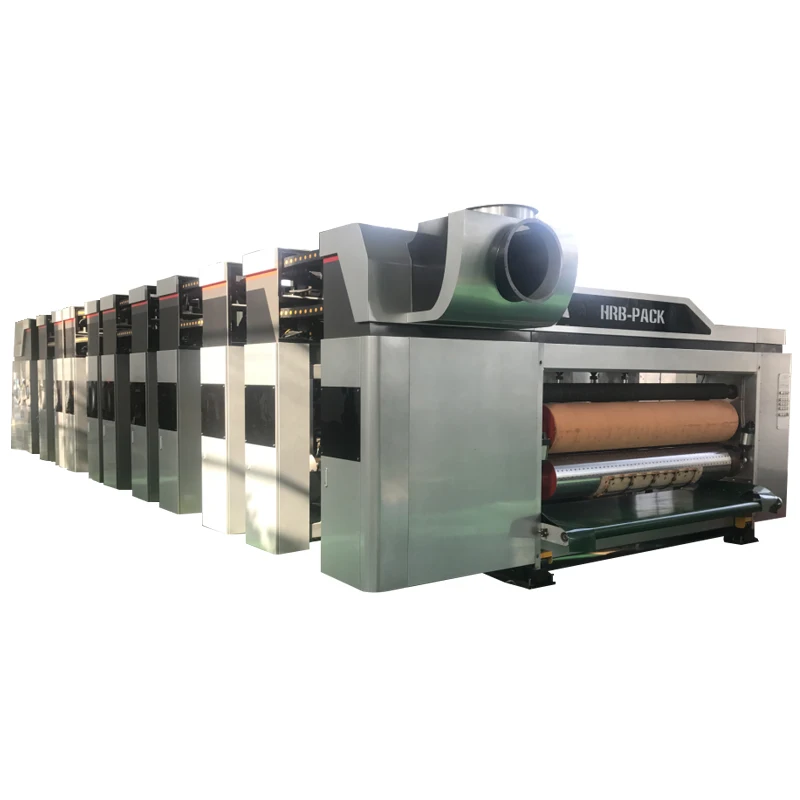

High Defination Flexo Printing Machine/Automatic 5 Colors Printer&Slotter&Die Cutter
JK1224 VACUUM TRANSFER HIGH DEFINITION PRINTING SLOTTING DIE CUTTING WITH FOLDER GLUER LINE(5+1) | |

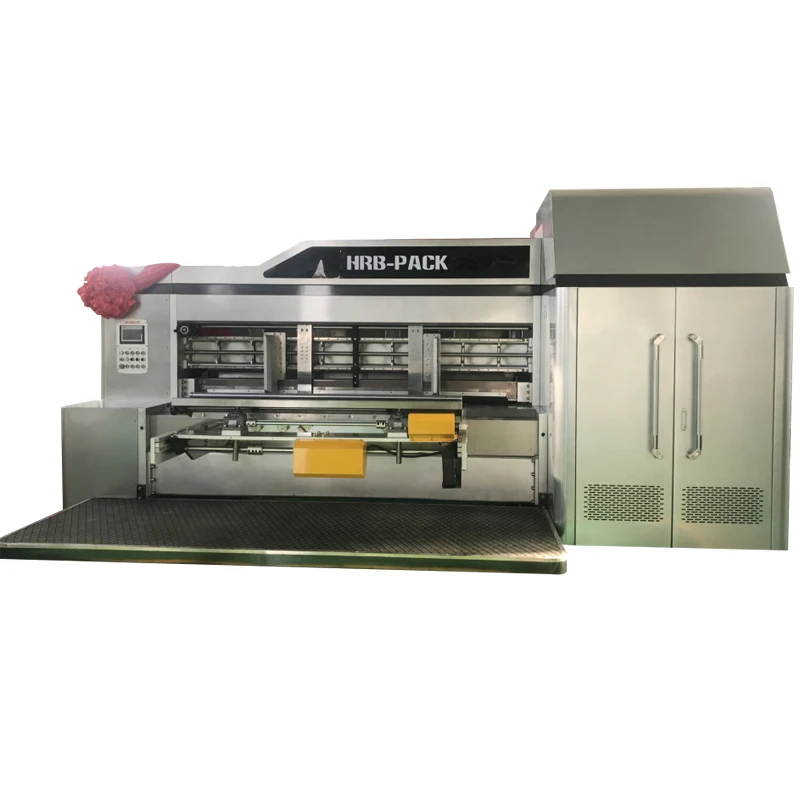

| LEAD EDGE FEEDER | 1 |

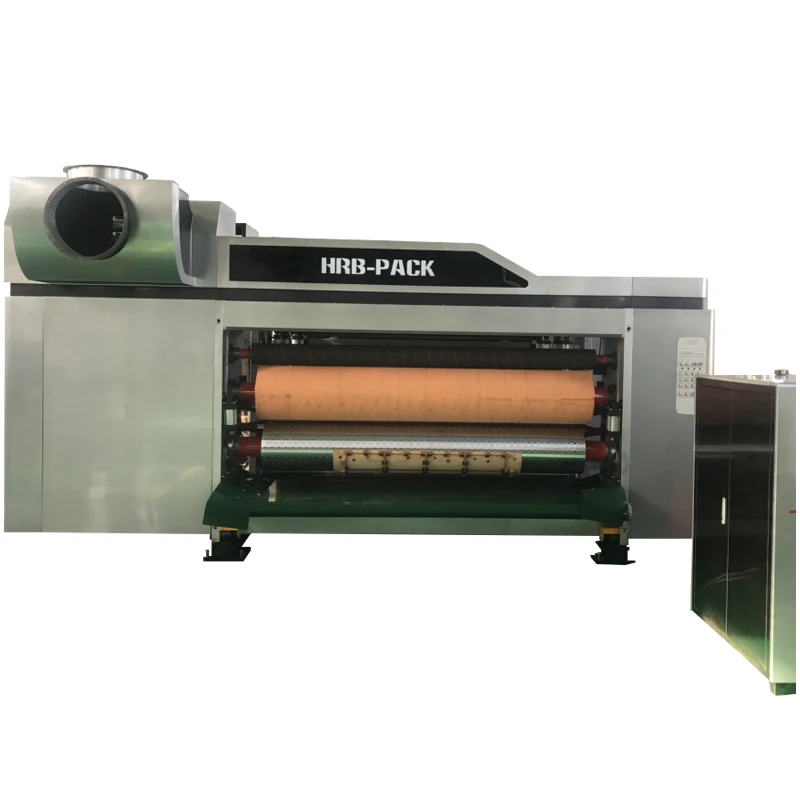

| PRINTER/COATING (5+1) | 5+1 |
| DRY | 3 |
| SLOTTER | 1 |
| DIE CUTTER | 1 |
| GLUER LINE | 1 |

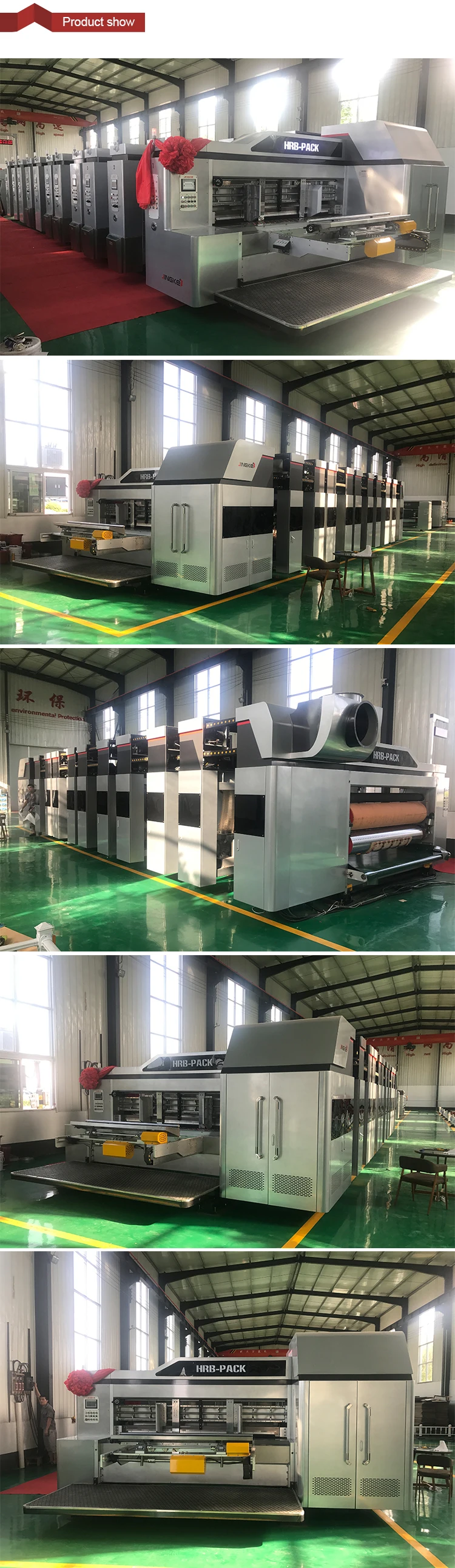

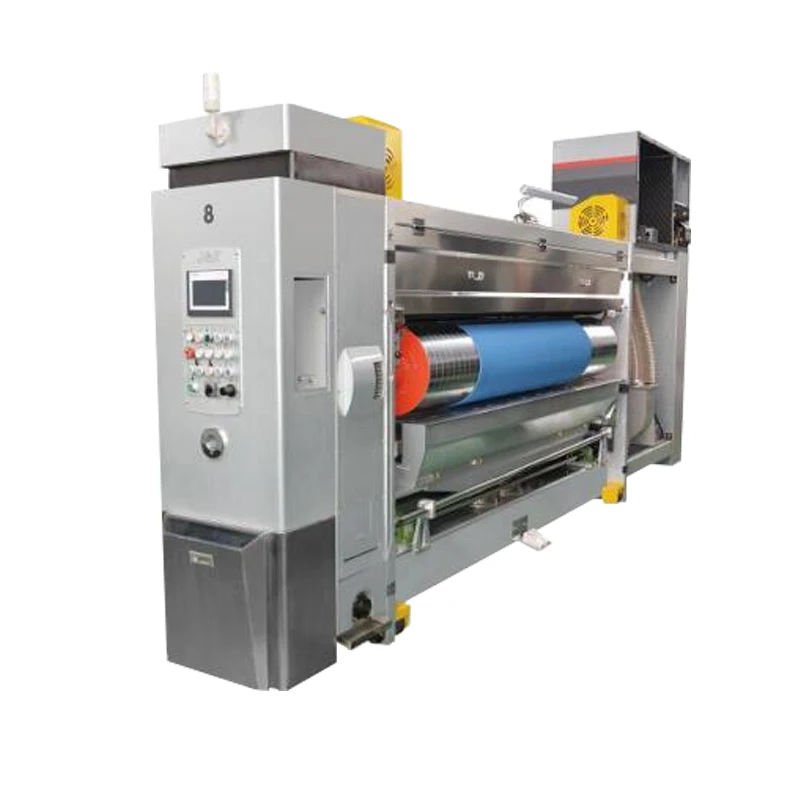

Product Show
Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
Stable: The lead feeder, servo phase, vacuum adsorption, many rows dislocation arrangement design, favors the cardboard stable transmission. Reinforced frame positioning device, gear direct rigid connection in the wallboard, imported gear from Taiwan and bearing from japan with high speed and long-term stability, with integral anilox roller lift version to keep promotion assure printing, the whole machine adopts the French Schneider electric, host, fan, PLC, touch screen use GERMAN SIEMENS.
Precision: Rubber roller surface with double glue technology, low pressure transmission from the impact of the pneumatic pressure, can control the whole vacuum adsorption, more with a word dislocation encryption round ceramic array, cardboard more adsorption, without beating, the overall precision of the anilox roller transmission device, full speed to reduce anilox roller beating, with servo phase adjustment increase anilox roller printing quality, down adjustment pressure structure of the die cutting roller keep paperboard line transmission precision guarantee.
Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools. Feeding – dust removing – printing – pre drying- coating- drying-slotting- die cutting-gluer line- case maker.
Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support.
This machine also with long-range control with internet. We can monitoring the machine and do service in China office.
Features&Images
| JK1224 VACUUM TRANSFER HIGH DEFINITION PRINTING SLOTTING DIE CUTTING MACHINE (5+1) | |
| Max Machine Speed (pcs/min) | 300 |
| Economic Working Speed (pcs/min) | 250 |
| Max. Feeding Size (mm) | 1200×2400 |
| Min. Feeding Size (mm) | 350x600 |
| Skip-feeding Size (mm) | 1400×2400 |
| Standard Plate Thickness (mm) | 3.9 |
| Min. slotter distance POSITIVE | 130X130X130X130 |
| Min. slotter distance NEGATIVE | 230X65X230X65 |
| Max slotter depth (mm) | 300 |
| Print precision (mm) | ±0.3 |
| Slot precision (mm) | ±1.0 |
| Die cut precision (mm) | ±1.0 |
| Suitable Cardboard Thickness (mm) | 2-11 |

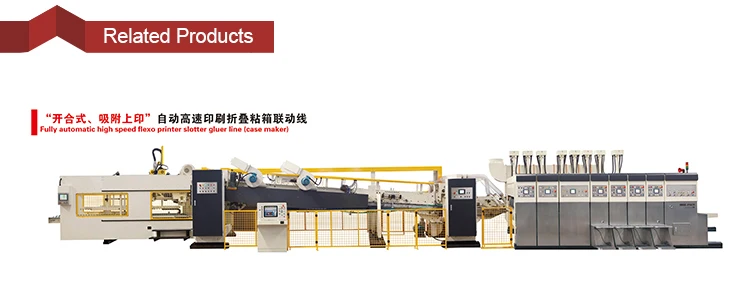

Related Products
CERT&Exhibition
Advantages
Packaging & Shipping
FAQ
1. Who are we?
We are based in Hebei, China, start from 2009,sell to Central America(14.29%),Eastern Asia(14.29%),Mid East(14.29%),Africa(14.29%),Southeast Asia(14.29%),South Asia(14.29%),North America(5.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
corrugated cardboard production line,flexo printer slotter die cutter machine,flute laminator machine,folder gluer machine,corrugated cardboard line
4. Why should you buy from us not from other suppliers?
1. Hairuibao Carton Machinery Co.,ltd is a large manufacture for carton machinery in China.
2. Our Company specialized in doing carton machinery for more than 25 years.
3. Our quality is high and price is competitived.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Cash,Escrow;
Language Spoken:English,Chinese
