AEM 800 automatic flatbed die cutting and creasing machine | manufacturer

Share on (60736144847):


Price:RUB 3,060,408.00 - RUB 11,476,530.00

Quantity:


Product Overview

Description

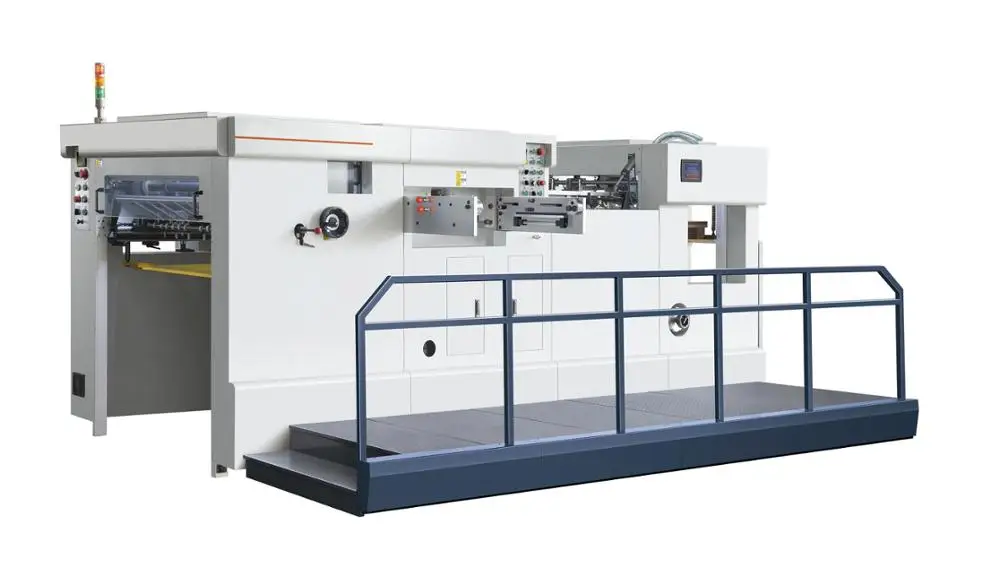

Digital Automatic Flatbed Die Cutting and Creasing Machine

Product Description

product descriptionantomatic die cutting.jpg

Intro:

  • Complete design, accurate installation, high stability, high security, low noise.
  • Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
  • High precision intermittent mechanism, high cutting precision, running steadily.
  • Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
  • Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
Product Parameter

product parameter



Model AEM-800 AME-1080

Max paper size

800 x 620 mm

1080 x 780 mm

Min paper size

340 x280 mm

400 x 330 mm

Max cutting size

770 x 600 mm

1075 x 770 mm

Die frame inner size

820 x 628 mm

1100 x 790 mm

Cutting plate size

826 x 628 mm

1080 x 780 mm

Min gripper edge size

7 mm

Cutting precision

≤±0.1 mm

Max cutting pressure

200 T

300 T

Max cutting speed

7000 S/H

Pre-stacking height

1150 mm

Delivery stack height

1000 mm 1400 mm
Application:

White board

Corrugated paper


0.1~2 mm
<4 mm

Main motor power

7.5 kW

 11 kW

Total power

12.75 kW 17.8 kW

Dimension

L(+ pre-stacking)x W(+ platform)x H

4350(+1360) x 2000(+1300) x 1690 mm 4880(+1650) x 2100(+1600) x 2350 mm

Weight

8.5 T 14 T

Note: more model please CONTACT. ( Click for MANUAL )
