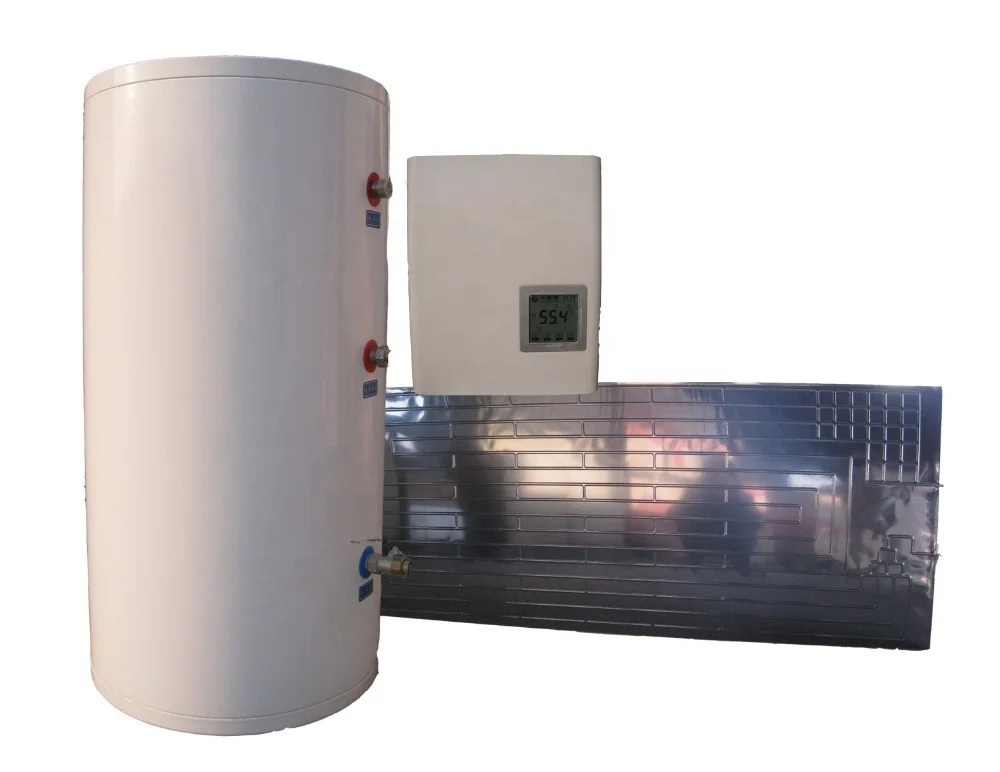

On average , one uit of electricity used produces 5 units of heating Put another way , the pump consumes 20% of the energy used to heat the water, whilst the remaining 80% of energy comes free from the panels High quality roll bond thermodynamic solar panels, flat plate air solar collector Thermodynamic Solar Panel is the heating of hot water through the use of the refrigeration principle. It can collect the heat from the sun,the rain , the snow,the sleet and even the night air, 24 hours per day, 365 days per year. It could heat the water to 55℃ ,with 25years lifespan and save up to 90% on your hot water energy bill

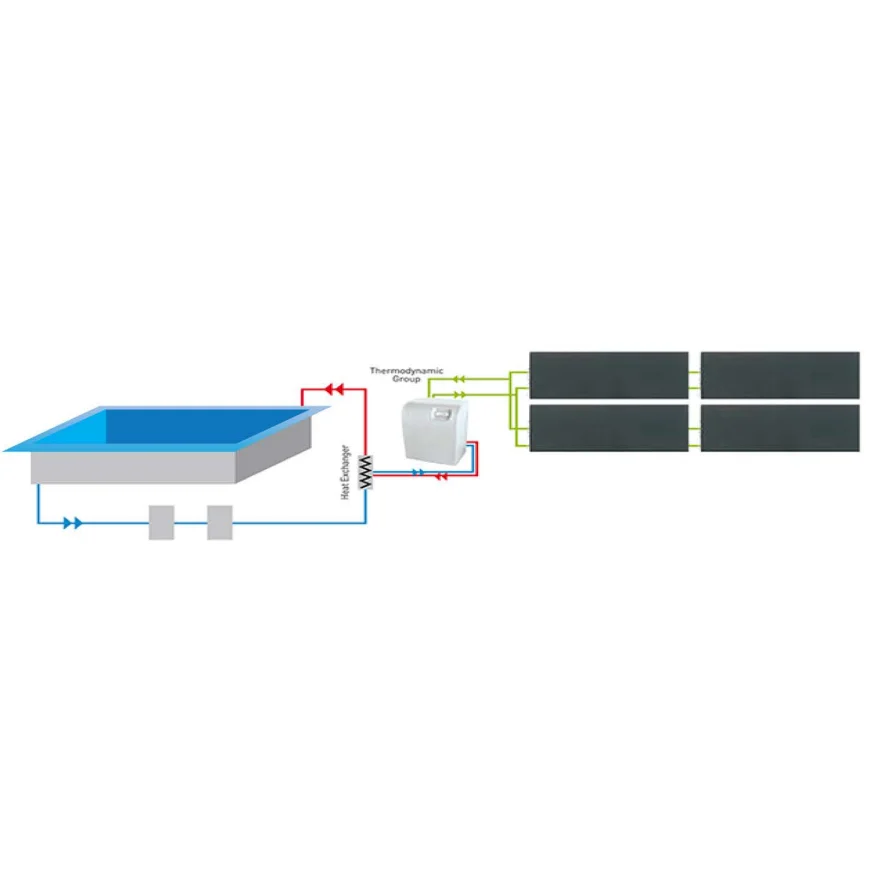

The Benefits Thermodynamic solar panels work in rain, shine, frost or snow, 24 hours per day 365 days per year. They are the next generation in renewable energy and, as they do not rely on sunlight, are perfect for any place They can be used for heating your home, hot water or even heating swimming pools.
Model
TYNRB-15
TYNRB-20
TYNRB-35
TYNRB-50
TYNRB-200
Power
~220V 50/60HZ
380V 50/60HZ
Rated water output temperature （℃）
55
55
55
55
55
Maximum water output temperature （℃）
65
65
65
65
65
Rated heat capacity （W）
1600
2000
3500
4500
20000
Rated power input （W）
320
370
680
800
5000
Rated current input （A）
1.4
1.7
3.1
3.7
7.5
Noise （dB（A））
≤45
≤45
≤45
≤45
≤60
Weight （kg）
18
20
23
26
80
Size （L*W*Hmm）
325X225X400
380X280X440
380X280X440
500X400X600
Water tank capacity （L）
100、150
150、200
200、300
300、500
2000
Applicable environment temperature （℃）
-20~45
Roll bond thermodynamic panel size:2000*800mm US$
80
80
80*(1-2)
80*(2-4)
80*(12-16)

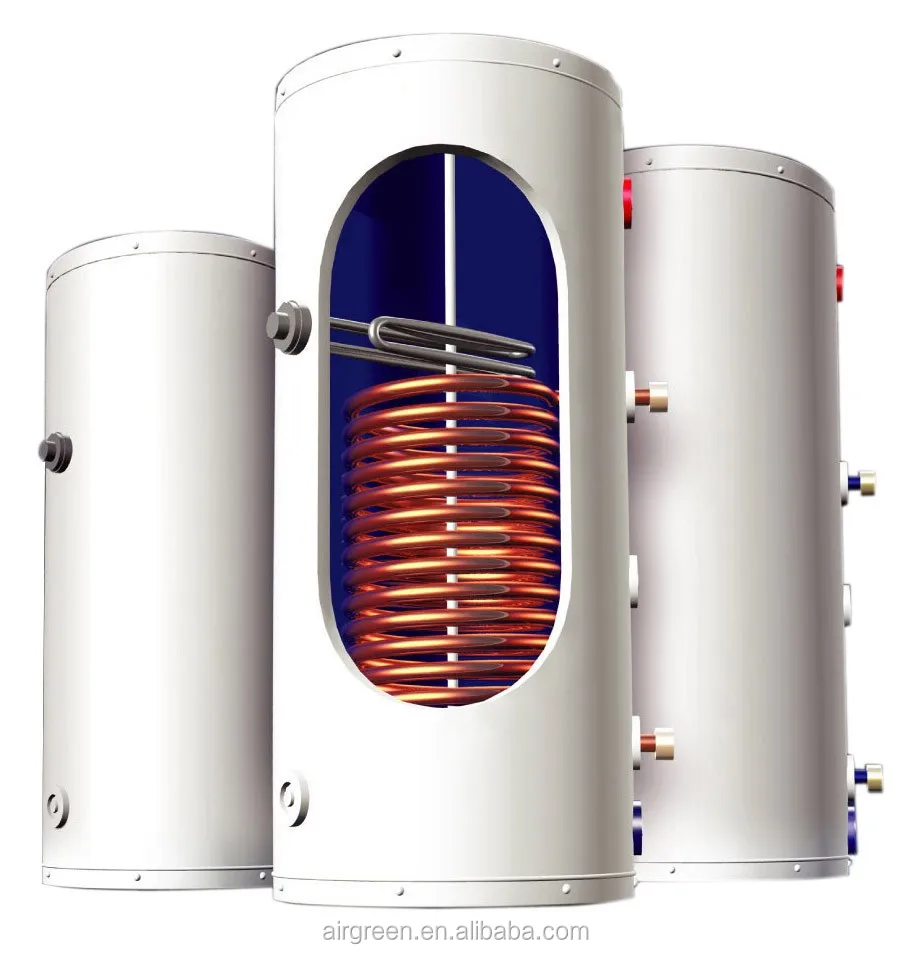

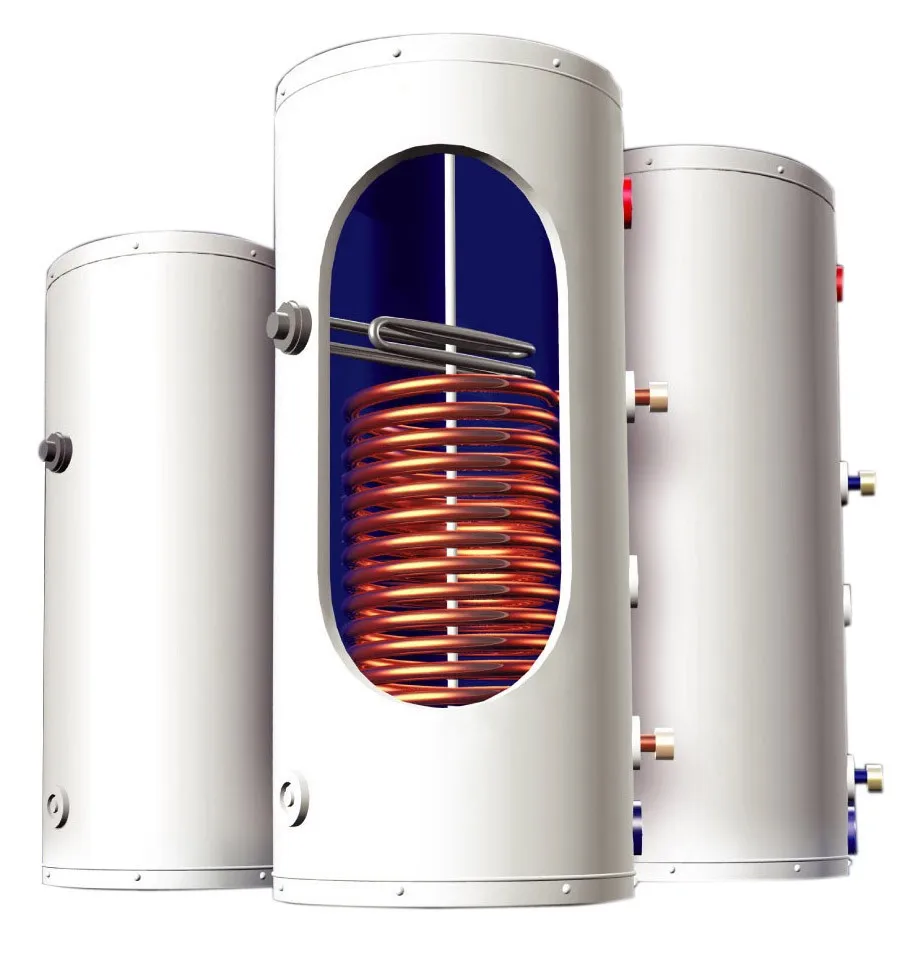

Water tank US$
Optional
Optional
Optional
Optional
Optiona

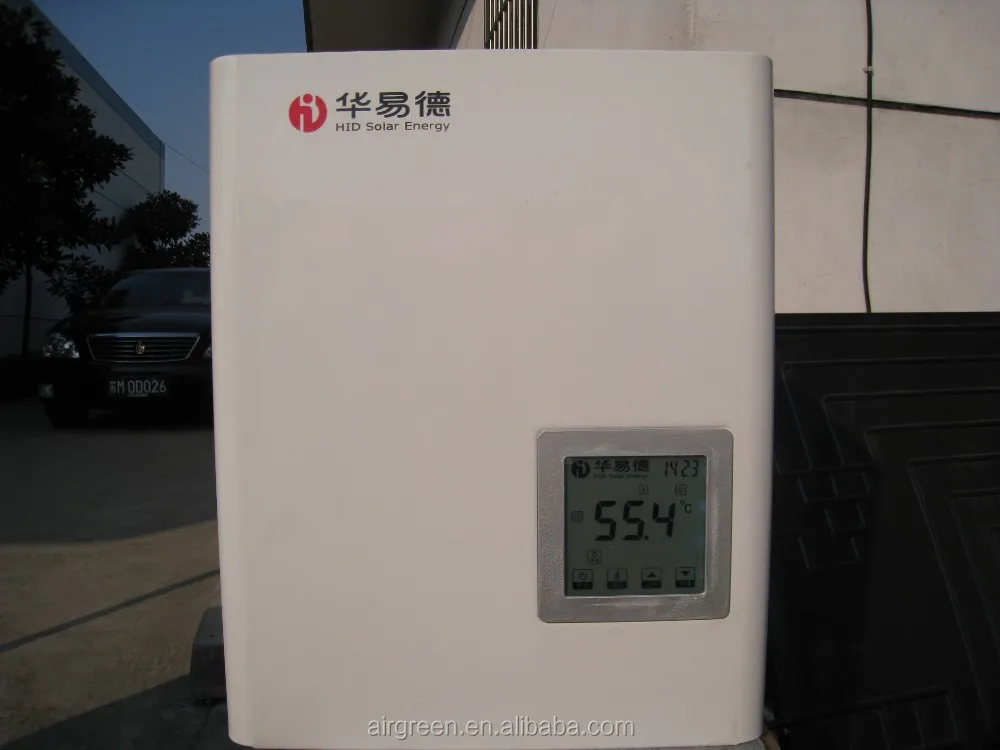

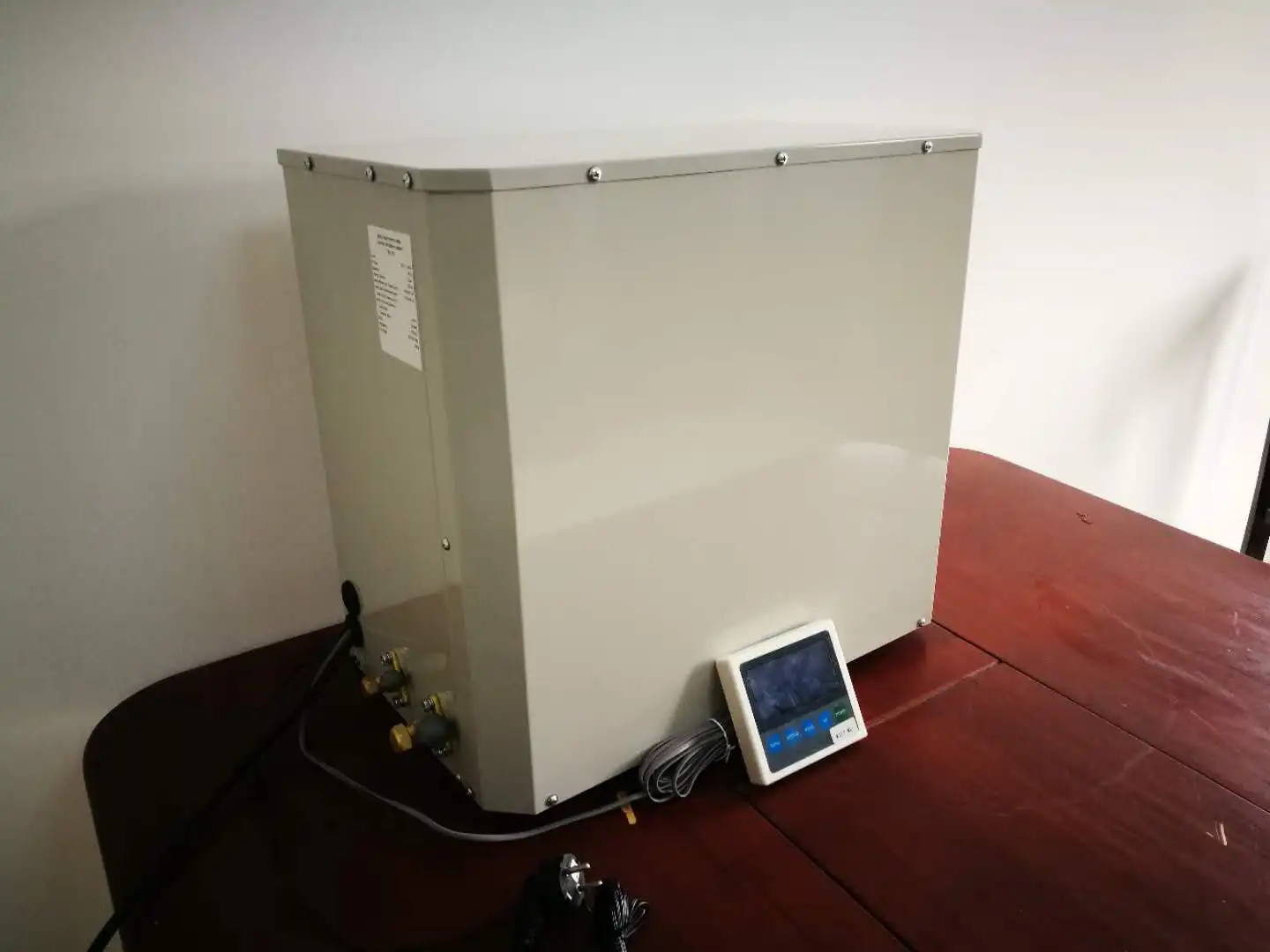

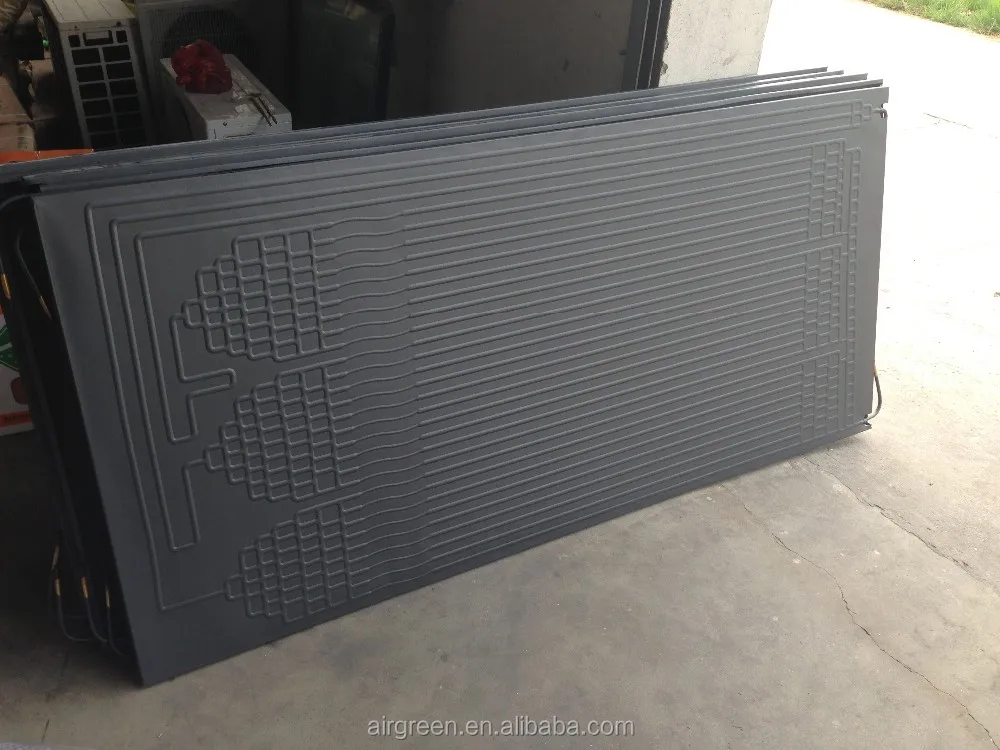

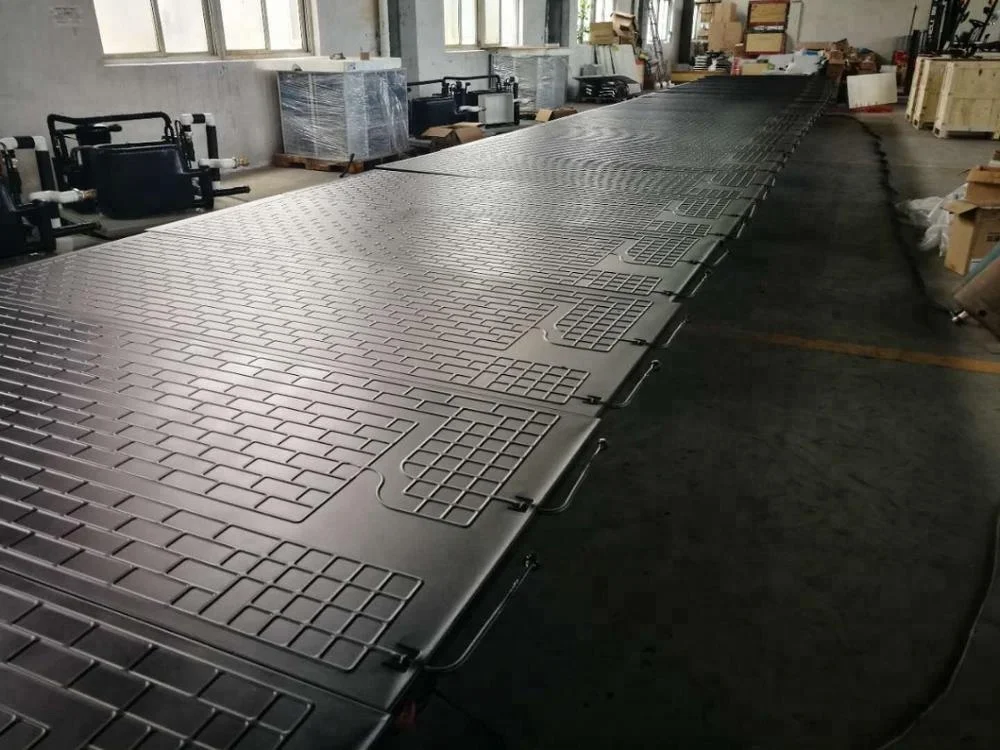

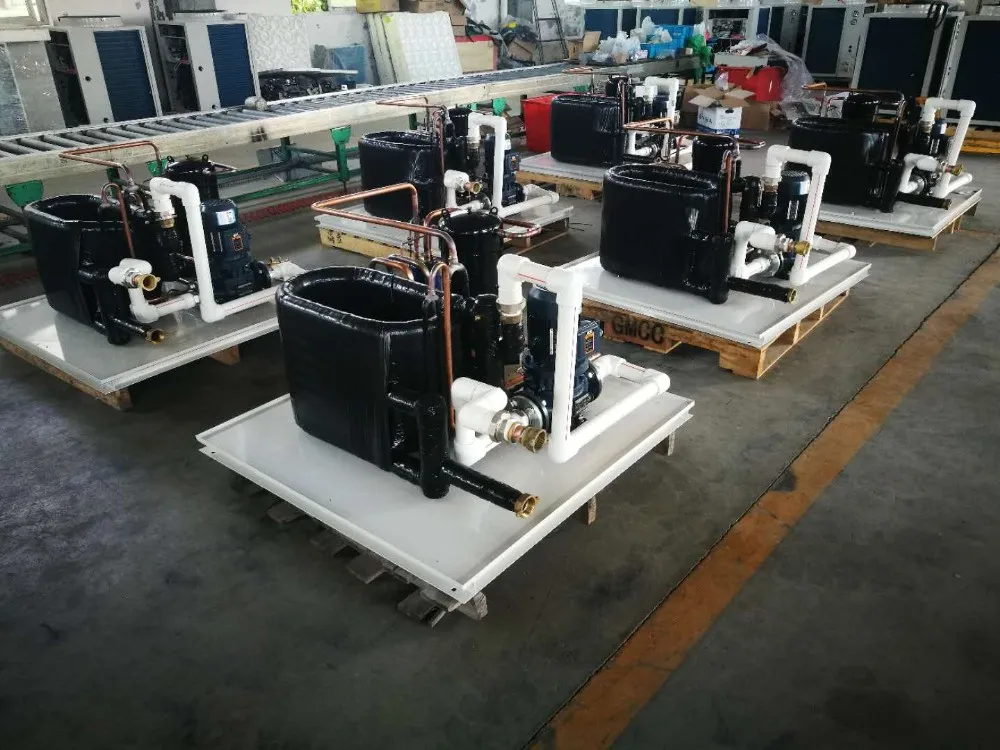

Detailed Images

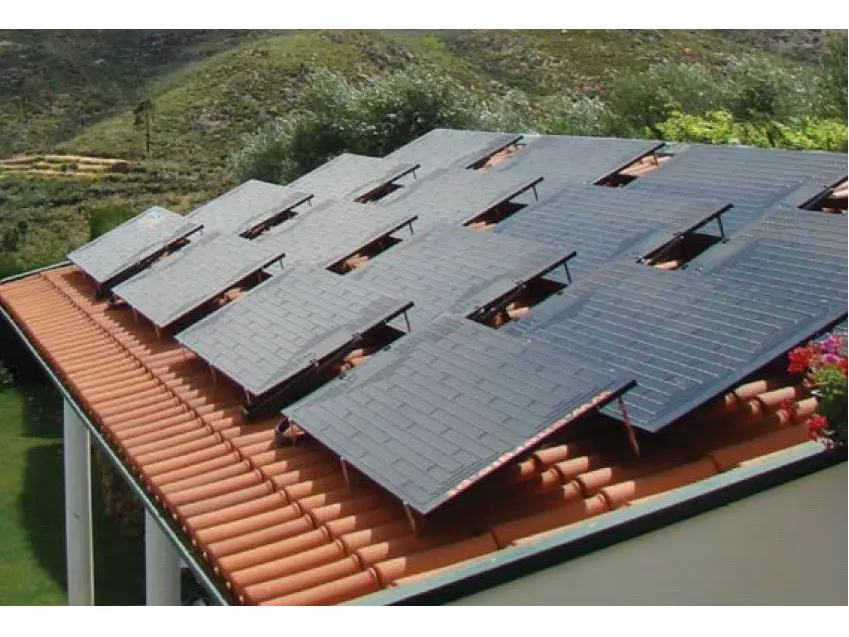

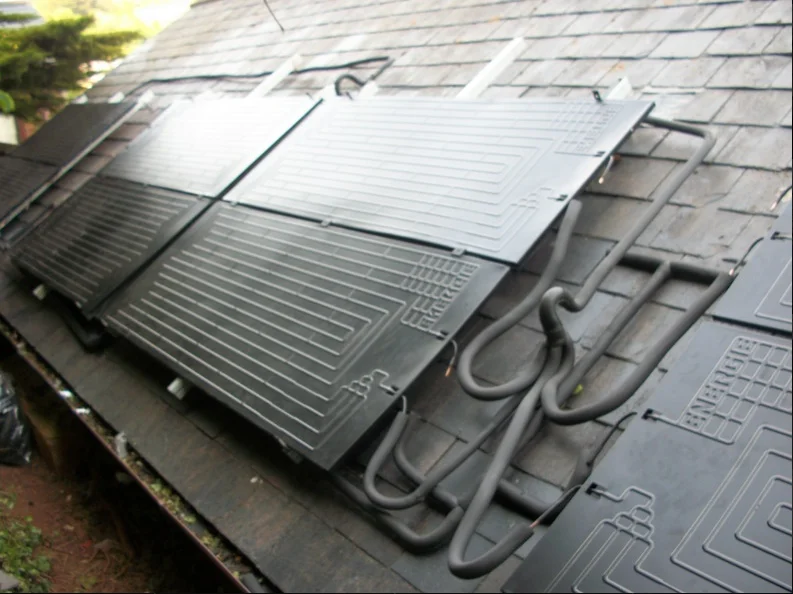

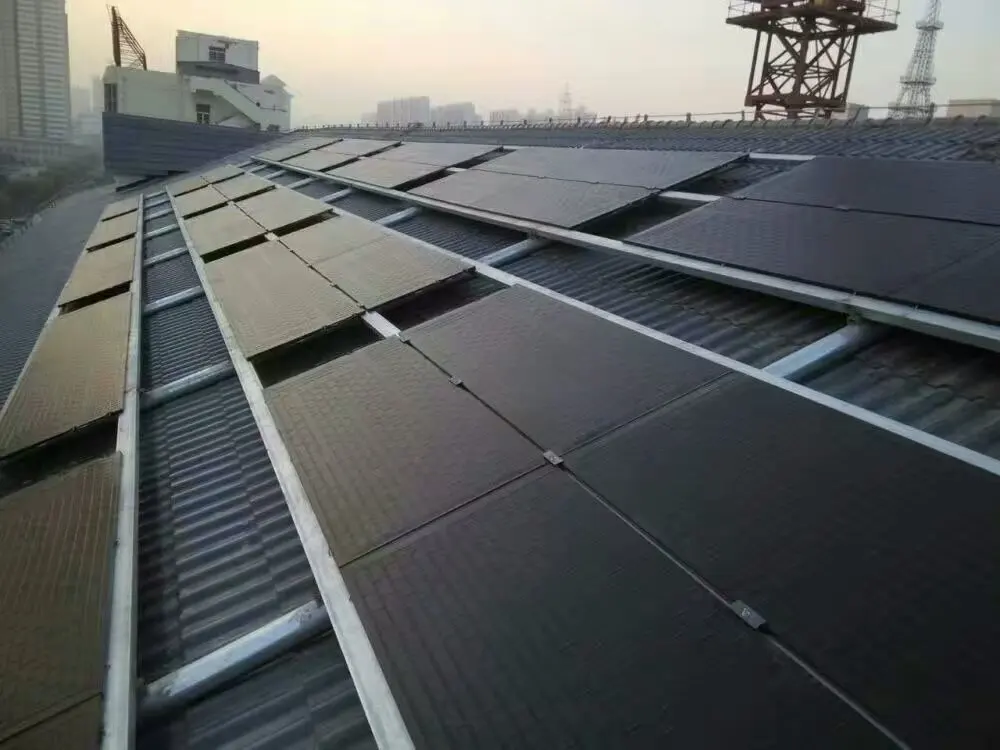

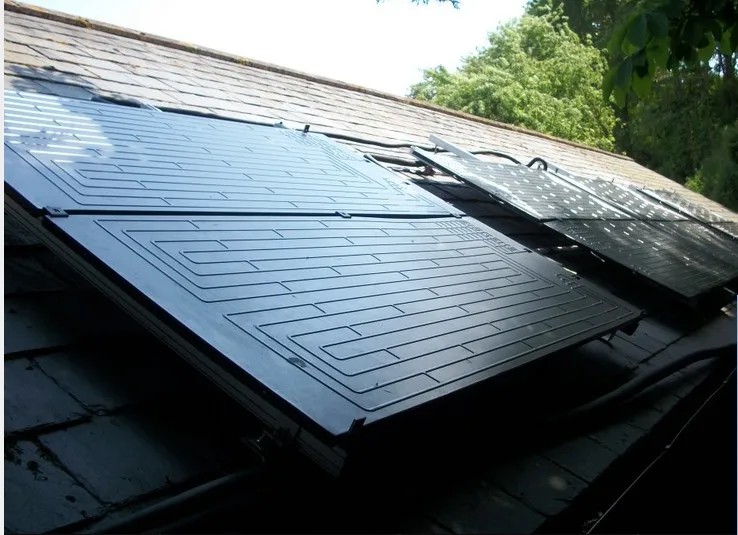

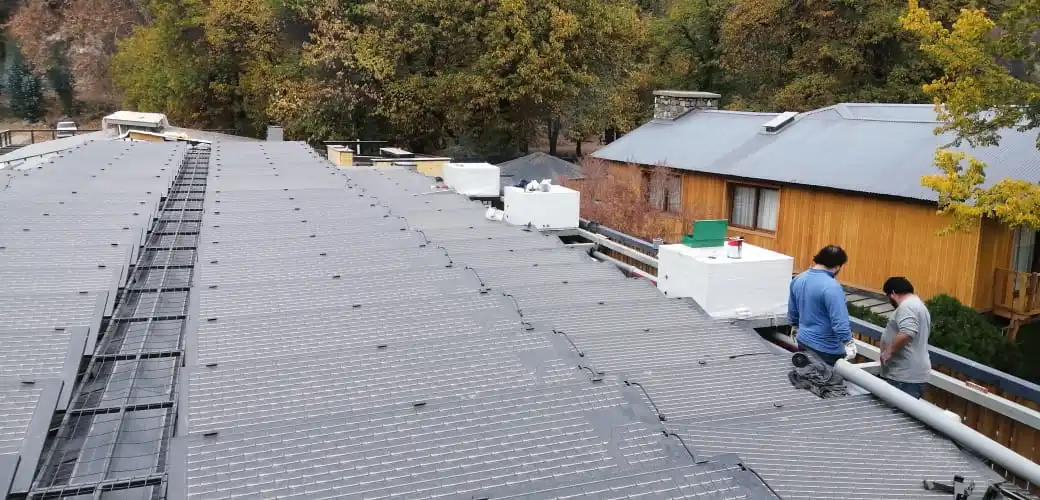

Projects Finished
Certifications
Company Profile
Installation Instructions
FAQ
Will I have hot water when there is no sun? Yes. The fluid passes through the panel at very low temperatures. It can therefore receive more solar energy than a normal liquid,even on days without sun or at night. Because of this thermal difference, the solar panel can capture the heat existing in the environment and transmit it to the water.
Does the Solar Box require extensive maintenance care? Maintenance is non-existent and the fluid does not need to be recharged.
At what distance must the panel be from the Solar Box? At a maximum distance of 12 metres.

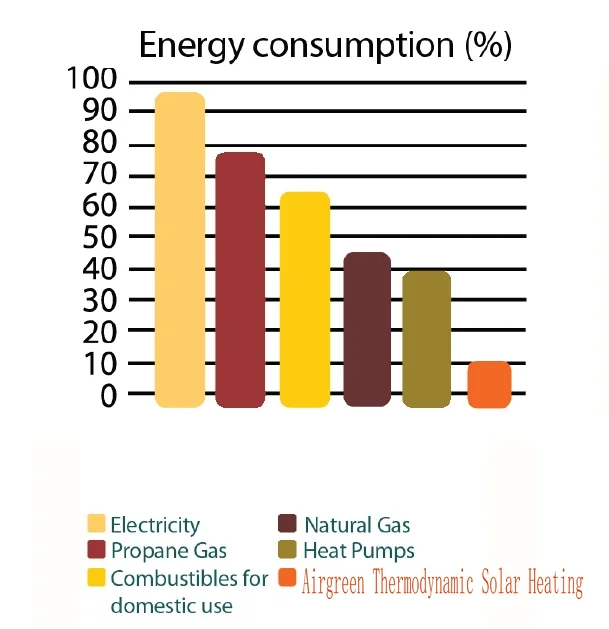

What is THE WORKING PRINCIPAL An ecological refrigerant fluid passes through the solar panel at a temperature of -15ºC, thereby allowing the collection of the energy from the sun, rain and wind. As the fluid is running at negative temperatures, it collects the heat from the air by natural convection, working also at night. The fluid is then compressed, in the Solar Box which causes the fluid temperature to increase. The heat is then released into the circulating water by way of a high performance plate heat exchanger. Finally, the fluid goes through an expansion valve and will evaporate into the aluminium solar panel and the process repeats. PROBABLY THE MOST DEVELOPED SOLAR WATER HEATER IN THE WORLD Heat is captured under the form of solar radition, environment temperature, wind and even snow. The heat produced on colder days,even at night is sufficient to attain the water temperature desired. The solar panel is light, discreet and versatile in terms of where to put it. Outside cylinder. Condenser (no contact with water) 3rd generation thermodynamic solar energy Solar hot water up to 55º available 24h per day Almost non-existent maintenance. The energy consumption of the equipment is reduced due to a super efficient compressor. A defrost cycle is not necessary.
