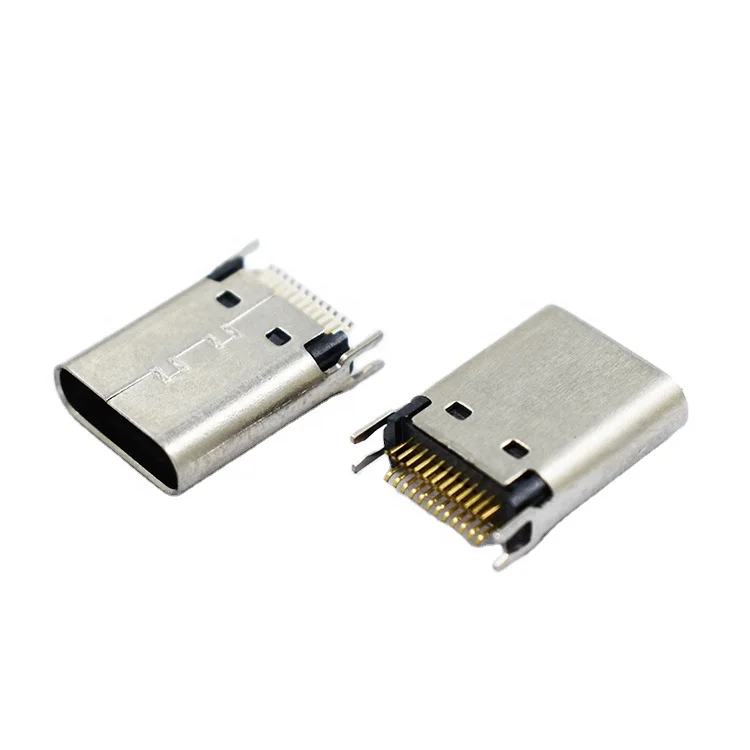

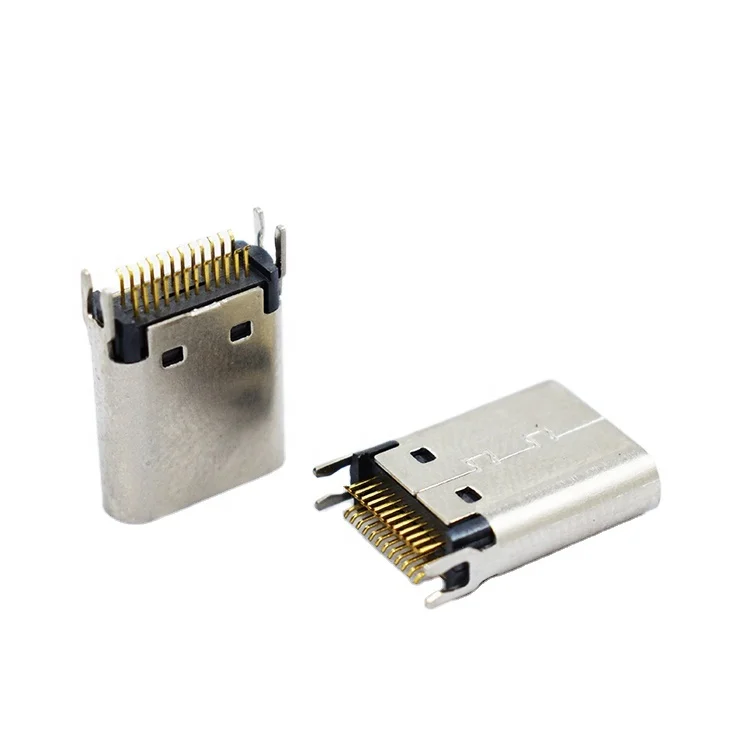

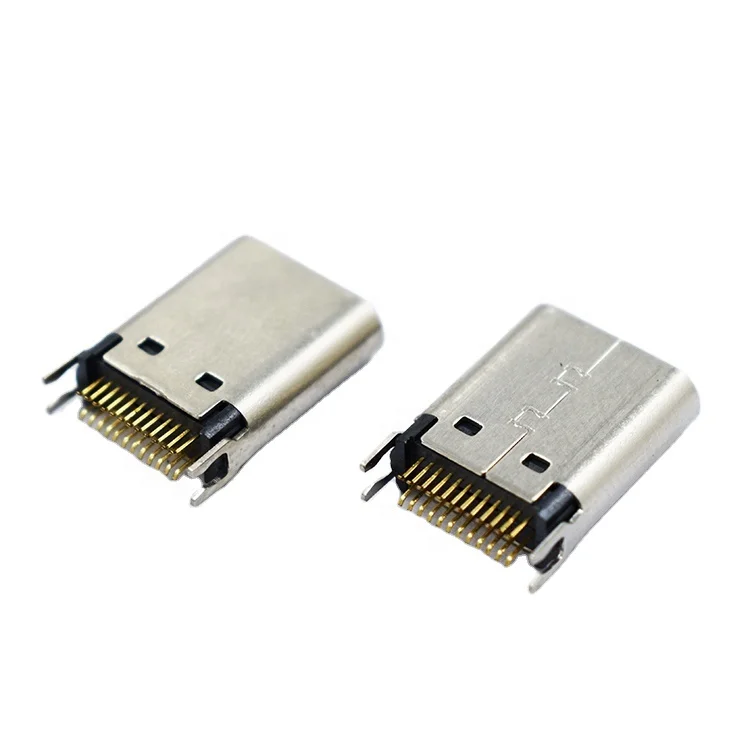

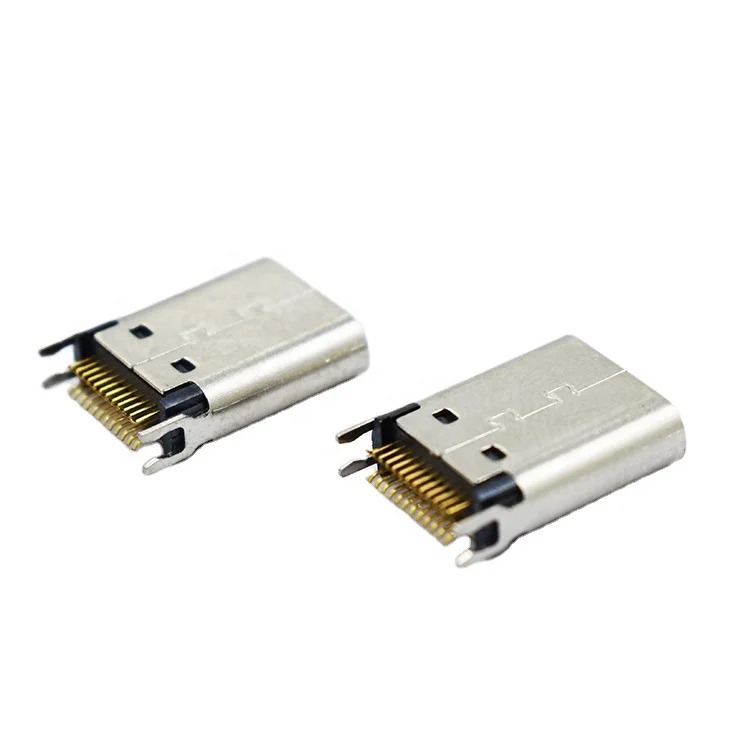

Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical
Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type-C female socket connector vertical

Universal Board Edge PCB Plywood Straddle Mount 1.0mm 24Pin USB Type C female socket connector vertical

Share on (60736167789):


Price:

Quantity:


Product Overview

Description



Product Description


Housing
LCP
Current Rating
1.5A MAX
Voltage Rating
100 V AC
Operation Temperature
-30 °C ~ 85 °C
Contact Resistance
40 MILLIONHM MAX
Insulation Resistance
100 MEGOHMS MIN.
Insertion Force
5N~20N
Removal Force
8N~20N
Certification
ROHS Approved
Durability
10000 Cycles




Specification

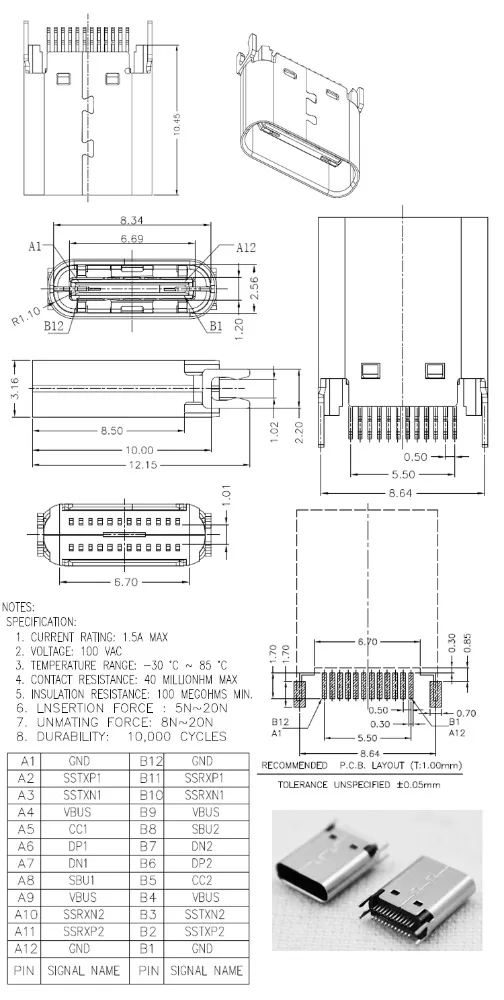

Drawing for reference:
Contact me to get PDF and 3D Drawing.
Email: bella@bsc-elec.com
















Our Service


1. More than 7 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing
or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
6. All your needed certificates we can provide;
7. ROHS compliant;
8. Small order are available.
