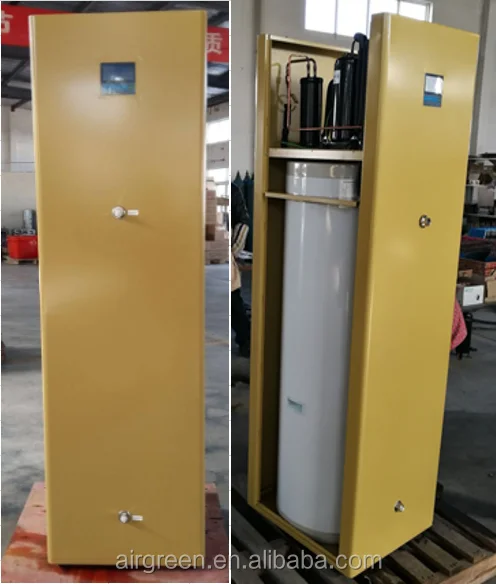

THERMODYNAMIC SOLAR SYSTEM MONOBLOC /ALL IN ONE/SOLAR HEAT PUMP WATER HEATER TYNRB 150L/1
- Category: >>>
- Supplier: Taizhou Airgreen Imp & Exp Co. Ltd.
Share on (60736173081):
Product Overview
Description
Model TYNRB SERIES for family use ALL IN ONE MONOBLOC
Without build-in water pump and Heat exchanger
| 85% less emissions than an oil boiler | |
| Low operating cost | |
| Designed and built especially for FAMILY sanitary hot water | |
| Simple installation | |
| Long lifespan | |
| Suitable for hot water in operation throughout the year* | |
| Minimum maintenance |
Model | TYNRB-150L/1 | TYNRB-200L/1 | TYNRB-300L/1 | |
Power Supply | V/Ph/Hz | 220V~240V/50Hz | ||
Refrigerant | Type | R134/R410 | ||
Water tank capacity | L | 150 | 200 | 300 |
Rated Heating Capacity | W | 1500-1850 | 2800-3200 | 4000-4500 |
BTU/h | 5000-6500 | 9500-11000 | 14000-16000 | |
Rated Power input | w | 320-590 | 600-800 | 1000-1300 |
COP | w/w | 4.6 | 4.6 | 4.2 |
Rated Hot Water Output | L/h | 50L/h | 72L/h | 100L/h |
Rated water temp | ℃ | 55℃ | ||
Max Hot Water Temp | ℃ | 60℃ | ||
Operation temp range | ℃ | -15~45℃ | ||
number of Solar panels | 1.. | 2.. | 2.. | |
Water-proof grade | IP×4 | IP×4 | IP×4 | |
refrigerant vapor line | inch | 3/8. | ||
refrigerant liquid line | inch | 1/4. | ||
Water Pipe Dimension | inch | 3/4. | ||
Noise | dB(A) | 48 | 50 | 52 |
weight | kg | 90 | 98 | 105 |
Net Dimension(DxH) | mm | Φ560*1725 | Φ640*1700 | Φ640*1850 |
Packing Dimension(LxDxH) | mm | 630*630*1840 | 695*695*1820 | 710*710*1960 |
