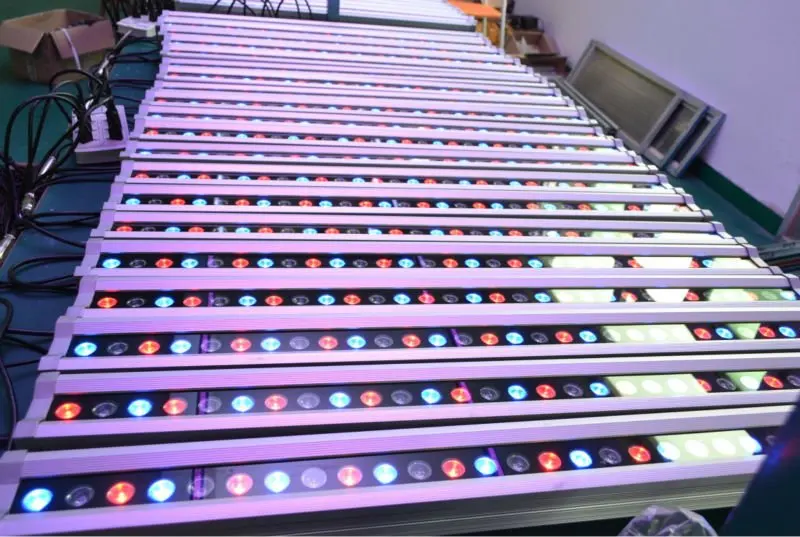

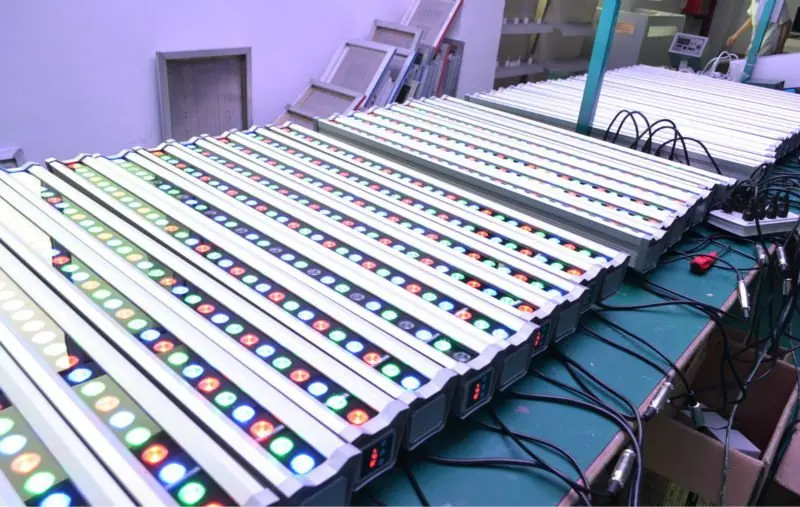

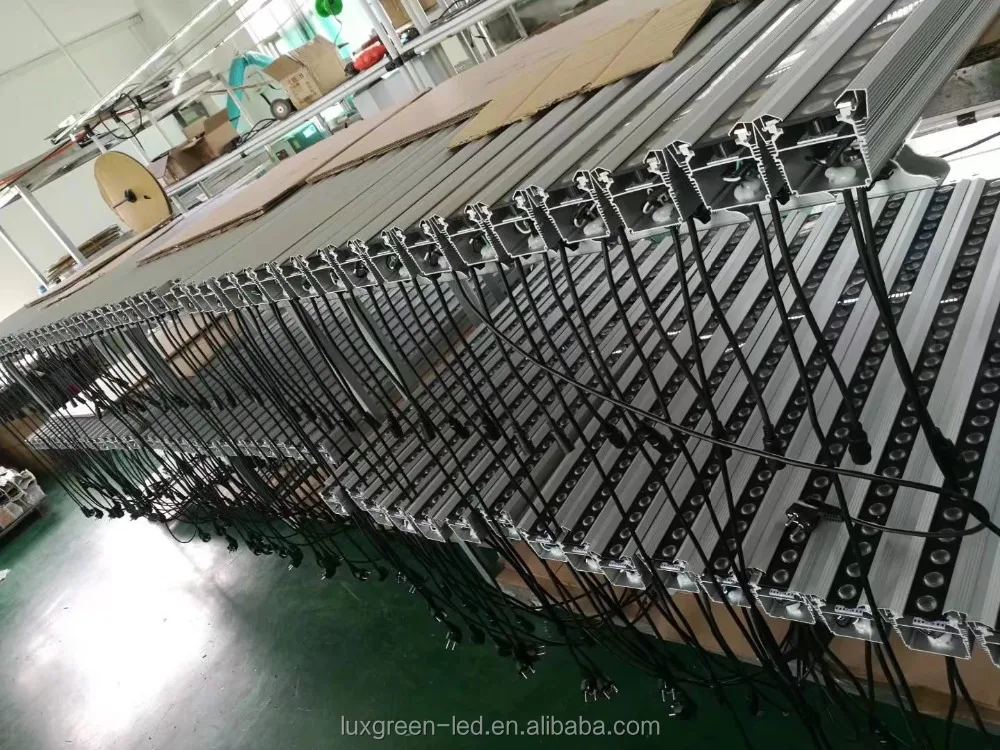

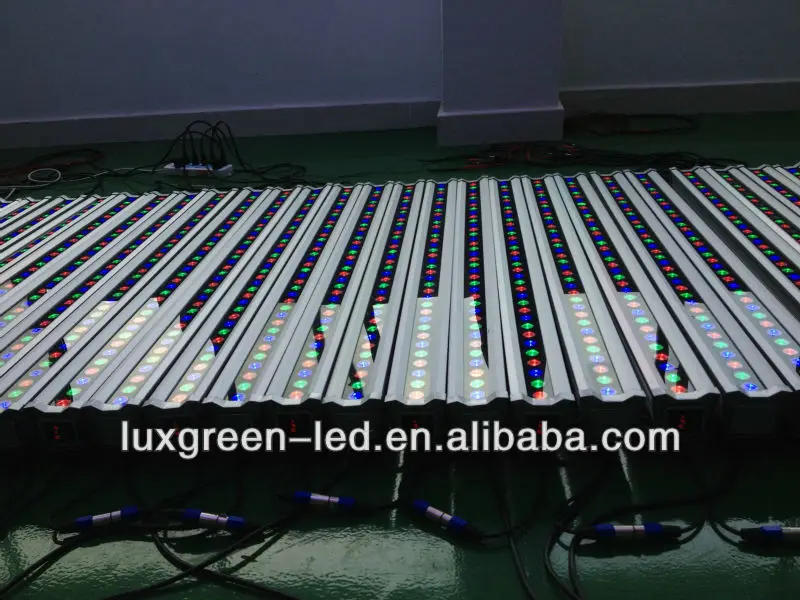

Outdoor Car Wash Bar Rgb 30X1W ip65 facade outdoor led addressable wall washer led light for project
- Category: >>>
- Supplier: Shenzhen Luxgreen Plc
Share on (60736236664):
Product Overview
Description

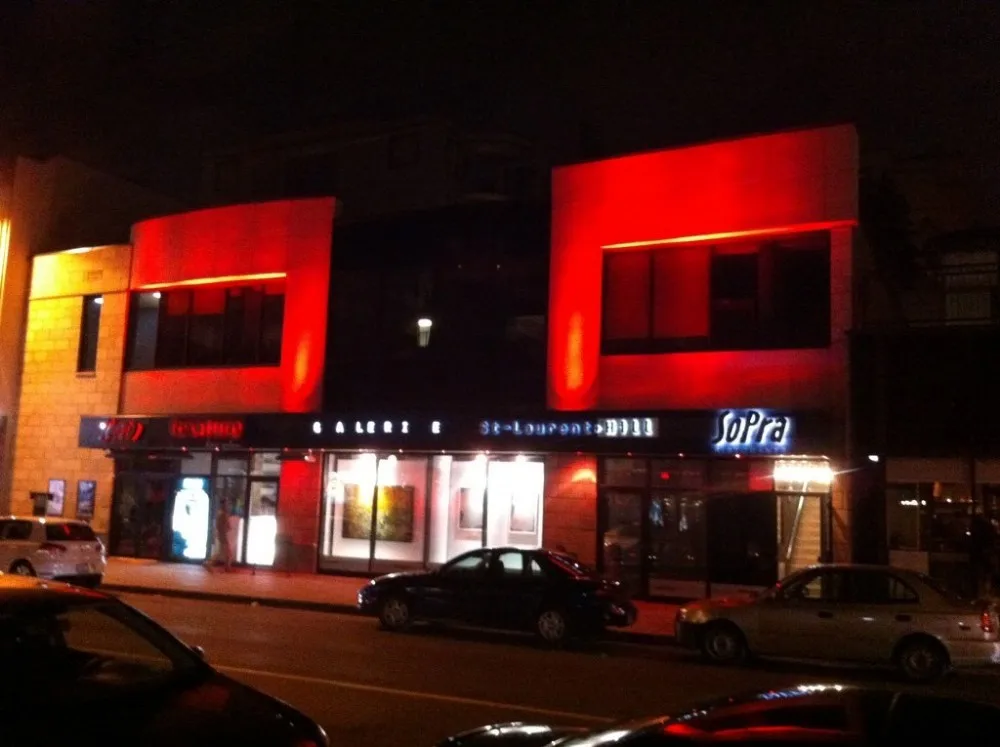

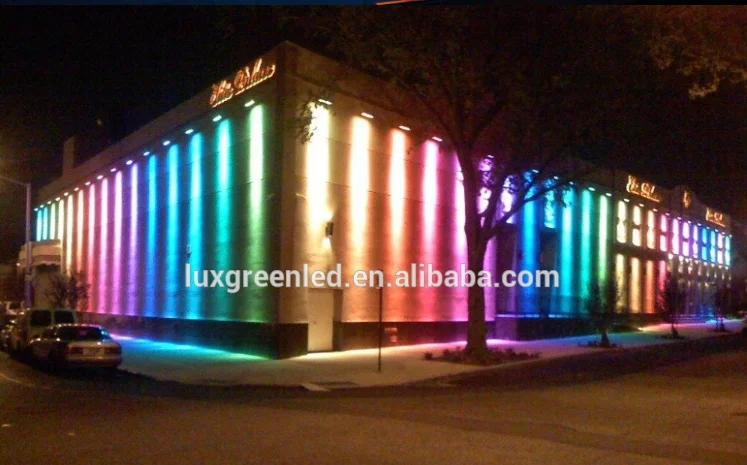

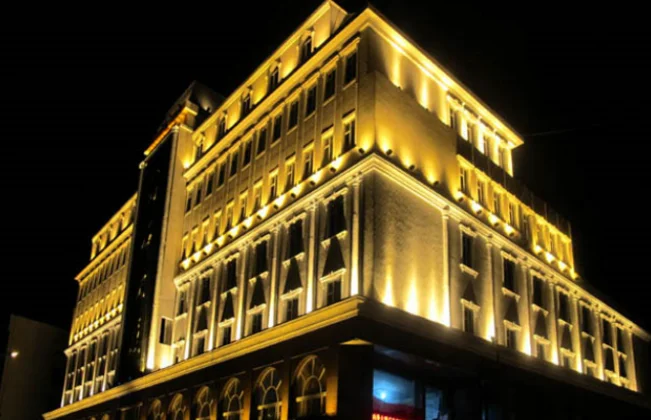

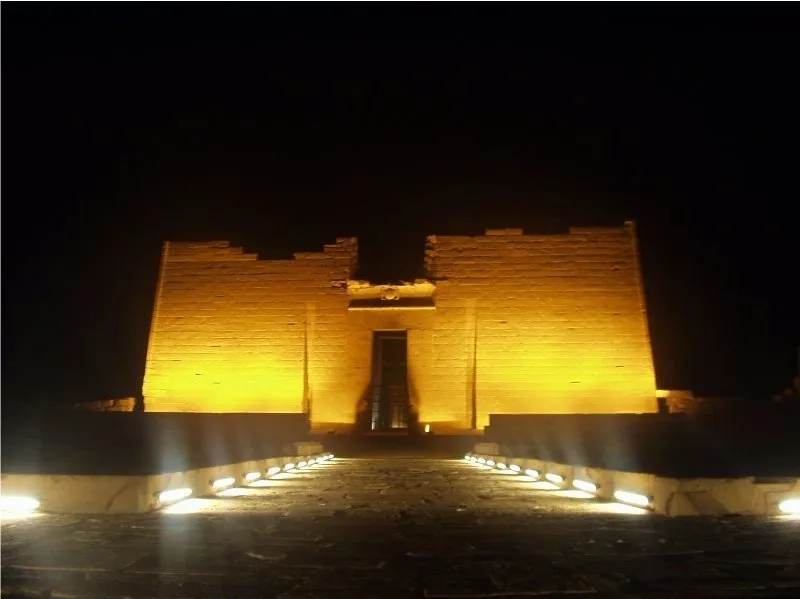

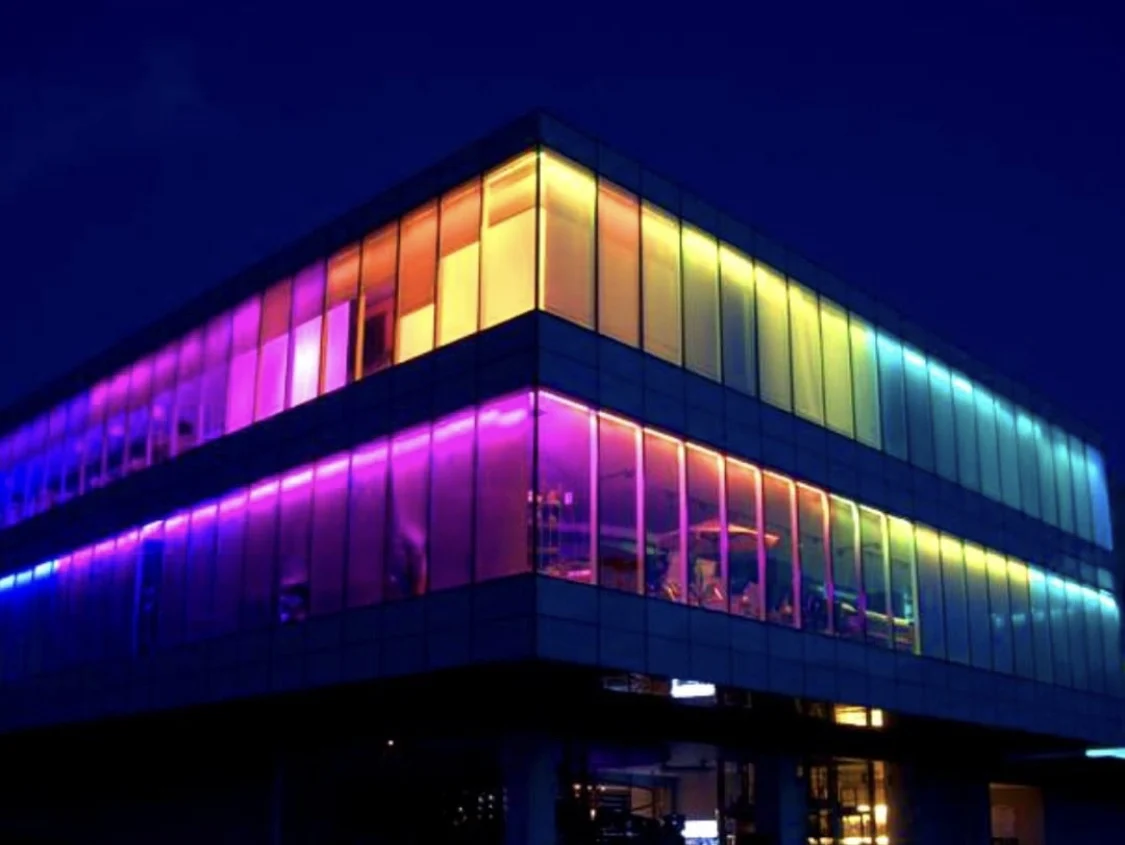

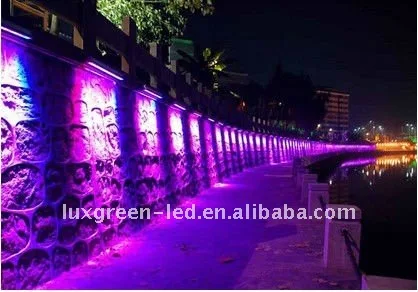

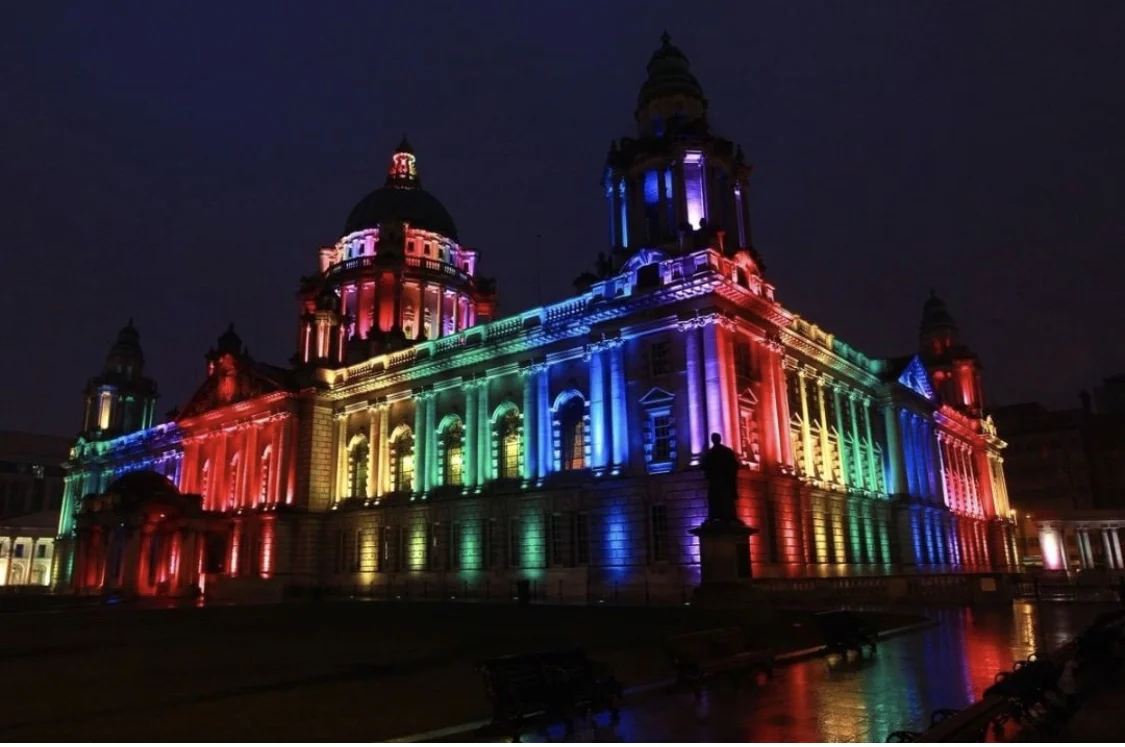

Applications

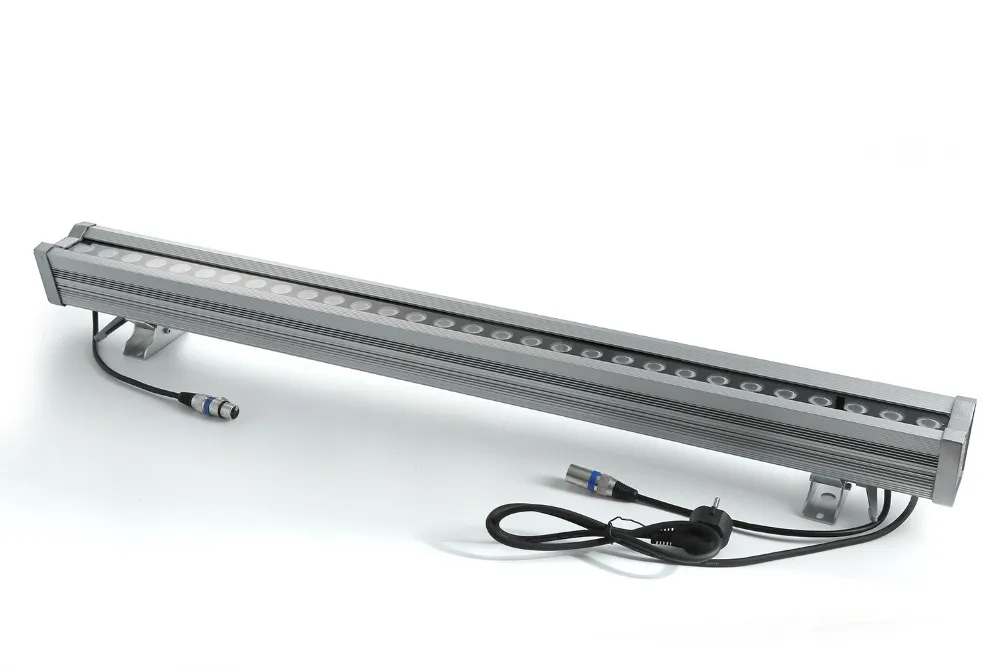

Product Description
Product Item No. | LUG-U30X1-RGB LED LED Wall washer light | ||||
Votage | 100-240V AC | ||||
Beam Angle | 15/30/45/60/80 Degrees | ||||
Lumens | R:480LM G:840LM B:300LM | ||||
Material | Aluminum alloy+ Tempered glass | ||||
Dimensions | 1000*75*105mm | ||||
Control Way | Control Mode: DMX512 5ch(r g b s d) DMX operation: DMX512 master/slave operation. Connection: 3-PIN DMX XLR Connectors, wall washer can connect each other via DMX XLR cables or wireless. | ||||
DMX Operation:
1. A-R is Red color (000~255), "000" is off, "255" is brightest,
A-G is Green color (000~255), "000" is off, "255" is brightest,
A-B is Blue color (000~255), "000" is off, "255" is brightest,
A-S is Strobe effect.
A-D is total dimming for all the leds, "000" RGB is all colors off, "255" RGB is all colors on brightest.
A-1 is Fade/rainbow effect.
A-2 is Color chasing effect.
2. Both of them have master/slave(sub-mater) operation / DMX512 connection between fixtures,
Our DMX wall washer is built-in DMX512 controller and power supply, which can be controlled and set mode from the side button of washer. and we can find an two DMX XLR connectors on washers, which can be used for connecting several devices one by one.
Then we can select any one as "Master" device. So all other wall washers set mode "Adr" as slave device.
We just operate the master, all slave washers will follow the "Master" to change colors at the same time.
If we only want red color, so "A-R" set "255", A-G and A-B "000".
"Adr" is slave, we only operate the Master, and all others will follow it.
A-G is Green color (000~255), "000" is off, "255" is brightest,
A-B is Blue color (000~255), "000" is off, "255" is brightest,
A-S is Strobe effect.
A-D is total dimming for all the leds, "000" RGB is all colors off, "255" RGB is all colors on brightest.
A-1 is Fade/rainbow effect.
A-2 is Color chasing effect.
2. Both of them have master/slave(sub-mater) operation / DMX512 connection between fixtures,
Our DMX wall washer is built-in DMX512 controller and power supply, which can be controlled and set mode from the side button of washer. and we can find an two DMX XLR connectors on washers, which can be used for connecting several devices one by one.
Then we can select any one as "Master" device. So all other wall washers set mode "Adr" as slave device.
We just operate the master, all slave washers will follow the "Master" to change colors at the same time.
If we only want red color, so "A-R" set "255", A-G and A-B "000".
"Adr" is slave, we only operate the Master, and all others will follow it.

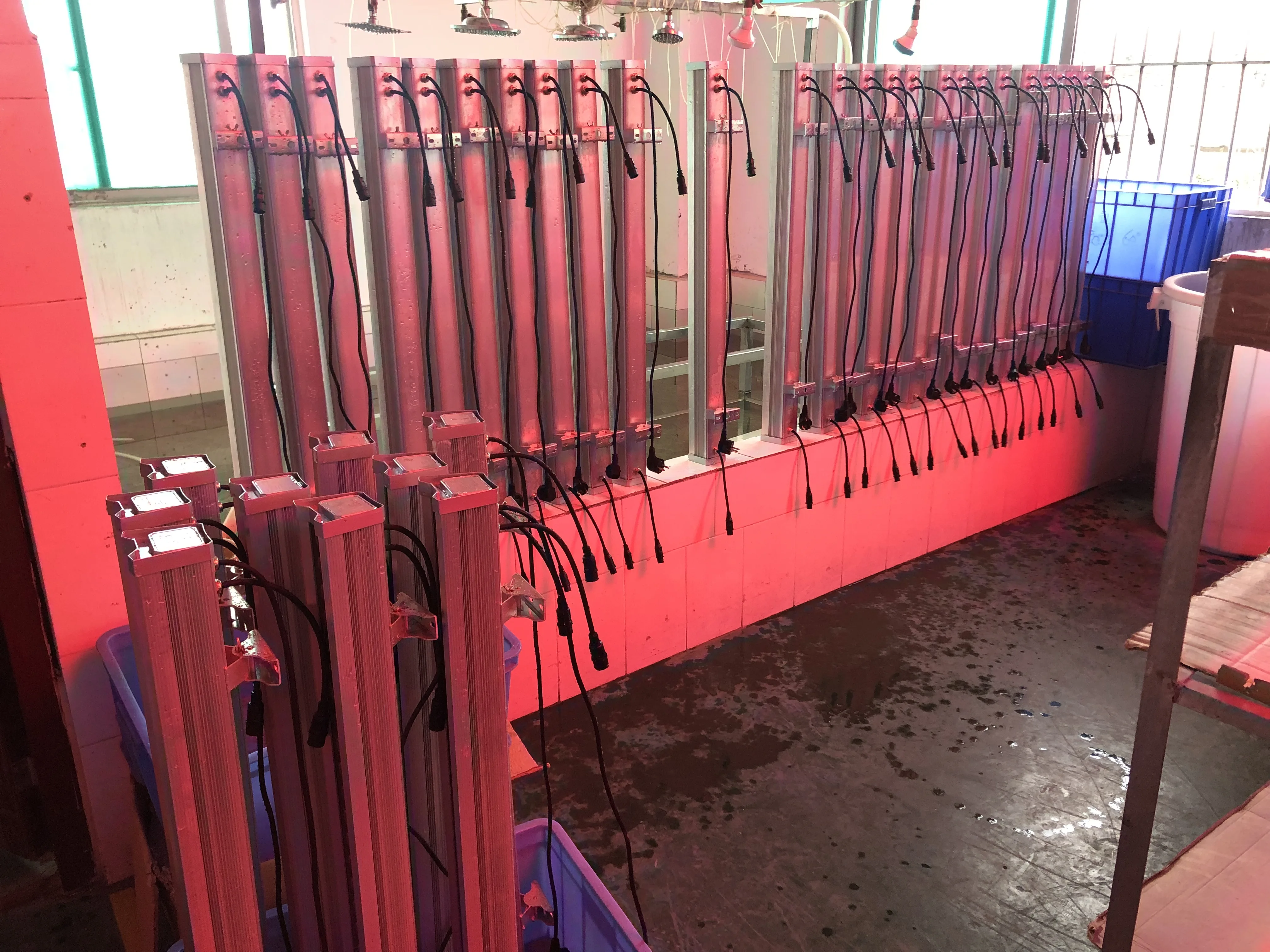

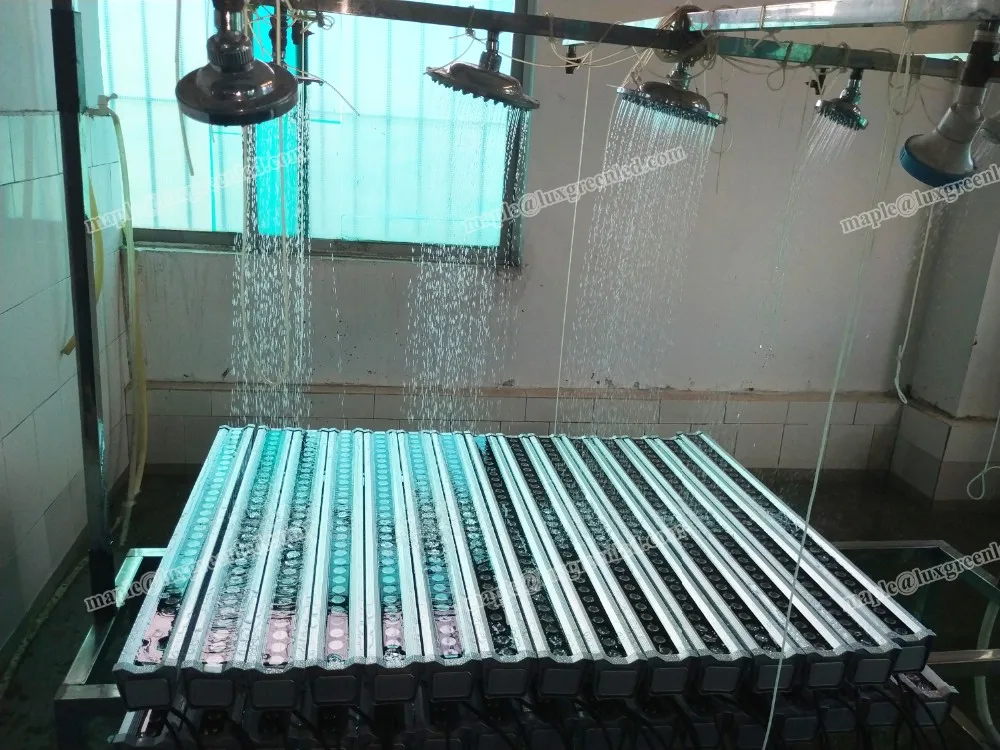

Waterproof test for all the lights before delilvery！
Recommend Products

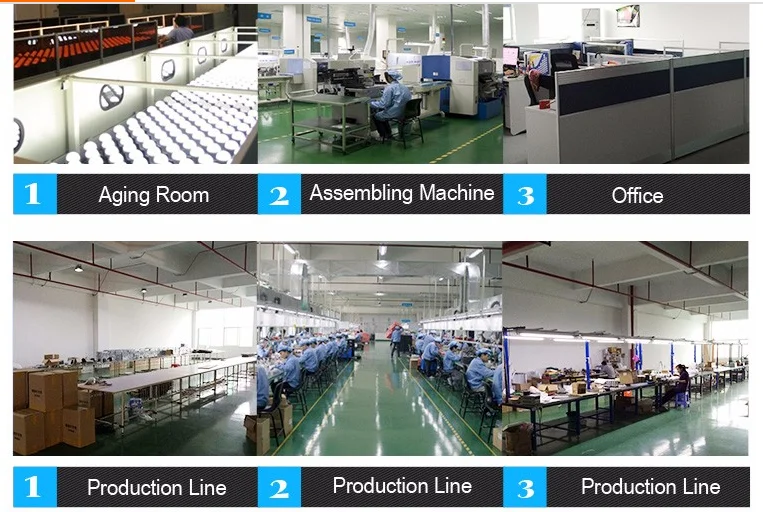

Our Company &Service
We are a factory producting led lights for over 9 years.
Golden supplier of Alibaba, exhibting HK LED fair every year.
In these years, we pay a lot attention in our products quality, also got good reputation from customers.
Our target is to be professional and make customers satisfied.
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q1: Are you a factory?
A: Yes, sure! We are professional manufacturer with over 11 years of OEM service. We welcome you to visit
our company when you come to China.
Q2: Can I have a sample order for your products?
A: Yes, sample test is welcome, we glad you choose our products.
Q3: What about the lead time?
A:Sample needs 5-7 days, mass production time needs 2 -3weeks for batch order.
Q4: Is it possible to print my logo on your products?
A: Yes. Please let us know before production ,we can stick label or laser print as your requirement.
Q5: How to deal with the failure products?
A:During the warranty period, if any product failed to work due to the quality problem of the product itself, we will send new
lights or new parts. It’s free for you.
Q6: What is the payment term?
A: For sample order, we can accept T/T, 100% in advance. For bulk order, 30% deposit in advance by T/T, balance before
shipping.
our company when you come to China.
Q2: Can I have a sample order for your products?
A: Yes, sample test is welcome, we glad you choose our products.
Q3: What about the lead time?
A:Sample needs 5-7 days, mass production time needs 2 -3weeks for batch order.
Q4: Is it possible to print my logo on your products?
A: Yes. Please let us know before production ,we can stick label or laser print as your requirement.
Q5: How to deal with the failure products?
A:During the warranty period, if any product failed to work due to the quality problem of the product itself, we will send new
lights or new parts. It’s free for you.
Q6: What is the payment term?
A: For sample order, we can accept T/T, 100% in advance. For bulk order, 30% deposit in advance by T/T, balance before
shipping.
