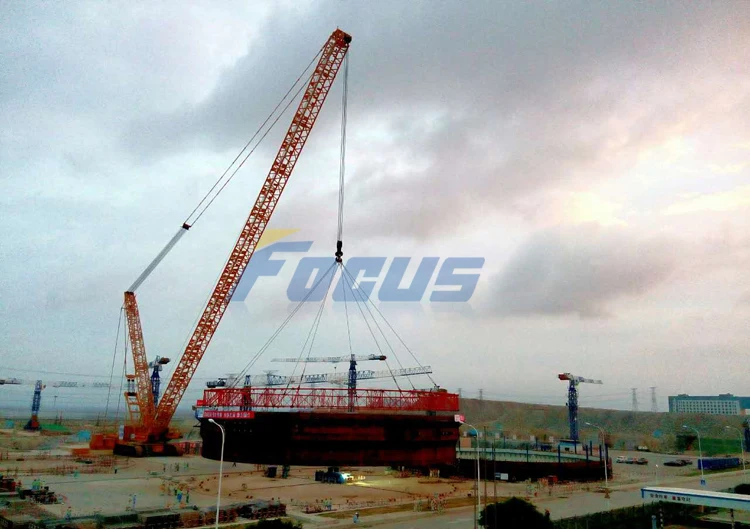

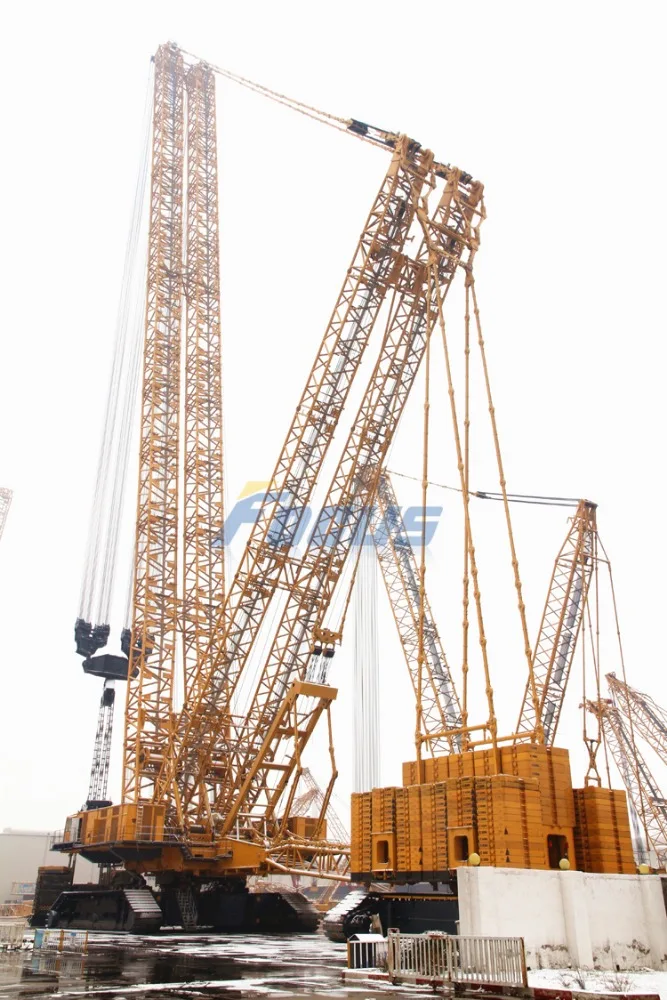

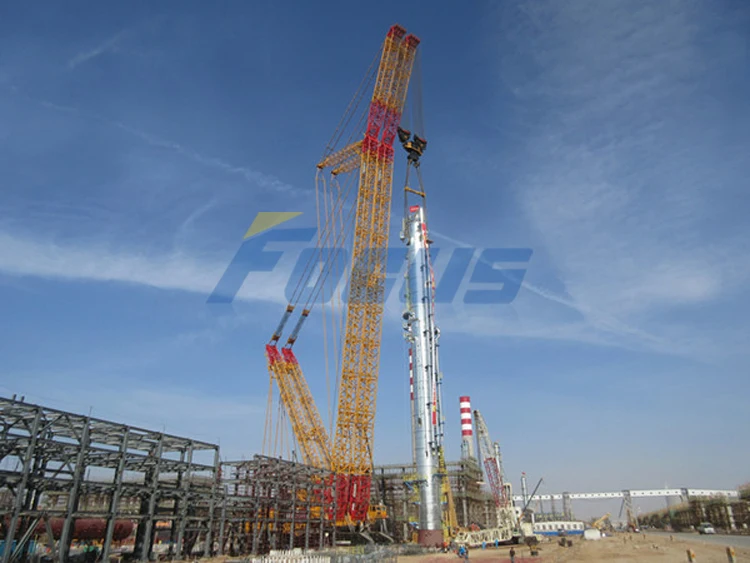

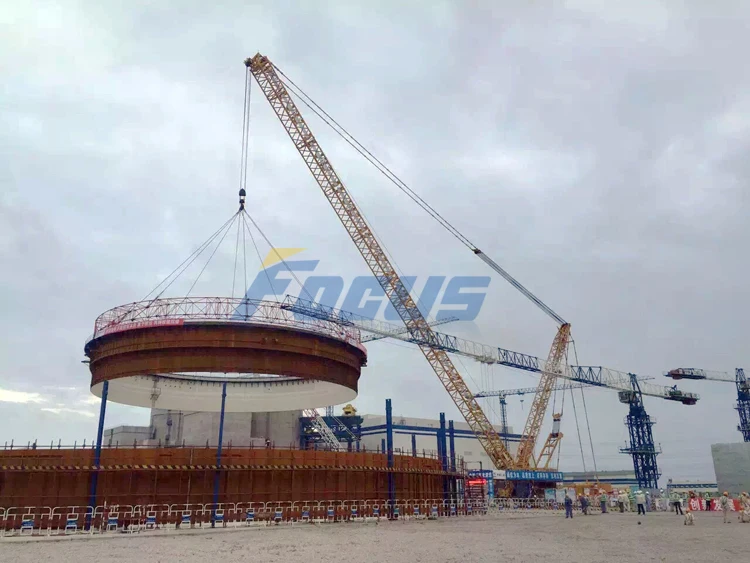

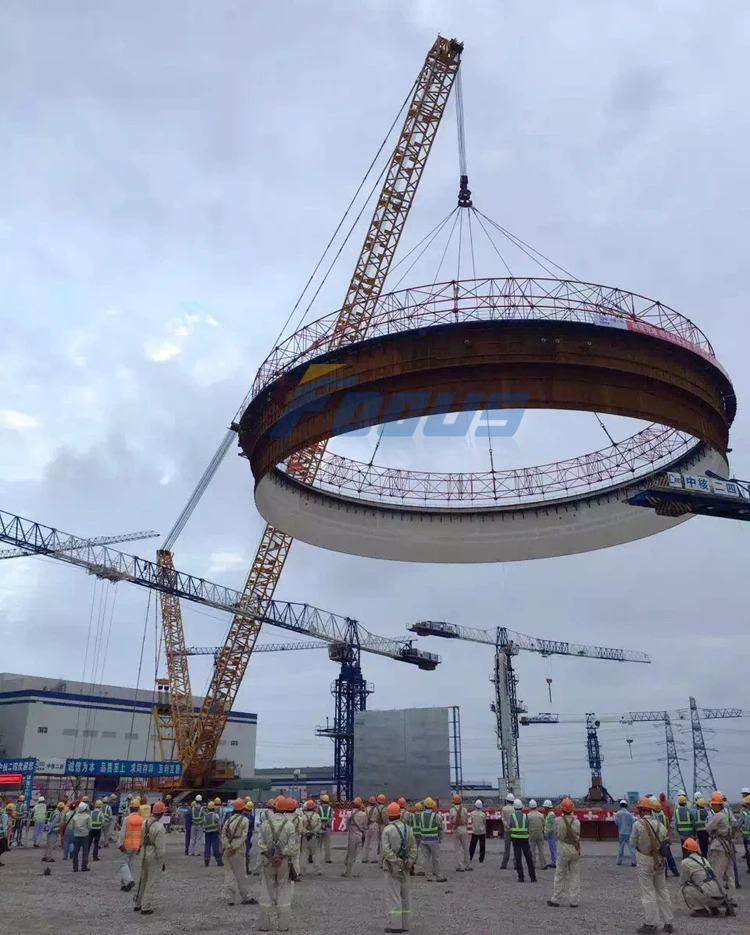

Cheap XGC400 Super Lift 400 Ton Crawler Crane for Sale

Product Overview

Description

Cheap XGC400 Super Lift 400 Ton Crawler Crane for Sale







Main parameters:

Max.lifting capacity: 400t

Main boom length:24~96M
Tower jib length: 24-84m





Main configuration:

* Engine:QSM11,298kw

* Hirschmann moment limitor

* Cabin with air conditioner







XGC400 is a new generation of crawler cranes developed on the basis of inheriting the advantages of QUY series products. The products are more safe and reliable, and enhance the convenience of disassembly and assembly, handling comfort and lifting performance. Equipped with mast a key to pull up, stepless and other advanced technology, all aspects of performance is better than the domestic counterparts.





OUR SERVICE:

* Warranty: We supply one year warranty for all the machines we exported, during the warranty, if there is problem caused by machine quality without improper operation, we will supply the replace genuine parts by DHL to clients freely to keep the machine in high efficiency work.

* Spare Parts: We have 7years experience on machine and spare parts supplying, we are efforts to supply Genuine brand spare parts with good prices, quick response and professional service.





Item	Unit	Parameter
Parameter item	-	XGC400
Performance parameters
Main boon rated liad	(t)	400
Fixed jib rated lifting weight	(t)	-
Luffing jib maximum rated lifting weight	(t)	185
Max Lifting Moment	(t.m)	5157
Tower jib maximum lifting weight	(t)	185
Working condition of single arm end pulley maximum rated lifting weight	(t)	26
	(t)	116
Dimension parameter
Main boom length	(m)	24~96
The main luffing Angle	(°)	-3~85
Fixed jib length	(m)	-
Tower jib length	(m)	24~84
Operating dimension(L*W*H)	(m)	11.1×3×3.38
Fixed jib installation Angle	(°)	-
Special deputy arm length	(m)	7
Speed parameter
The biggest single rope hoist speed	(m/min)	130
The boom luffer maximum speed of single rope	(m/min)	2×51
Deputy arm luffing mechanism's largest single rope speed	(m/min)	-
Maximum turning speed	(r/min)	1.1
Maximum travel speed	(km/h)	0.9
Gradeability	(%)	30
Average ground pressure	(MPa)	0.146
Luffing mechanism of tower arm's largest single rope speed	(m/min)	100
Over the range of maximum speed of single rope	(m/min)	105
Engine
Model	-	QSM11
power	(kW)	298
Emission	-	EuropeIII
mass parameter
Operating weight	(t)	350
Cargo status sheet maximum quality	(t)	48
