Specifications for wheat&rice combine harvester machine
Model
4LZ-7
Barn capacity
2m³
Feeding volume
7kg/s
Threshing type
dual- roll
Working width
2560mm
Horse power
165 HP
Working efficiency
6000-12000m2/h
Dimensions
6700*2900*3380mm
Product Advantage

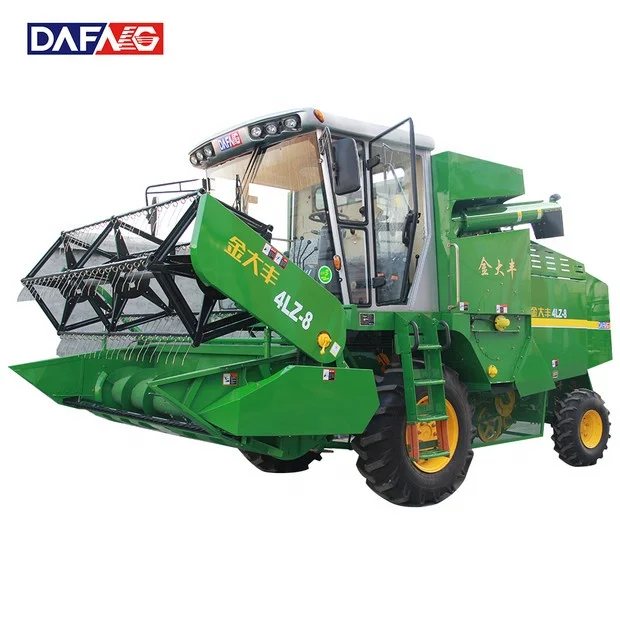

This model is applied to wheat and rice which can achieve harvesting, threshing, separating and cleaning all at one time. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms.

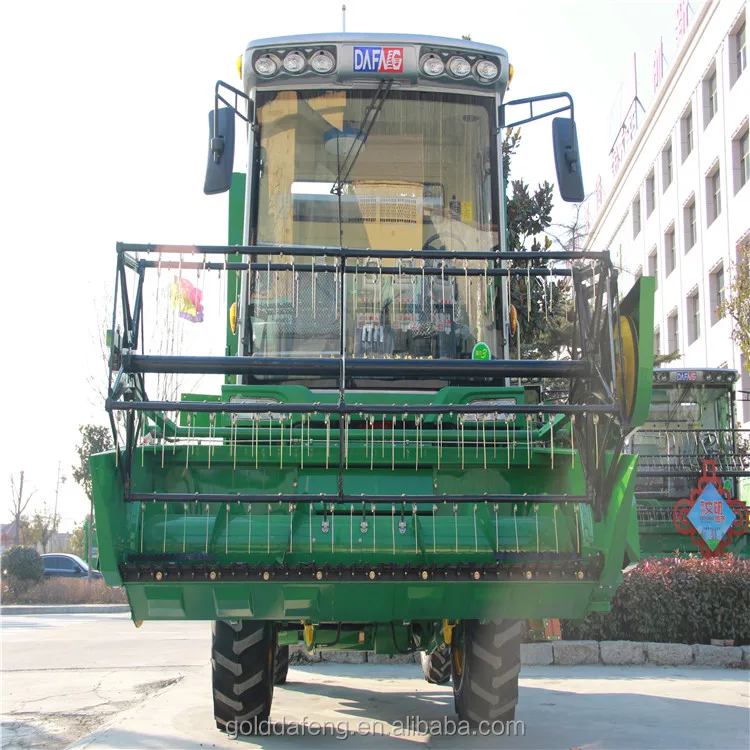

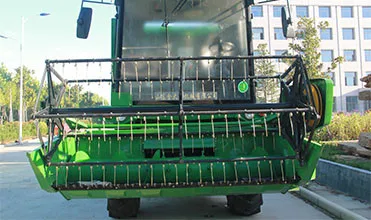

The cutting platform is equipped at the front of the body, which makes inclining T-shape with the threshing body, is applied to cutting and delivering. Hydraulic controlled lifting of the cutting platform and reel enable the operation more reliable. The threshing and cleaning which includes threshing, separating, cleaning and delivering mechanism etc. is applied to threshing, separating, cleaning and delivering the seeds to the storage box, with the terms in strips and chaffed spread to the ground.

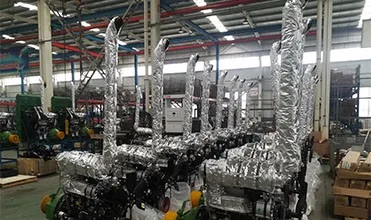

The 165 HP engine is located at the top of the cleaning room, which offer the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels. The cabin includes the operating mechanism and the instrument system which is for the operating and monitoring the working system.
