Nantong 4axis cnc turret machine milling with taiwan OEM head used machining center
- Category: >>>
- Supplier: Nantong YIJI Machinery Co. Ltd.
Share on (60736456514):
Product Overview
Description
Product Description
Main feature
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.

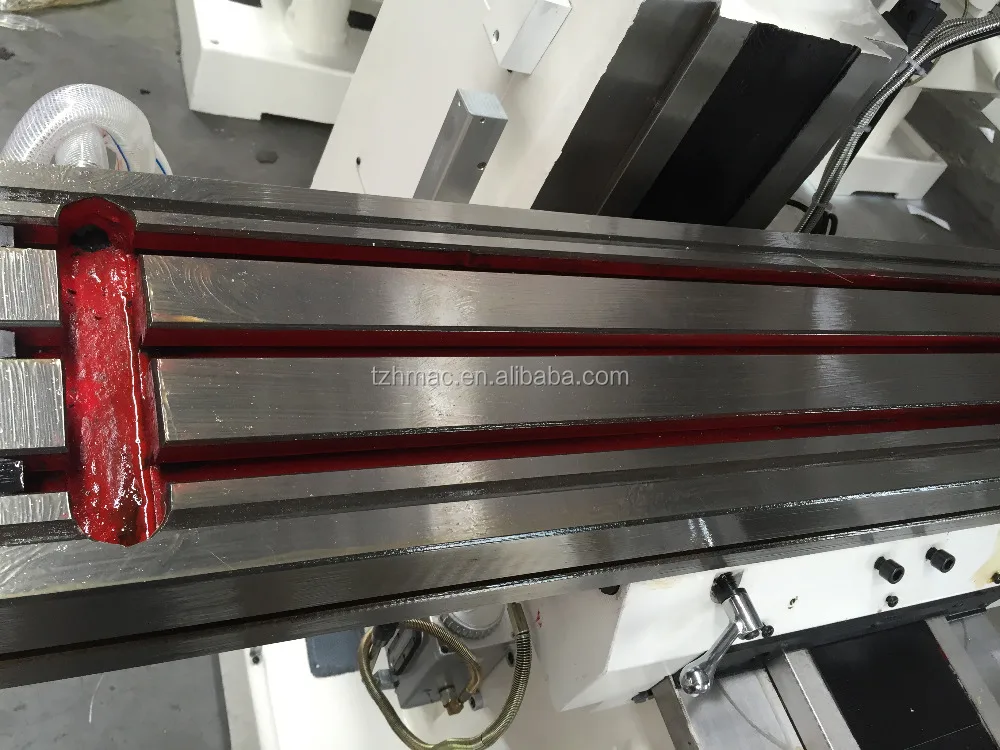

6. The working table and guide rail are heating treated and precision grinding.

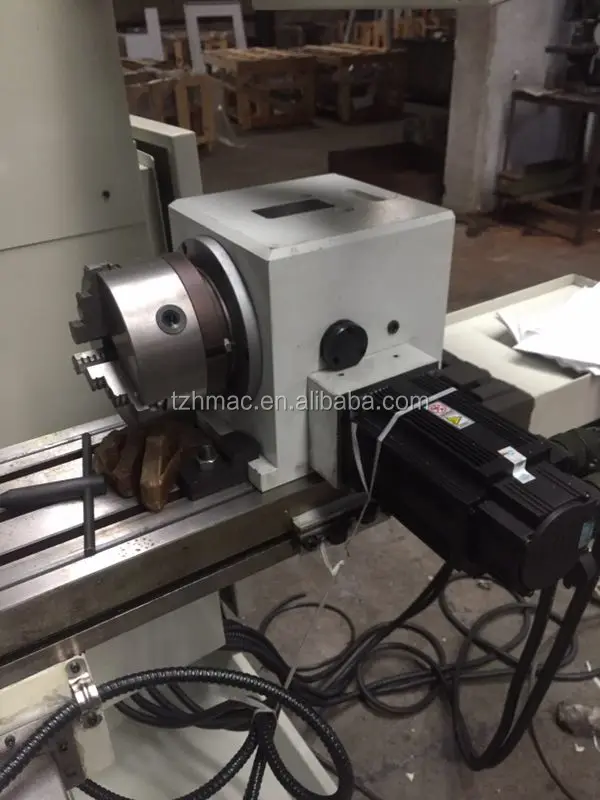

7. Dividing head are for option.
| Model | XK6325A | XK6325B | XK6330 | XK6332 |
| Main motor power | 3HP | 3HP | 5HP | 5HP |
| Spindle Taper | R8/NT30 | R8/NT30 | NT40 | R8/NT30 |
| Spindle Bore Dia. | 85.725mm | 85.725mm | 105mm | 85.725mm |
| Spindle Speeds | 50HZ/65-4500rpm 60HZ/80-5440rpm | 50HZ/65-4500rpm 60HZ/80-5440rpm | 50HZ/65-4500rpm 60HZ/80-5440rpm | 50HZ/65-4500rpm 60HZ/80-5440rpm |
| T-slots | 16mm×3×65mm | 16mm×3×65mm | 16mm×3×65mm | 16mm×3×65mm |
| Working Table Size | 254×1270/1370mm | 254×1270/1370mm | 305×1370mm | 320×1670mm |
| Longitudinal Travel(X) | 700/800mm | 750/850mm | 750mm | 750/850mm |
| Lateral Travel(Y) | 380mm | 380mm | 420mm | 380mm |
| Knee vertical travel(Z) | 400mm | 400mm | 450mm | 400mm |
| Spindle quill travel | 120mm | 100mm | 130mm | 100mm |
| Spindle end to table surface | 0-400mm | 0-400mm | 0-450mm | 0-400mm |
| X/Y/Z Rapid Moving speed | 5/5/3m/min | 5/5/5m/min | 5/5/3m/min | 5/5/5m/min |
| X/Y/Z Servo Motor | 6N.m/6N.m/7.7N.m | 6N.m/6N.m/6N.m | 6N.m/6N.m/7.7N.m | 6N.m/6N.m/6N.m |
| Positioning Accuracy | 0.02 | 0.02 | 0.02 | 0.02 |
| Repeat Positioning Accuracy | 0.01 | 0.008 | 0.01 | 0.008 |
| Form of X shaft orbit | Dovetail | Dovetail | Dovetail | Dovetail |
| Form of Y shaft orbit | Souare Rail | Souare Rail | Souare Rail | Souare Rail |
| Form of Z shaft orbit | Dovetail | Souare Rail | Souare Rail | Souare Rail |
| Table Load | 300KG | 350KG | 400KG | 400KG |
| Machine Diamension (L×W×H) | 173×170×215cm | 160×160×210cm | 203×180×230cm | 230×160×210cm |
| Net Weight | 1600kg | 1700kg | 2000kg | 2000kg |
| CNC system | KND OR GSK | KND OR GSK | KND OR GSK | KND OR GSK |
| Standard accessories | |||
| Draw bar | tool and tool box | working light | eletric box |
| hand oil pump | rubber chip cover | Coolant system | Lubrication system |
| Optional | |||
| Machine vice 6" | milling collets 7 pcs | 52pcs clamping kits | Dividing head |
| Spindle Guard | |||

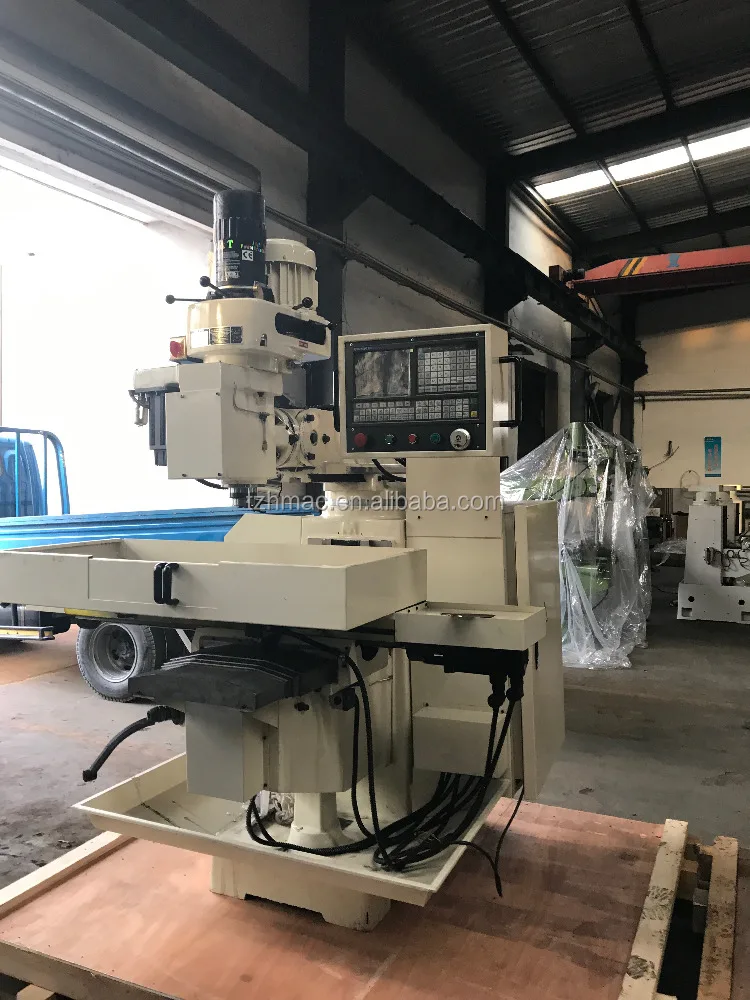

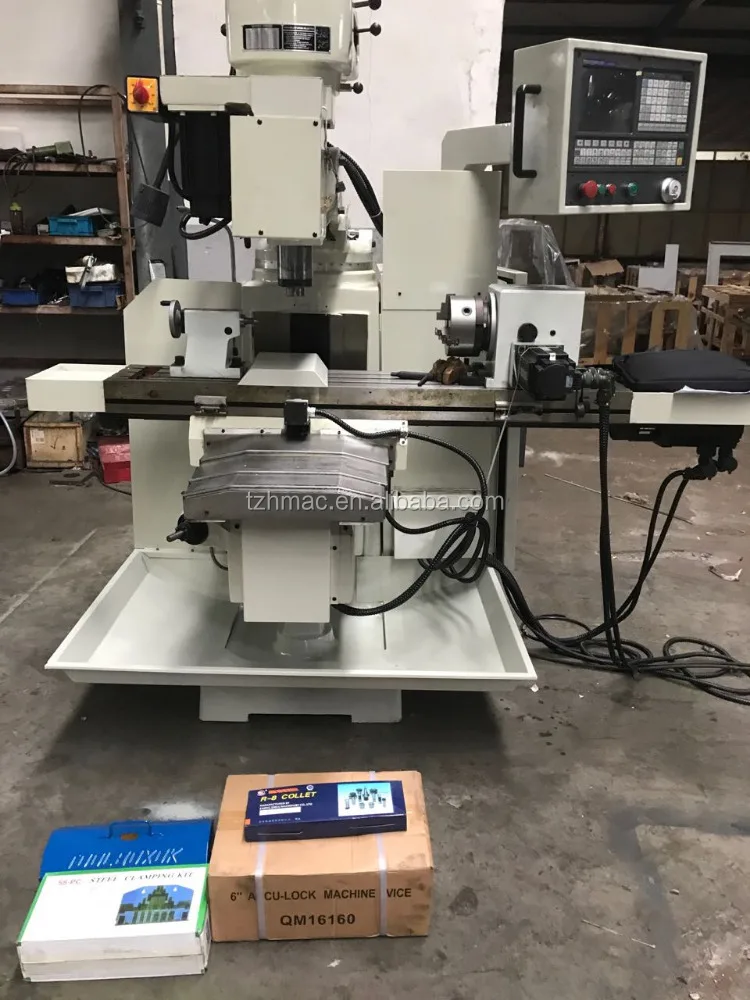

Detailed Images
We take carefully inspection in machine accuracy ,keep high quality to customer .
FAQ
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?

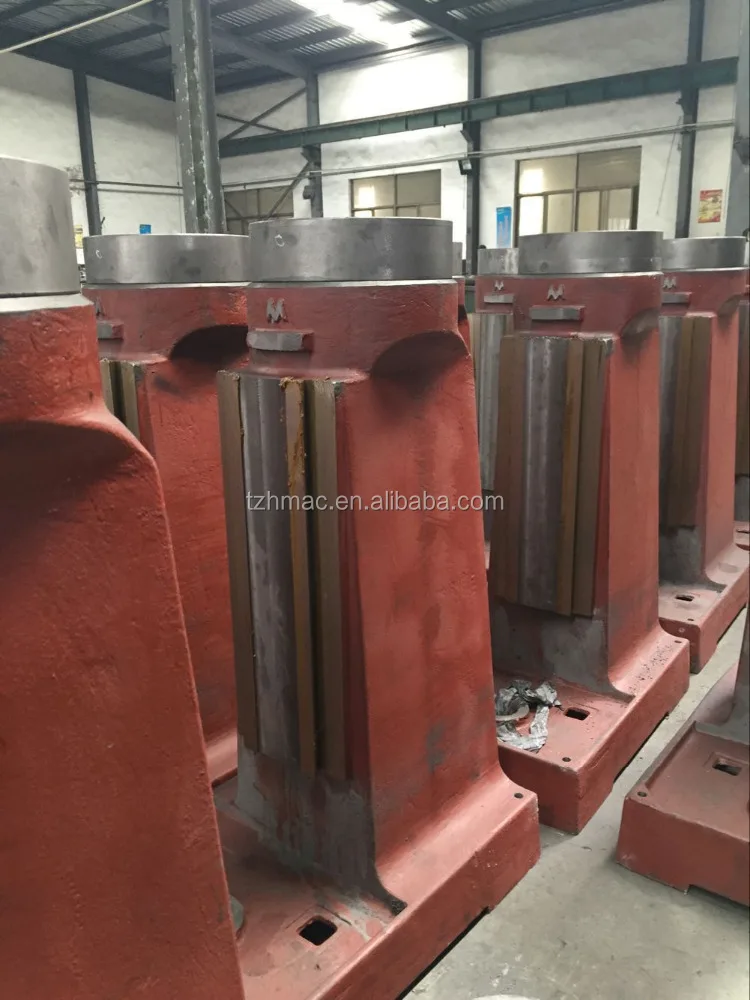

The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained
1. How should i pay for my order ? what is the procession of this purchase ?
we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?
The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained
Our Service
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Contact
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.
Packing & Delivery
Our Company
Welcome to Yiji Machiney Tool Co., Ltd
Welcome to Yiji Machiney Tool Co., Ltd
our company as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation,specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulicpressbrake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
