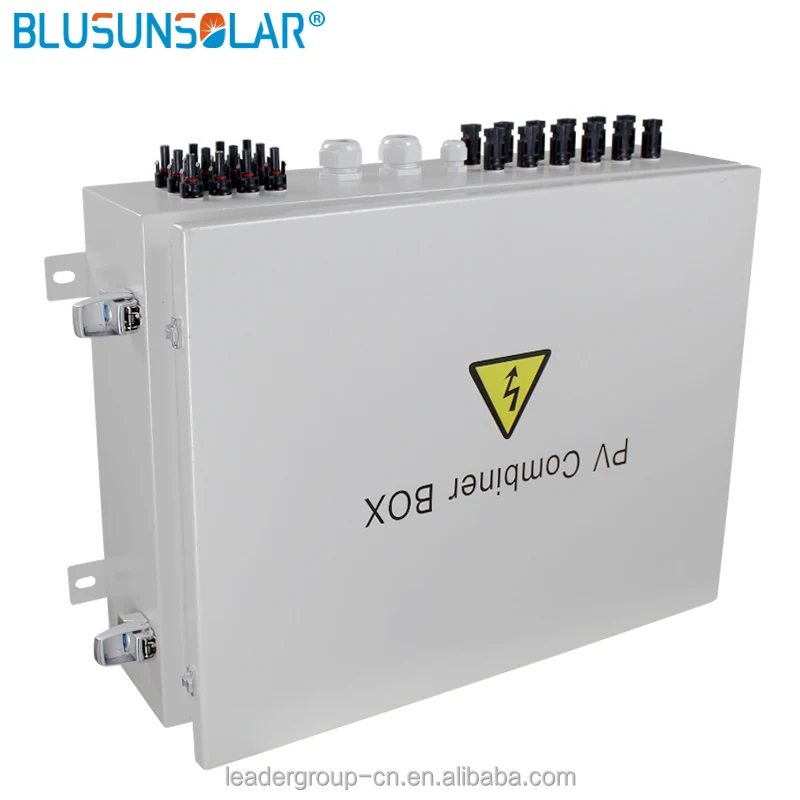

12 String input to 1 string output for off grid solar energy system Photovoltaic Array Solar PV Combiner Box
- Category: >>>
- Supplier: Dongguan Lude Photovoltaic Co. Ltd.
Share on (60736503522):
Product Overview
Description
Product Description

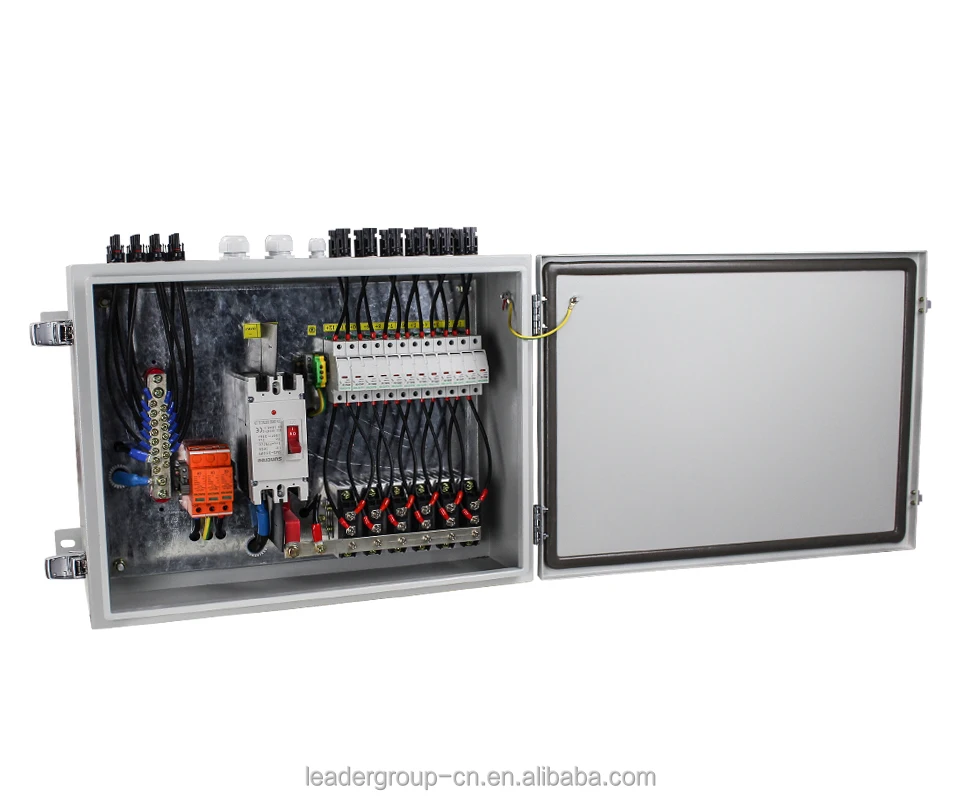

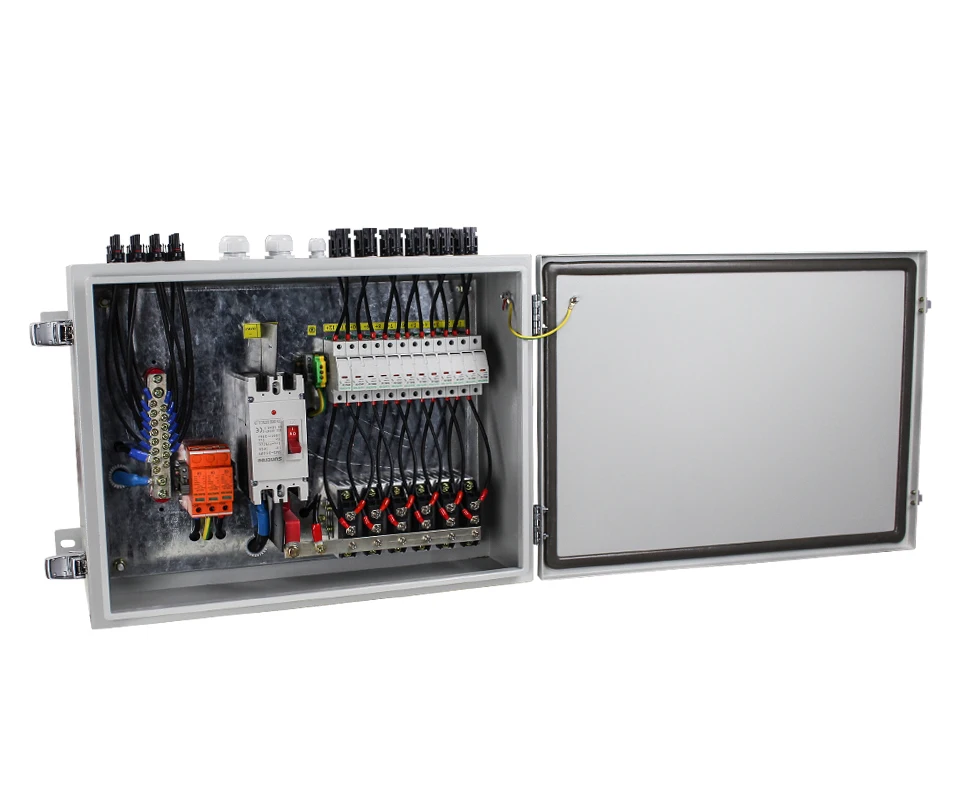

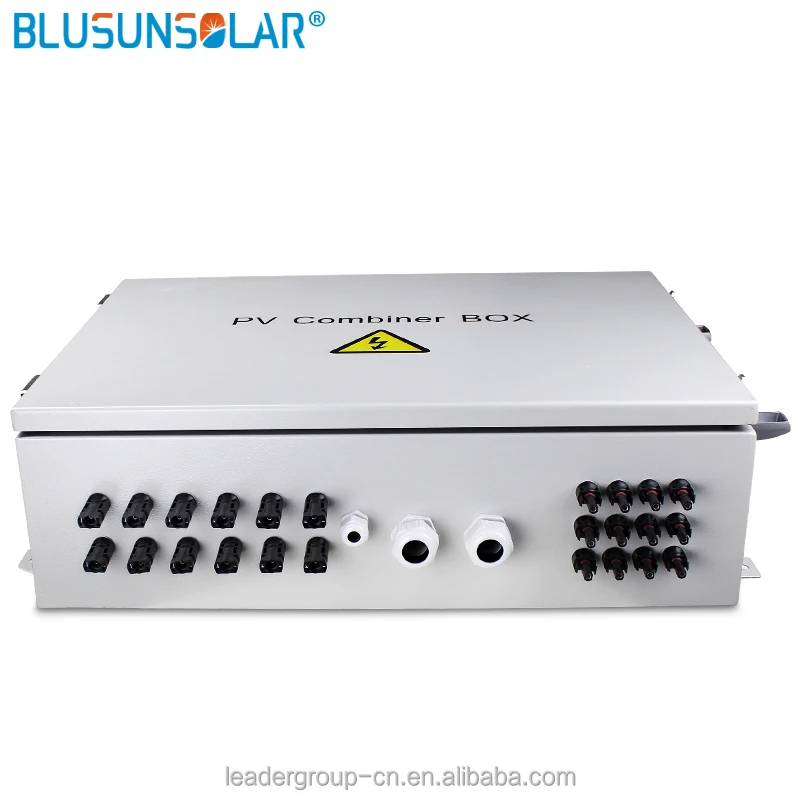

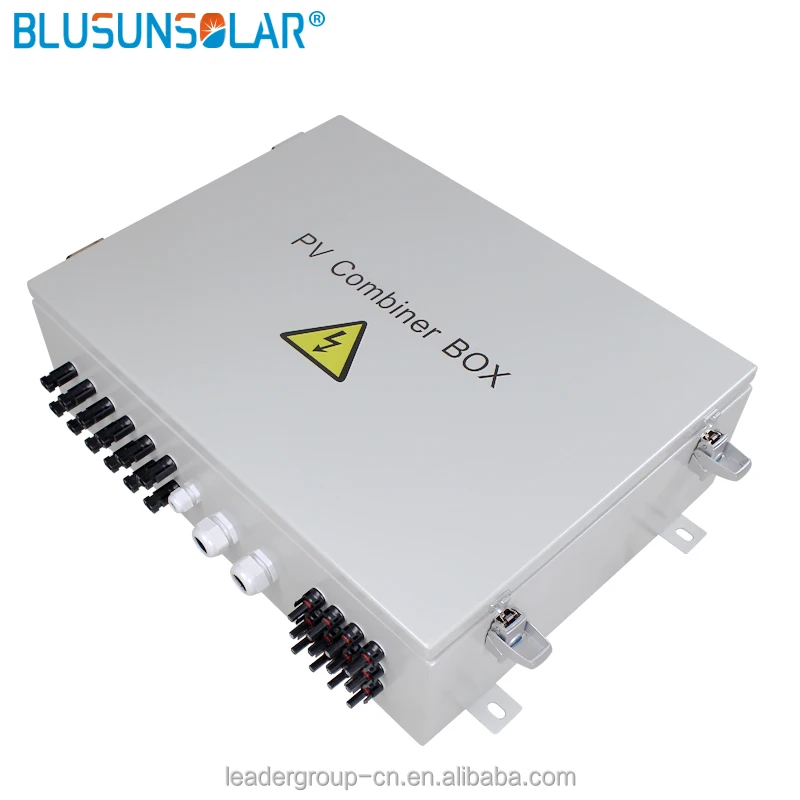

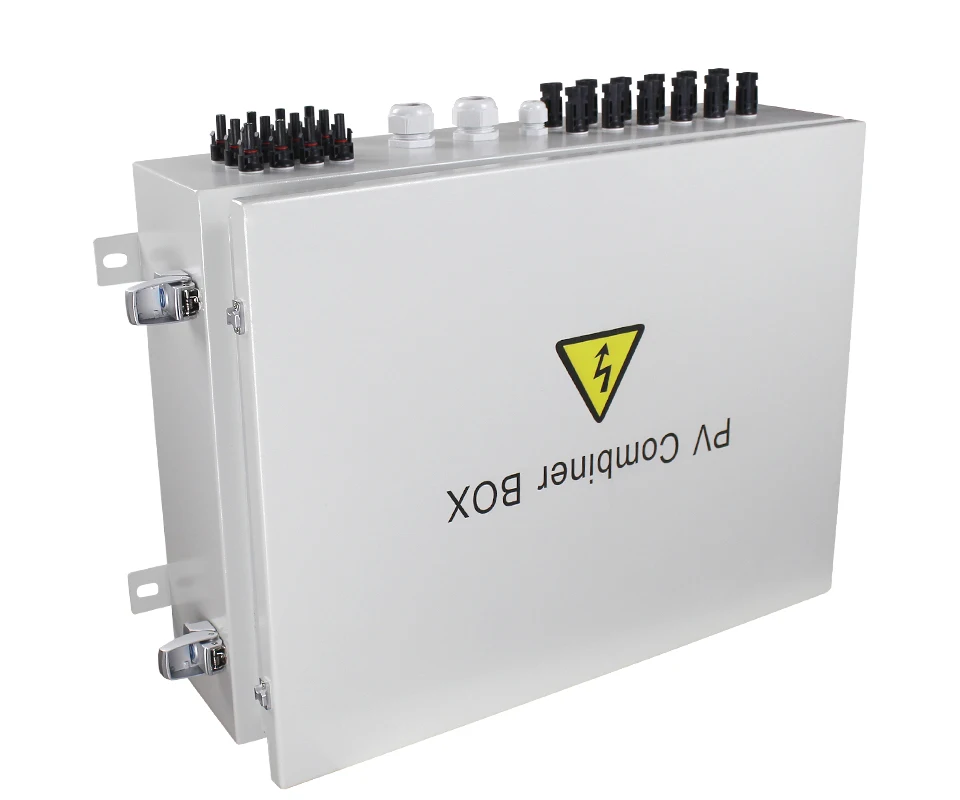

Hgih quality Stainless Steel Housing 1000VDC 12 strings input and 1 string output combiner box with 15A fuse and MC4 panel
Product description

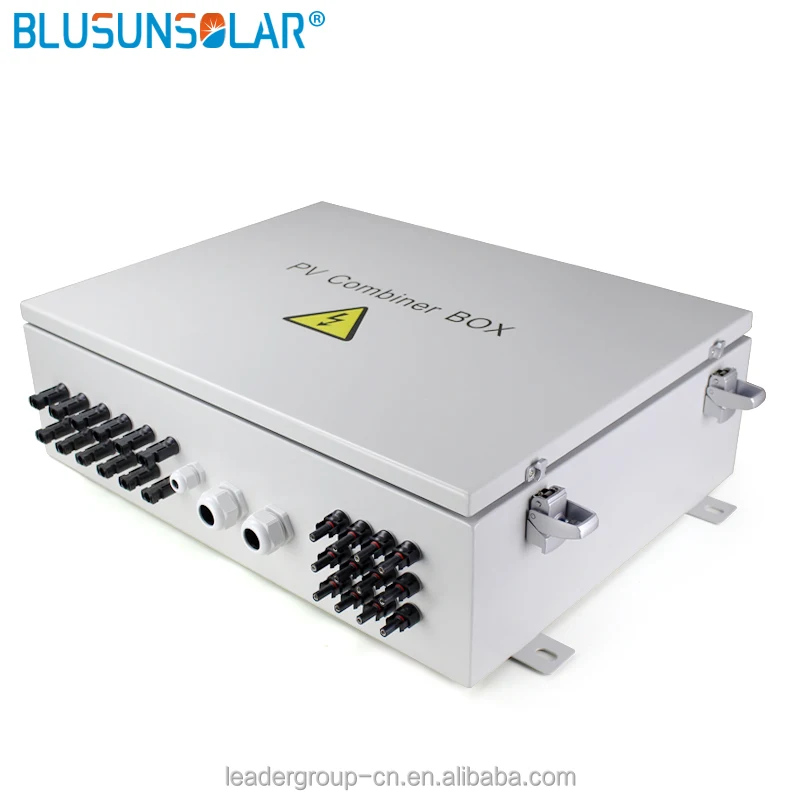

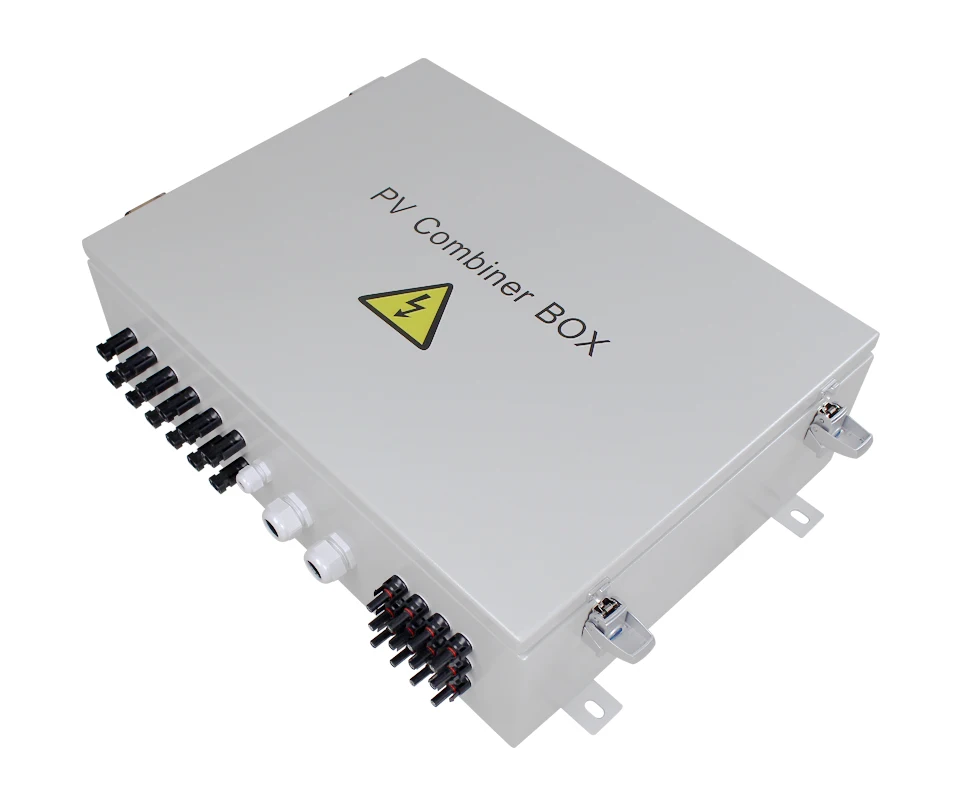

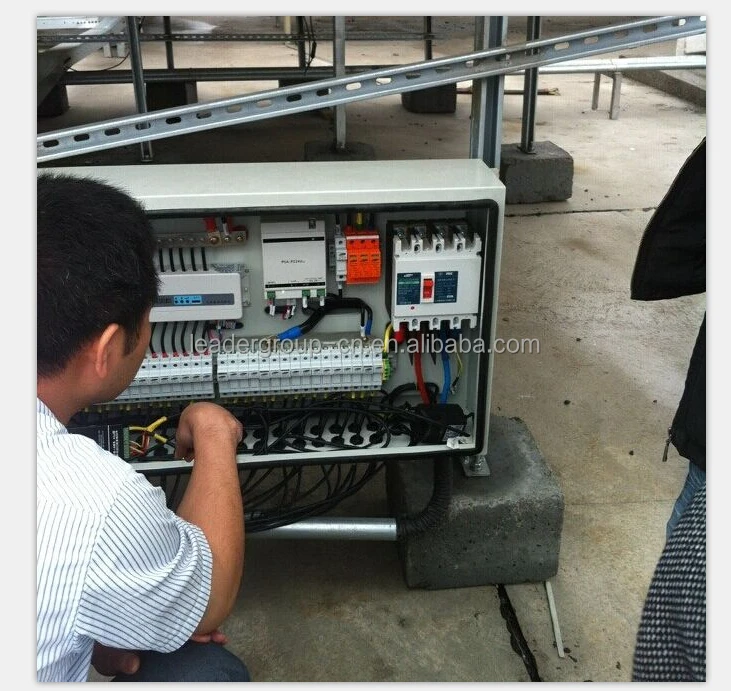

SHLX-PV12/1 1000VDC COMBINER BOX
♦High reliability
With DC FUSE
With DC Surge Protection Device
With DC circuit breaker or DC load isolation switch.
♦Strong adaptability
IP65 desigh,waterproof,anti dust and anti ularaviolet.
Strict test for high and low temperature,used widely/

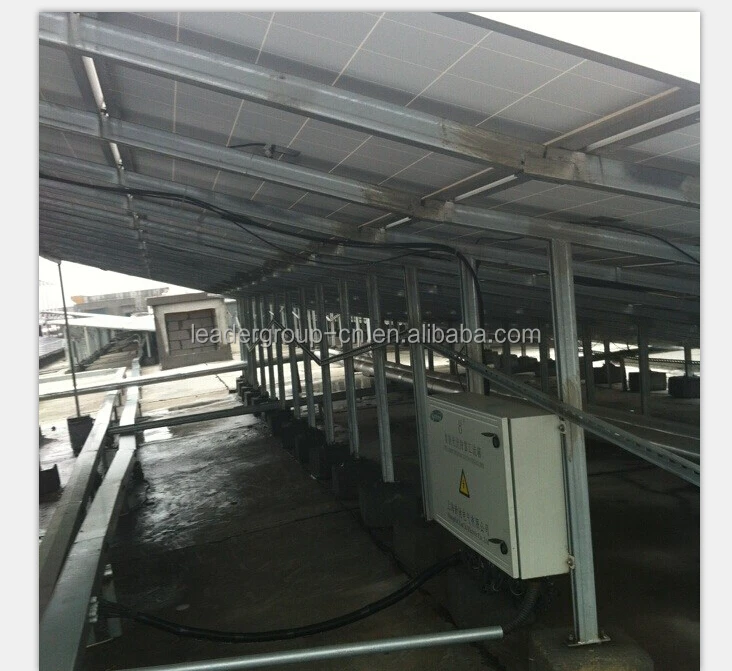

The simple installation, the simplified system wiring, the convenient wiring.
The box body is made of cold rolled steel and other metal materials.
♦Flexible configuration
Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, cicuit breaker, load isolation switch is modified.
Technical Parament
| Name | SHLX-PV12/1 | |
| Electric parameter | ||
| System maximum dc voltage | / | 1000 |
| Maximum input current for each string | 10A | |
| DC fuse rating | 15A | |
| No. of input/output array | 3 | |
| Number of Iutput strings | 12 | |
| Number of Output strings | 1 | |
| Max diameter of each input cable(mm) | 10mm | |
| Max diameter of each input cable(mm) | 40mm | |
| Communication interface | Rs485 Modbus | |
| Voltage protection level | 2.8kV | 3.8kV |
Maximum continuous operating voltage Uc | 630V | 1050V |
| Poles | / | / |
| Structure characteristic | ||
| System | ||
| Protection grade | IP65 | |
MINI Circuit breaker | SM1-225/4P/DC1000V | |
| SMC4 Waterproof Connectors | Standard | |
| PV dc fuse | Standard | |
| PV surge protrctor | SUP4-S40/3PDC1000V | |
| Monitoring module | / | |
| Preventing diode | / | |
| Box material | Cold rolled steel box | |
| Installation method | Wall mounting type | |
| Operating Temperature | –25℃~+70℃ | |
| Elevation of temperature | 2km | |
| Permissible relative humidity | 0-95%,no condensation | |
| Flame retardance comform to IEC60695-2-11, ULsubject to 94V-2 | ||
| Width*High*Depth(mm) | 640*450*180
| |
