8% Nickel Stainless Steel 304 #100 Woven Wire Mesh For Industrial Filters Screen
- Category: >>>
- Supplier: Anping Web Wire Mesh Co. Ltd.
Share on (60736522894):
Product Overview
Description

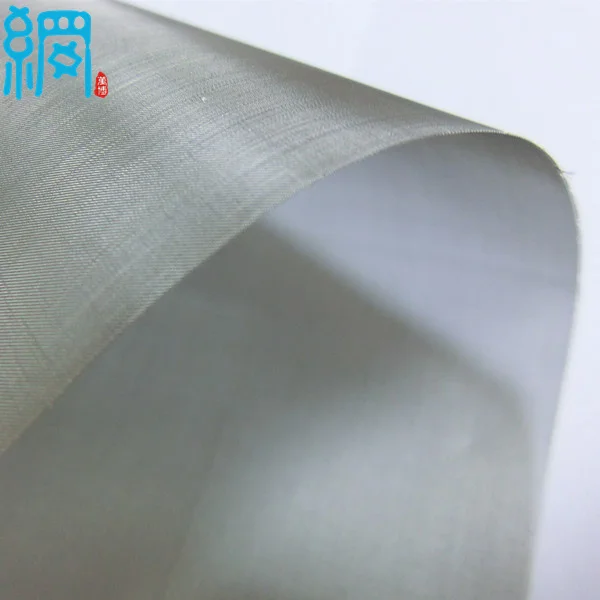

8% Nickel Stainless Steel 304 #100 Woven Wire Mesh For Industrial Filters Screen
Material is the most important base of mesh.It directly affects the mesh quality under different using environment. Stainless steel wire is purchased from big steel manufacturer to ensure best and stable quality .Material certificate includes chemistry compostion (C,Cr,Ni etc.) and physical property (tensile strength,elongation etc.). And it will be also companied with goods when out of factory.
Product Description
For #100 Woven Wire Mesh,it refers that there are 100 holes per linear inch. Usually,it is produced in plain weave type with square hole. The Most common wire diameter for #100 mesh is 0.10mm (42 SWG)
| Specification of #100 Woven Wire Mesh | |
| Aperture size | 150 micron |
| Wire Diameter | 0.10mm |
| Open area | 36.76% |
| Mesh No. | 100 Mesh |
| Unit Weight | 0.5 kgs/square meter |
Material
Material is the most important base of mesh chemical composition:
Material | Chemical Composition % | |||||||
| C | Si | Mn | P | S | Ni | Cr | Mo |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8-10 | 18-20 |
|
>Weave type
Production Range of woven wire mesh
1.Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321.
2.Wire Diameter: 0.015-1mm
3.Mesh No.:3x3 mesh to 325x2300 mesh (' Mesh' means the numbers of hole in one inch line)
4.Filtration accuracy: the finest up to 5 micron.
5.Weave type: Plain Weave,Twilled weave,dutch weave.
6.Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m etc. (or cut as your request)
7.Roll Length: 15m,30m,60m,100m,200m

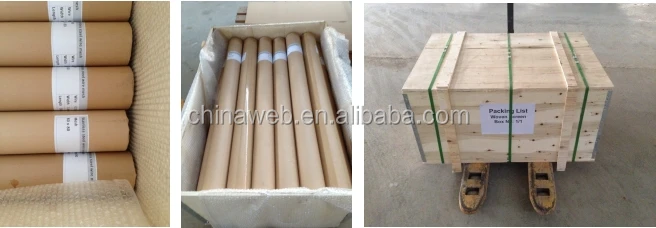

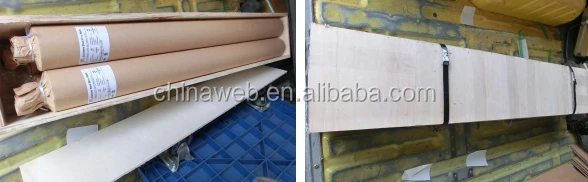

Packaging
Sample packing
Bulk order packing.
Stainless steel woven wire mesh is packed with water-proof paper and plastic film,then will be put in wooden cases.
