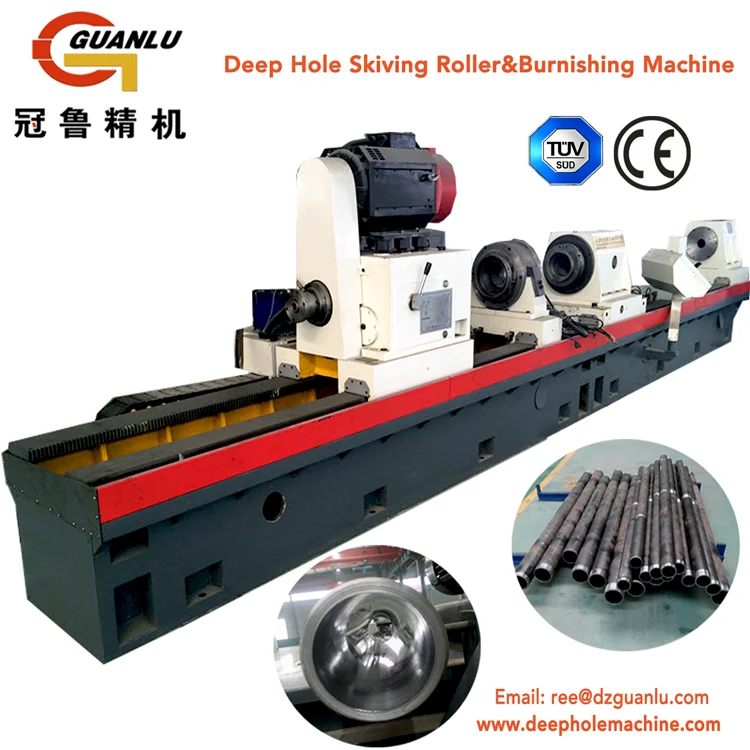

Automatic cylinder roller skiving and burnishing machine automatic polishing machine
Product Description
The processing property of the CNC skiving roller burnishing machine:
Machine bed is manufactured by the high quality cast iron, with strong rigidity and strong stability.
Boring bar box spindle is driven by 70KW ac servo motor, boring bar box spindle is driven by servo motor, wide speed range, large output torque, feed system uses 48NM ac servo motor driven double rack transmission, smooth feeding, long service life and can adapt to the needs of all kinds of deep hole machining process, workpiece loading card adopts tight hydraulic cylinder, stable and reliable, easy handling, electrical system adopts centralized control CNC system, can be interactive, graphical display, flexible operation, safe and reliable.
In production it is suitable for mass production can also be suitable for small batch production.
Technical parameters:
Item
Parameter
Working scope
Boring hole diameter range
Dia38-250mm
Workpiece length
3000mm
Boring bar box spindle parameters
Center height
> 350mm
Leading end of cone hole boring bar box Spindle
Dia85mm 1:20
The spindle speed range
50-1000r/min
Ac frequency conversion stepless speed regulation)
Output shaft torque
≥1500N.m
Feed parameters
Feed speed range
5-2000mm/min(stepless)
Plate moving fast
3m/min
Machining accuracy
Locate the length
0-6m
Workpiece surface roughness of boring
≤Ra3.2μm

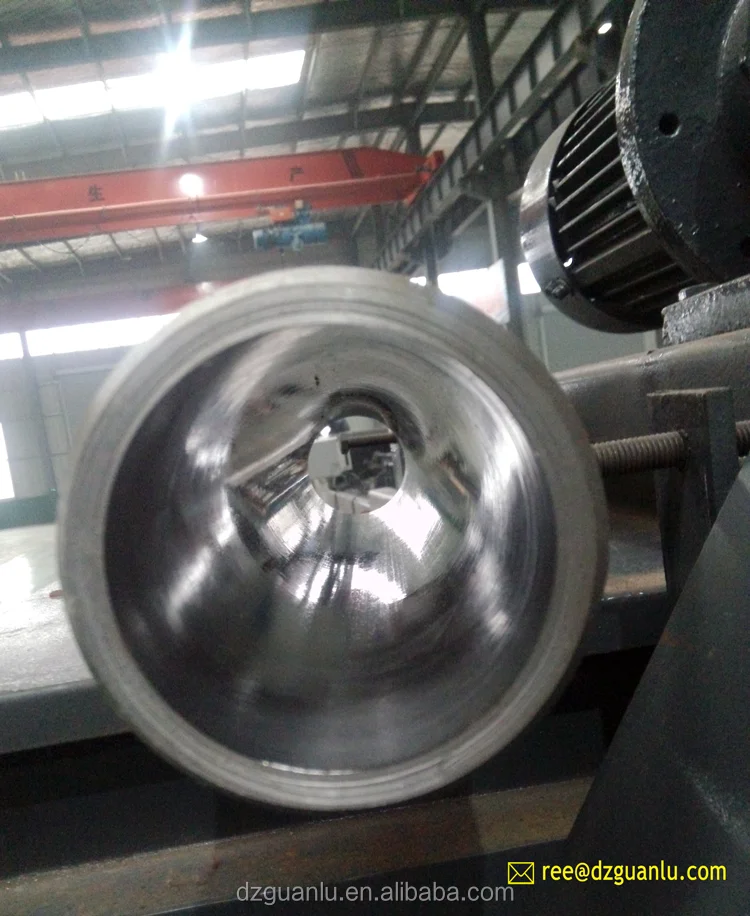

Workpiece surface roughness of rolling
≤Ra0.4μm
Workpiece machining straightness
≤0.05/500 mm
Workpiece machining roundness
≤0.036/200mm
Motor capacity
Boring bar motor power
60KW Ac servo motor
Feed motor
48NM Ac servo motor
Hydraulic pump station motor
3KW Ac motor
Output cooling pump motor power
11KW one set,
7.5KW one set
Automatic chip removal motor power
1.5KW one set
Magnetic separator motor power
0.75KW one set
Centralized lubrication motor
0.75KW one set
Others
Head of the biggest pre-tightening force for the workpiece
50KN
The cooling system flow
600L/min
Cooling system rated pressure
0.36Mpa
Magnetic separator flow
600L/min
Generalmachine layout and main parts structural detail:
1. Machine components
The machine tool is composed by the bed body, head of a bed frame, feeding oiler, oiler feeding system, boring bar, boring bar drag plate feeding system, the work support, boring bar support, work calipers, chip removal filter system, hydraulic system, cooling system, CNC electrical system, automatic lubrication system and other major parts.
2. Boring bar box
Boring rod box is box structure, drive by 70 KW ac servo motorthrough the synchronous belt, rated speed of motor is 1500r / min, top speed is 4500 r/min, the motor is fixed on the upper of the boring bar box, and drive with the boring bar box through the synchronous belt, good driving rigidity, good vibration resistance. Select 70 KW ac servo motor of Germany Siemens.
3. Boring bar support
The machine tool has three boring bar brackets, and boring bar support plays a part in increasing the stiffness of the boring bar, reducing the vibration and stability of the boring bar, make it more smoothly when turns.
Boring bar bracket adopts the centripetal ball bearing support, to ensure not only the accuracy of axial but also the accuracy of radial, using the rotation of the bearing sets makes small rotational resistance and steady running. Manual lubrication pump is mounted on the boring bar bracket, to regularly provide lubrication for rotating assembly.
4. Workpiece calipers
The machine tool is equipped with two hydraulic workpiece calipers, the purpose of the workpiece calipers is to load and unload workpieces conveniently, at the same time to guarantee the stability of workpiece when processing.

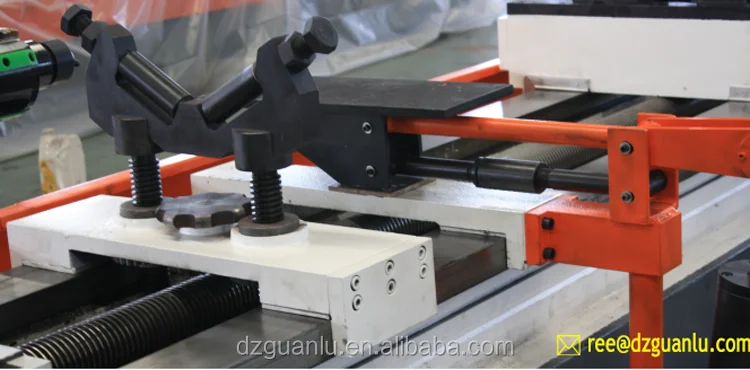

5. Work support
The machine tool is equipped with two work supports, bracket with V type rack can adjust the height from top to bottom, in order to suit the diameters of different work-pieces, head frame to loosen the work-piece when unloading work-pieces, and the work-pieces will fall into the center of the V type roller.

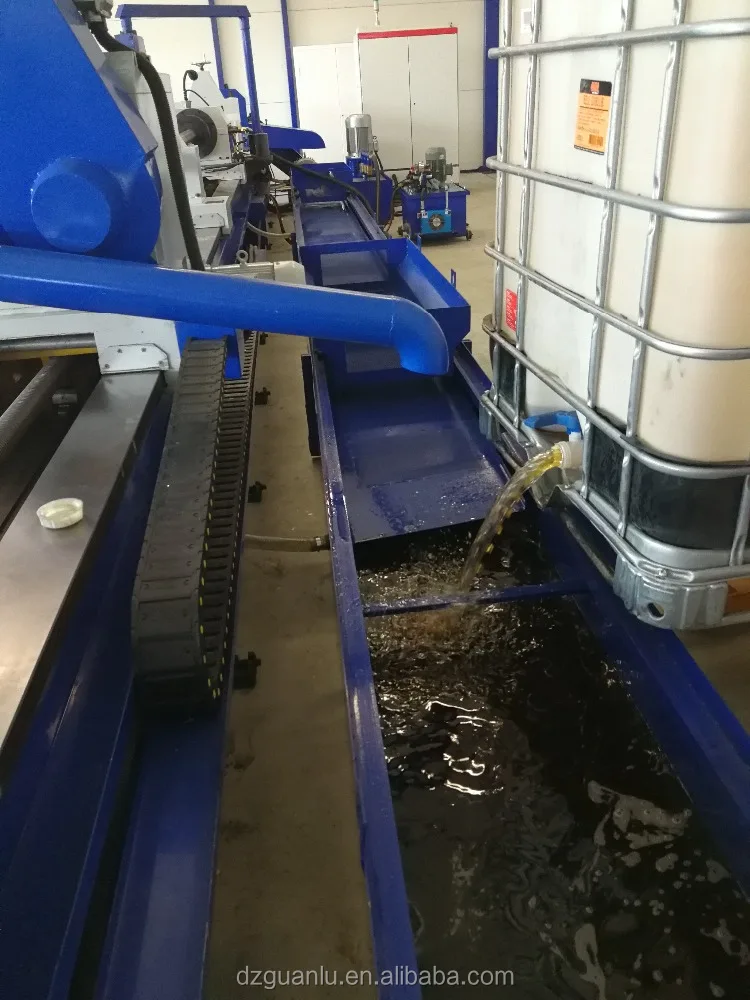

6.Cooling system
The cooling system is on the side of the machine tool, the main parts are the fuel tank, pump station, oil pipe, automatic chip removal machine and magnetic separator. The roles of the coolant are cooling and removing chips.

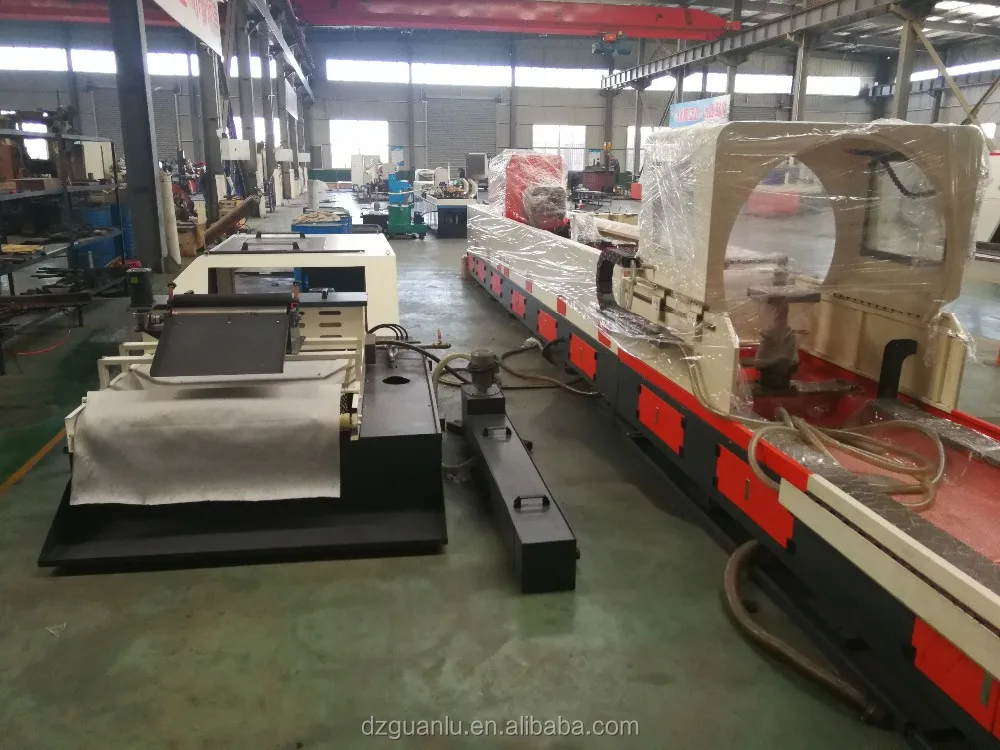

Packaging & Shipping
