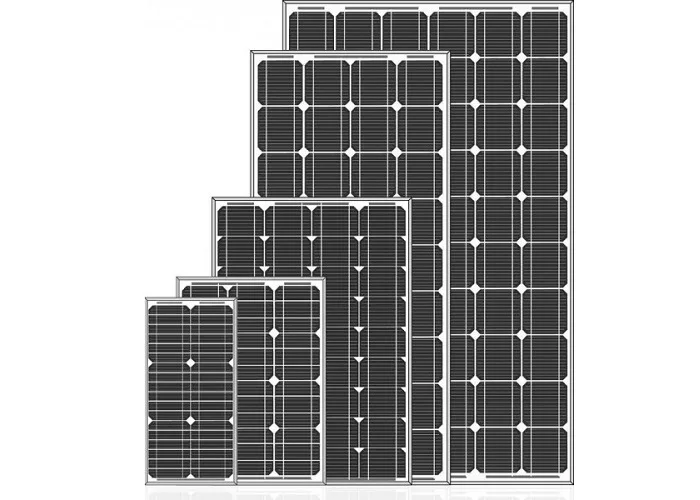

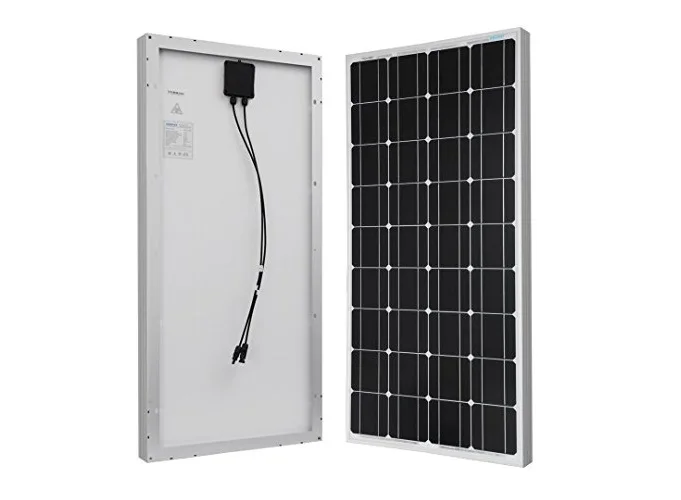

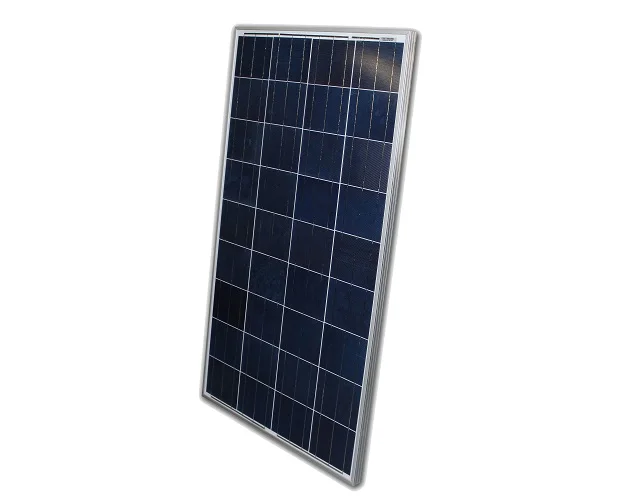

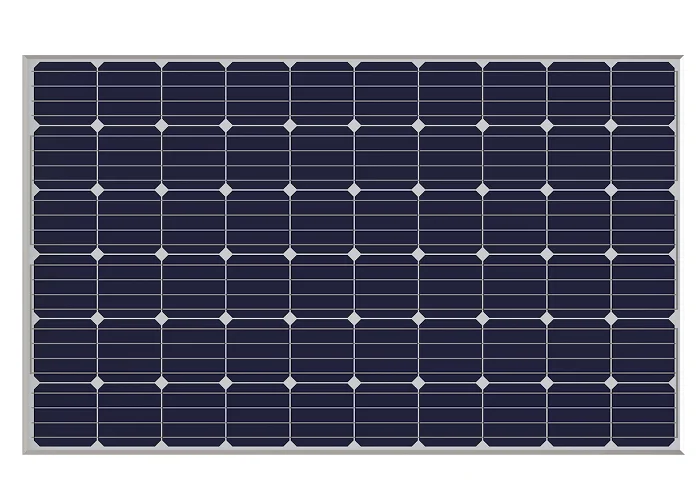

80w,100w,110w,120w,150w,200w,250wsolar panel ,high efficiency solar panel ,OEM solar PV modules
- Category: >>>
- Supplier: Yuyao Ollin Photovoltaic Technology Co. Ltd.
Share on (60736621541):
Product Overview
Description
Electrical Characteristics
| Electrical Characteristics | ||||
| STC (Irradiance 1,000W/m2, module temperature 25ºC, AM=1.5) | OL100M-10 | |||
| Rated Power (Pmax) | 100W | |||
| Voltage at Pmax (Vmp) | 18.1V | |||
| Current at Pmax (Imp) | 5.55A | |||
| Warranted Minimum Pmax | 100W | |||
| Short-Circuit Current (Isc) | 5.99A | |||
| Open-Circuit Voltage (Voc) | 21.6V | |||
| Module Efficiency | 19.00% | |||
| Operating Module Temperature | -40ºC to + 85ºC | |||
| Maximum System Voltage | 1,000V(IEC) / 1,000V(UL) | |||
| Maximum Series Fuse Rating | 15A | |||
| Maximum Reverse Current | 20.25A | |||
| Power Tolerance | 0 ~ +5 W | |||
Features:
ENHANCED EXTERNAL LOAD / IMPACT
Snow Load : 5,400 Pa (30T) / 8,400 Pa (40T)
Wind Load : 2,400 Pa (30T) / 5,400 Pa (40T)
Hail Impact : 30.7m/s (speed ball)
POWER ADVANTAGE
25-year, linear power warranty
> 97.5% nominal power during 1st year
Positive tolerance up to +5W
PID RESISTANCE
Enhanced potential induced degradation
FIRE SAFETY
UL1703 Fire Classification : Type 1, Type 2
ENVIRONMENT RESISTANCE
Suitable for extreme conditions
Resistant to high salt mist and ammonia
(certified by TÜV Rheinland)
AVAILABLE IN TWO THICKNESSES
Standard (30T) and 40T for more durability

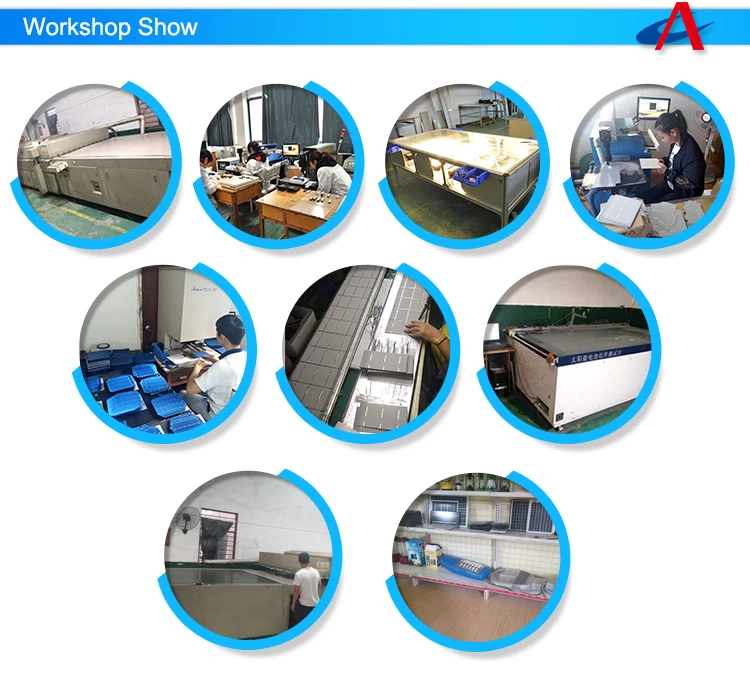

Workshop Show
