8 11 14 passenger shuttle electric shuttle bus craigslist
US $7000-$8500

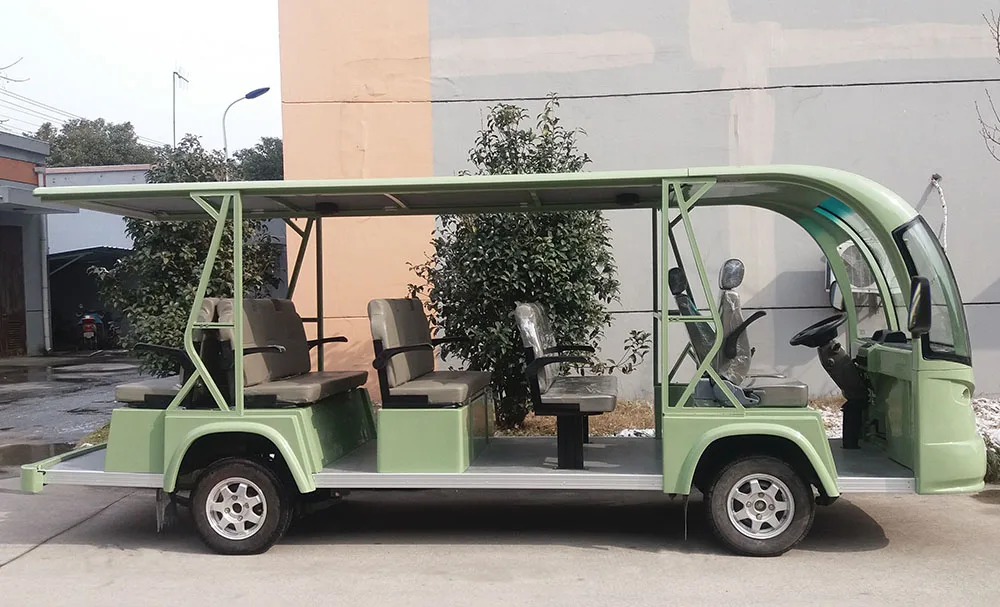

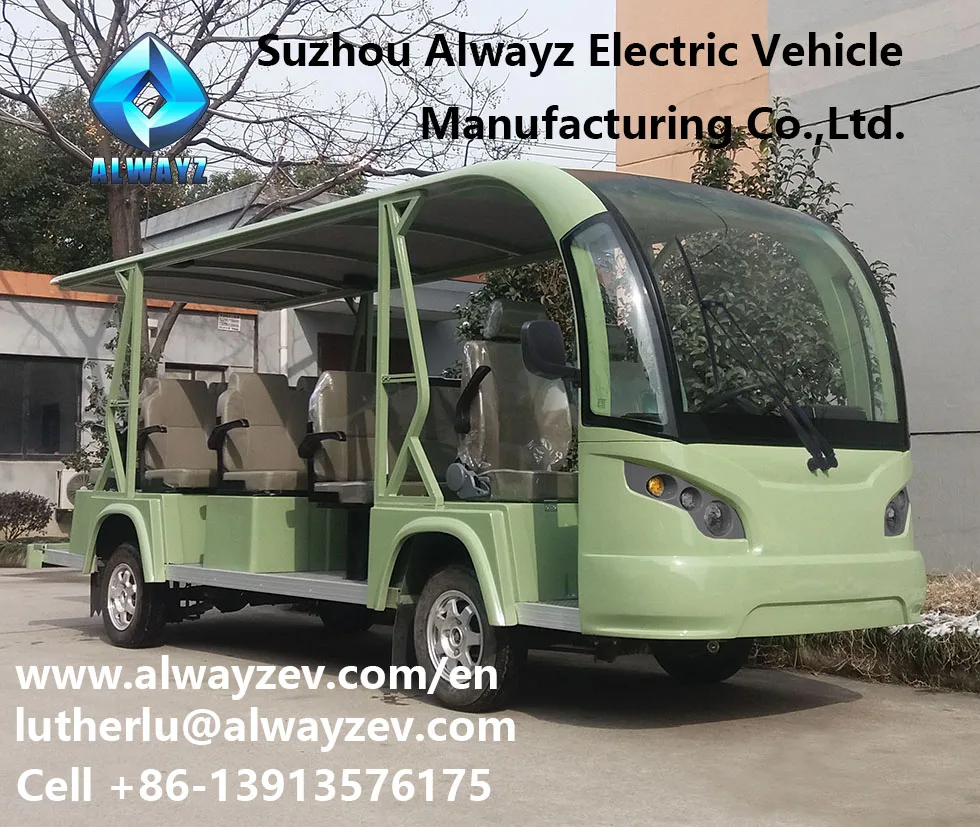

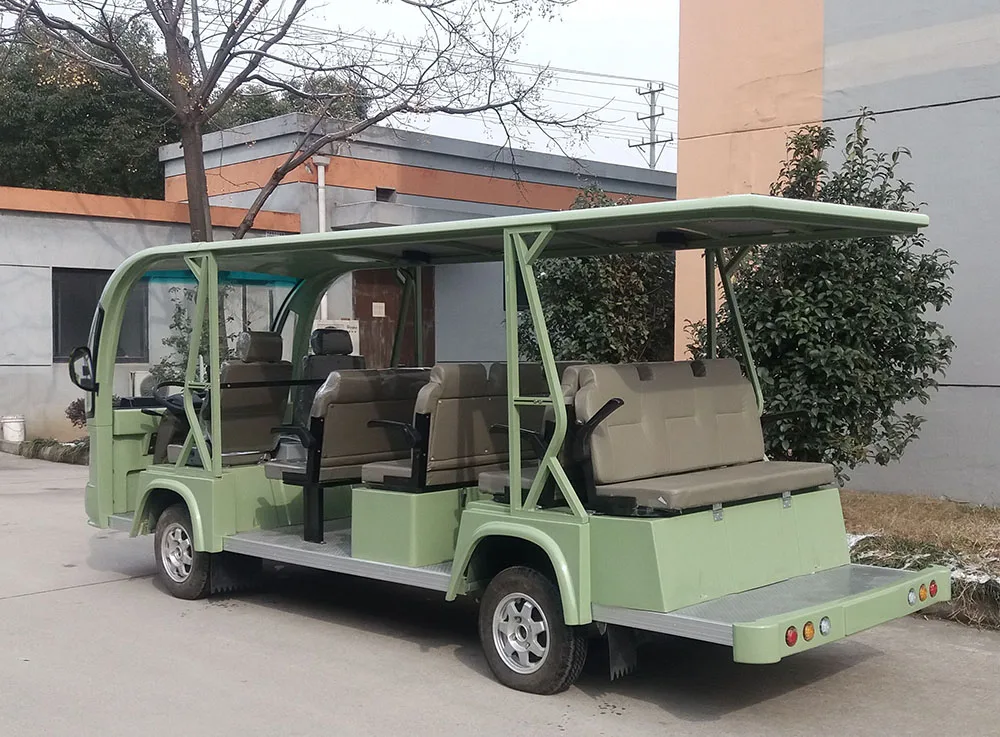

14 seater New energy CE approved Electric sightseeing bus AW6142KF
- Category: Bus >>>
- Supplier: Suzhou Alwayz Electric Vehicle Manufacturing Co. Ltd.
Share on (60736646024):
Product Overview
Description

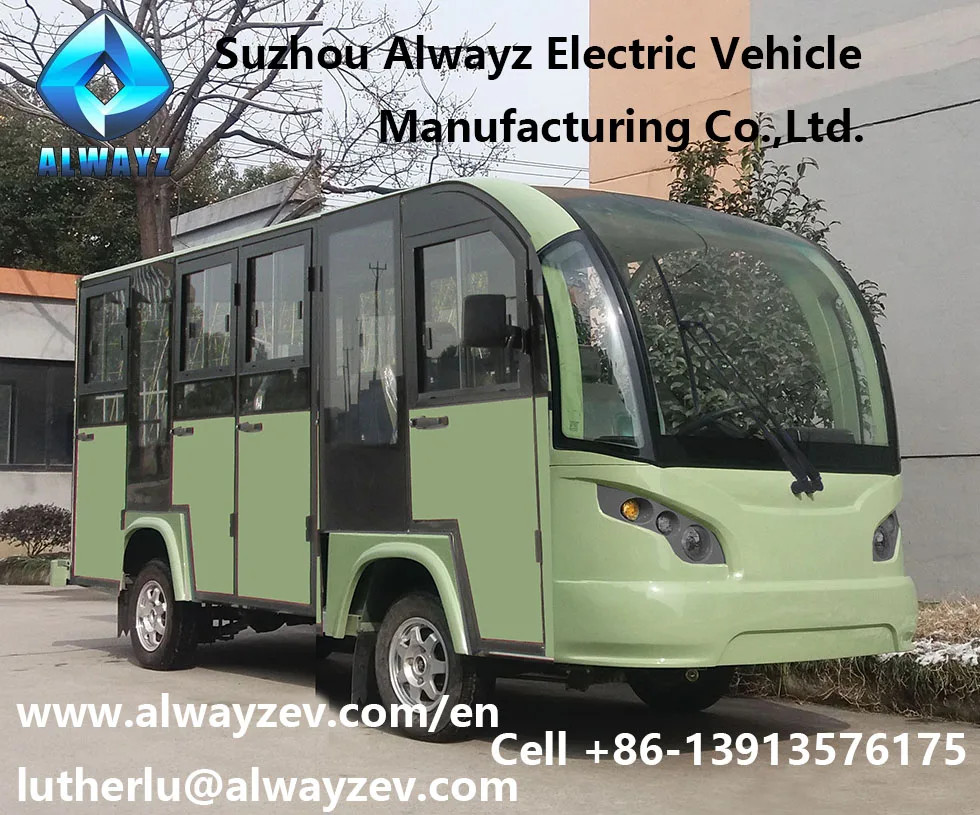

| 14-seater Electric Shuttle Bus with Door | |
| Model | AW6142KF |
| Electric System | |
| System voltage | 72V, DC or AC |
| Motor | 5KW |
| Battery | 12pcs T105 |
| Controller | Curtis |
| Technical Information | |
| Passenger Number | 14 persons |
| Max. Speed | 30km/h |
| Range per charging (fully-loaded vehicle moving on a flat-level road at a fixed speed of 20km/h | >70km |
| Minimum Turning Radius (m) | 4.5 |
| Max. braking distance at a speed of 20km/h | ≤4m |
| Max. Climbing Capacity (loaded) | 25% |
| Max. Loading Capacity | 1120kgs |
| Net Weight | 1100kgs |
| Overall Dimensions | 5050×1525×2050mm |
| Other Specifications | |
| Instruments on dashboard | Combination instrument including power consumption, voltage, current, speed, mileage, time, light, F/R switch, and signal. |
| Rear view mirror | 1pc on each side |
| Lighting system | Headlight, turn lights, taillight, horn and reverse buzzer |
| Seats | High quality of artificial leather |
| Audio | CD and Radio, speakers |
| Switch assembly | Combination switch including Power kety, Light and wiper combination switch, F/R switch and reverse buzzer switch |
| Drive Mode | 2 rear wheel drive, motor on rear axle (stepless) |
| Braking System | Frond drum/rear drum, hydraulic brake, parking brake |
| Front axle and suspension | Independent suspension |
| Rear axle and suspension | Integral rear axle, coil spring non-independent suspension, hydraulic shock absorber tube |
| Steering System | Rack and pinion drive |
| Tire | Aluminum wheel, 155R12,8PR |
| Body | Steel frame + fiberglass |
| Floor | Non-slip floormat |
Company profile
Alwayszev is a leading company focus on R&D and Manufacturing of Low-speed electric vehicles which include Golf Car,Sightseeing Bus,Passengers Bus,Fire engine Car;Utility Car and various customized electric Vehicles,etc.
We have 2 factories, one is in Suzhou. The below is our Chuzhou factory which covers 15,000 square meters.It has
annual production capacity of 50,000 units vehicles.
Certifications
Advantages
1) Controller:
We use Navitas controller which is in 600A big power (big than anyone) and available with APP on mobile phone for easy operation. Curtis controller is also an option.
2) Motor:
We use 5KW AC motor which is designed to work with above controller in order to offer both high speed and big torque.
3) Rear axle:
We use the best rear axle in the market which has been accepted by many American golf cart companies.
4) Battery:
We use the best battery in China which makes the battery for the military.
Container loading
Customers visitors
FAQ
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Or Irrevocable L/C at sight.
Q2. What is your terms of delivery?
A: FOB
Q3. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
