Product Overview

Description



Recommend Products




Products Description




Basic features
■Door selection : sliding door / hinged door.
■Chamber volume : 150 liters to 10 cubic meters.
■The chamber is designed to withstand pressure : -0.1Mpa to 0.25Mpa.
■The chamber is designed to withstand temperature up to 140℃.
■The structure is horizontal rectangular shape.
■2 test programs, 5 programmable cycle programs for users to set.
■Built-in printer.
■USB port to download cycle data to memory devices.

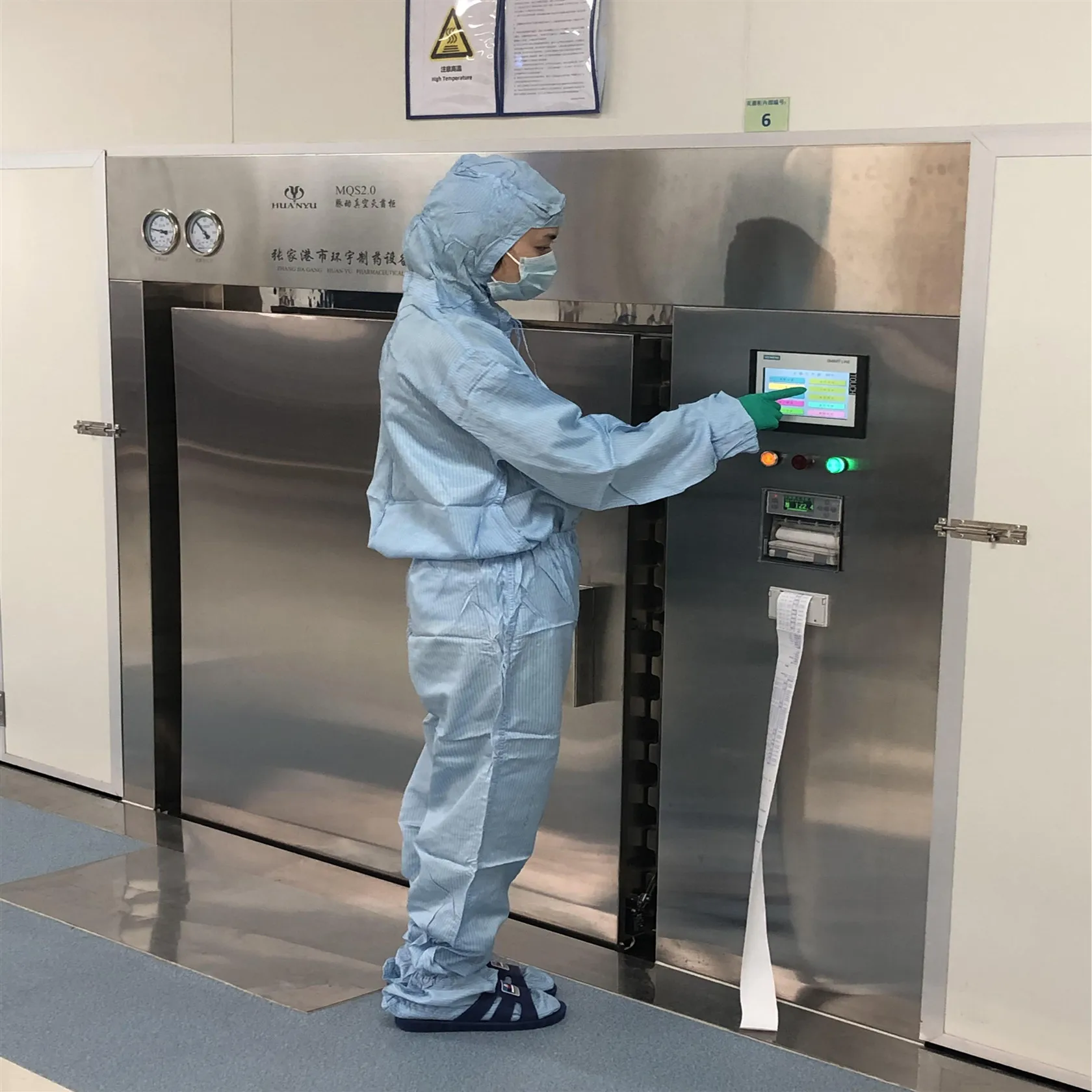

■User friendly control system with touch screen display on loading side and touch buttons on unloading side.

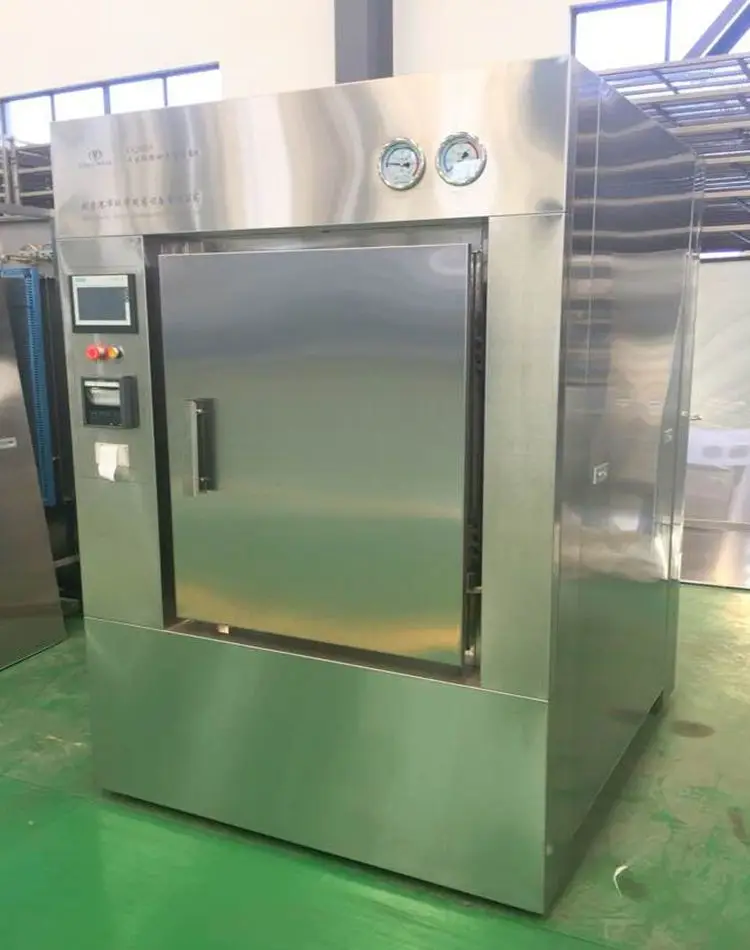

■Independent pressure gauges for chamber and jacket on both front and back panel.


VOLUME
(liter)
MODEL
CHAMBER DIMENSION (mm)
   Depth        Width       Height
                        External DIMENSION (mm)
             Depth                               Width               Height
150
MQS0.15-V
600
500
500
1000
1250
1800

250
MQS0.25-H
800
600
600
1100
1320
1700
MQS0.25-V
1000
500
500
1400
1250
2000

360
MQS0.36-H
1000
600
600
1300
1320
1700
MQS0.36-V
1000
600
600
1400
1350
2100

600
MQS0.6-H
1200
610
910
1500
1320
1950
MQS0.6-V
1450
650
650
1850
1400
2180

800
MQS0.8-H
1450
610
910
1750
1320
1950
MQS0.8-V
1900
650
650
2300
1400
2180
1000
MQS1.0-H
1250
680
1180
1550
1420
2000
1200
MQS1.2-H
1500
680
1180
1800
1420
2000
1500
MQS1.5-H
1900
680
1180
2200
1420
2000
2000
MQS2.0-H
1700
1000
1200
2000
1880
2000
2500
MQS2.5-H
2100
1000
1200
2400
1880
2000
We could also provide the customized size volume up to 10 cubic meters, please contact us detail inquiry!


Detail image


Loading trays
Loading cart & trolley


Sealing door
1）Door panel material: 316L(304) stainless steel, inner surface precision polishing treatment.
2）Switch mode: the motor drives the locking mechanism to translate up and down to achieve the purpose of locking and releasing.
3）Safety interlock: the door is not sealed, and the steam is not allowed into the chamber; when there is pressure in the chamber,not allowed to open the door; Fully comply with the pressure vessel safety interlock standard.
4)Flange,Rack and tooth plate:made of 304 stainless steel,the sealing groove is formed by CNC planer milling machine, and the sealing effect of door apron is good.
Pipeline system
1）Stainless steel pipes without dead angle, ensuring complete drainage.
2）High quality pneumatic valve.
3）Filter: The autoclave is accessorized with high efficiency antibacterial air filter with oylet less than 0.22 micrometers protected by a check valve, which could avoid secondary pollution, and it could be optionally equipped with SIP function.
4）Validation port: Validation port is equipped on the side of the autoclave for the insert of the validation probes for the GMP validation.
5）Temperature control: Both movable and fixed sensor is installed on the autoclave.
6）Optionally accessorized with built-in steam generator;




CONTROL
■PLC and HMI from SIMENS
■Automatic & Manual Operation Mode;
■Stable performance & precise control;
■Multiple sterilize cycles;
■Sterilizing parameters can be set on HMI;
■Print of time, temperature, pressure and etc.
■Display the real-time data and curve and valve status.


GRAVITY CYCLE
The gravity cycle is used for the liquid and media inside the open top glass containers, for instance, the culture medium and animal drinks. The gravity cycle displace the chamber air by gravity of the air.
PRE VACUUM CYCLE
The autoclave vacuum pump conducts 3/4 times of pre-vacuum in the beginning of the cycle to remove the chamber air more than 99%, so that the chamber steam could have good penetration, and temperature more even by this way.


Application




This series of MQS series pulse vacuum autoclave is widely used for the sterilization of textile, metal utensils, filters, glassware, and medium (liquid product stored in open container).



Certifications








Product packaging


Packed by high quality wooden cases
Container load


Company Profile










Why choose us:
1)More than 20 years manufacture experience,and 19 years export experience.
2) We value every inquiry sent to us, ensure quick and competitive offer.
3)We put your order into our tight production schedule,ensure your punctual delivery time.
4)We are a sales team ,with all technical support from our engineer team.


After-sales service:
1)We deal with your complains within 24 hours. 2)Product configuration design using modular approach can be developed and produced according to user needs all kinds of special specification products to meet the diverse needs of the market. 3)All staffs in our company with philosophy of "integrity,dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you, and wish to create better future with you!
