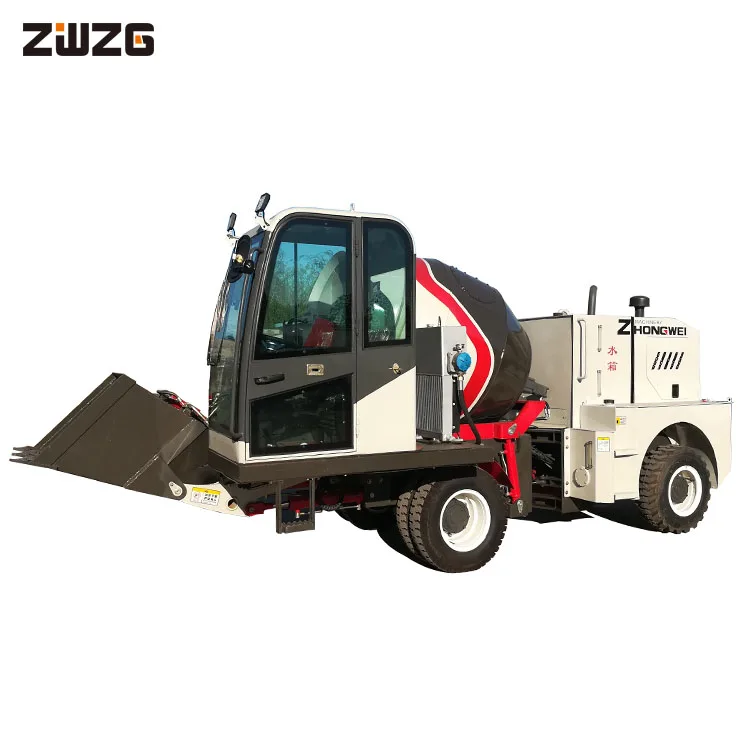

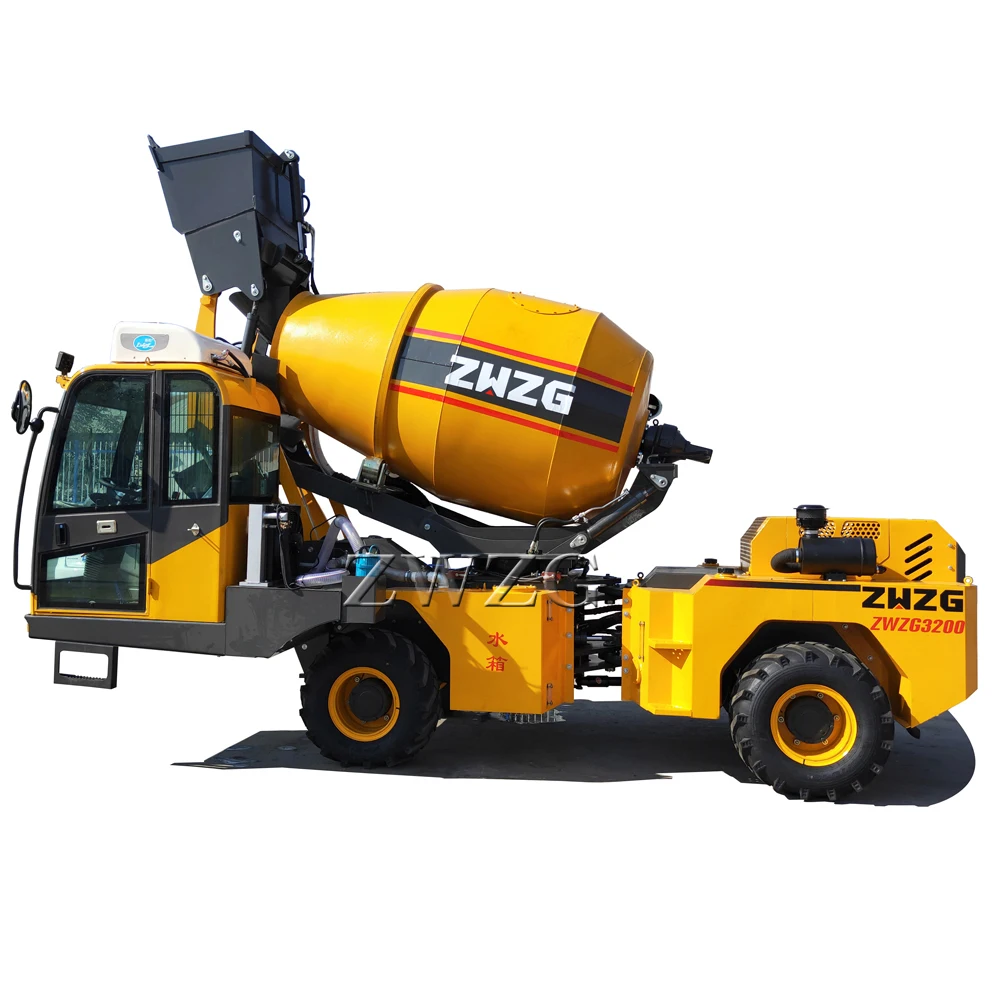

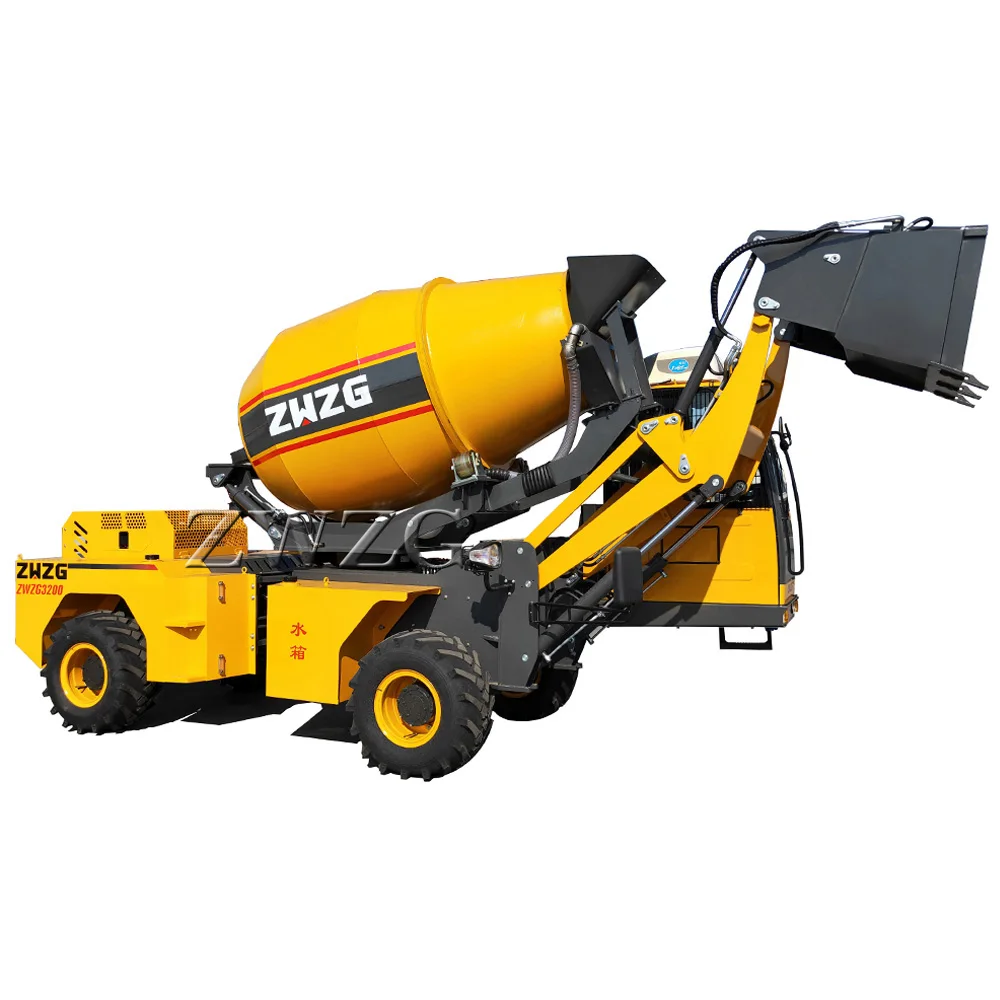

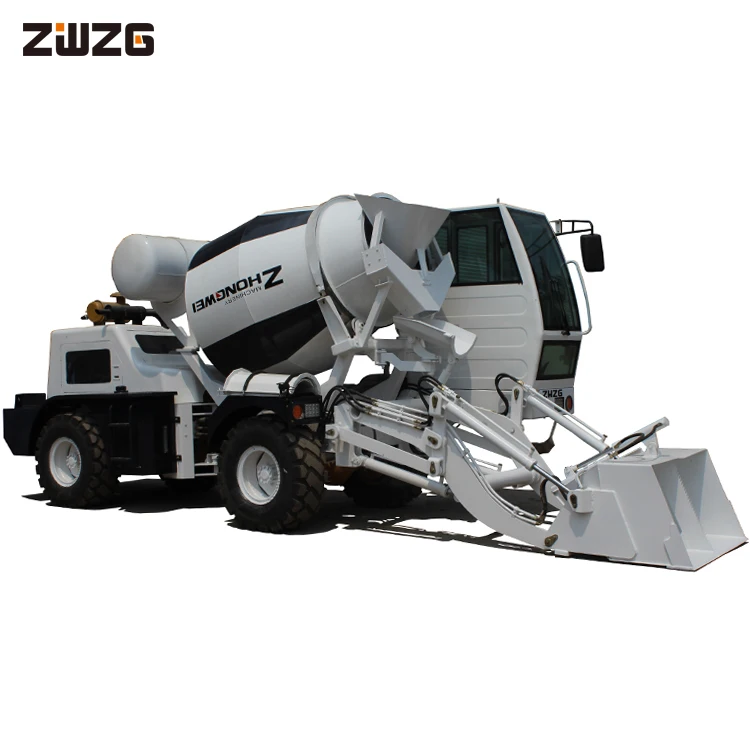

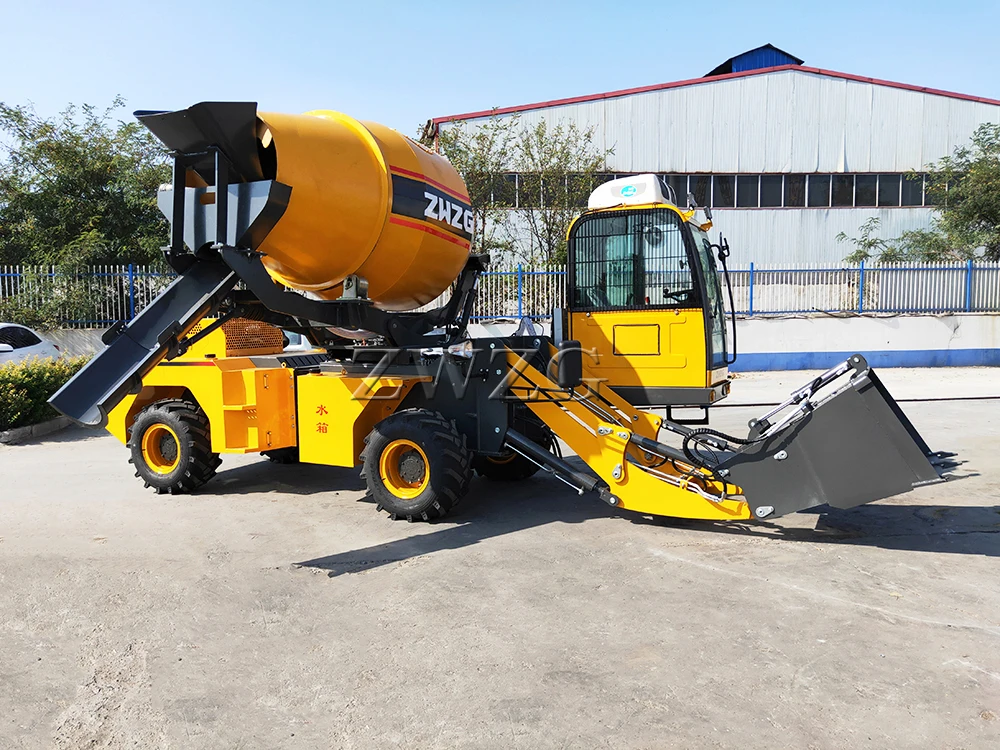

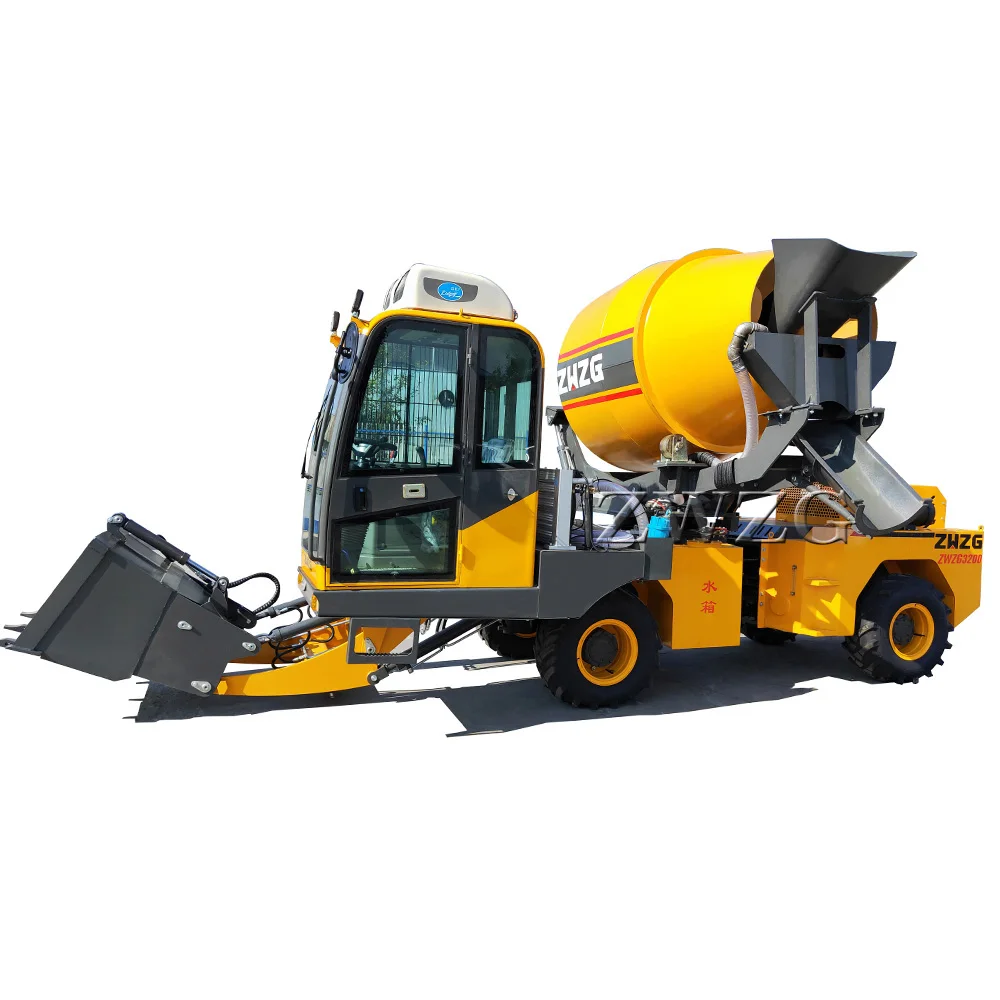

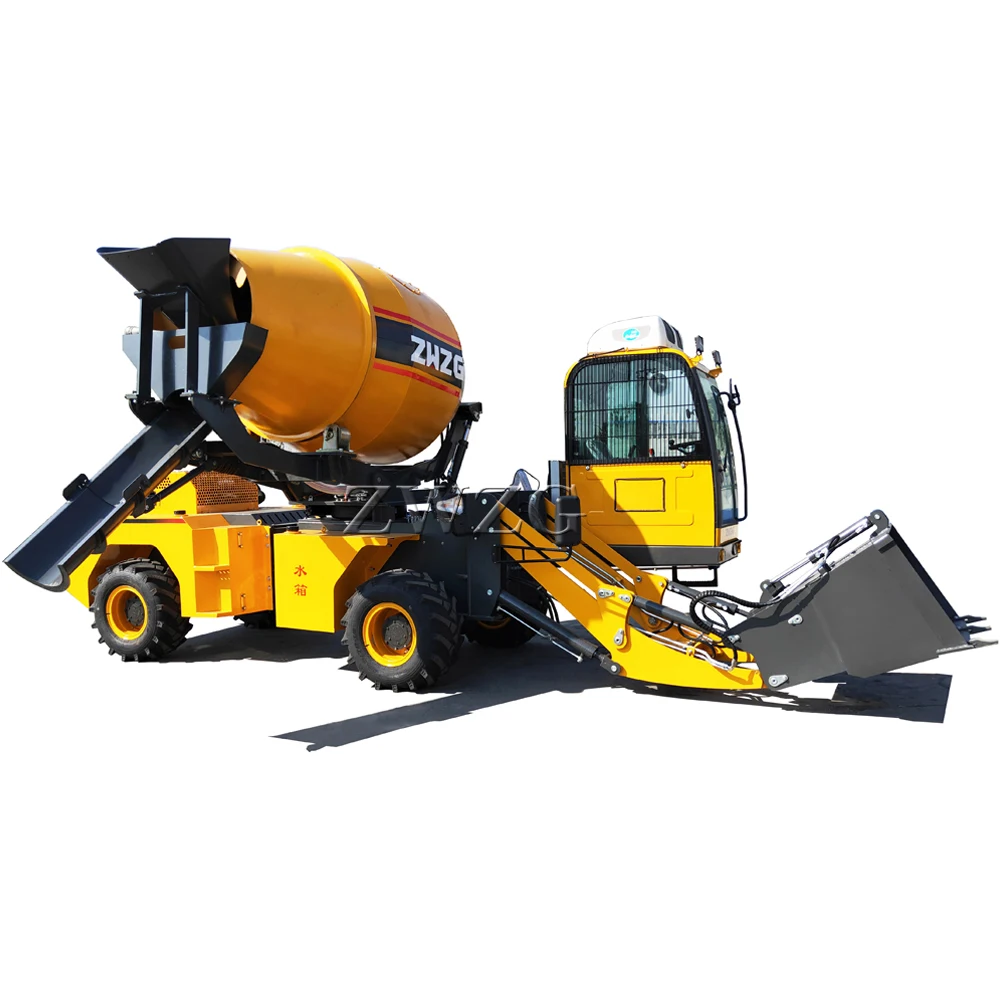

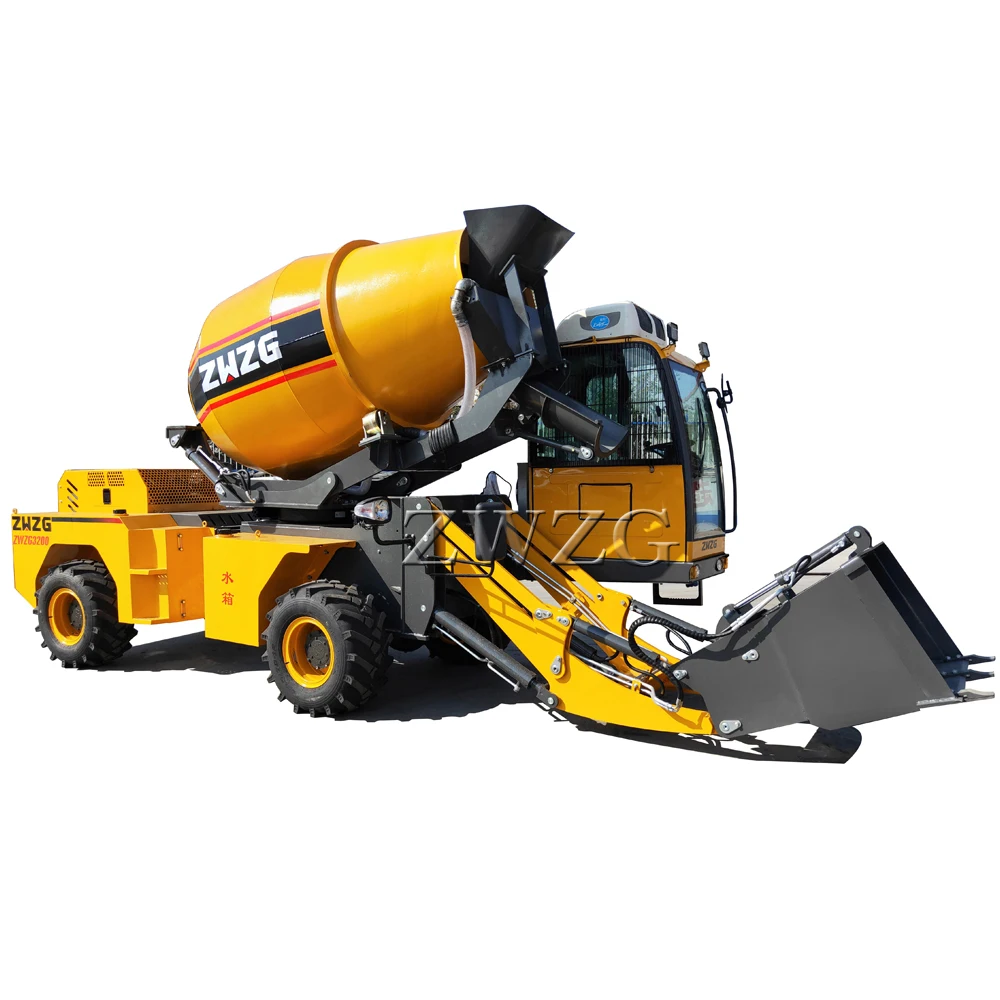

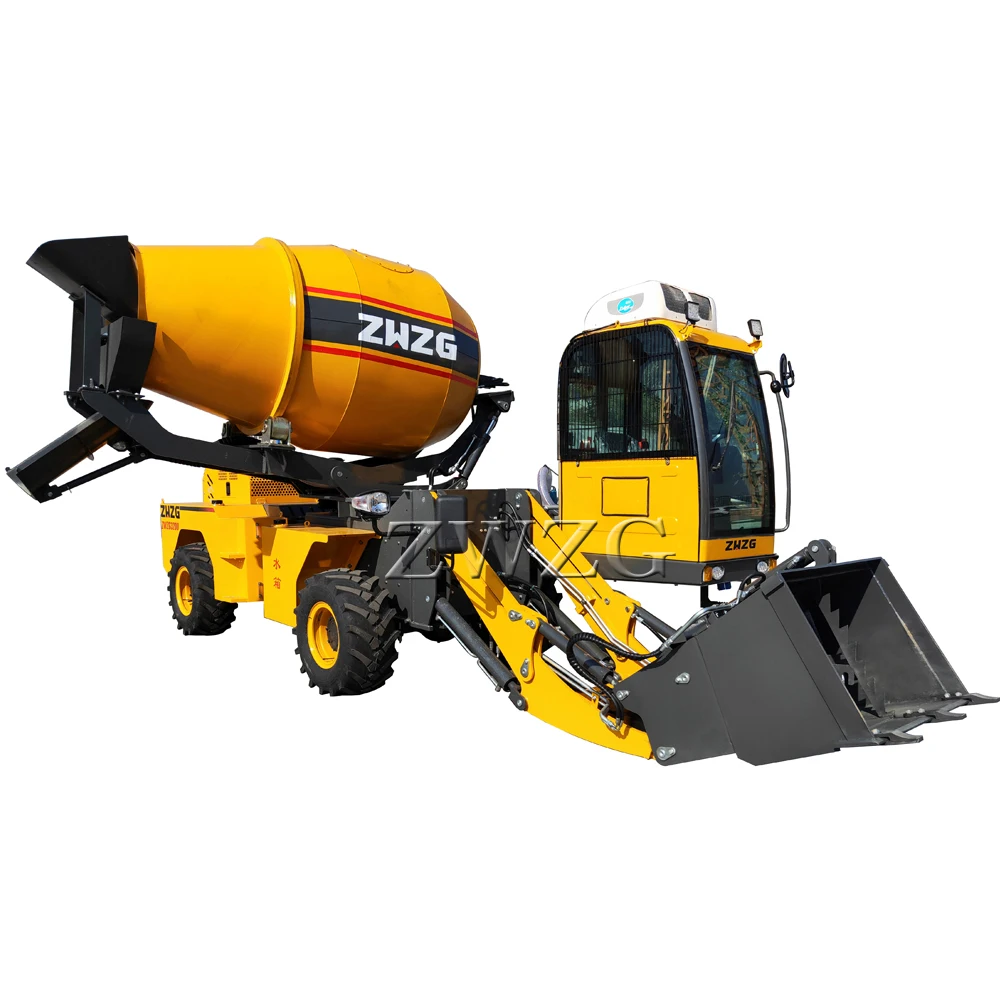

Mobile concrete mixer 4.0cbm 92 KW engine high quality concrete mixer gearbox

Engine
Model
YN33GBZ
Injection
Direct injection,mechanicalcontro
Max. power
65kw

Steering system
2 wheel steering,the steering is assisted by a double displancement load-sensing power steering system on 2 steering wheels.
4*4 four-wheel drive:Hydraulic torque converter,open hydrauliv gear pump,reverse gear control device.Control"working speed"and
"moving speed"

Speed

3 forward gears 2 reverse gears
The first gear:6-7km/hour .The second gear:7-20km/hour
The third gear:20-25km/hour
Front axle,steering,wheel side deceleration Axle,the axle is equipped with a planet reduction gear
Rear axle,swing(±28°),the axle is equipped with a planet reduction gear

Tires
Front tires
750-16(4 pieces)
Rear tires
12-16.5(2 pieces)

Brake
The internal hub-type travel brakes and emergency brakes act on 4 wheels,using a small servo pump on the dual loop.Negative
pressure type parking brake,the front axle is equipped with an internal hub.

Water supply system
"Self-priming"24v large capacity pump,with fast absorption fucnction.
Max.flow
90L/min
Two water thanks connected with each other and opposite layout,total capcacity :2*260L
The water intanke of the cylinder is controlled by the electromagnetic flow meter and the water intake reading on the display
screen of the operating water.
Sit on the side of the drive's seat to enable the pump.
Equipped with high pressure pump to fiush vehicle

Mixing and unloading
Double cone cylinder with double spiral stirring acrew and middle convex bottom
Drum geometric capacity
4000L
Drum rotation speed
15r/min
Concrete production
2.0cbm/tank
The counterforce rack mounted on the ball saddle can be hydraulically rotated at 180"and
automatially locked by a hydraulic brake.
The rotation of the rollere is achieved by the cycloidal hydraulic motor of the open circuit of the gear pump.
The roller is raised to a horizontal position by 2 double acting jacks.
As a standard configuration, 2 doule extensions are provided.
