 ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER





 Introduction:


» ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER is designed according the standards GB/T3536-2008 Test Method for Flash Point and Fire Point of Petroleum Products - Cleveland Open Cup Method,ASTM D92 and ISO2592.


» ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER is applies to determine the flash point and fire point of petroleum products which flash points higher than 79 °C except fuel oils.





Main Technical Features:




  • ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER adopts technology of single chip microcomputer and LCD screen. English man-machine interface.The heating device is continuously stepless adjustable.Easy to set parameters.

  • The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.

  • ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER is newly design,having small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.

  • ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test. Accurate heating rate.The instrument can do test automatically.

  • Operator only need to observe the flash point appearing. The cost performance is high.








Main Technical Specs:


ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER




































































1
Power supply


AC(220±10%)V, 50Hz.

2
Heating device


Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400°C.

3
Temperature control


Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.

4
Temperature display


LCD screen shows temperature parameters. The range is 0°C~400°C, accuracy is 0.1°C.

5
Flash point detecting device


scanning the flash point automatically.

6
Temperature sensor


RTD, PT100

7
Igniting device


(1) Ignition source: coal gas (or civil gas,the same below)


(2) Flame diameter is 3.2mm~4.8mm

8
Ambient temperature


(-10∼50)°C

9
Relative humidity


≤85%

10
Maximum power consumption


650W

11
Dimension


340mm*320mm*450mm (Temperature sensor is included)

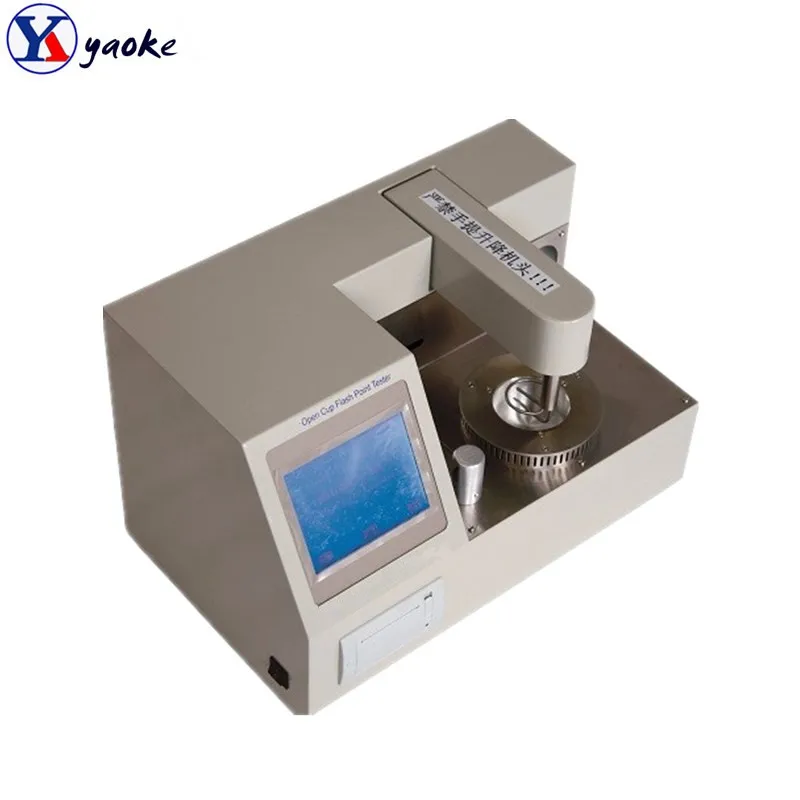

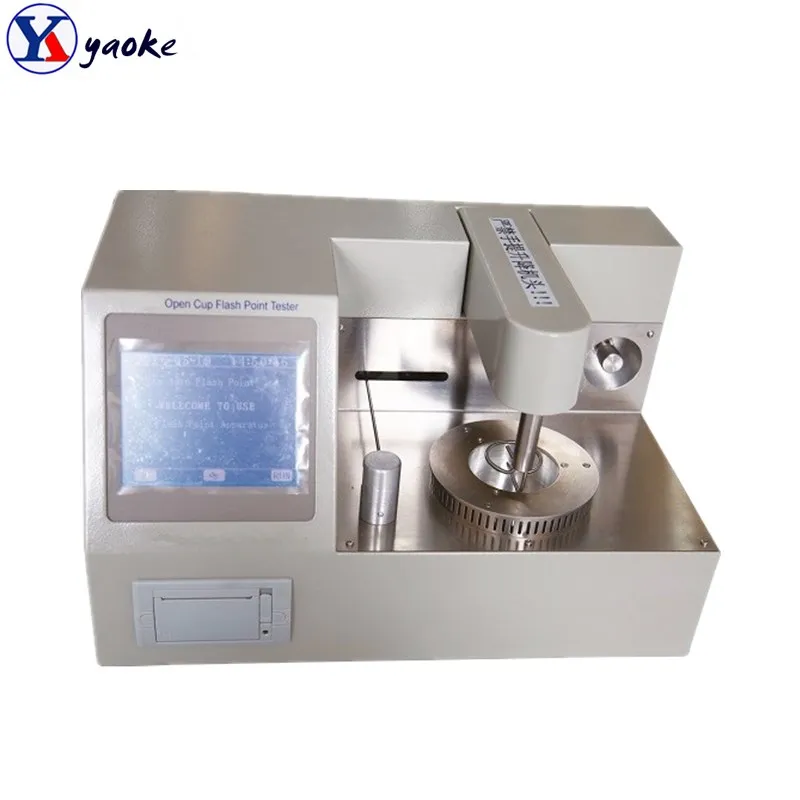

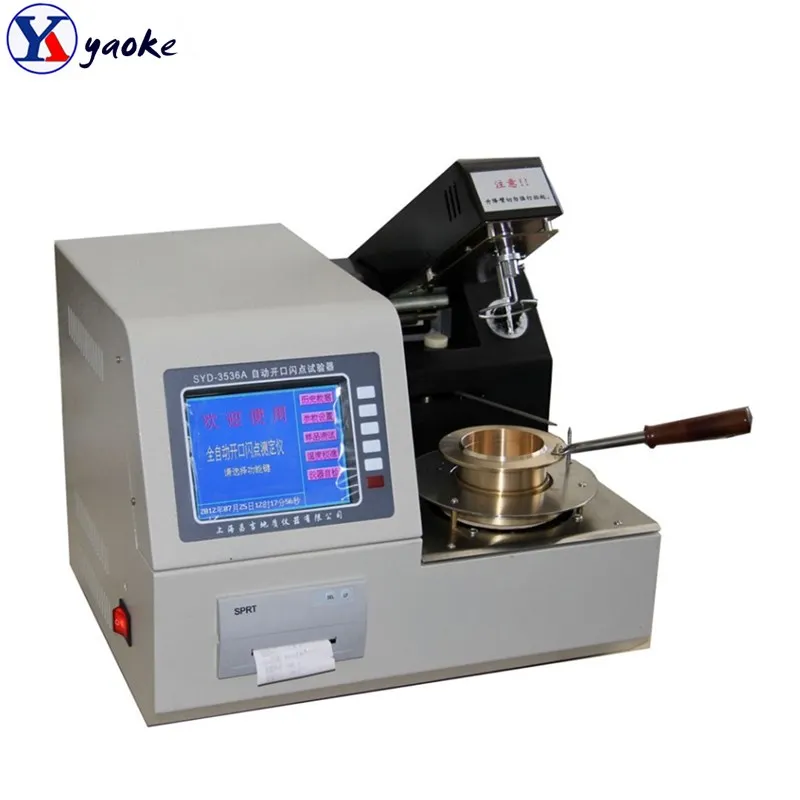

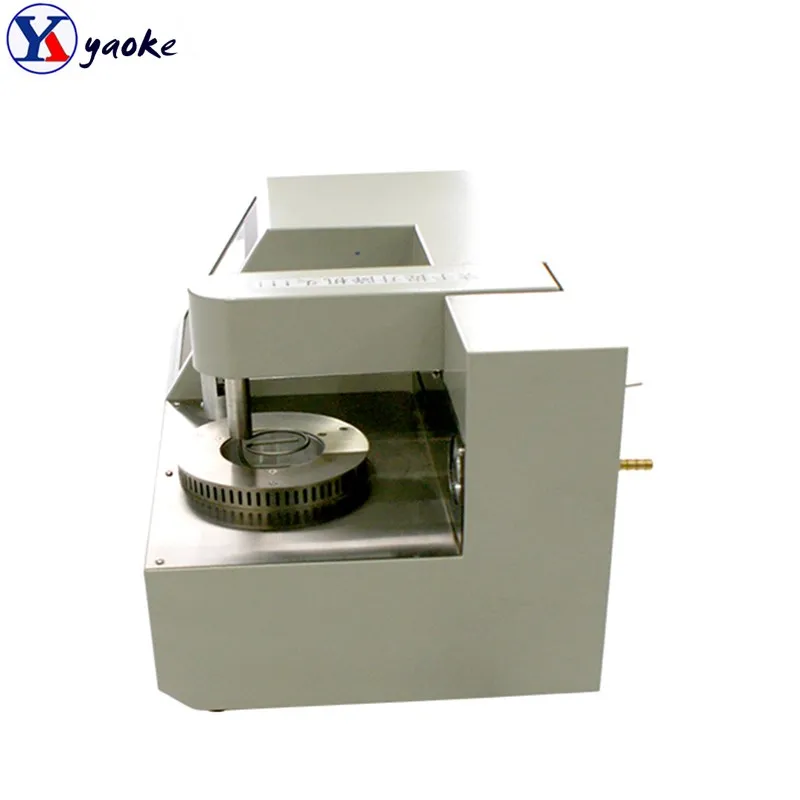

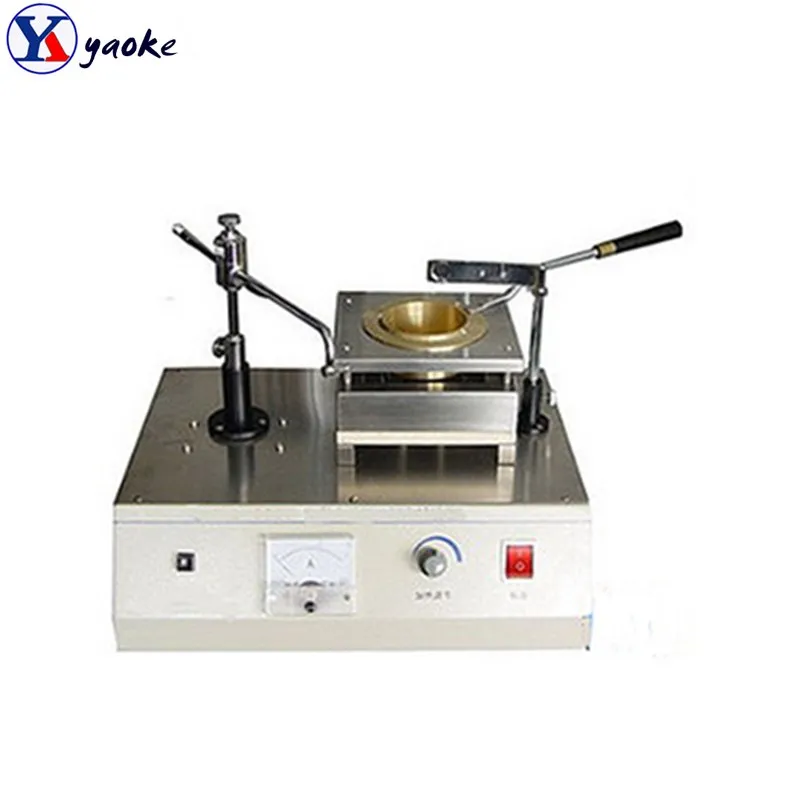

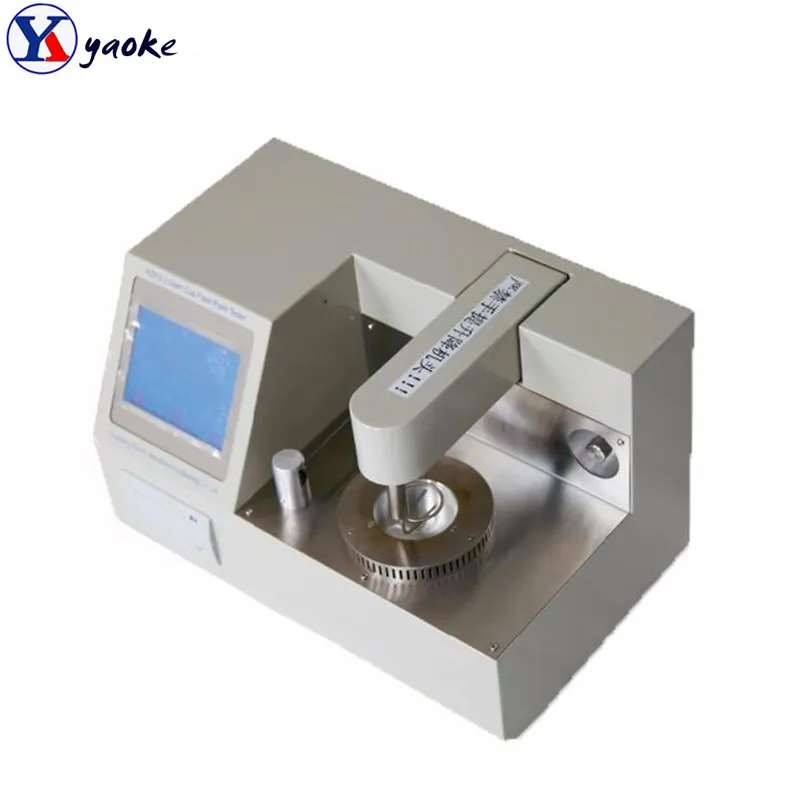

Detailed Images


 ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER









Our Services


ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER







Warranty & Service




1. One year warranty service after the product was sold.
2. In the warranty period, users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. Please read the product manual carefully before using this product. Operating the product strictly according to the operation method.
5. Users encounter problems when using our products , pls contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.











Packaging & Shipping


ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER






FAQ


ISO 2592 ASTM D92 IP 36 CLEVELAND OPEN CUP FLASH POINT TESTER







1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2.Excellent After sale Service: 12 months warranty.

3.Commitment: We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.






Contact



If you interest in our machine, do not hesizate to send inquiry now !

Yaoke--Amy Zhang




    sales2[@]yaokemachine.com
    live:1281687856


     +86-18681193869


      L1281687856





Website        www.yaoke.en.alibaba.com
Address       No. 33, Qinnghu Road, Qinnghutou, Tangxia Town,Dongguan,Guangdong
